The "core" module contains: More...

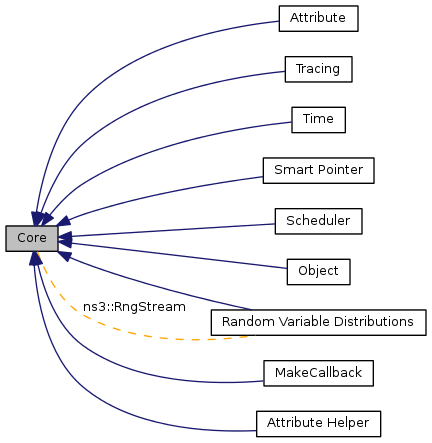

Collaboration diagram for Core:

Modules
	Attribute
	Attribute Helper
	MakeCallback
	Object
	Random Variable Distributions
	Scheduler
	Smart Pointer
	Time
	Tracing

Namespaces
namespace	ns3::Config
	Configuration of simulation parameters and tracing.

Classes
class	ns3::CommandLine
	parse command-line argumentsInstances of this class can be used to parse command-line arguments: users can register new arguments with CommandLine::AddValue but the most important functionality provided by this class is that it can be used to set the 'initial value' of every attribute in the system with the More...
class	ns3::EventId
	an identifier for simulation events. More...
class	ns3::EventImpl
	a simulation event More...
class	ns3::RngStream
	Combined Multiple-Recursive Generator MRG32k3a. More...
class	ns3::Simulator
	Control the scheduling of simulation events. More...
class	ns3::Timer
	a simple Timer class More...
class	ns3::Watchdog
	a very simple watchdog More...

Detailed Description

The "core" module contains:

a time management class to hold a time and convert between various time units: ns3::Time
a scheduler base class used to implement new simulation event schedulers: ns3::Scheduler and ns3::SchedulerFactory
a simulator class used to create, schedule and cancel events: ns3::Simulator
a Functor class: ns3::Callback
an os-independent interface to get access to the elapsed wall clock time: ns3::SystemWallClockMs
a class to register regression tests with the test manager: ns3::Test and ns3::TestManager
debugging facilities: Logging, Assert
Random Variable Distributions
a base class for objects which need to support per-instance "attributes" and trace sources: ns3::ObjectBase
a base class for objects which need to support reference counting and dynamic object aggregation: ns3::Object
a smart-pointer class ns3::Ptr designed to work together with ns3::Object
a configuration class used to set and control all attributes and trace sources in a simulation: ns3::Config.

Modules
