ns3::AmrrWifiManager Class Reference
Wifi Models

AMRR Rate control algorithmThis class implements the AMRR rate control algorithm which was initially described in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti. More...

#include <amrr-wifi-manager.h>

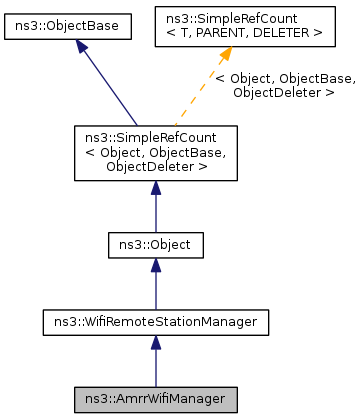

+ Inheritance diagram for ns3::AmrrWifiManager:

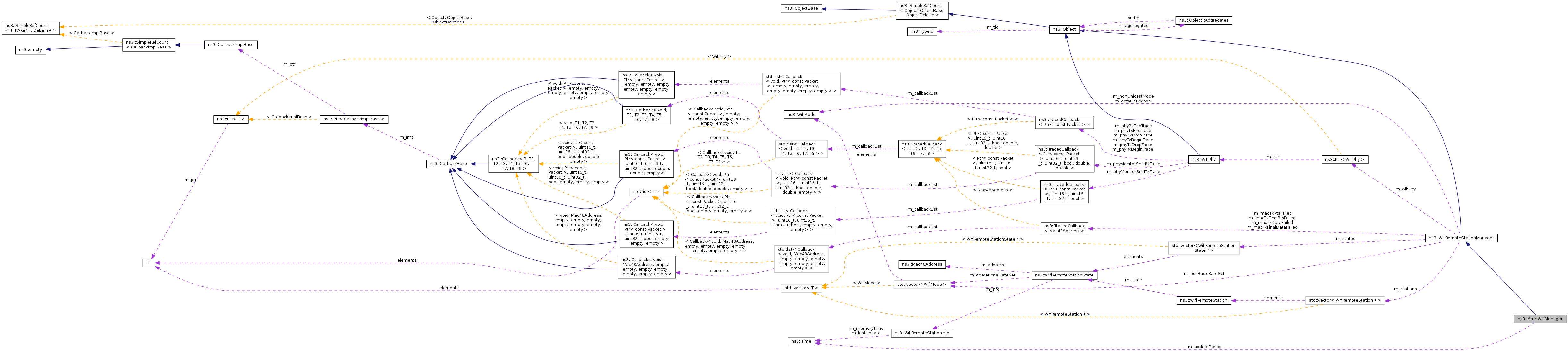

+ Collaboration diagram for ns3::AmrrWifiManager:

Public Member Functions

 AmrrWifiManager ()
- Public Member Functions inherited from ns3::WifiRemoteStationManager
 WifiRemoteStationManager ()
virtual ~WifiRemoteStationManager ()
void AddBasicMode (WifiMode mode)
void AddSupportedMode (Mac48Address address, WifiMode mode)
WifiMode GetAckMode (Mac48Address address, WifiMode dataMode)
WifiMode GetBasicMode (uint32_t i) const
WifiMode GetCtsMode (Mac48Address address, WifiMode rtsMode)
WifiMode GetDataMode (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
WifiMode GetDefaultMode (void) const
uint32_t GetFragmentationThreshold (void) const
uint32_t GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
uint32_t GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
WifiRemoteStationInfo GetInfo (Mac48Address address)
uint32_t GetMaxSlrc (void) const
uint32_t GetMaxSsrc (void) const
uint32_t GetNBasicModes (void) const
WifiMode GetNonUnicastMode (void) const
uint32_t GetRtsCtsThreshold (void) const
WifiMode GetRtsMode (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool IsAssociated (Mac48Address address) const
bool IsBrandNew (Mac48Address address) const
bool IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool IsWaitAssocTxOk (Mac48Address address) const
bool NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
void PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
void RecordDisassociated (Mac48Address address)
void RecordGotAssocTxFailed (Mac48Address address)
void RecordGotAssocTxOk (Mac48Address address)
void RecordWaitAssocTxOk (Mac48Address address)
void ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
void ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
void ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
void ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
void ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
void ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
void ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)
void Reset (void)
void Reset (Mac48Address address)
void SetFragmentationThreshold (uint32_t threshold)
void SetMaxSlrc (uint32_t maxSlrc)
void SetMaxSsrc (uint32_t maxSsrc)
void SetRtsCtsThreshold (uint32_t threshold)
virtual void SetupPhy (Ptr< WifiPhy > phy)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

void DecreaseRate (AmrrWifiRemoteStation *station)
virtual WifiRemoteStation * DoCreateStation (void) const
virtual WifiMode DoGetDataMode (WifiRemoteStation *station, uint32_t size)
virtual WifiMode DoGetRtsMode (WifiRemoteStation *station)
virtual void DoReportDataFailed (WifiRemoteStation *station)
virtual void DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)
virtual void DoReportFinalDataFailed (WifiRemoteStation *station)
virtual void DoReportFinalRtsFailed (WifiRemoteStation *station)
virtual void DoReportRtsFailed (WifiRemoteStation *station)
virtual void DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)
virtual void DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)
void IncreaseRate (AmrrWifiRemoteStation *station)
bool IsEnough (AmrrWifiRemoteStation *station) const
bool IsFailure (AmrrWifiRemoteStation *station) const
virtual bool IsLowLatency (void) const
bool IsMaxRate (AmrrWifiRemoteStation *station) const
bool IsMinRate (AmrrWifiRemoteStation *station) const
bool IsSuccess (AmrrWifiRemoteStation *station) const
void ResetCnt (AmrrWifiRemoteStation *station)
void UpdateMode (AmrrWifiRemoteStation *station)
void UpdateRetry (AmrrWifiRemoteStation *station)

Private Attributes

double m_failureRatio
uint32_t m_maxSuccessThreshold
uint32_t m_minSuccessThreshold
double m_successRatio
Time m_updatePeriod

Additional Inherited Members

- Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void DoDispose (void)
uint32_t GetNSupported (const WifiRemoteStation *station) const
WifiMode GetSupported (const WifiRemoteStation *station, uint32_t i) const

Detailed Description

AMRR Rate control algorithm

This class implements the AMRR rate control algorithm which was initially described in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Config Paths

ns3::AmrrWifiManager is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::AmrrWifiManager

Attributes

  • UpdatePeriod: The interval between decisions about rate control changes
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +1000000000.0ns
    • Flags: construct write read
  • FailureRatio: Ratio of minimum erroneous transmissions needed to switch to a lower rate
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:1
    • Initial value: 0.333333
    • Flags: construct write read
  • SuccessRatio: Ratio of maximum erroneous transmissions needed to switch to a higher rate
  • MaxSuccessThreshold: Maximum number of consecutive success periods needed to switch to a higher rate
  • MinSuccessThreshold: Minimum number of consecutive success periods needed to switch to a higher rate

Attributes defined in parent class ns3::WifiRemoteStationManager

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiRemoteStationManager

  • MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
  • MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
  • MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
  • MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 39 of file amrr-wifi-manager.h.

Constructor & Destructor Documentation

ns3::AmrrWifiManager::AmrrWifiManager ( )

Definition at line 82 of file amrr-wifi-manager.cc.

Member Function Documentation

void ns3::AmrrWifiManager::DecreaseRate ( AmrrWifiRemoteStation *  station)
private

Definition at line 183 of file amrr-wifi-manager.cc.

References ns3::AmrrWifiRemoteStation::m_txrate.

Referenced by UpdateMode().

+ Here is the caller graph for this function:

WifiRemoteStation * ns3::AmrrWifiManager::DoCreateStation ( void  ) const
privatevirtual

Definition at line 87 of file amrr-wifi-manager.cc.

References m_minSuccessThreshold, ns3::AmrrWifiRemoteStation::m_nextModeUpdate, ns3::AmrrWifiRemoteStation::m_recovery, ns3::AmrrWifiRemoteStation::m_retry, ns3::AmrrWifiRemoteStation::m_success, ns3::AmrrWifiRemoteStation::m_successThreshold, ns3::AmrrWifiRemoteStation::m_tx_err, ns3::AmrrWifiRemoteStation::m_tx_ok, ns3::AmrrWifiRemoteStation::m_tx_retr, ns3::AmrrWifiRemoteStation::m_txrate, m_updatePeriod, and ns3::Now().

+ Here is the call graph for this function:

WifiMode ns3::AmrrWifiManager::DoGetDataMode ( WifiRemoteStation *  station,
uint32_t  size
)
privatevirtual

Definition at line 253 of file amrr-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetNSupported(), ns3::WifiRemoteStationManager::GetSupported(), ns3::AmrrWifiRemoteStation::m_retry, ns3::AmrrWifiRemoteStation::m_txrate, NS_ASSERT, and UpdateMode().

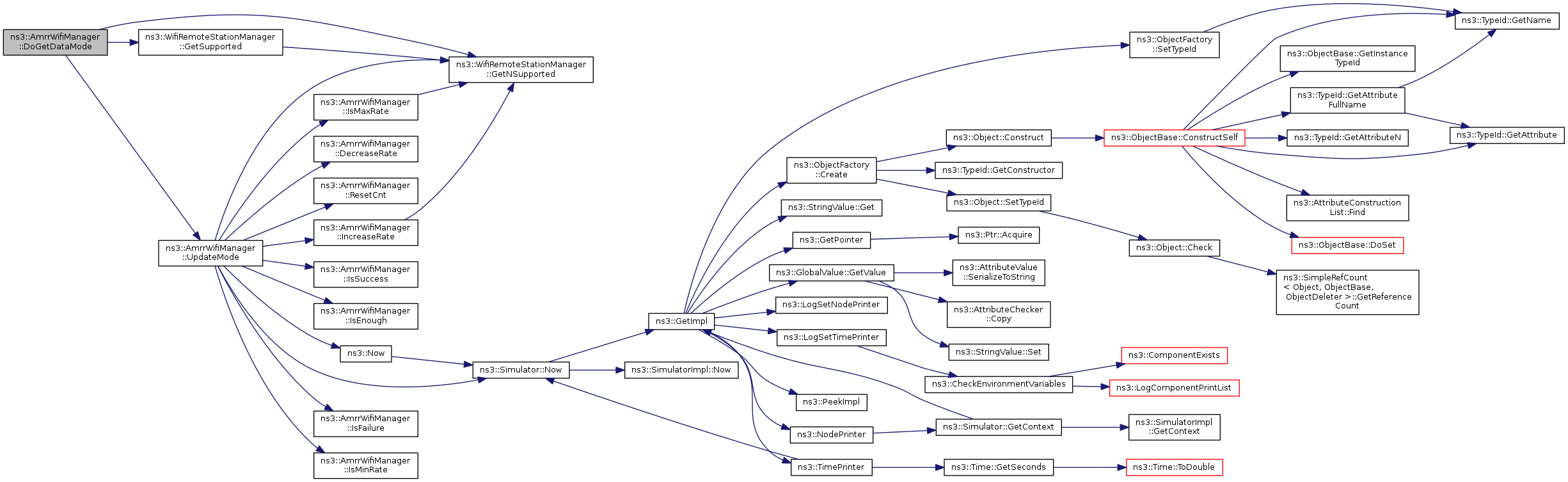

+ Here is the call graph for this function:

WifiMode ns3::AmrrWifiManager::DoGetRtsMode ( WifiRemoteStation *  station)
privatevirtual

Definition at line 300 of file amrr-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetSupported(), and UpdateMode().

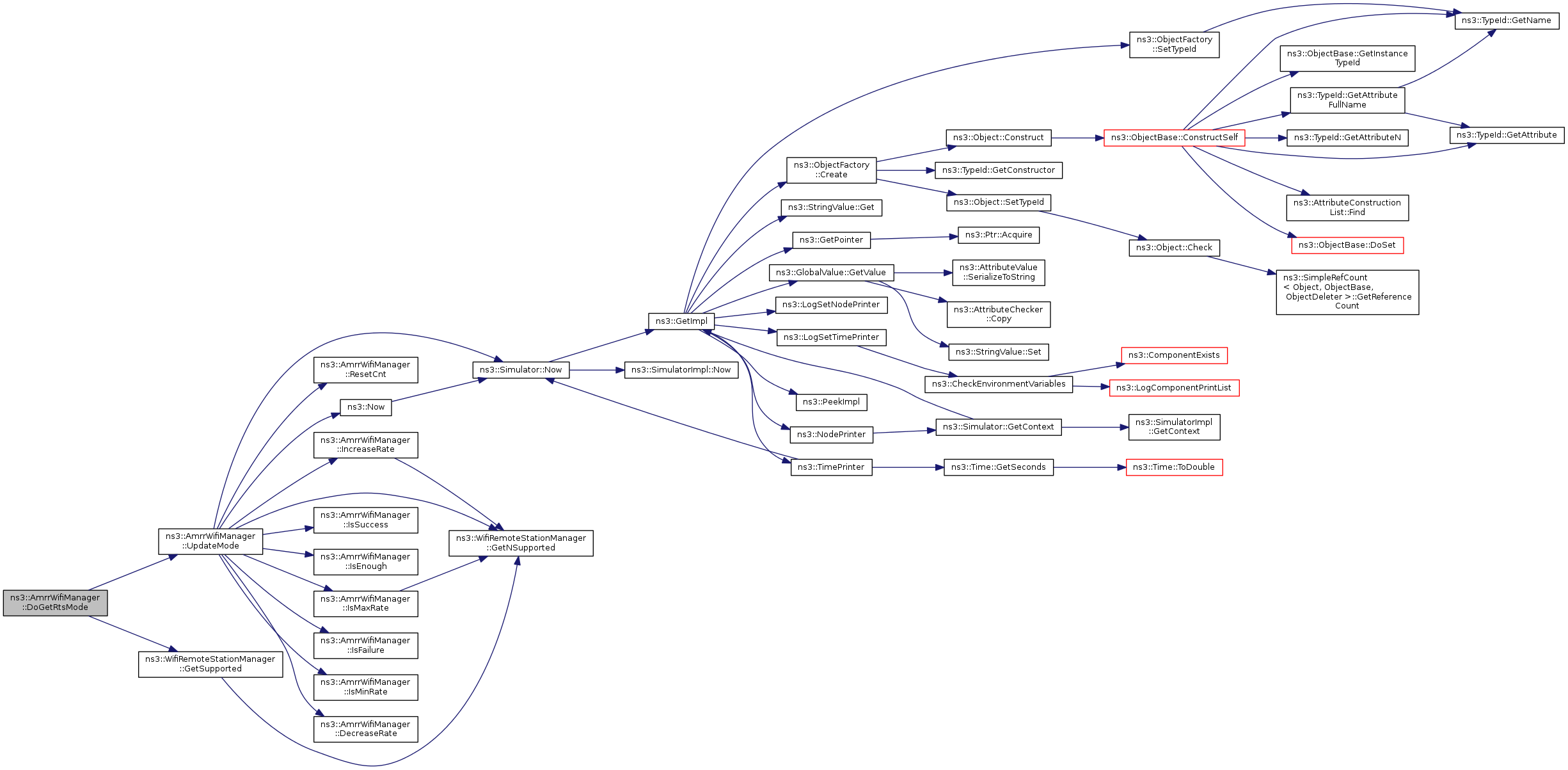

+ Here is the call graph for this function:

void ns3::AmrrWifiManager::DoReportDataFailed ( WifiRemoteStation *  station)
privatevirtual

Definition at line 113 of file amrr-wifi-manager.cc.

References ns3::AmrrWifiRemoteStation::m_retry, and ns3::AmrrWifiRemoteStation::m_tx_retr.

void ns3::AmrrWifiManager::DoReportDataOk ( WifiRemoteStation *  station,
double  ackSnr,
WifiMode  ackMode,
double  dataSnr
)
privatevirtual

Definition at line 125 of file amrr-wifi-manager.cc.

References ns3::AmrrWifiRemoteStation::m_retry, and ns3::AmrrWifiRemoteStation::m_tx_ok.

void ns3::AmrrWifiManager::DoReportFinalDataFailed ( WifiRemoteStation *  station)
privatevirtual

Definition at line 137 of file amrr-wifi-manager.cc.

References ns3::AmrrWifiRemoteStation::m_retry, and ns3::AmrrWifiRemoteStation::m_tx_err.

void ns3::AmrrWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation *  station)
privatevirtual

Definition at line 133 of file amrr-wifi-manager.cc.

void ns3::AmrrWifiManager::DoReportRtsFailed ( WifiRemoteStation *  station)
privatevirtual

Definition at line 109 of file amrr-wifi-manager.cc.

void ns3::AmrrWifiManager::DoReportRtsOk ( WifiRemoteStation *  station,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)
privatevirtual

Definition at line 120 of file amrr-wifi-manager.cc.

void ns3::AmrrWifiManager::DoReportRxOk ( WifiRemoteStation *  station,
double  rxSnr,
WifiMode  txMode
)
privatevirtual

Definition at line 104 of file amrr-wifi-manager.cc.

TypeId ns3::AmrrWifiManager::GetTypeId ( void  )
static

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 48 of file amrr-wifi-manager.cc.

References m_failureRatio, m_maxSuccessThreshold, m_minSuccessThreshold, m_successRatio, m_updatePeriod, ns3::Seconds(), and ns3::TypeId::SetParent().

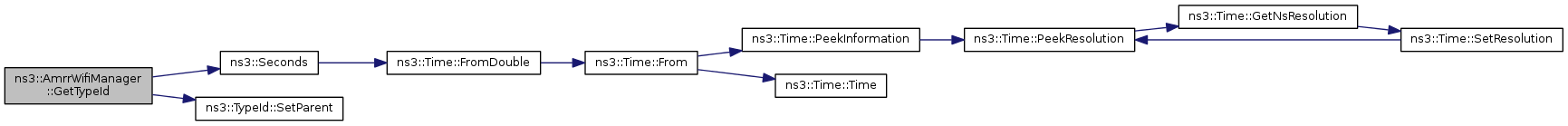

+ Here is the call graph for this function:

void ns3::AmrrWifiManager::IncreaseRate ( AmrrWifiRemoteStation *  station)
private

Definition at line 177 of file amrr-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetNSupported(), ns3::AmrrWifiRemoteStation::m_txrate, and NS_ASSERT.

Referenced by UpdateMode().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::AmrrWifiManager::IsEnough ( AmrrWifiRemoteStation *  station) const
private

Definition at line 165 of file amrr-wifi-manager.cc.

References ns3::AmrrWifiRemoteStation::m_tx_err, ns3::AmrrWifiRemoteStation::m_tx_ok, and ns3::AmrrWifiRemoteStation::m_tx_retr.

Referenced by UpdateMode().

+ Here is the caller graph for this function:

bool ns3::AmrrWifiManager::IsFailure ( AmrrWifiRemoteStation *  station) const
private

Definition at line 160 of file amrr-wifi-manager.cc.

References m_failureRatio, ns3::AmrrWifiRemoteStation::m_tx_err, ns3::AmrrWifiRemoteStation::m_tx_ok, and ns3::AmrrWifiRemoteStation::m_tx_retr.

Referenced by UpdateMode().

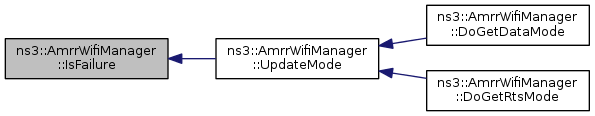

+ Here is the caller graph for this function:

bool ns3::AmrrWifiManager::IsLowLatency ( void  ) const
privatevirtual

Definition at line 310 of file amrr-wifi-manager.cc.

bool ns3::AmrrWifiManager::IsMaxRate ( AmrrWifiRemoteStation *  station) const
private

Definition at line 149 of file amrr-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetNSupported(), ns3::AmrrWifiRemoteStation::m_txrate, and NS_ASSERT.

Referenced by UpdateMode().

+ Here is the call graph for this function:

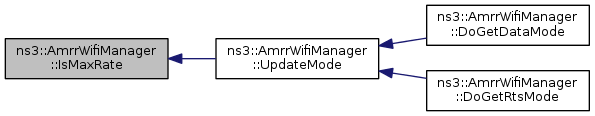

+ Here is the caller graph for this function:

bool ns3::AmrrWifiManager::IsMinRate ( AmrrWifiRemoteStation *  station) const
private

Definition at line 144 of file amrr-wifi-manager.cc.

References ns3::AmrrWifiRemoteStation::m_txrate.

Referenced by UpdateMode().

+ Here is the caller graph for this function:

bool ns3::AmrrWifiManager::IsSuccess ( AmrrWifiRemoteStation *  station) const
private

Definition at line 155 of file amrr-wifi-manager.cc.

References m_successRatio, ns3::AmrrWifiRemoteStation::m_tx_err, ns3::AmrrWifiRemoteStation::m_tx_ok, and ns3::AmrrWifiRemoteStation::m_tx_retr.

Referenced by UpdateMode().

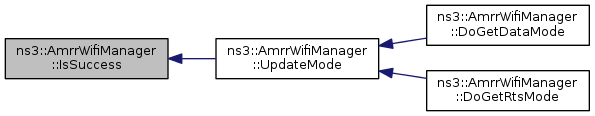

+ Here is the caller graph for this function:

void ns3::AmrrWifiManager::ResetCnt ( AmrrWifiRemoteStation *  station)
private

Definition at line 170 of file amrr-wifi-manager.cc.

References ns3::AmrrWifiRemoteStation::m_tx_err, ns3::AmrrWifiRemoteStation::m_tx_ok, and ns3::AmrrWifiRemoteStation::m_tx_retr.

Referenced by UpdateMode().

+ Here is the caller graph for this function:

void ns3::AmrrWifiManager::UpdateMode ( AmrrWifiRemoteStation *  station)
private

Definition at line 189 of file amrr-wifi-manager.cc.

References DecreaseRate(), ns3::WifiRemoteStationManager::GetNSupported(), IncreaseRate(), IsEnough(), IsFailure(), IsMaxRate(), IsMinRate(), IsSuccess(), m_maxSuccessThreshold, m_minSuccessThreshold, ns3::AmrrWifiRemoteStation::m_nextModeUpdate, ns3::AmrrWifiRemoteStation::m_recovery, ns3::AmrrWifiRemoteStation::m_success, ns3::AmrrWifiRemoteStation::m_successThreshold, ns3::AmrrWifiRemoteStation::m_tx_err, ns3::AmrrWifiRemoteStation::m_tx_ok, ns3::AmrrWifiRemoteStation::m_tx_retr, ns3::AmrrWifiRemoteStation::m_txrate, m_updatePeriod, ns3::Now(), ns3::Simulator::Now(), NS_LOG_DEBUG, and ResetCnt().

Referenced by DoGetDataMode(), and DoGetRtsMode().

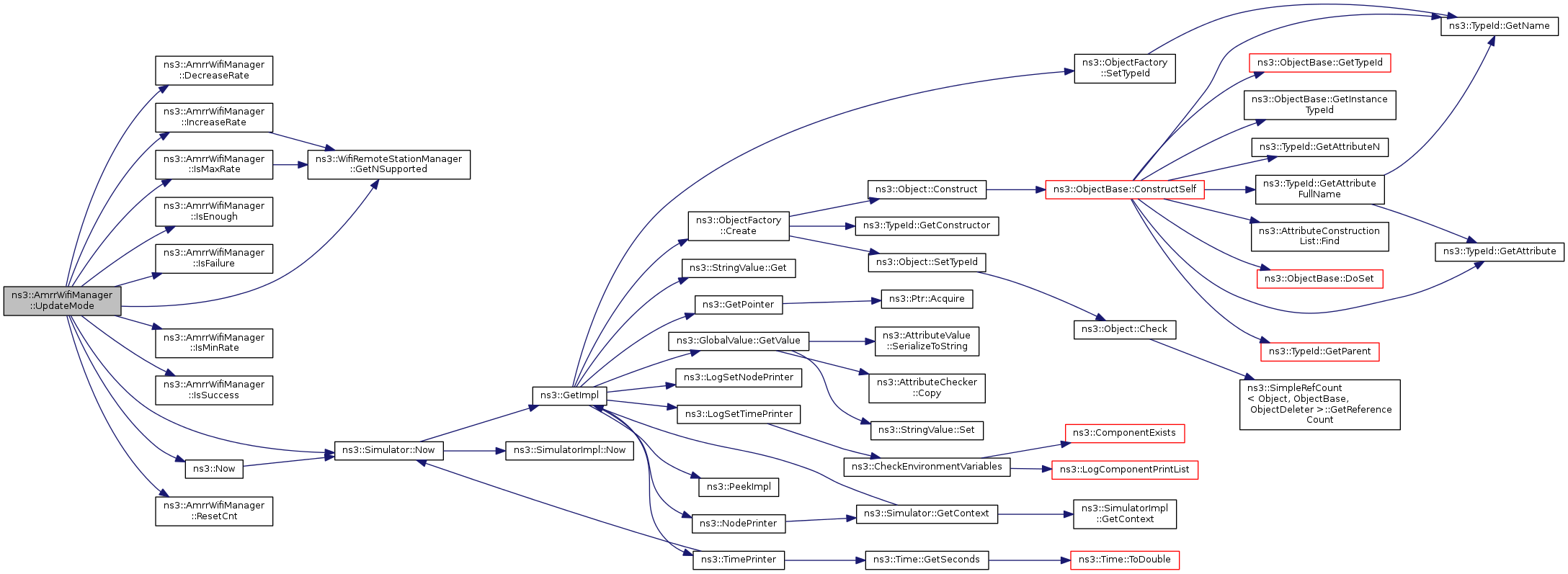

+ Here is the call graph for this function:

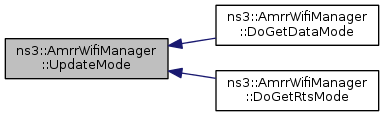

+ Here is the caller graph for this function:

void ns3::AmrrWifiManager::UpdateRetry ( AmrrWifiRemoteStation *  station)
private

Member Data Documentation

double ns3::AmrrWifiManager::m_failureRatio
private

Definition at line 75 of file amrr-wifi-manager.h.

Referenced by GetTypeId(), and IsFailure().

uint32_t ns3::AmrrWifiManager::m_maxSuccessThreshold
private

Definition at line 77 of file amrr-wifi-manager.h.

Referenced by GetTypeId(), and UpdateMode().

uint32_t ns3::AmrrWifiManager::m_minSuccessThreshold
private

Definition at line 78 of file amrr-wifi-manager.h.

Referenced by DoCreateStation(), GetTypeId(), and UpdateMode().

double ns3::AmrrWifiManager::m_successRatio
private

Definition at line 76 of file amrr-wifi-manager.h.

Referenced by GetTypeId(), and IsSuccess().

Time ns3::AmrrWifiManager::m_updatePeriod
private

Definition at line 74 of file amrr-wifi-manager.h.

Referenced by DoCreateStation(), GetTypeId(), and UpdateMode().

The documentation for this class was generated from the following files:
