interface for antenna radiation pattern models More...

#include <antenna-model.h>

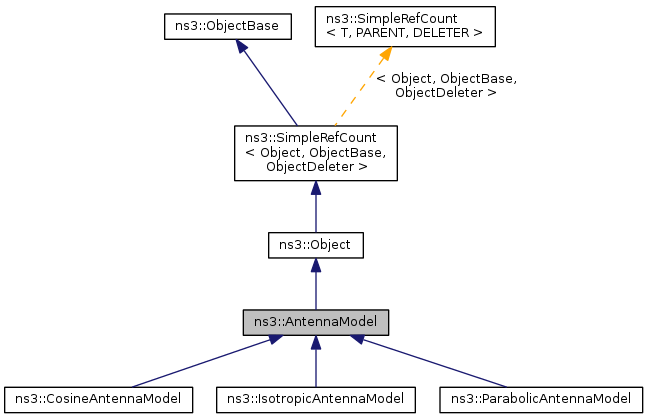

Inheritance diagram for ns3::AntennaModel:

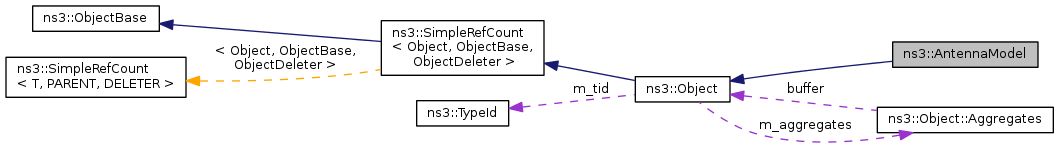

Collaboration diagram for ns3::AntennaModel:

Public Member Functions
	AntennaModel ()
virtual	~AntennaModel ()
virtual double	GetGainDb (Angles a)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

interface for antenna radiation pattern models

This class provides an interface for the definition of antenna radiation pattern models. This interface is based on the use of spherical coordinates, in particular of the azimuth and inclination angles. This choice is the one proposed "Antenna Theory - Analysis and Design", C.A. Balanis, Wiley, 2nd Ed., see in particular section 2.2 "Radiation pattern".

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 44 of file antenna-model.h.

Constructor & Destructor Documentation

ns3::AntennaModel::AntennaModel ( )

Definition at line 34 of file antenna-model.cc.

ns3::AntennaModel::~AntennaModel ( )

virtual

Definition at line 38 of file antenna-model.cc.

Member Function Documentation

virtual double ns3::AntennaModel::GetGainDb ( Angles a )

pure virtual

this method is expected to be re-implemented by each antenna model

Parameters

a	the spherical angles at which the radiation pattern should be evaluated

Returns: the power gain in dBi of the antenna radiation pattern at the specified angles; dBi means dB with respect to the gain of an isotropic radiator. Since a power gain is used, the efficiency of the antenna is expected to be included in the gain value.

Implemented in ns3::ParabolicAntennaModel, ns3::CosineAntennaModel, and ns3::IsotropicAntennaModel.

Referenced by ns3::SingleModelSpectrumChannel::StartTx(), and ns3::MultiModelSpectrumChannel::StartTx().

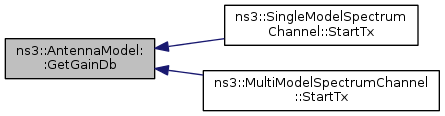

Here is the caller graph for this function:
