ns3::BridgeChannel Class Reference

Virtual channel implementation for bridges (BridgeNetDevice). More...

#include <bridge-channel.h>

Inheritance diagram for ns3::BridgeChannel:

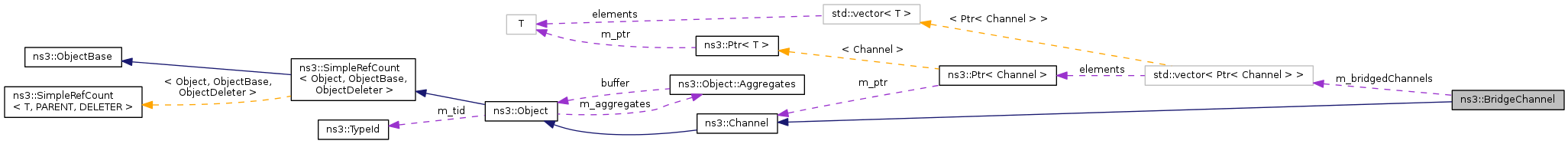

Collaboration diagram for ns3::BridgeChannel:

Public Member Functions
	BridgeChannel ()
virtual	~BridgeChannel ()
void	AddChannel (Ptr< Channel > bridgedChannel)
virtual Ptr< NetDevice >	GetDevice (uint32_t i) const
virtual uint32_t	GetNDevices (void) const
Public Member Functions inherited from ns3::Channel
	Channel ()
virtual	~Channel ()
uint32_t	GetId (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
	BridgeChannel (const BridgeChannel &)
BridgeChannel &	operator= (const BridgeChannel &)

Private Attributes
std::vector< Ptr< Channel > >	m_bridgedChannels

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Virtual channel implementation for bridges (BridgeNetDevice).

Just like BridgeNetDevice aggregates multiple NetDevices, BridgeChannel aggregates multiple channels and make them appear as a single channel to upper layers.

Config Paths

ns3::BridgeChannel is accessible through the following paths with Config::Set and Config::Connect:

• /ChannelList/[i]/$ns3::BridgeChannel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 36 of file bridge-channel.h.

Constructor & Destructor Documentation

ns3::BridgeChannel::BridgeChannel

(

)

Definition at line 38 of file bridge-channel.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::BridgeChannel::~BridgeChannel ( )

virtual

Definition at line 44 of file bridge-channel.cc.

References m_bridgedChannels, and NS_LOG_FUNCTION_NOARGS.

ns3::BridgeChannel::BridgeChannel ( const BridgeChannel &  )

private

Member Function Documentation

void ns3::BridgeChannel::AddChannel

(

Ptr< Channel >

bridgedChannel

)

Definition at line 58 of file bridge-channel.cc.

References m_bridgedChannels.

Referenced by ns3::BridgeNetDevice::AddBridgePort(), and ns3::MeshPointDevice::AddInterface().

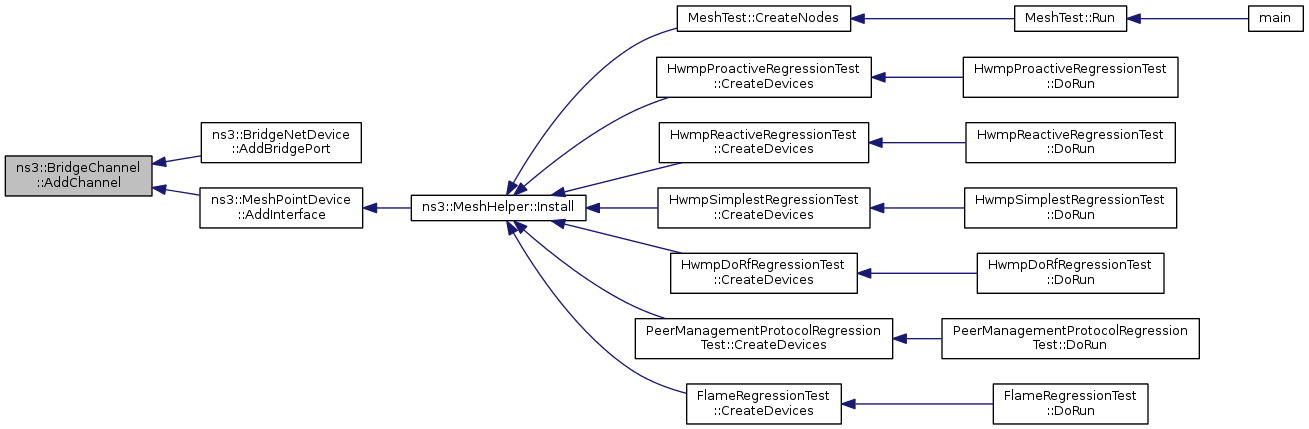

Here is the caller graph for this function:

Ptr< NetDevice > ns3::BridgeChannel::GetDevice ( uint32_t  i ) const

virtual

Parameters

i	index of NetDevice to retrieve

Returns

one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 77 of file bridge-channel.cc.

References m_bridgedChannels.

uint32_t ns3::BridgeChannel::GetNDevices ( void  ) const

virtual

Returns

the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 64 of file bridge-channel.cc.

References m_bridgedChannels.

TypeId ns3::BridgeChannel::GetTypeId ( void  )

static

Reimplemented from ns3::Channel.

Definition at line 29 of file bridge-channel.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

BridgeChannel& ns3::BridgeChannel::operator= ( const BridgeChannel &  )

private

Member Data Documentation

std::vector< Ptr<Channel> > ns3::BridgeChannel::m_bridgedChannels

private

Definition at line 54 of file bridge-channel.h.

Referenced by AddChannel(), GetDevice(), GetNDevices(), and ~BridgeChannel().

---

The documentation for this class was generated from the following files:

• src/bridge/model/bridge-channel.h
• src/bridge/model/bridge-channel.cc
