#include <dl-mac-messages.h>

Inheritance diagram for ns3::DlMap:

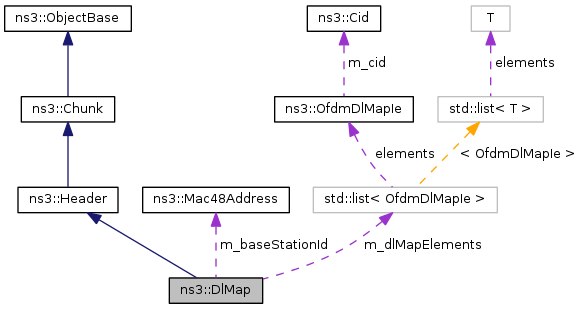

Collaboration diagram for ns3::DlMap:

Public Member Functions
	DlMap (void)
	This class implements DL-map ie as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.1 Compressed DL-MAP, page 402.
virtual	~DlMap (void)
void	AddDlMapElement (OfdmDlMapIe dlMapElement)
uint32_t	Deserialize (Buffer::Iterator start)
Mac48Address	GetBaseStationId (void) const
uint8_t	GetDcdCount (void) const
std::list< OfdmDlMapIe >	GetDlMapElements (void) const
virtual TypeId	GetInstanceTypeId (void) const
std::string	GetName (void) const
uint32_t	GetSerializedSize (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetBaseStationId (Mac48Address baseStationID)
void	SetDcdCount (uint8_t dcdCount)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
Mac48Address	m_baseStationId
uint8_t	m_dcdCount
std::list< OfdmDlMapIe >	m_dlMapElements

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 312 of file dl-mac-messages.h.

Constructor & Destructor Documentation

ns3::DlMap::DlMap ( void )

This class implements DL-map ie as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.1 Compressed DL-MAP, page 402.

Definition at line 549 of file dl-mac-messages.cc.

ns3::DlMap::~DlMap ( void )

virtual

Definition at line 555 of file dl-mac-messages.cc.

Member Function Documentation

void ns3::DlMap::AddDlMapElement ( OfdmDlMapIe dlMapElement )

Definition at line 572 of file dl-mac-messages.cc.

References m_dlMapElements.

Referenced by ns3::BaseStationNetDevice::CreateDlMap(), and Deserialize().

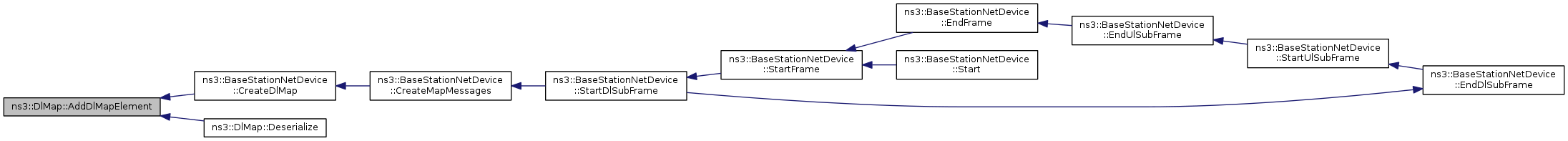

Here is the caller graph for this function:

uint32_t ns3::DlMap::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 656 of file dl-mac-messages.cc.

References AddDlMapElement(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::OfdmDlMapIe::GetDiuc(), m_baseStationId, m_dcdCount, m_dlMapElements, ns3::OfdmDlMapIe::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

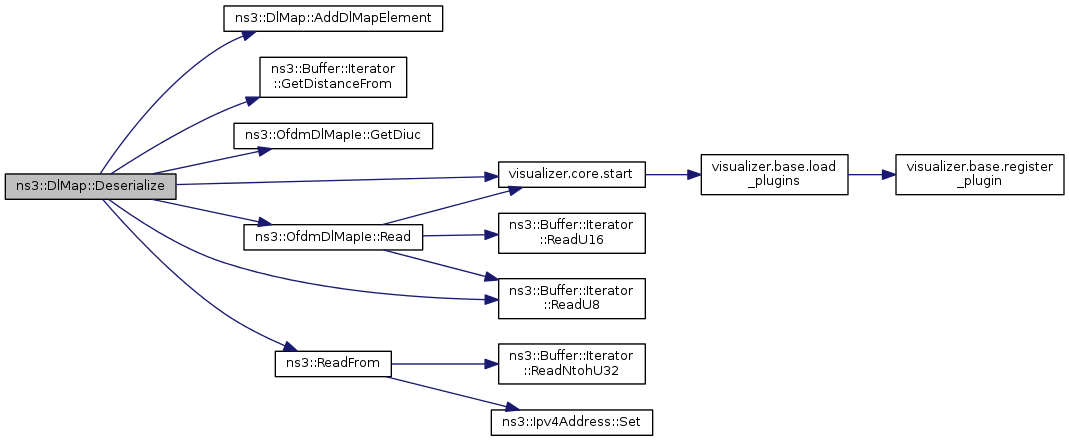

Here is the call graph for this function:

Mac48Address ns3::DlMap::GetBaseStationId ( void ) const

Definition at line 584 of file dl-mac-messages.cc.

References m_baseStationId.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

Here is the caller graph for this function:

uint8_t ns3::DlMap::GetDcdCount ( void ) const

Definition at line 578 of file dl-mac-messages.cc.

References m_dcdCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

Here is the caller graph for this function:

std::list< OfdmDlMapIe > ns3::DlMap::GetDlMapElements ( void ) const

Definition at line 590 of file dl-mac-messages.cc.

References m_dlMapElements.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

Here is the caller graph for this function:

TypeId ns3::DlMap::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 612 of file dl-mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::DlMap::GetName ( void ) const

Definition at line 596 of file dl-mac-messages.cc.

uint32_t ns3::DlMap::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 626 of file dl-mac-messages.cc.

References ns3::OfdmDlMapIe::GetSize(), and m_dlMapElements.

Here is the call graph for this function:

TypeId ns3::DlMap::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 602 of file dl-mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DlMap::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 618 of file dl-mac-messages.cc.

References m_baseStationId, m_dcdCount, and m_dlMapElements.

void ns3::DlMap::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 641 of file dl-mac-messages.cc.

References m_baseStationId, m_dcdCount, m_dlMapElements, visualizer.core::start(), ns3::OfdmDlMapIe::Write(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

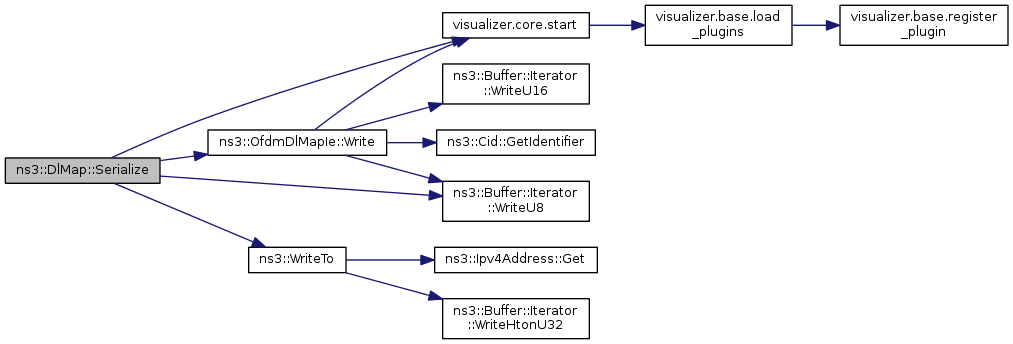

Here is the call graph for this function:
