ns3::Dot11sStack Class Reference

Helper class to allow easy installation of 802.11s stack. More...

#include <dot11s-installer.h>

Inheritance diagram for ns3::Dot11sStack:

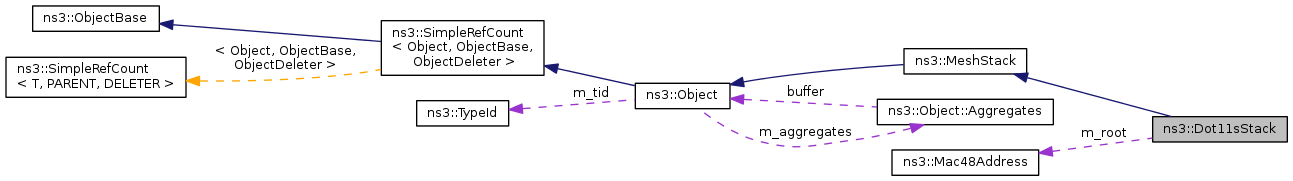

Collaboration diagram for ns3::Dot11sStack:

Public Member Functions
	Dot11sStack ()
	~Dot11sStack ()
void	DoDispose ()
bool	InstallStack (Ptr< MeshPointDevice > mp)
	Install an 802.11s stack.
void	Report (const Ptr< MeshPointDevice > mp, std::ostream &)
	Iterate through the referenced devices and protocols and print their statistics.
void	ResetStats (const Ptr< MeshPointDevice > mp)
	Reset the statistics on the referenced devices and protocols.

Static Public Member Functions
static TypeId	GetTypeId ()

Private Attributes
Mac48Address	m_root

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Helper class to allow easy installation of 802.11s stack.

This type is not accessible from the Config system.

Attributes

• Root: The MAC address of root mesh point.
  • Set with class: Mac48AddressValue
  • Underlying type: Mac48Address
  • Initial value: ff:ff:ff:ff:ff:ff
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 31 of file dot11s-installer.h.

Constructor & Destructor Documentation

ns3::Dot11sStack::Dot11sStack

(

)

Create a Dot11sStack() installer helper.

Definition at line 42 of file dot11s-installer.cc.

ns3::Dot11sStack::~Dot11sStack

(

)

Destroy a Dot11sStack() installer helper.

Definition at line 46 of file dot11s-installer.cc.

Member Function Documentation

void ns3::Dot11sStack::DoDispose ( void  )

virtual

Break any reference cycles in the installer helper. Required for ns-3 Object support.

Reimplemented from ns3::Object.

Definition at line 50 of file dot11s-installer.cc.

TypeId ns3::Dot11sStack::GetTypeId ( void  )

static

Reimplemented from ns3::Object.

Definition at line 30 of file dot11s-installer.cc.

References m_root, and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::Dot11sStack::InstallStack ( Ptr< MeshPointDevice >  mp )

virtual

Install an 802.11s stack.

Parameters

mp	The Ptr<MeshPointDevice> to use when setting up the PMP.

Implements ns3::MeshStack.

Definition at line 54 of file dot11s-installer.cc.

References ns3::MeshPointDevice::GetAddress(), ns3::dot11s::PeerManagementProtocol::GetPeers(), ns3::dot11s::PeerManagementProtocol::Install(), ns3::dot11s::HwmpProtocol::Install(), m_root, ns3::MakeCallback(), ns3::PeekPointer(), ns3::dot11s::HwmpProtocol::PeerLinkStatus(), ns3::dot11s::PeerManagementProtocol::SetMeshId(), ns3::dot11s::HwmpProtocol::SetNeighboursCallback(), ns3::dot11s::PeerManagementProtocol::SetPeerLinkStatusCallback(), and ns3::dot11s::HwmpProtocol::SetRoot().

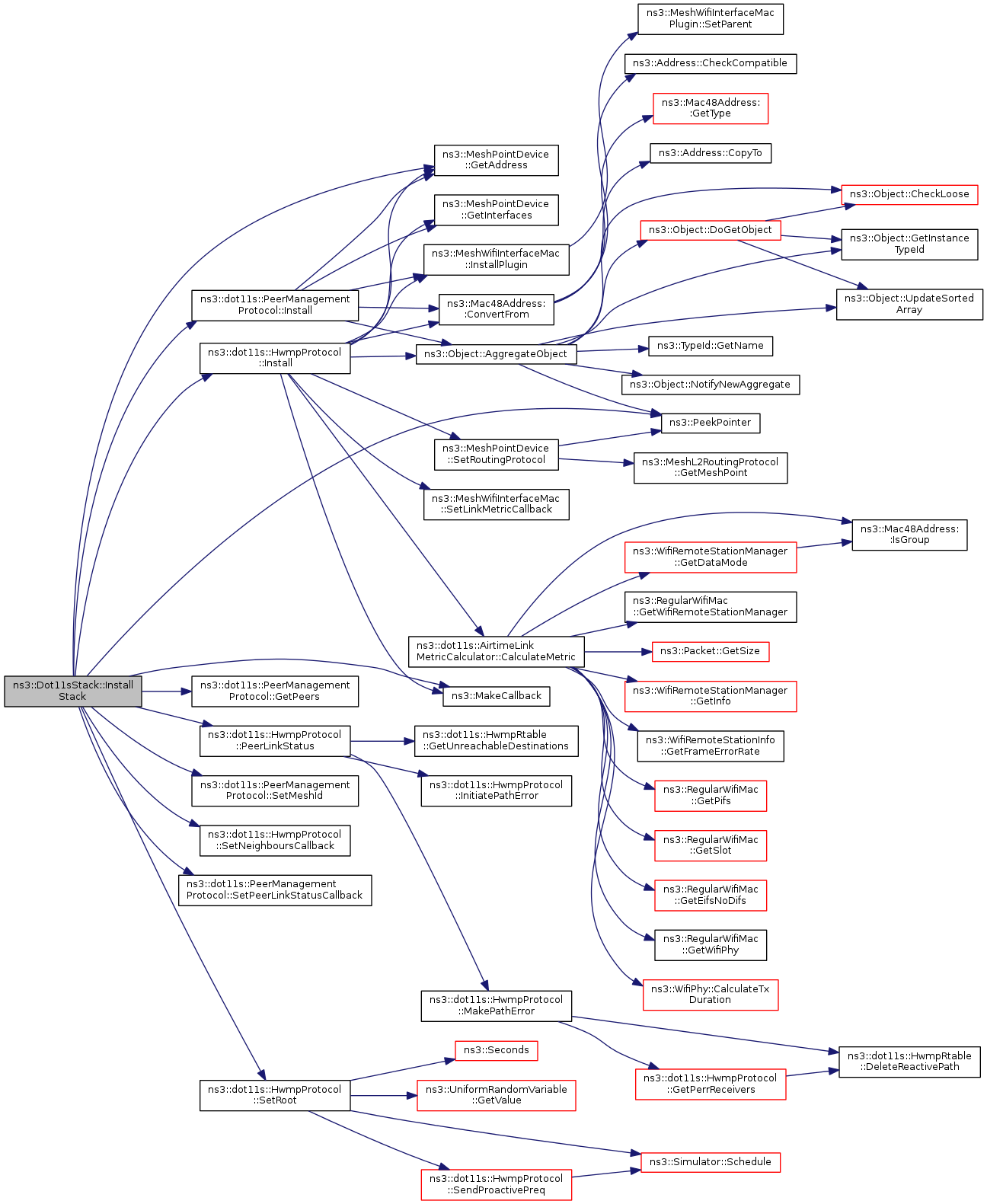

Here is the call graph for this function:

void ns3::Dot11sStack::Report ( const Ptr< MeshPointDevice >  mp, std::ostream &  os  )

virtual

Iterate through the referenced devices and protocols and print their statistics.

Implements ns3::MeshStack.

Definition at line 82 of file dot11s-installer.cc.

References ns3::MeshPointDevice::GetInterfaces(), ns3::Object::GetObject(), NS_ASSERT, ns3::dot11s::HwmpProtocol::Report(), ns3::MeshPointDevice::Report(), ns3::MeshWifiInterfaceMac::Report(), and ns3::dot11s::PeerManagementProtocol::Report().

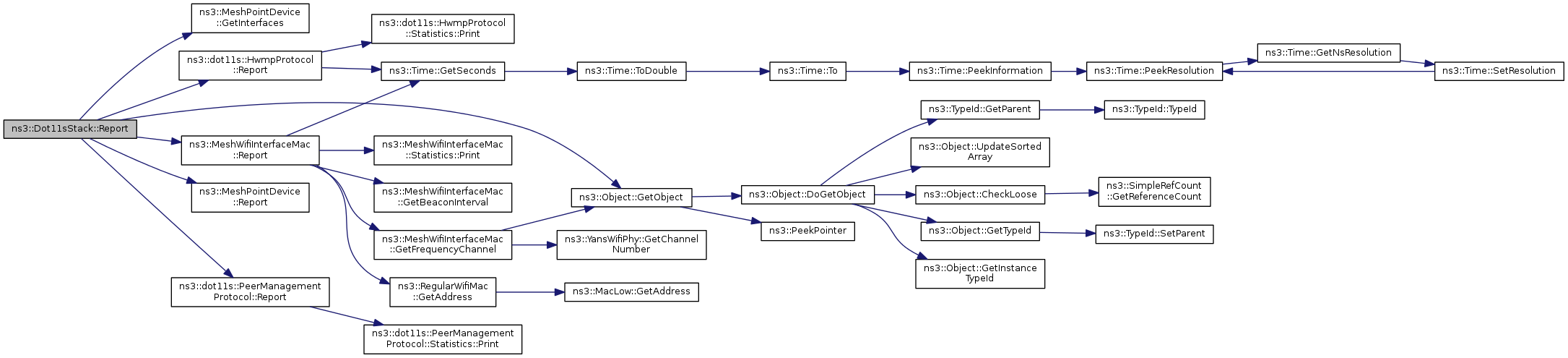

Here is the call graph for this function:

void ns3::Dot11sStack::ResetStats ( const Ptr< MeshPointDevice >  mp )

virtual

Reset the statistics on the referenced devices and protocols.

Implements ns3::MeshStack.

Definition at line 104 of file dot11s-installer.cc.

References ns3::MeshPointDevice::GetInterfaces(), ns3::Object::GetObject(), NS_ASSERT, ns3::dot11s::HwmpProtocol::ResetStats(), ns3::MeshPointDevice::ResetStats(), ns3::MeshWifiInterfaceMac::ResetStats(), and ns3::dot11s::PeerManagementProtocol::ResetStats().

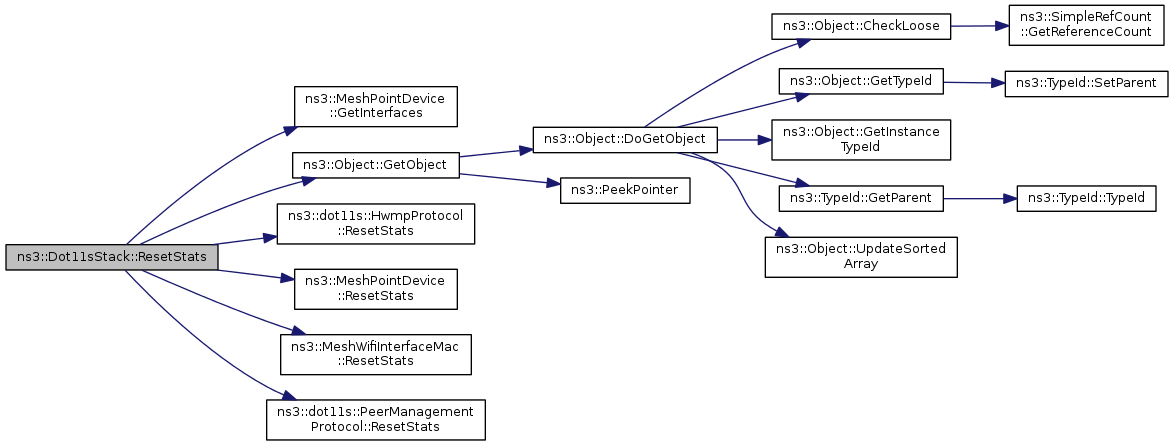

Here is the call graph for this function:

Member Data Documentation

Mac48Address ns3::Dot11sStack::m_root

private

Definition at line 72 of file dot11s-installer.h.

Referenced by GetTypeId(), and InstallStack().

---

The documentation for this class was generated from the following files:

• src/mesh/helper/dot11s/dot11s-installer.h
• src/mesh/helper/dot11s/dot11s-installer.cc
