#include <mac-messages.h>

Inheritance diagram for ns3::DsaReq:

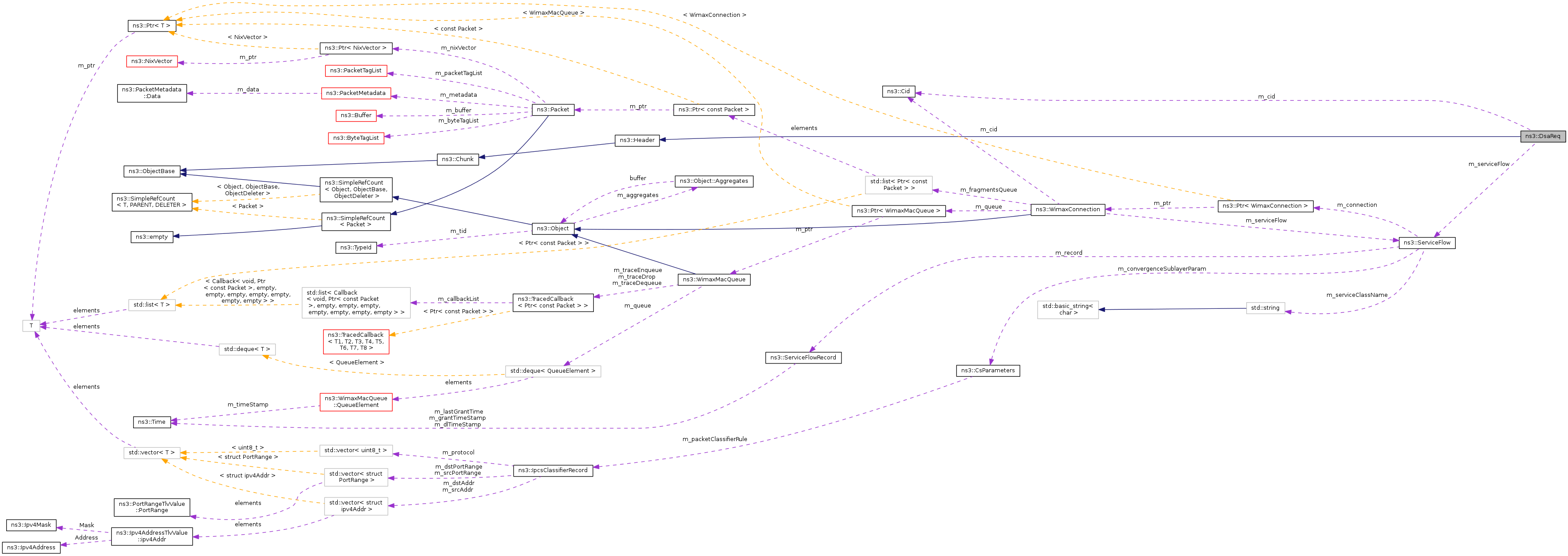

Collaboration diagram for ns3::DsaReq:

Public Member Functions
	DsaReq ()
	This class implements the ranging request message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.7 Registration request (REG-REQ) message, page 51.
	DsaReq (ServiceFlow sf)
	~DsaReq ()
uint32_t	Deserialize (Buffer::Iterator start)
Cid	GetCid (void) const
virtual TypeId	GetInstanceTypeId (void) const
std::string	GetName (void) const
uint32_t	GetSerializedSize (void) const
ServiceFlow	GetServiceFlow (void) const
uint32_t	GetSfid (void) const
uint16_t	GetTransactionId (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetCid (Cid cid)
	set the connection identifier
void	SetServiceFlow (ServiceFlow sf)
	specify a service flow to be requested by this message
void	SetSfid (uint32_t sfid)
	set the service flow identifier
void	SetTransactionId (uint16_t transactionId)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
Cid	m_cid
ServiceFlow	m_serviceFlow
uint32_t	m_sfid
uint16_t	m_transactionId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 262 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::DsaReq::DsaReq ( void )

This class implements the ranging request message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.7 Registration request (REG-REQ) message, page 51.

Definition at line 502 of file mac-messages.cc.

ns3::DsaReq::~DsaReq ( void )

Definition at line 516 of file mac-messages.cc.

ns3::DsaReq::DsaReq ( ServiceFlow sf )

Definition at line 510 of file mac-messages.cc.

References m_serviceFlow, and m_transactionId.

Member Function Documentation

uint32_t ns3::DsaReq::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 610 of file mac-messages.cc.

References ns3::Tlv::Deserialize(), m_serviceFlow, m_transactionId, ns3::Buffer::Iterator::ReadU16(), and visualizer.core::start().

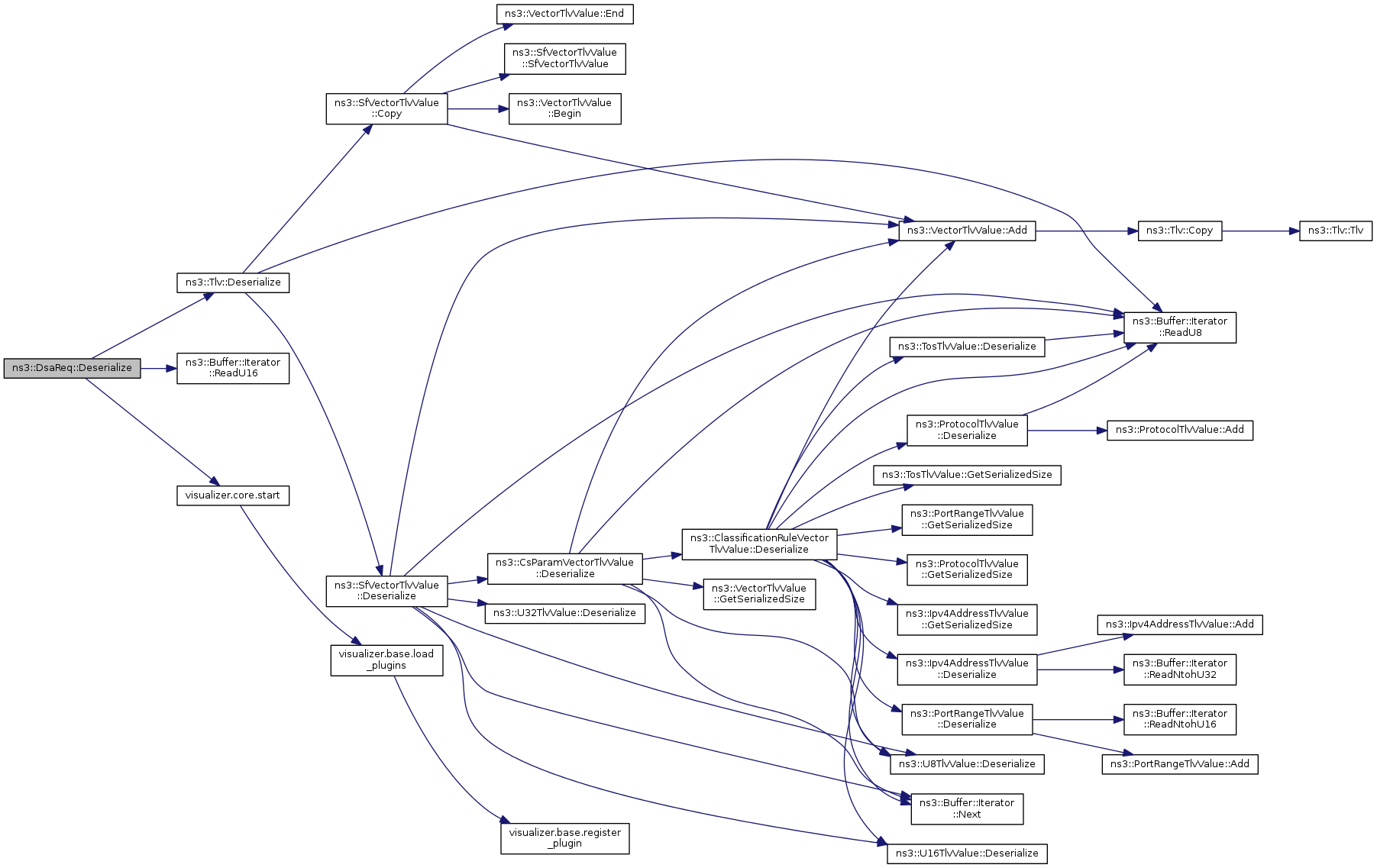

Here is the call graph for this function:

Cid ns3::DsaReq::GetCid ( void ) const

Returns: the connection identifier

Definition at line 551 of file mac-messages.cc.

References m_cid.

TypeId ns3::DsaReq::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 571 of file mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::DsaReq::GetName ( void ) const

Definition at line 558 of file mac-messages.cc.

uint32_t ns3::DsaReq::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 593 of file mac-messages.cc.

References ns3::Tlv::GetSerializedSize(), m_serviceFlow, and ns3::ServiceFlow::ToTlv().

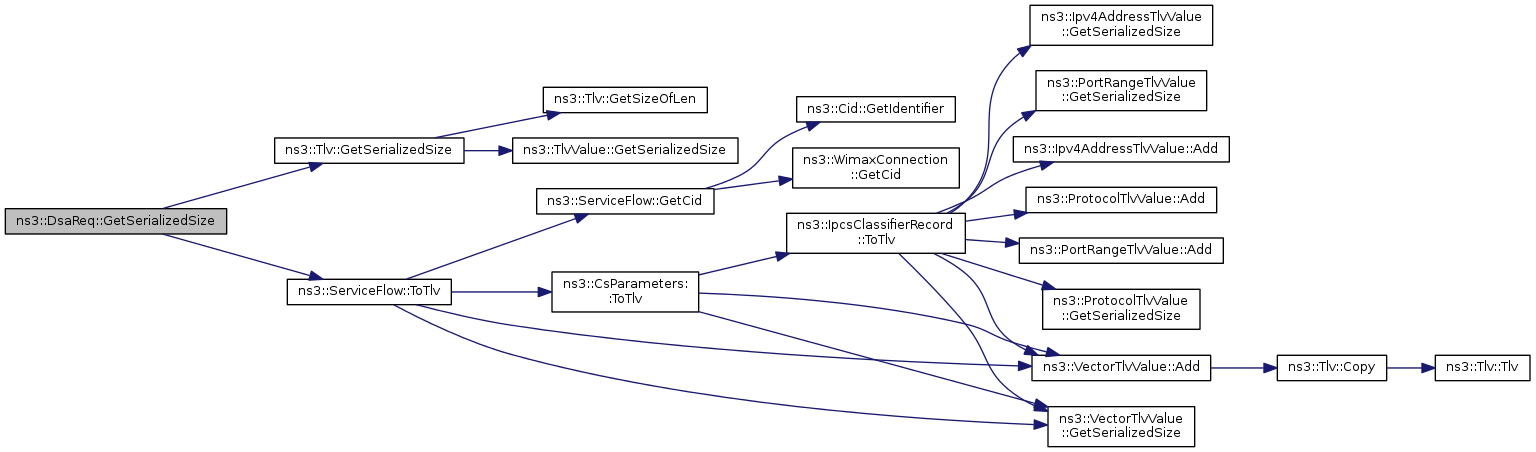

Here is the call graph for this function:

ServiceFlow ns3::DsaReq::GetServiceFlow ( void ) const

Returns: the service flow requested by this message

Definition at line 621 of file mac-messages.cc.

References m_serviceFlow.

Referenced by DsaRequestTestCase::DoRun(), and ns3::BsServiceFlowManager::ProcessDsaReq().

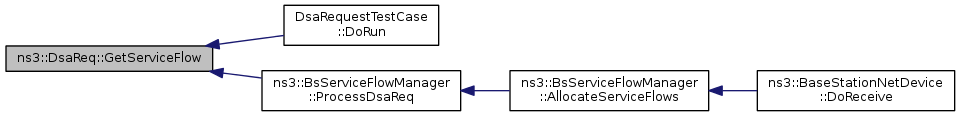

Here is the caller graph for this function:

uint32_t ns3::DsaReq::GetSfid ( void ) const

Returns: the service flow identifier

Definition at line 539 of file mac-messages.cc.

References m_sfid.

uint16_t ns3::DsaReq::GetTransactionId ( void ) const

Definition at line 527 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::SsServiceFlowManager::CreateDsaAck(), and ns3::BsServiceFlowManager::ProcessDsaReq().

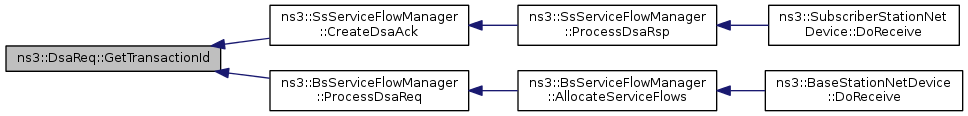

Here is the caller graph for this function:

TypeId ns3::DsaReq::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 564 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DsaReq::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 577 of file mac-messages.cc.

References m_cid, m_sfid, and m_transactionId.

void ns3::DsaReq::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 601 of file mac-messages.cc.

References m_serviceFlow, m_transactionId, ns3::Tlv::Serialize(), visualizer.core::start(), ns3::ServiceFlow::ToTlv(), and ns3::Buffer::Iterator::WriteU16().

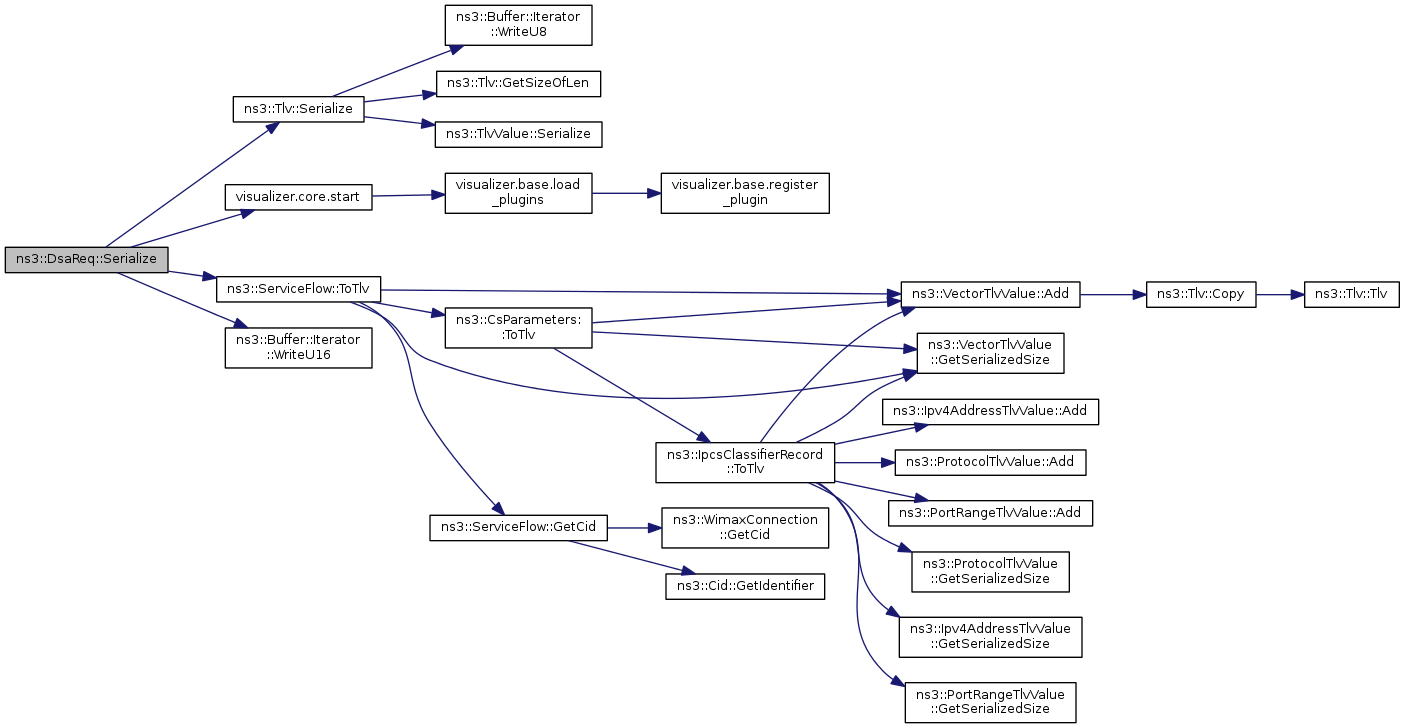

Here is the call graph for this function:
