ns3::DsssErrorRateModel Class Reference

an implementation of DSSS error rate modelThe 802.11b modulations: More...

#include <dsss-error-rate-model.h>

Static Public Member Functions
static double	DqpskFunction (double x)
static double	GetDsssDbpskSuccessRate (double sinr, uint32_t nbits)
static double	GetDsssDqpskCck11SuccessRate (double sinr, uint32_t nbits)
static double	GetDsssDqpskCck5_5SuccessRate (double sinr, uint32_t nbits)
static double	GetDsssDqpskSuccessRate (double sinr, uint32_t nbits)

Static Protected Attributes
static const double	WLAN_SIR_IMPOSSIBLE = 0.1
static const double	WLAN_SIR_PERFECT = 10.0

Detailed Description

an implementation of DSSS error rate model

The 802.11b modulations:

• 1 Mbps mode is based on DBPSK. BER is from equation 5.2-69 from John G. Proakis Digitial Communications, 2001 edition
• 2 Mbps model is based on DQPSK. Equation 8 from "Tight bounds and accurate approximations for dqpsk transmission bit error rate", G. Ferrari and G.E. Corazza ELECTRONICS LETTERS, 40(20):1284-1285, September 2004
• 5.5 Mbps and 11 Mbps are based on equations (18) and (17) from "Properties and performance of the ieee 802.11b complementarycode-key signal sets", Michael B. Pursley and Thomas C. Royster. IEEE TRANSACTIONS ON COMMUNICATIONS, 57(2):440-449, February 2009.

This model is designed to run with highest accuracy using the Gnu Scientific Library (GSL), but if GSL is not installed on the platform, will fall back to (slightly less accurate) Matlab-derived models for the CCK modulation types.

More detailed description and validation can be found in http://www.nsnam.org/~pei/80211b.pdf

Definition at line 67 of file dsss-error-rate-model.h.

Member Function Documentation

double ns3::DsssErrorRateModel::DqpskFunction ( double  x )

static

Definition at line 35 of file dsss-error-rate-model.cc.

References sample-rng-plot::x.

Referenced by GetDsssDqpskSuccessRate().

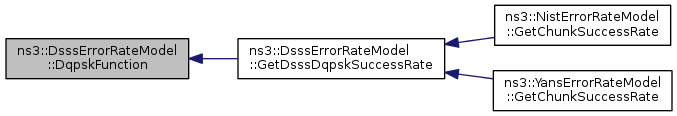

Here is the caller graph for this function:

double ns3::DsssErrorRateModel::GetDsssDbpskSuccessRate ( double  sinr, uint32_t  nbits  )

static

Definition at line 42 of file dsss-error-rate-model.cc.

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), and ns3::YansErrorRateModel::GetChunkSuccessRate().

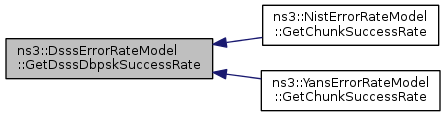

Here is the caller graph for this function:

double ns3::DsssErrorRateModel::GetDsssDqpskCck11SuccessRate ( double  sinr, uint32_t  nbits  )

static

Definition at line 91 of file dsss-error-rate-model.cc.

References NS_LOG_WARN, WLAN_SIR_IMPOSSIBLE, and WLAN_SIR_PERFECT.

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), and ns3::YansErrorRateModel::GetChunkSuccessRate().

Here is the caller graph for this function:

double ns3::DsssErrorRateModel::GetDsssDqpskCck5_5SuccessRate ( double  sinr, uint32_t  nbits  )

static

Definition at line 58 of file dsss-error-rate-model.cc.

References NS_LOG_WARN, WLAN_SIR_IMPOSSIBLE, and WLAN_SIR_PERFECT.

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), and ns3::YansErrorRateModel::GetChunkSuccessRate().

Here is the caller graph for this function:

double ns3::DsssErrorRateModel::GetDsssDqpskSuccessRate ( double  sinr, uint32_t  nbits  )

static

Definition at line 50 of file dsss-error-rate-model.cc.

References DqpskFunction().

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), and ns3::YansErrorRateModel::GetChunkSuccessRate().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

const double ns3::DsssErrorRateModel::WLAN_SIR_IMPOSSIBLE = 0.1

staticprotected

Definition at line 81 of file dsss-error-rate-model.h.

Referenced by GetDsssDqpskCck11SuccessRate(), and GetDsssDqpskCck5_5SuccessRate().

const double ns3::DsssErrorRateModel::WLAN_SIR_PERFECT = 10.0

staticprotected

Definition at line 80 of file dsss-error-rate-model.h.

Referenced by GetDsssDqpskCck11SuccessRate(), and GetDsssDqpskCck5_5SuccessRate().

---

The documentation for this class was generated from the following files:

• src/wifi/model/dsss-error-rate-model.h
• src/wifi/model/dsss-error-rate-model.cc
