ns3::EnbMemberLteEnbPhySapProvider Class Reference

Inheritance diagram for ns3::EnbMemberLteEnbPhySapProvider:

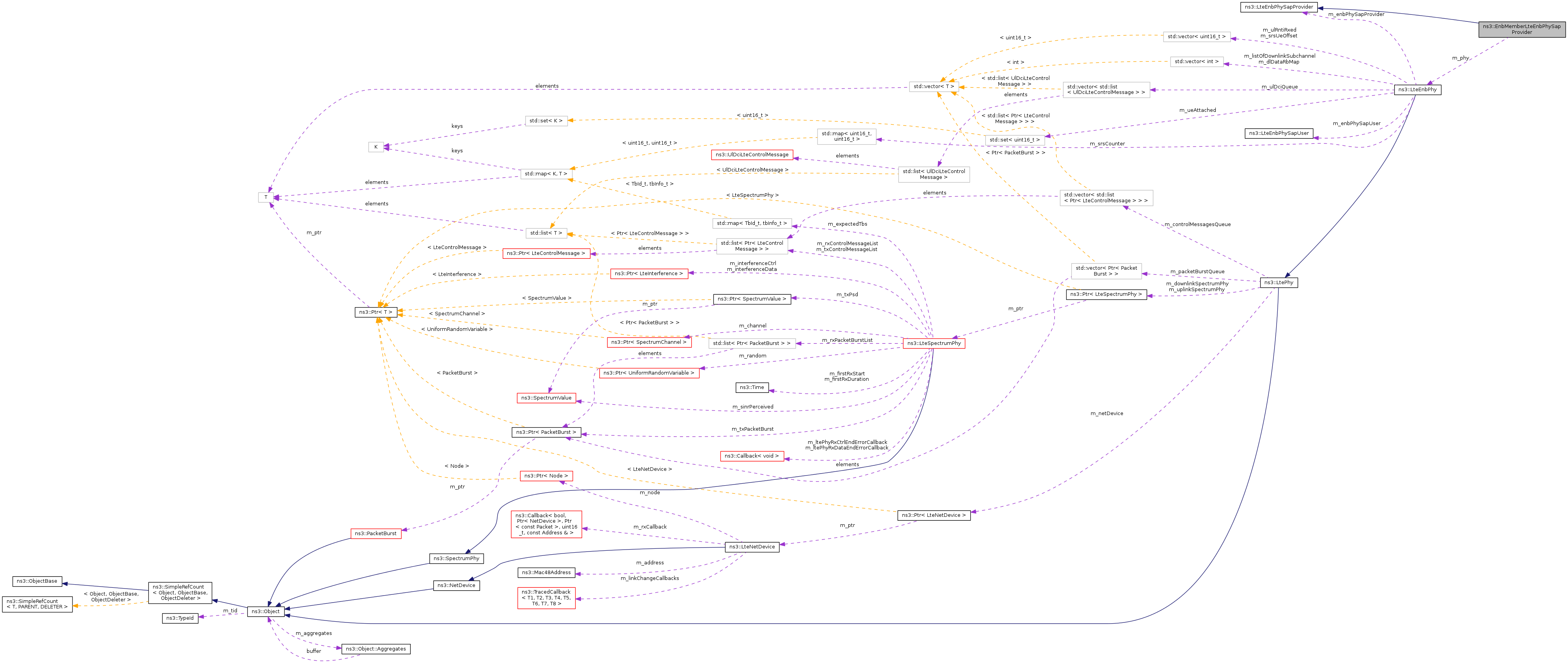

Collaboration diagram for ns3::EnbMemberLteEnbPhySapProvider:

Public Member Functions
	EnbMemberLteEnbPhySapProvider (LteEnbPhy *phy)
virtual uint8_t	GetMacChTtiDelay ()
	Get the delay from MAC to Channel expressed in TTIs.
virtual void	SendLteControlMessage (Ptr< LteControlMessage > msg)
	Send SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
virtual void	SendMacPdu (Ptr< Packet > p)
	Send the MAC PDU to the channel.
virtual void	SetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
virtual void	SetCellId (uint16_t cellId)
virtual void	SetSrsConfigurationIndex (uint16_t rnti, uint16_t srcCi)
virtual void	SetTransmissionMode (uint16_t rnti, uint8_t txMode)
Public Member Functions inherited from ns3::LteEnbPhySapProvider
virtual	~LteEnbPhySapProvider ()

Private Attributes
LteEnbPhy *	m_phy

Detailed Description

Definition at line 58 of file lte-enb-phy.cc.

Constructor & Destructor Documentation

ns3::EnbMemberLteEnbPhySapProvider::EnbMemberLteEnbPhySapProvider

(

LteEnbPhy *

phy

)

Definition at line 77 of file lte-enb-phy.cc.

Member Function Documentation

uint8_t ns3::EnbMemberLteEnbPhySapProvider::GetMacChTtiDelay ( )

virtual

Get the delay from MAC to Channel expressed in TTIs.

Implements ns3::LteEnbPhySapProvider.

Definition at line 108 of file lte-enb-phy.cc.

References ns3::LteEnbPhy::DoGetMacChTtiDelay(), and m_phy.

Here is the call graph for this function:

void ns3::EnbMemberLteEnbPhySapProvider::SendLteControlMessage ( Ptr< LteControlMessage >  msg )

virtual

Send SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters

msg	the Ideal Control Message to send

Implements ns3::LteEnbPhySapProvider.

Definition at line 102 of file lte-enb-phy.cc.

References ns3::LteEnbPhy::DoSendLteControlMessage(), and m_phy.

Here is the call graph for this function:

void ns3::EnbMemberLteEnbPhySapProvider::SendMacPdu ( Ptr< Packet >  p )

virtual

Send the MAC PDU to the channel.

Parameters

p	the MAC PDU to send

Returns

true if

Implements ns3::LteEnbPhySapProvider.

Definition at line 84 of file lte-enb-phy.cc.

References ns3::LteEnbPhy::DoSendMacPdu(), and m_phy.

Here is the call graph for this function:

void ns3::EnbMemberLteEnbPhySapProvider::SetBandwidth ( uint8_t  ulBandwidth, uint8_t  dlBandwidth  )

virtual

Parameters

ulBandwidth	the UL bandwidth in RB
dlBandwidth	the DL bandwidth in RB

Implements ns3::LteEnbPhySapProvider.

Definition at line 90 of file lte-enb-phy.cc.

References ns3::LtePhy::DoSetBandwidth(), and m_phy.

Here is the call graph for this function:

void ns3::EnbMemberLteEnbPhySapProvider::SetCellId ( uint16_t  cellId )

virtual

Parameters

cellId

the Cell Identifier

Implements ns3::LteEnbPhySapProvider.

Definition at line 96 of file lte-enb-phy.cc.

References ns3::LtePhy::DoSetCellId(), and m_phy.

Here is the call graph for this function:

void ns3::EnbMemberLteEnbPhySapProvider::SetSrsConfigurationIndex ( uint16_t  rnti, uint16_t  srsCi  )

virtual

Parameters

rnti	the RNTI of the user
txMode	the SRS Configuration Index of the user

Implements ns3::LteEnbPhySapProvider.

Definition at line 120 of file lte-enb-phy.cc.

References ns3::LteEnbPhy::DoSetSrsConfigurationIndex(), and m_phy.

Here is the call graph for this function:

void ns3::EnbMemberLteEnbPhySapProvider::SetTransmissionMode ( uint16_t  rnti, uint8_t  txMode  )

virtual

Parameters

rnti	the RNTI of the user
txMode	the transmissionMode of the user

Implements ns3::LteEnbPhySapProvider.

Definition at line 114 of file lte-enb-phy.cc.

References ns3::LteEnbPhy::DoSetTransmissionMode(), and m_phy.

Here is the call graph for this function:

Member Data Documentation

LteEnbPhy* ns3::EnbMemberLteEnbPhySapProvider::m_phy

private

Definition at line 74 of file lte-enb-phy.cc.

Referenced by GetMacChTtiDelay(), SendLteControlMessage(), SendMacPdu(), SetBandwidth(), SetCellId(), SetSrsConfigurationIndex(), and SetTransmissionMode().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-enb-phy.cc
