ns3::ErrorRateModel Class Reference
Wifi Models

the interface for Wifi's error models More...

#include <error-rate-model.h>

+ Inheritance diagram for ns3::ErrorRateModel:
+ Collaboration diagram for ns3::ErrorRateModel:

Public Member Functions

double CalculateSnr (WifiMode txMode, double ber) const
virtual double GetChunkSuccessRate (WifiMode mode, double snr, uint32_t nbits) const =0
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

the interface for Wifi's error models

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 33 of file error-rate-model.h.

Member Function Documentation

double ns3::ErrorRateModel::CalculateSnr ( WifiMode  txMode,
double  ber
) const
Parameters
txModea specific transmission mode
bera target ber
Returns
the snr which corresponds to the requested ber.

Definition at line 35 of file error-rate-model.cc.

References GetChunkSuccessRate(), and NS_ASSERT.

Referenced by ns3::YansWifiPhy::CalculateSnr().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual double ns3::ErrorRateModel::GetChunkSuccessRate ( WifiMode  mode,
double  snr,
uint32_t  nbits
) const
pure virtual

Implemented in ns3::YansErrorRateModel, and ns3::NistErrorRateModel.

Referenced by ns3::InterferenceHelper::CalculateChunkSuccessRate(), and CalculateSnr().

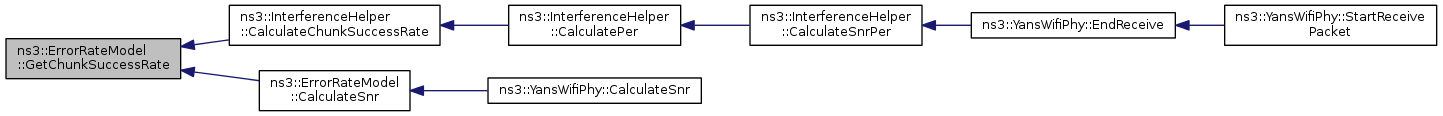

+ Here is the caller graph for this function:

TypeId ns3::ErrorRateModel::GetTypeId ( void  )
static

Reimplemented from ns3::Object.

Reimplemented in ns3::YansErrorRateModel, and ns3::NistErrorRateModel.

Definition at line 26 of file error-rate-model.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
