An object that monitors and reports back packet flows observed during a simulation. More...

#include <flow-monitor.h>

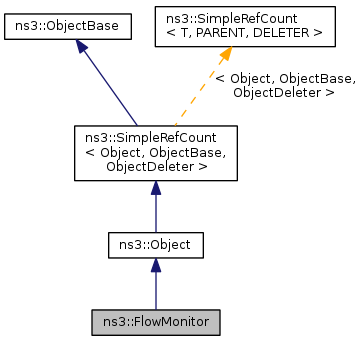

Inheritance diagram for ns3::FlowMonitor:

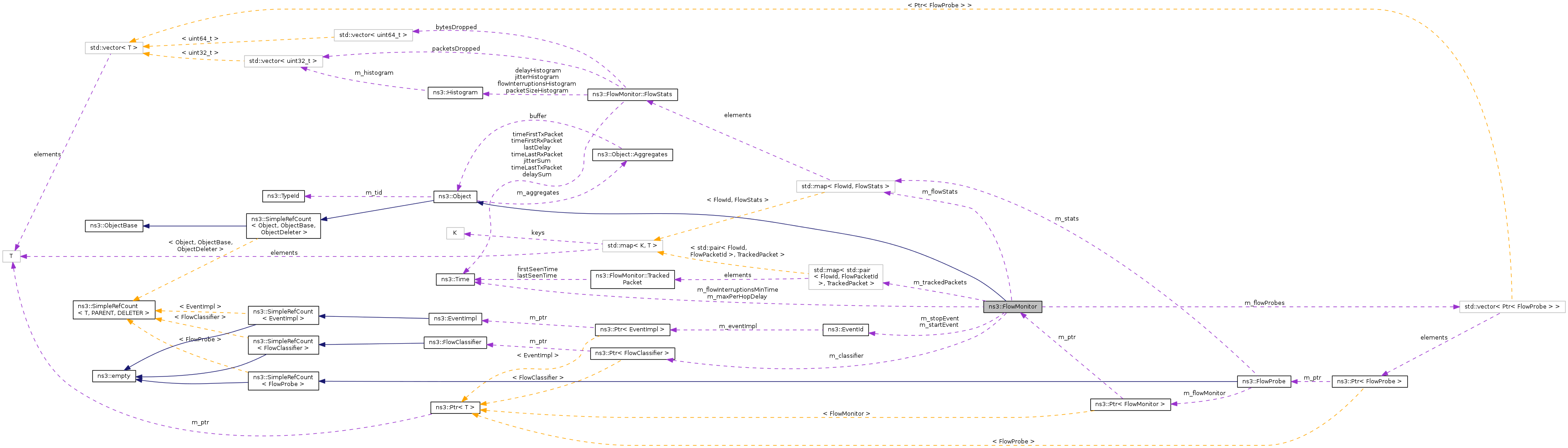

Collaboration diagram for ns3::FlowMonitor:

Classes
struct	FlowStats
	Structure that represents the measured metrics of an individual packet flow. More...
struct	TrackedPacket

Public Member Functions
	FlowMonitor ()
void	AddProbe (Ptr< FlowProbe > probe)
void	CheckForLostPackets ()
	Check right now for packets that appear to be lost.
void	CheckForLostPackets (Time maxDelay)
std::vector< Ptr< FlowProbe > >	GetAllProbes () const
	Get a list of all FlowProbe's associated with this FlowMonitor.
std::map< FlowId, FlowStats >	GetFlowStats () const
TypeId	GetInstanceTypeId () const
void	ReportDrop (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize, uint32_t reasonCode)
void	ReportFirstTx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
void	ReportForwarding (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
void	ReportLastRx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
void	SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)
void	SerializeToXmlStream (std::ostream &os, int indent, bool enableHistograms, bool enableProbes)
std::string	SerializeToXmlString (int indent, bool enableHistograms, bool enableProbes)
void	SetFlowClassifier (Ptr< FlowClassifier > classifier)
	Set the FlowClassifier to be used by the flow monitor.

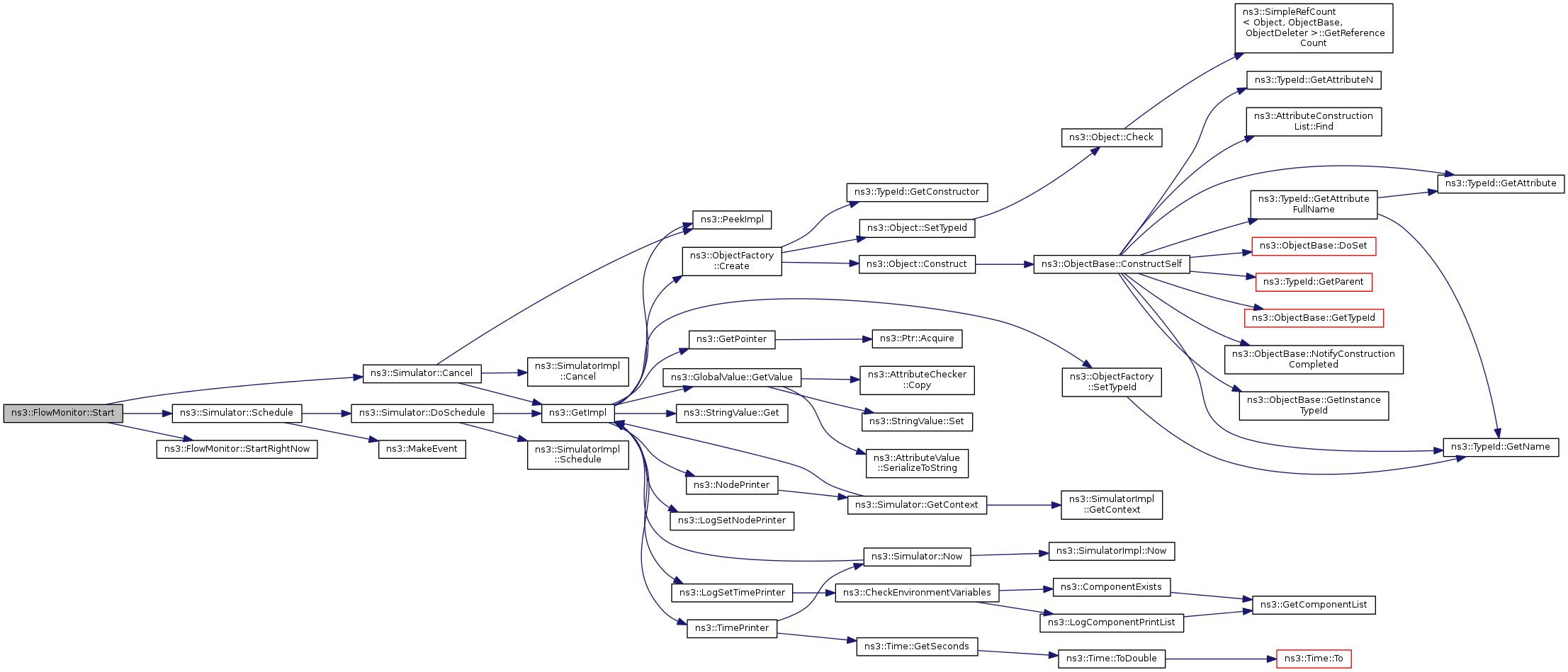

void	Start (const Time &time)
	Set the time, counting from the current time, from which to start monitoring flows.
void	StartRightNow ()
	Begin monitoring flows right now

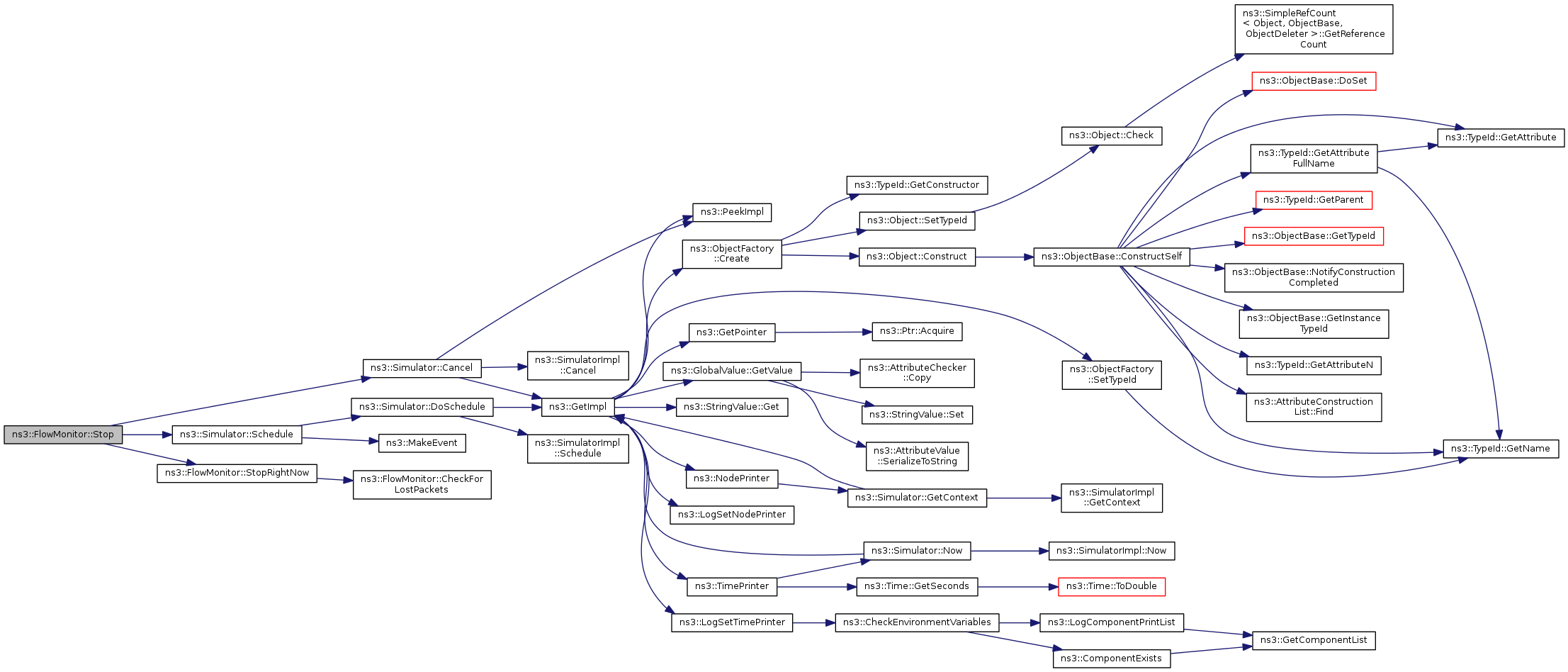

void	Stop (const Time &time)
	Set the time, counting from the current time, from which to stop monitoring flows.
void	StopRightNow ()
	End monitoring flows right now
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Protected Member Functions
virtual void	NotifyConstructionCompleted ()
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Private Types
typedef std::map< std::pair < FlowId, FlowPacketId > , TrackedPacket >	TrackedPacketMap

Private Member Functions
FlowStats &	GetStatsForFlow (FlowId flowId)
void	PeriodicCheckForLostPackets ()

Private Attributes
Ptr< FlowClassifier >	m_classifier
double	m_delayBinWidth
bool	m_enabled
double	m_flowInterruptionsBinWidth
Time	m_flowInterruptionsMinTime
std::vector< Ptr< FlowProbe > >	m_flowProbes
std::map< FlowId, FlowStats >	m_flowStats
double	m_jitterBinWidth
Time	m_maxPerHopDelay
double	m_packetSizeBinWidth
EventId	m_startEvent
EventId	m_stopEvent
TrackedPacketMap	m_trackedPackets

Detailed Description

An object that monitors and reports back packet flows observed during a simulation.

The FlowMonitor class is responsible forcoordinating efforts regarding probes, and collects end-to-end flowstatistics.

This type is not accessible from the Config system.

Attributes

MaxPerHopDelay: The maximum per-hop delay that should be considered. Packets still not received after this delay are to be considered lost.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000000.0ns
- Flags: construct write read
StartTime: The time when the monitoring starts.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write
DelayBinWidth: The width used in the delay histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
JitterBinWidth: The width used in the jitter histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
PacketSizeBinWidth: The width used in the packetSize histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: construct write read
FlowInterruptionsBinWidth: The width used in the flowInterruptions histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.25
- Flags: construct write read
FlowInterruptionsMinTime: The minimum inter-arrival time that is considered a flow interruption.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +500000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 41 of file flow-monitor.h.

Member Typedef Documentation

typedef std::map< std::pair<FlowId, FlowPacketId>, TrackedPacket> ns3::FlowMonitor::TrackedPacketMap

private

Definition at line 222 of file flow-monitor.h.

Constructor & Destructor Documentation

ns3::FlowMonitor::FlowMonitor ( )

Definition at line 84 of file flow-monitor.cc.

Member Function Documentation

void ns3::FlowMonitor::AddProbe ( Ptr< FlowProbe > probe )

Register a new FlowProbe that will begin monitoring and report events to this monitor. This method is normally only used by FlowProbe implementations.

Definition at line 323 of file flow-monitor.cc.

References m_flowProbes.

Referenced by ns3::FlowProbe::FlowProbe().

Here is the caller graph for this function:

void ns3::FlowMonitor::CheckForLostPackets ( )

Check right now for packets that appear to be lost.

Definition at line 303 of file flow-monitor.cc.

References m_maxPerHopDelay.

Referenced by PeriodicCheckForLostPackets(), SerializeToXmlStream(), and StopRightNow().

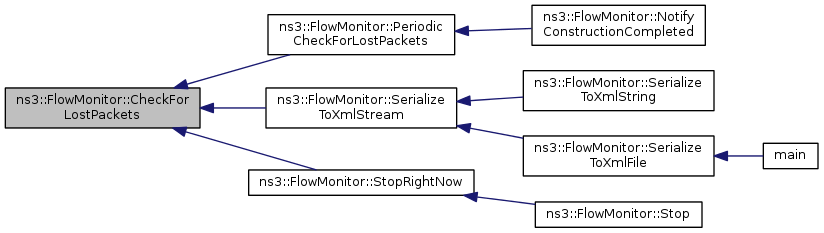

Here is the caller graph for this function:

void ns3::FlowMonitor::CheckForLostPackets ( Time maxDelay )

Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay

Definition at line 277 of file flow-monitor.cc.

References m_flowStats, m_trackedPackets, ns3::Now(), and NS_ASSERT.

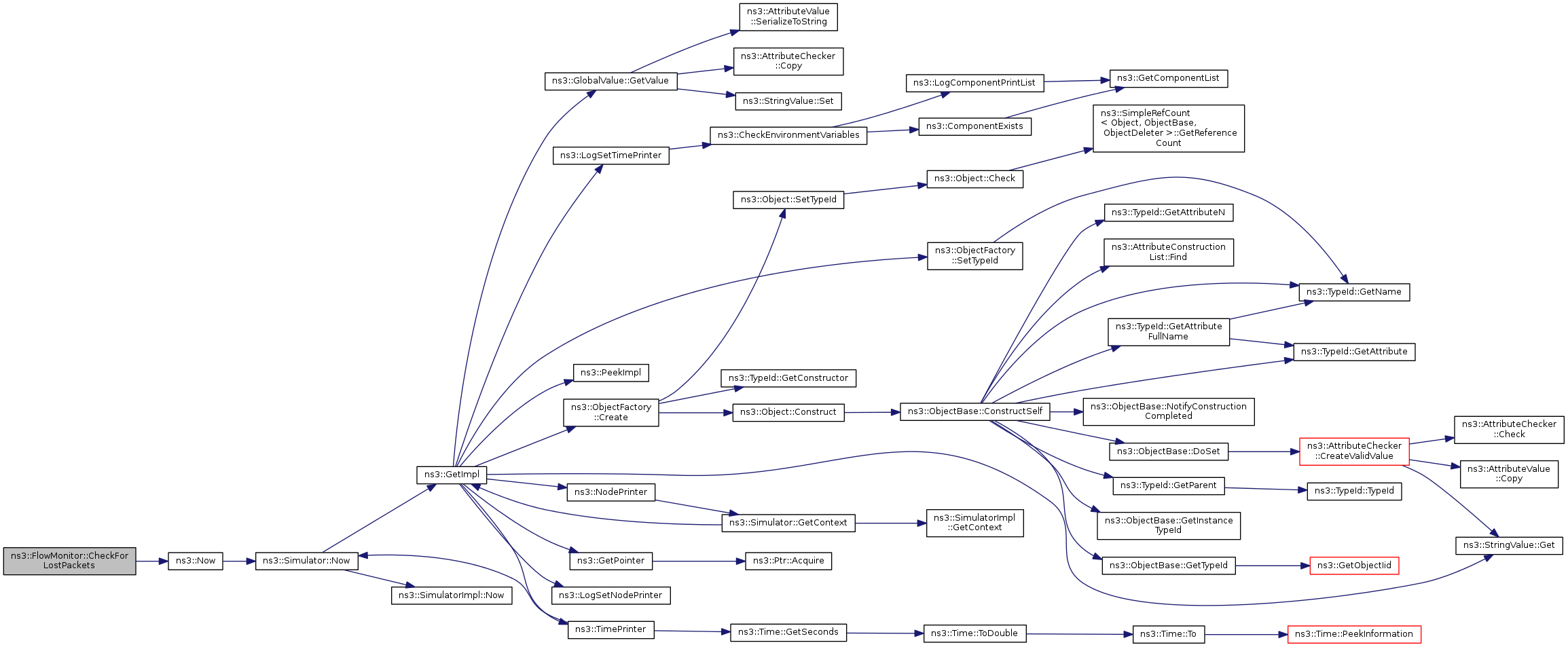

Here is the call graph for this function:

std::vector< Ptr< FlowProbe > > ns3::FlowMonitor::GetAllProbes ( ) const

Get a list of all FlowProbe's associated with this FlowMonitor.

Definition at line 329 of file flow-monitor.cc.

References m_flowProbes.

std::map< FlowId, FlowMonitor::FlowStats > ns3::FlowMonitor::GetFlowStats ( ) const

Retrieve all collected the flow statistics. Note, if the FlowMonitor has not stopped monitoring yet, you should call CheckForLostPackets() to make sure all possibly lost packets are accounted for.

Definition at line 270 of file flow-monitor.cc.

References m_flowStats.

TypeId ns3::FlowMonitor::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Reimplemented from ns3::Object.

Definition at line 79 of file flow-monitor.cc.

References GetTypeId().

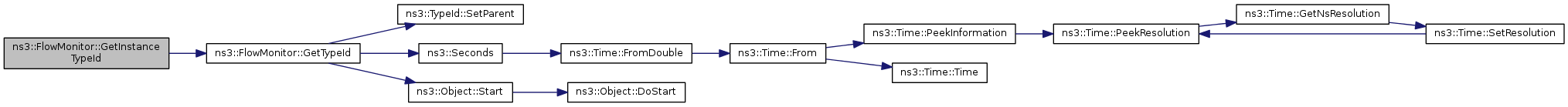

Here is the call graph for this function:

FlowMonitor::FlowStats & ns3::FlowMonitor::GetStatsForFlow ( FlowId flowId )

inlineprivate

Definition at line 92 of file flow-monitor.cc.

Referenced by ReportDrop(), ReportFirstTx(), and ReportLastRx().

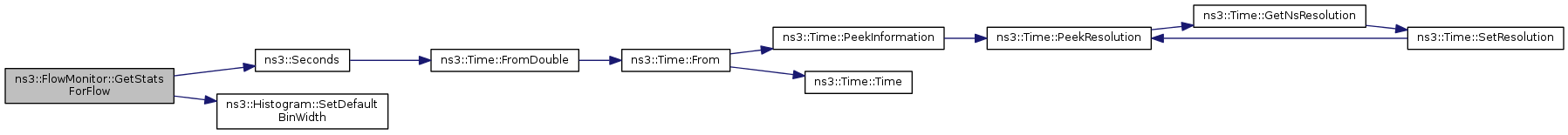

Here is the call graph for this function:

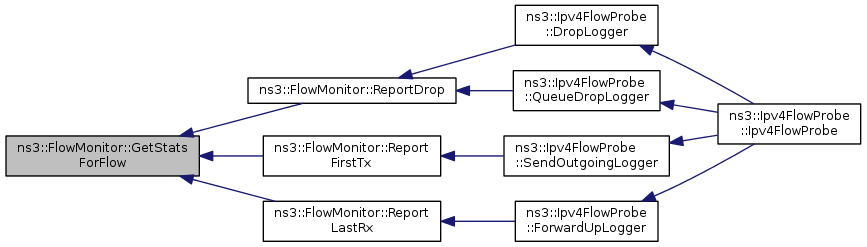

Here is the caller graph for this function:

TypeId ns3::FlowMonitor::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 40 of file flow-monitor.cc.

References m_delayBinWidth, m_flowInterruptionsBinWidth, m_flowInterruptionsMinTime, m_jitterBinWidth, m_maxPerHopDelay, m_packetSizeBinWidth, ns3::Seconds(), ns3::TypeId::SetParent(), and ns3::Object::Start().

Referenced by GetInstanceTypeId().

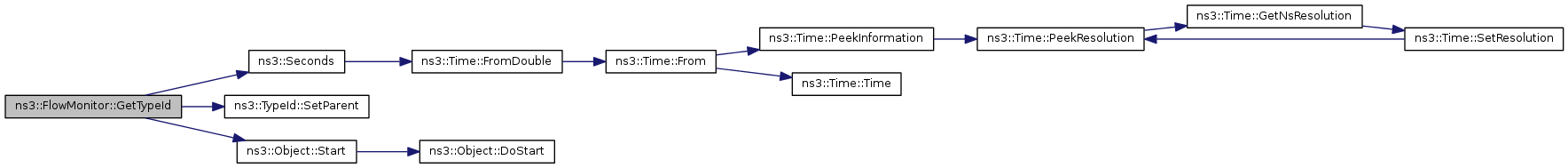

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::NotifyConstructionCompleted ( void )

protectedvirtual

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::ObjectBase.

Definition at line 316 of file flow-monitor.cc.

References PERIODIC_CHECK_INTERVAL, PeriodicCheckForLostPackets(), and ns3::Simulator::Schedule().

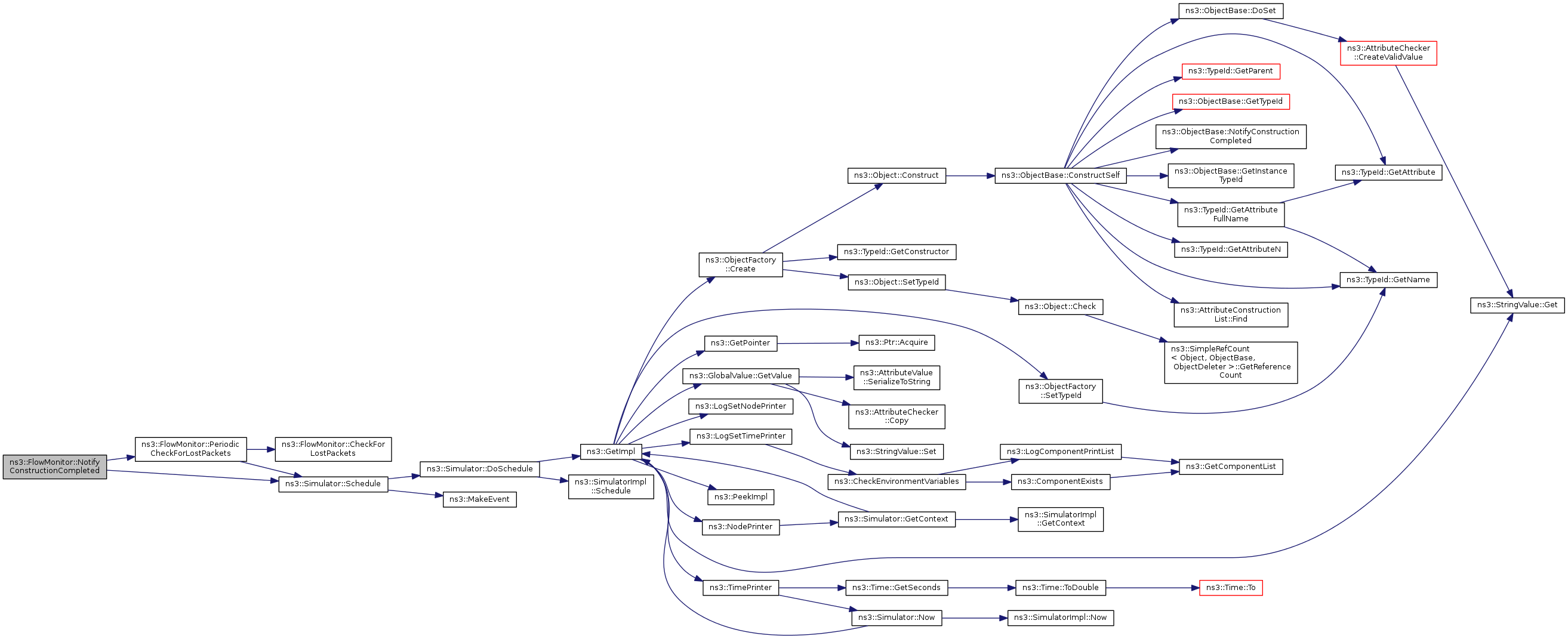

Here is the call graph for this function:

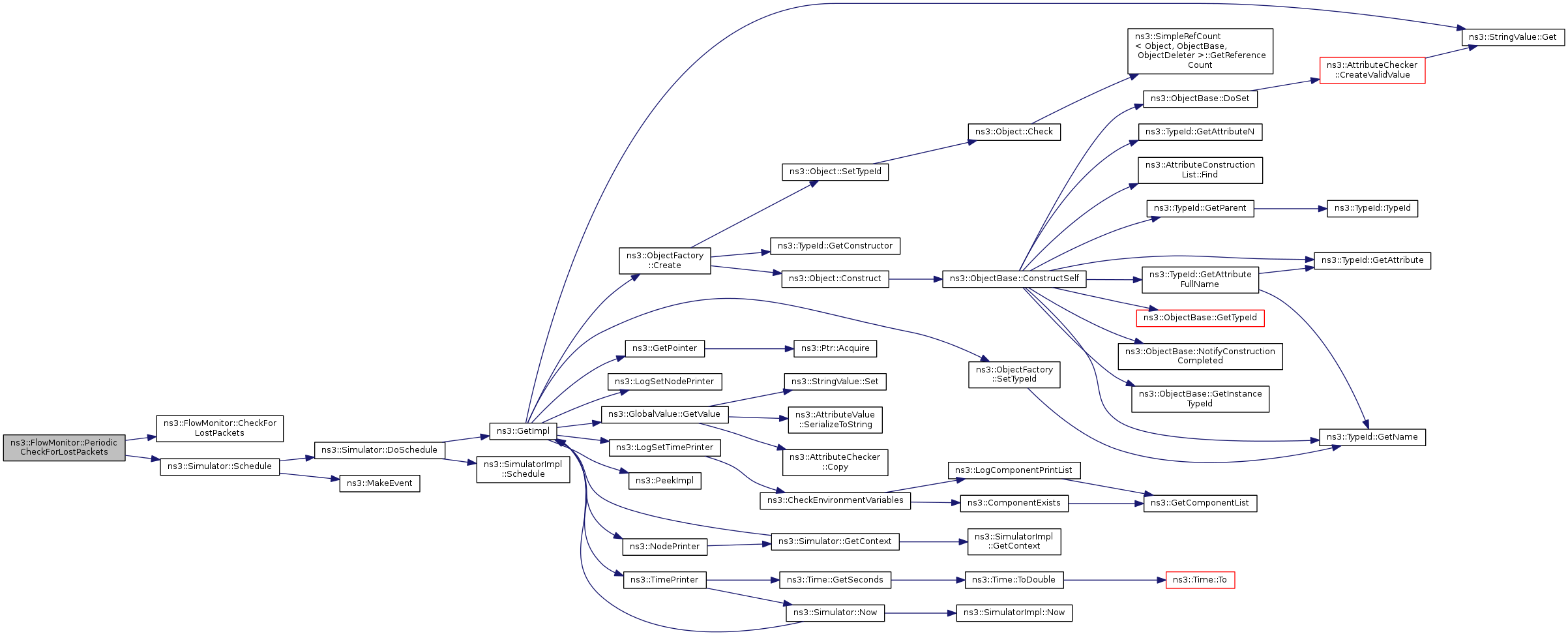

void ns3::FlowMonitor::PeriodicCheckForLostPackets ( )

private

Definition at line 309 of file flow-monitor.cc.

References CheckForLostPackets(), PERIODIC_CHECK_INTERVAL, and ns3::Simulator::Schedule().

Referenced by NotifyConstructionCompleted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::ReportDrop	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize,
		uint32_t	reasonCode
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason.

Definition at line 237 of file flow-monitor.cc.

References ns3::FlowProbe::AddPacketDropStats(), ns3::FlowMonitor::FlowStats::bytesDropped, GetStatsForFlow(), ns3::FlowMonitor::FlowStats::lostPackets, m_enabled, m_trackedPackets, NS_LOG_DEBUG, and ns3::FlowMonitor::FlowStats::packetsDropped.

Referenced by ns3::Ipv4FlowProbe::DropLogger(), and ns3::Ipv4FlowProbe::QueueDropLogger().

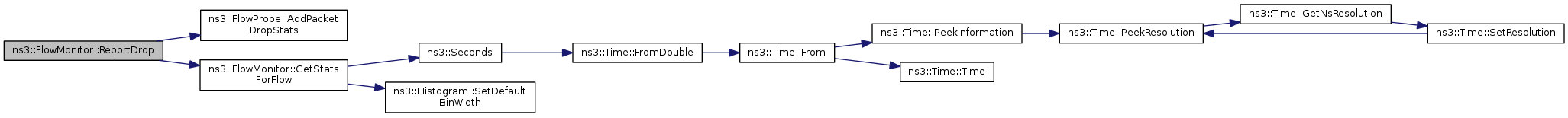

Here is the call graph for this function:

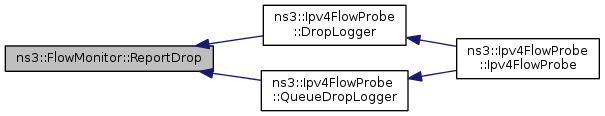

Here is the caller graph for this function:

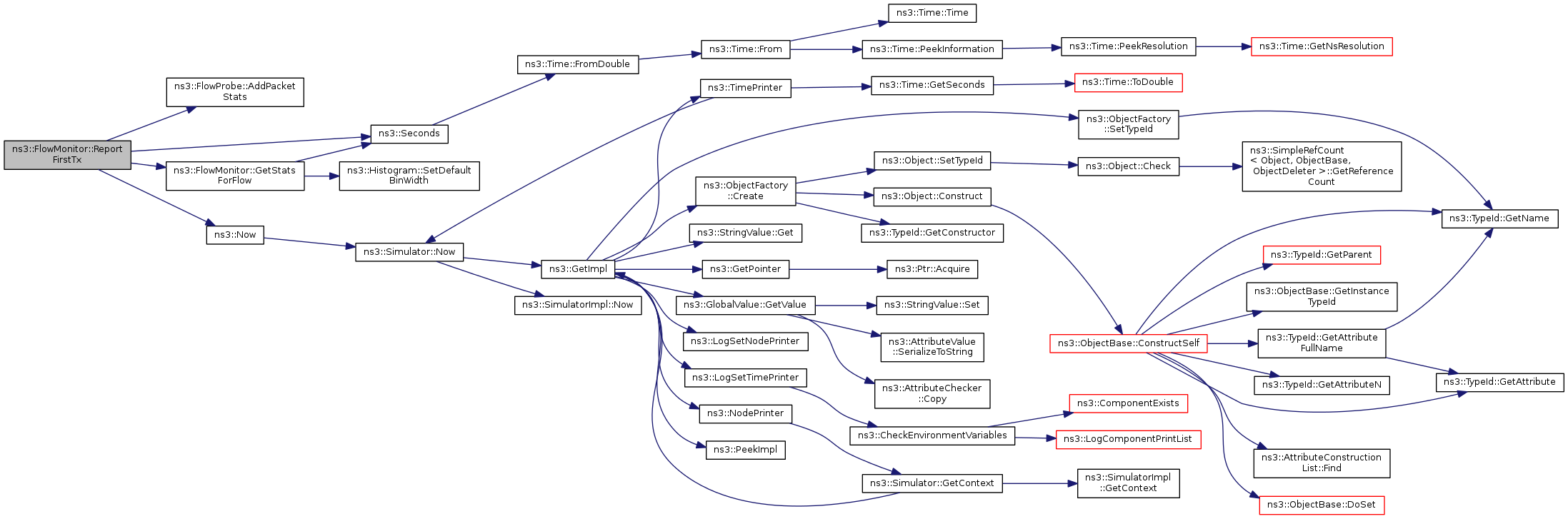

void ns3::FlowMonitor::ReportFirstTx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded).

Definition at line 122 of file flow-monitor.cc.

References ns3::FlowProbe::AddPacketStats(), ns3::FlowMonitor::TrackedPacket::firstSeenTime, GetStatsForFlow(), ns3::FlowMonitor::TrackedPacket::lastSeenTime, m_enabled, m_trackedPackets, ns3::Now(), NS_LOG_DEBUG, ns3::Seconds(), ns3::FlowMonitor::FlowStats::timeFirstTxPacket, ns3::FlowMonitor::FlowStats::timeLastTxPacket, ns3::FlowMonitor::TrackedPacket::timesForwarded, ns3::FlowMonitor::FlowStats::txBytes, and ns3::FlowMonitor::FlowStats::txPackets.

Referenced by ns3::Ipv4FlowProbe::SendOutgoingLogger().

Here is the call graph for this function:

Here is the caller graph for this function:

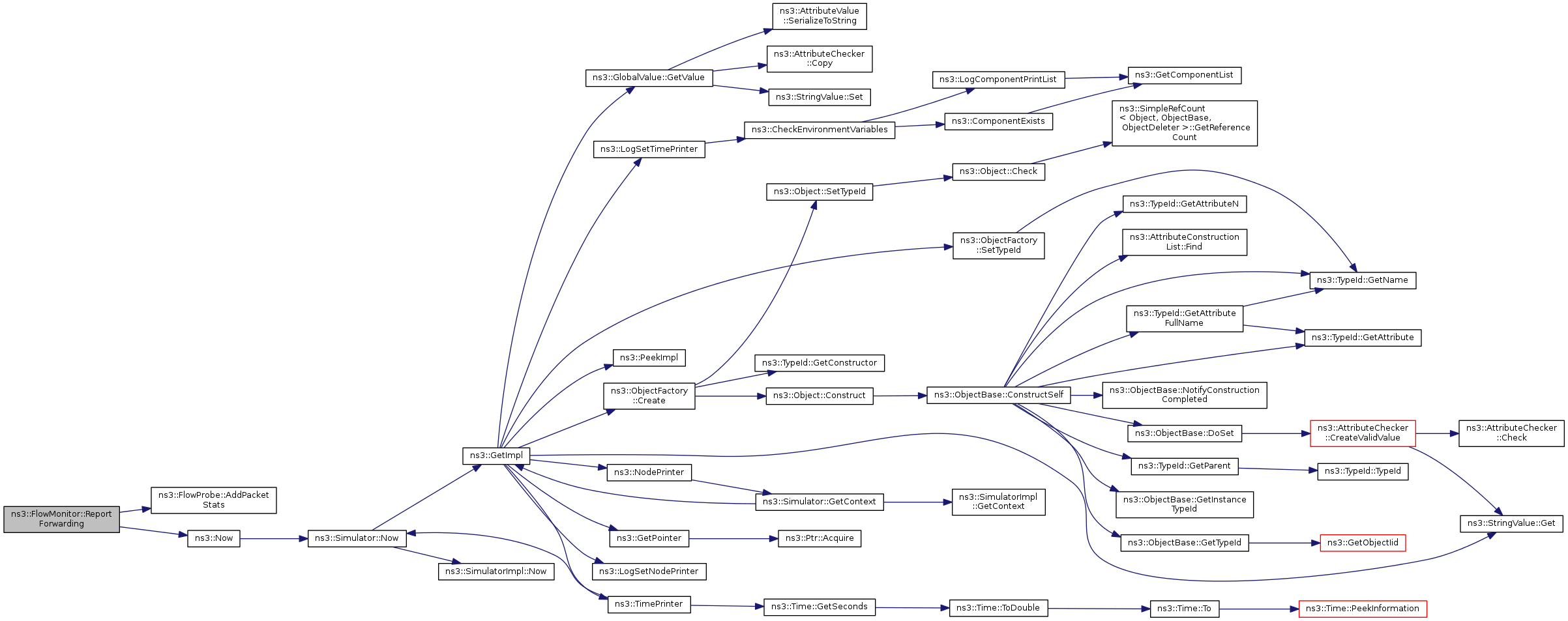

void ns3::FlowMonitor::ReportForwarding	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded.

Definition at line 150 of file flow-monitor.cc.

References ns3::FlowProbe::AddPacketStats(), m_enabled, m_trackedPackets, ns3::Now(), and NS_LOG_WARN.

Referenced by ns3::Ipv4FlowProbe::ForwardLogger().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::ReportLastRx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being received.

Definition at line 174 of file flow-monitor.cc.

Referenced by ns3::Ipv4FlowProbe::ForwardUpLogger().

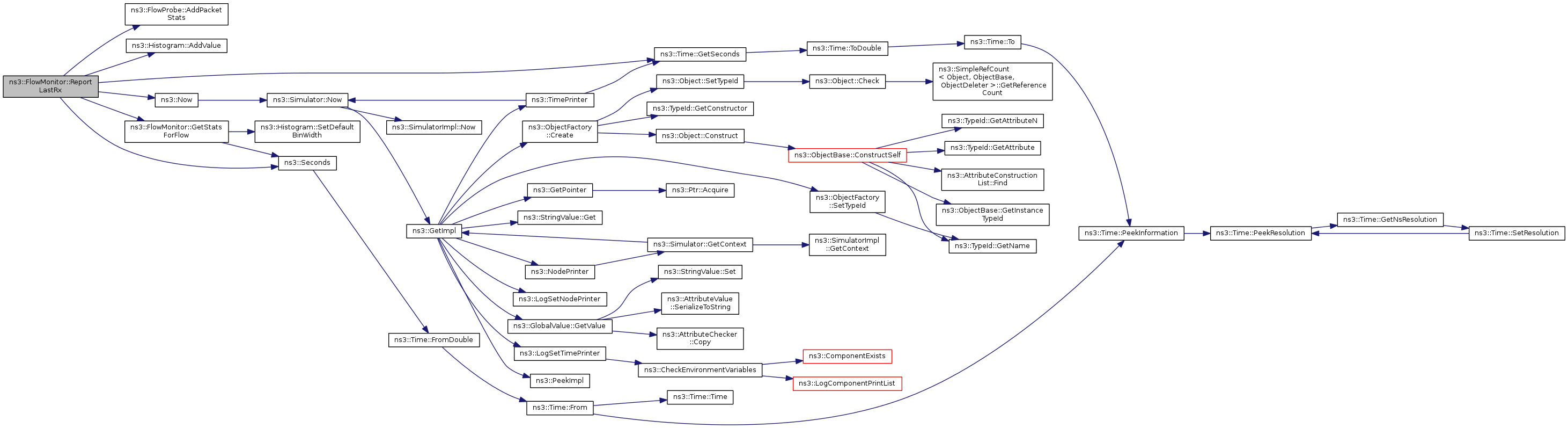

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::SerializeToXmlFile	(	std::string	fileName,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but writes to a file instead

Parameters

fileName	name or path of the output file that will be created
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 477 of file flow-monitor.cc.

References SerializeToXmlStream().

Referenced by main().

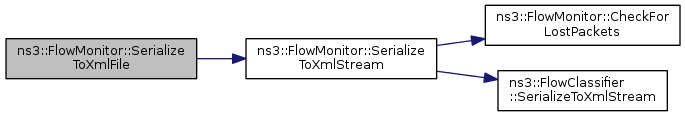

Here is the call graph for this function:

Here is the caller graph for this function:

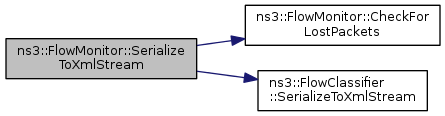

void ns3::FlowMonitor::SerializeToXmlStream	(	std::ostream &	os,
		int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Serializes the results to an std::ostream in XML format

Parameters

os	the output stream
indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 387 of file flow-monitor.cc.

References ATTRIB, CheckForLostPackets(), INDENT, m_classifier, m_flowProbes, m_flowStats, and ns3::FlowClassifier::SerializeToXmlStream().

Referenced by SerializeToXmlFile(), and SerializeToXmlString().

Here is the call graph for this function:

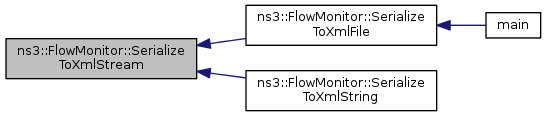

Here is the caller graph for this function:

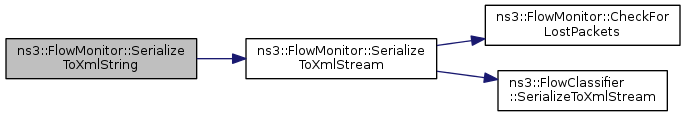

std::string ns3::FlowMonitor::SerializeToXmlString	(	int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but returns the output as a std::string

Parameters

indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output
