#include <icmpv4.h>

Inheritance diagram for ns3::Icmpv4Echo:

Collaboration diagram for ns3::Icmpv4Echo:

Public Member Functions
	Icmpv4Echo ()
virtual	~Icmpv4Echo ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
uint32_t	GetData (uint8_t payload[]) const
uint32_t	GetDataSize (void) const
uint16_t	GetIdentifier (void) const
virtual TypeId	GetInstanceTypeId (void) const
uint16_t	GetSequenceNumber (void) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetData (Ptr< const Packet > data)
void	SetIdentifier (uint16_t id)
void	SetSequenceNumber (uint16_t seq)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
uint8_t *	m_data
uint32_t	m_dataSize
uint16_t	m_identifier
uint16_t	m_sequence

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 65 of file icmpv4.h.

Constructor & Destructor Documentation

ns3::Icmpv4Echo::Icmpv4Echo ( )

Definition at line 182 of file icmpv4.cc.

References m_data, and m_dataSize.

ns3::Icmpv4Echo::~Icmpv4Echo ( )

virtual

Definition at line 193 of file icmpv4.cc.

References m_data, and m_dataSize.

Member Function Documentation

uint32_t ns3::Icmpv4Echo::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 217 of file icmpv4.cc.

References ns3::Buffer::Iterator::GetSize(), m_data, m_dataSize, m_identifier, m_sequence, NS_ASSERT, ns3::Buffer::Iterator::Read(), and ns3::Buffer::Iterator::ReadNtohU16().

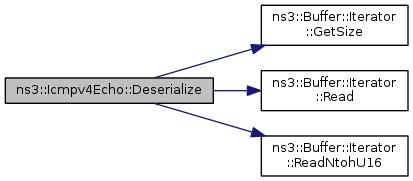

Here is the call graph for this function:

uint32_t ns3::Icmpv4Echo::GetData ( uint8_t payload[] ) const

Definition at line 168 of file icmpv4.cc.

References m_data, and m_dataSize.

Referenced by ns3::V4Ping::Receive().

Here is the caller graph for this function:

uint32_t ns3::Icmpv4Echo::GetDataSize ( void ) const

Definition at line 163 of file icmpv4.cc.

References m_dataSize.

Referenced by ns3::V4Ping::Receive().

Here is the caller graph for this function:

uint16_t ns3::Icmpv4Echo::GetIdentifier ( void ) const

Definition at line 153 of file icmpv4.cc.

References m_identifier.

Referenced by ns3::V4Ping::Receive().

Here is the caller graph for this function:

TypeId ns3::Icmpv4Echo::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 200 of file icmpv4.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::Icmpv4Echo::GetSequenceNumber ( void ) const

Definition at line 158 of file icmpv4.cc.

References m_sequence.

Referenced by ns3::V4Ping::Receive().

Here is the caller graph for this function:

uint32_t ns3::Icmpv4Echo::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 205 of file icmpv4.cc.

References m_dataSize.

TypeId ns3::Icmpv4Echo::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 174 of file icmpv4.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4Echo::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 233 of file icmpv4.cc.

References m_identifier, and m_sequence.

void ns3::Icmpv4Echo::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 210 of file icmpv4.cc.

References m_data, m_dataSize, m_identifier, m_sequence, ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteHtonU16().

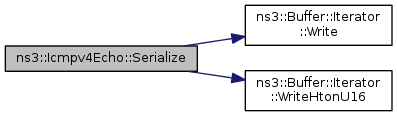

Here is the call graph for this function:
