#include <icmpv4.h>

Inheritance diagram for ns3::Icmpv4Header:

Collaboration diagram for ns3::Icmpv4Header:

Public Types
enum	{ ECHO_REPLY = 0, DEST_UNREACH = 3, ECHO = 8, TIME_EXCEEDED = 11 }

Public Member Functions
	Icmpv4Header ()
virtual	~Icmpv4Header ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
void	EnableChecksum (void)
uint8_t	GetCode (void) const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
uint8_t	GetType (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetCode (uint8_t code)
void	SetType (uint8_t type)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
bool	m_calcChecksum
uint8_t	m_code
uint8_t	m_type

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 33 of file icmpv4.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

ECHO_REPLY
DEST_UNREACH
ECHO
TIME_EXCEEDED

Definition at line 36 of file icmpv4.h.

Constructor & Destructor Documentation

ns3::Icmpv4Header::Icmpv4Header ( )

Definition at line 41 of file icmpv4.cc.

ns3::Icmpv4Header::~Icmpv4Header ( )

virtual

Definition at line 47 of file icmpv4.cc.

Member Function Documentation

uint32_t ns3::Icmpv4Header::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 83 of file icmpv4.cc.

References m_code, m_type, ns3::Buffer::Iterator::Next(), and ns3::Buffer::Iterator::ReadU8().

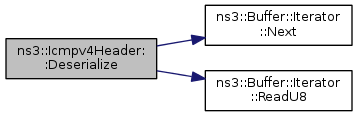

Here is the call graph for this function:

void ns3::Icmpv4Header::EnableChecksum ( void )

Definition at line 51 of file icmpv4.cc.

References m_calcChecksum.

Referenced by ns3::V4Ping::Send(), and ns3::Icmpv4L4Protocol::SendMessage().

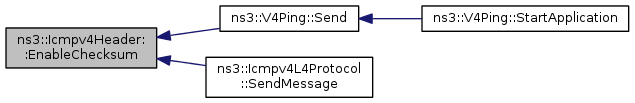

Here is the caller graph for this function:

uint8_t ns3::Icmpv4Header::GetCode ( void ) const

Definition at line 112 of file icmpv4.cc.

References m_code.

Referenced by ns3::Icmpv4L4Protocol::Forward().

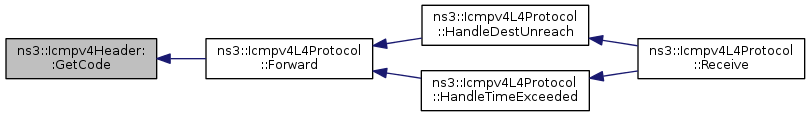

Here is the caller graph for this function:

TypeId ns3::Icmpv4Header::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 56 of file icmpv4.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::Icmpv4Header::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 61 of file icmpv4.cc.

uint8_t ns3::Icmpv4Header::GetType ( void ) const

Definition at line 107 of file icmpv4.cc.

References m_type.

Referenced by ns3::Icmpv4L4Protocol::Forward(), ns3::Ipv4RawSocketImpl::ForwardUp(), and ns3::Icmpv4L4Protocol::Receive().

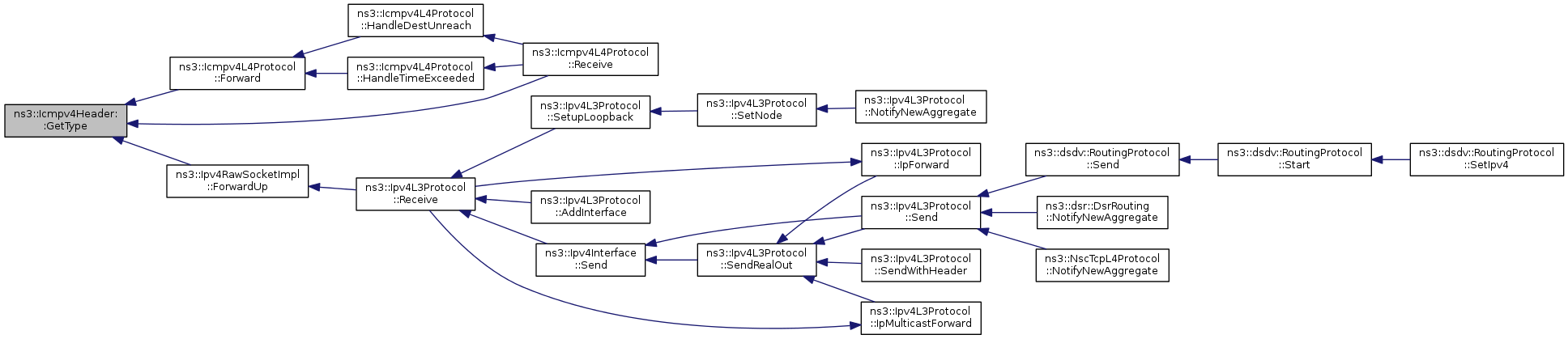

Here is the caller graph for this function:

TypeId ns3::Icmpv4Header::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 33 of file icmpv4.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4Header::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 91 of file icmpv4.cc.

References m_code, and m_type.

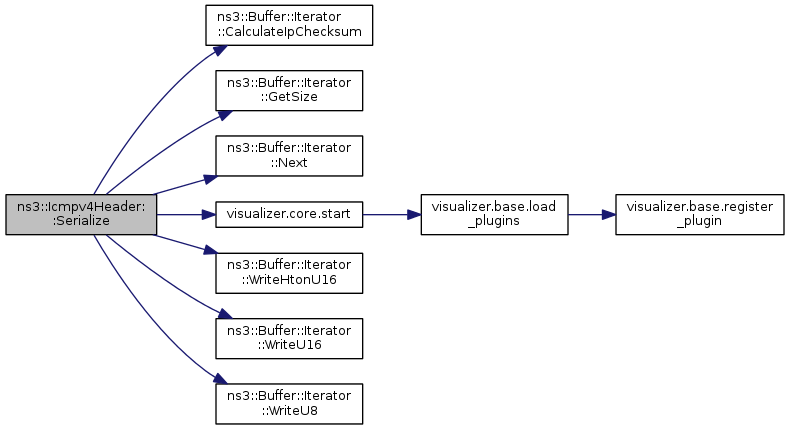

void ns3::Icmpv4Header::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 66 of file icmpv4.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Buffer::Iterator::GetSize(), m_calcChecksum, m_code, m_type, ns3::Buffer::Iterator::Next(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().
