ns3::Icmpv6OptionLinkLayerAddress Class Reference

ICMPv6 link-layer address option. More...

#include <icmpv6-header.h>

Inheritance diagram for ns3::Icmpv6OptionLinkLayerAddress:

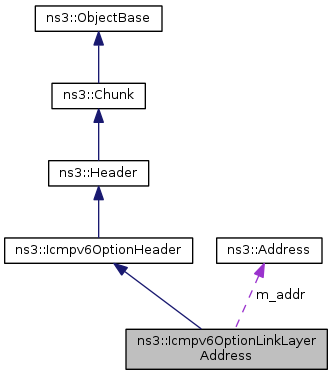

Collaboration diagram for ns3::Icmpv6OptionLinkLayerAddress:

Public Member Functions
	Icmpv6OptionLinkLayerAddress (bool source)
	Constructor.
	Icmpv6OptionLinkLayerAddress (bool source, Address addr)
	Constructor.
	Icmpv6OptionLinkLayerAddress ()
	Constructor.
virtual	~Icmpv6OptionLinkLayerAddress ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
Address	GetAddress () const
	Get the hardware address.
virtual TypeId	GetInstanceTypeId (void) const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetAddress (Address addr)
	Set the hardware address.
Public Member Functions inherited from ns3::Icmpv6OptionHeader
	Icmpv6OptionHeader ()
	Constructor.
virtual	~Icmpv6OptionHeader ()
	Destructor.
uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit.
uint8_t	GetType () const
	Get the type of the option.
void	SetLength (uint8_t len)
	Set the length of the option.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Private Attributes
Address	m_addr
	The hardware address.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

ICMPv6 link-layer address option.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1627 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress

(

bool

source

)

Constructor.

Parameters

source

source hardware address or target hardware address for the option

Definition at line 1635 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_TARGET, and ns3::Icmpv6OptionHeader::SetType().

Here is the call graph for this function:

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress	(	bool	source,
		Address	addr
	)

Constructor.

Parameters

source	source hardware address or target hardware address for the option
addr	hardware address

Definition at line 1645 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_TARGET, SetAddress(), ns3::Icmpv6OptionHeader::SetLength(), and ns3::Icmpv6OptionHeader::SetType().

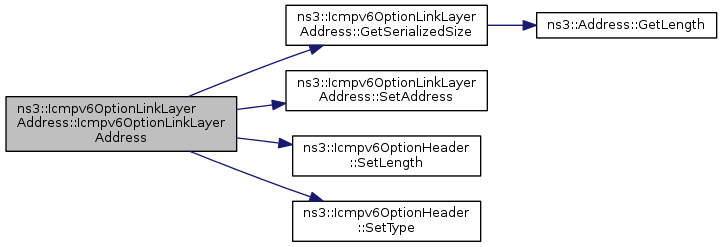

Here is the call graph for this function:

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress

(

)

Constructor.

Definition at line 1640 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, and ns3::Icmpv6OptionHeader::SetType().

Here is the call graph for this function:

ns3::Icmpv6OptionLinkLayerAddress::~Icmpv6OptionLinkLayerAddress ( )

virtual

Destructor.

Definition at line 1652 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6OptionLinkLayerAddress::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

start offset

Returns

length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1692 of file icmpv6-header.cc.

References ns3::Address::CopyFrom(), ns3::Icmpv6OptionHeader::GetLength(), GetSerializedSize(), m_addr, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6OptionHeader::SetLength(), ns3::Icmpv6OptionHeader::SetType(), and visualizer.core::start().

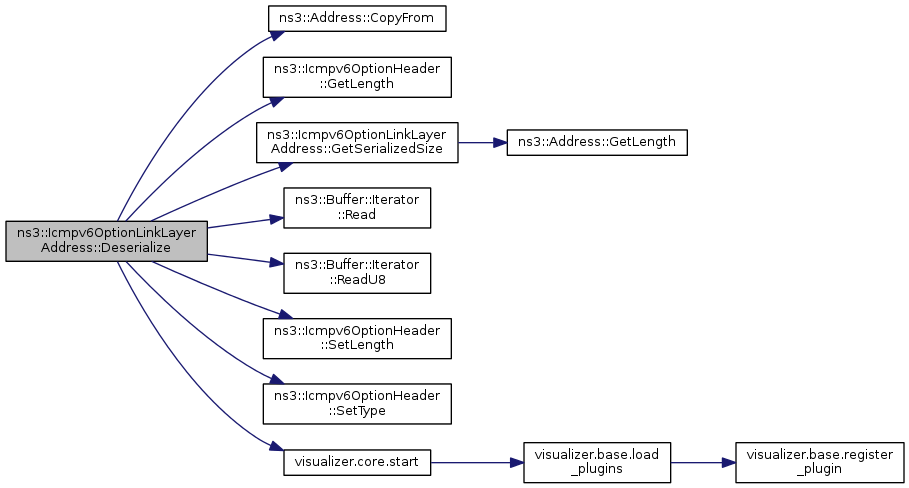

Here is the call graph for this function:

Address ns3::Icmpv6OptionLinkLayerAddress::GetAddress

(

void

)

const

Get the hardware address.

Returns

the hardware address

Definition at line 1656 of file icmpv6-header.cc.

References m_addr.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRedirection(), ns3::Icmpv6L4Protocol::HandleRS(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

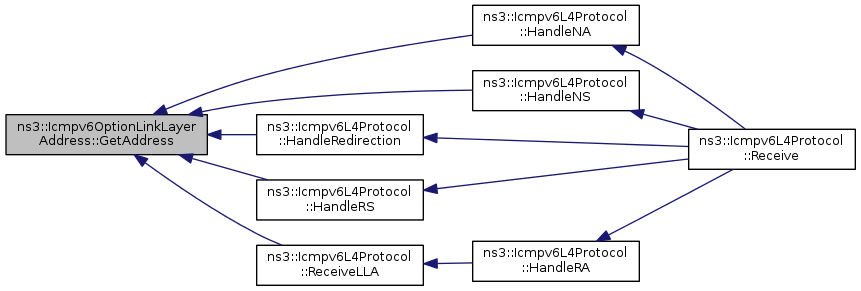

Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionLinkLayerAddress::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1630 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::Icmpv6OptionLinkLayerAddress::GetSerializedSize ( void  ) const

virtual

Get the serialized size.

Returns

serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1671 of file icmpv6-header.cc.

References ns3::Address::GetLength(), and m_addr.

Referenced by Deserialize(), Icmpv6OptionLinkLayerAddress(), and ns3::Icmpv6L4Protocol::SendRedirection().

Here is the call graph for this function:

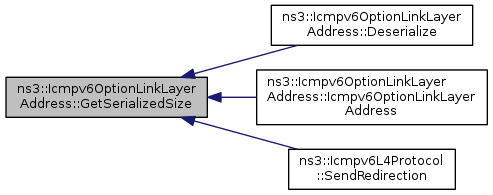

Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionLinkLayerAddress::GetTypeId ( void  )

static

Get the UID of this class.

Returns

UID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1621 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6OptionLinkLayerAddress::Print ( std::ostream &  os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1666 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), and m_addr.

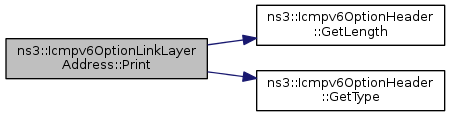

Here is the call graph for this function:

void ns3::Icmpv6OptionLinkLayerAddress::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

start offset

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1678 of file icmpv6-header.cc.

References ns3::Address::CopyTo(), ns3::Address::GetLength(), ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_addr, NS_LOG_FUNCTION_NOARGS, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

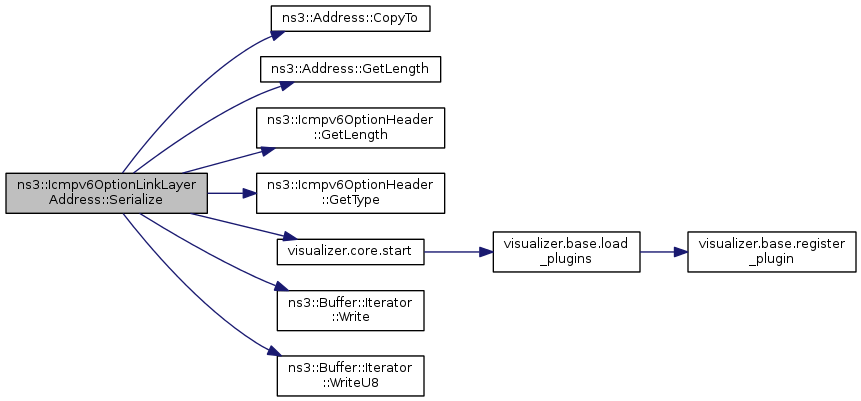

Here is the call graph for this function:

void ns3::Icmpv6OptionLinkLayerAddress::SetAddress

(

Address

addr

)

Set the hardware address.

Parameters

addr	the address to set

Definition at line 1661 of file icmpv6-header.cc.

References m_addr.

Referenced by Icmpv6OptionLinkLayerAddress(), and ns3::Icmpv6L4Protocol::SendRedirection().

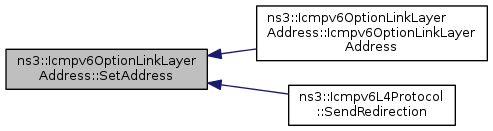

Here is the caller graph for this function:

Member Data Documentation

Address ns3::Icmpv6OptionLinkLayerAddress::m_addr

private

The hardware address.

Definition at line 1706 of file icmpv6-header.h.

Referenced by Deserialize(), GetAddress(), GetSerializedSize(), Print(), Serialize(), and SetAddress().

---

The documentation for this class was generated from the following files:

• src/internet/model/icmpv6-header.h
• src/internet/model/icmpv6-header.cc
