ns3::Icmpv6OptionMtu Class Reference

ICMPv6 MTU option. More...

#include <icmpv6-header.h>

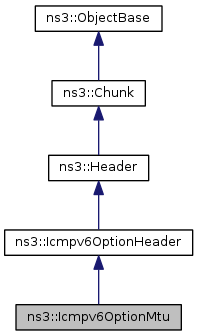

+ Inheritance diagram for ns3::Icmpv6OptionMtu:
+ Collaboration diagram for ns3::Icmpv6OptionMtu:

Public Member Functions

 Icmpv6OptionMtu ()
 Constructor.
 Icmpv6OptionMtu (uint32_t mtu)
 Constructor.
virtual ~Icmpv6OptionMtu ()
 Destructor.
virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet.
virtual TypeId GetInstanceTypeId () const
 Get the instance type ID.
uint32_t GetMtu () const
 Get the MTU.
uint16_t GetReserved () const
 Get the reserved field.
virtual uint32_t GetSerializedSize () const
 Get the serialized size.
virtual void Print (std::ostream &os) const
 Print informations.
virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet.
void SetMtu (uint32_t mtu)
 Set the MTU.
void SetReserved (uint16_t reserved)
 Set the reserved field.
- Public Member Functions inherited from ns3::Icmpv6OptionHeader
 Icmpv6OptionHeader ()
 Constructor.
virtual ~Icmpv6OptionHeader ()
 Destructor.
uint8_t GetLength () const
 Get the length of the option in 8 bytes unit.
uint8_t GetType () const
 Get the type of the option.
void SetLength (uint8_t len)
 Set the length of the option.
void SetType (uint8_t type)
 Set the type of the option.
- Public Member Functions inherited from ns3::Header
virtual ~Header ()

Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class.

Private Attributes

uint32_t m_mtu
 The MTU value.
uint16_t m_reserved
 The reserved value.

Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
virtual void NotifyConstructionCompleted (void)

Detailed Description

ICMPv6 MTU option.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1366 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6OptionMtu::Icmpv6OptionMtu ( )

Constructor.

Definition at line 1398 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_MTU, ns3::Icmpv6OptionHeader::SetLength(), SetReserved(), and ns3::Icmpv6OptionHeader::SetType().

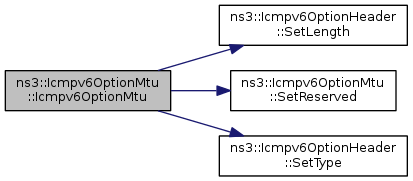

+ Here is the call graph for this function:

ns3::Icmpv6OptionMtu::Icmpv6OptionMtu ( uint32_t  mtu)

Constructor.

Parameters
mtuMTU used.

Definition at line 1405 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_MTU, ns3::Icmpv6OptionHeader::SetLength(), SetReserved(), and ns3::Icmpv6OptionHeader::SetType().

+ Here is the call graph for this function:

ns3::Icmpv6OptionMtu::~Icmpv6OptionMtu ( )
virtual

Destructor.

Definition at line 1413 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6OptionMtu::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1456 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6OptionHeader::SetLength(), SetMtu(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), and visualizer.core::start().

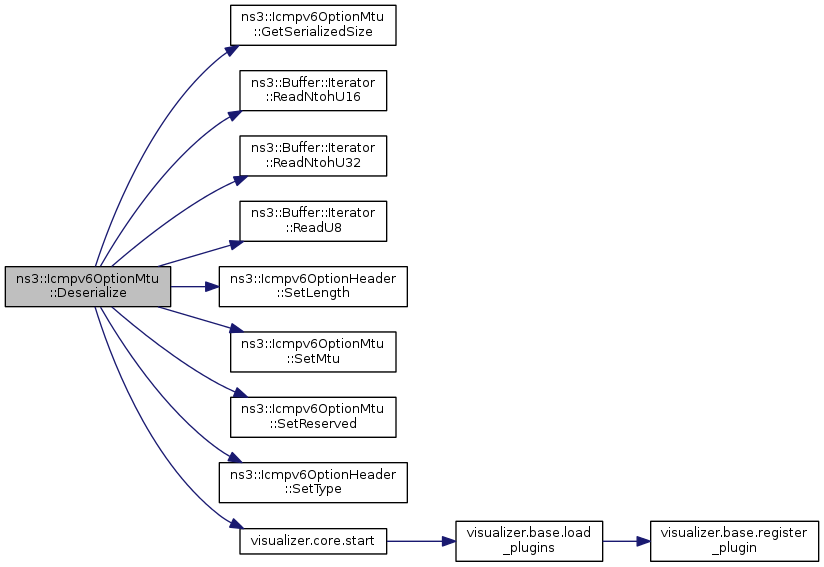

+ Here is the call graph for this function:

TypeId ns3::Icmpv6OptionMtu::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1393 of file icmpv6-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::Icmpv6OptionMtu::GetMtu ( void  ) const

Get the MTU.

Returns
the MTU value

Definition at line 1427 of file icmpv6-header.cc.

References m_mtu.

Referenced by Serialize().

+ Here is the caller graph for this function:

uint16_t ns3::Icmpv6OptionMtu::GetReserved ( ) const

Get the reserved field.

Returns
the reserved value

Definition at line 1417 of file icmpv6-header.cc.

References m_reserved.

Referenced by Serialize().

+ Here is the caller graph for this function:

uint32_t ns3::Icmpv6OptionMtu::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1442 of file icmpv6-header.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionMtu::GetTypeId ( void  )
static

Get the UID of this class.

Returns
UID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1384 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6OptionMtu::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1437 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), and m_mtu.

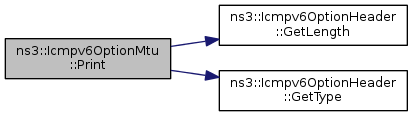

+ Here is the call graph for this function:

void ns3::Icmpv6OptionMtu::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startstart offset

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1447 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), GetMtu(), GetReserved(), ns3::Icmpv6OptionHeader::GetType(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

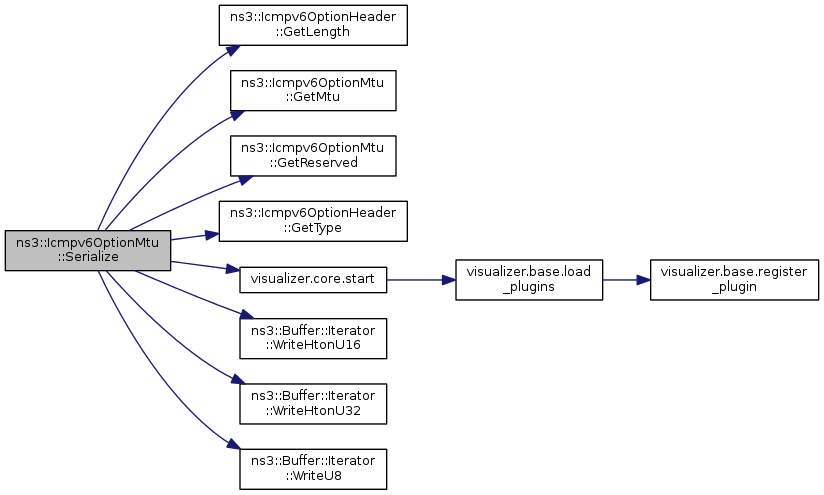

+ Here is the call graph for this function:

void ns3::Icmpv6OptionMtu::SetMtu ( uint32_t  mtu)

Set the MTU.

Parameters
mtuthe MTU to set

Definition at line 1432 of file icmpv6-header.cc.

References m_mtu.

Referenced by Deserialize().

+ Here is the caller graph for this function:

void ns3::Icmpv6OptionMtu::SetReserved ( uint16_t  reserved)

Set the reserved field.

Parameters
reservedthe reserved value

Definition at line 1422 of file icmpv6-header.cc.

References m_reserved.

Referenced by Deserialize(), and Icmpv6OptionMtu().

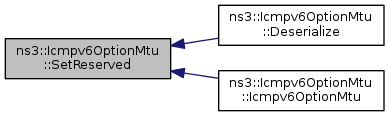

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::Icmpv6OptionMtu::m_mtu
private

The MTU value.

Definition at line 1455 of file icmpv6-header.h.

Referenced by GetMtu(), Print(), and SetMtu().

uint16_t ns3::Icmpv6OptionMtu::m_reserved
private

The reserved value.

Definition at line 1450 of file icmpv6-header.h.

Referenced by GetReserved(), and SetReserved().

The documentation for this class was generated from the following files:
