ICMPv6 Option Prefix Information. More...

#include <icmpv6-header.h>

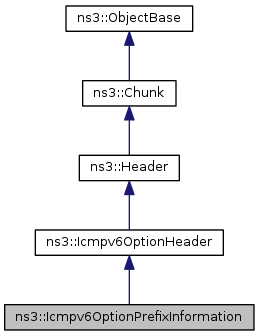

Inheritance diagram for ns3::Icmpv6OptionPrefixInformation:

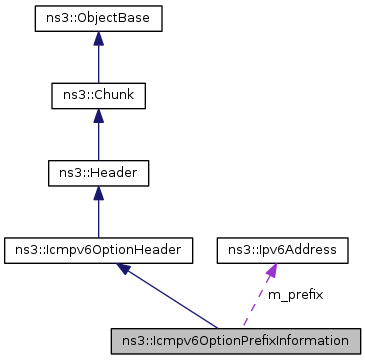

Collaboration diagram for ns3::Icmpv6OptionPrefixInformation:

Public Member Functions
	Icmpv6OptionPrefixInformation ()
	Constructor.
	Icmpv6OptionPrefixInformation (Ipv6Address network, uint8_t prefixlen)
	Constructor.
virtual	~Icmpv6OptionPrefixInformation ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
uint8_t	GetFlags () const
	Get the flags.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint32_t	GetPreferredTime () const
	Get the preferred time of the information.
Ipv6Address	GetPrefix () const
	Get the IPv6 prefix.
uint8_t	GetPrefixLength () const
	Get the prefix length.
uint32_t	GetReserved () const
	Get the reserved field.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
uint32_t	GetValidTime () const
	Get the valid time of the information.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetFlags (uint8_t flags)
	Set the flags.
void	SetPreferredTime (uint32_t preferredTime)
	Set the preferred time of the information.
void	SetPrefix (Ipv6Address prefix)
	Set the IPv6 prefix.
void	SetPrefixLength (uint8_t prefixLength)
	Set the prefix length.
void	SetReserved (uint32_t reserved)
	Set the reserved field (normally it will be 0x00000000).
void	SetValidTime (uint32_t validTime)
	Set the valid time of the information.
Public Member Functions inherited from ns3::Icmpv6OptionHeader
	Icmpv6OptionHeader ()
	Constructor.
virtual	~Icmpv6OptionHeader ()
	Destructor.
uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit.
uint8_t	GetType () const
	Get the type of the option.
void	SetLength (uint8_t len)
	Set the length of the option.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Private Attributes
uint8_t	m_flags
	The flags.
uint32_t	m_preferredTime
	The preferred time.
Ipv6Address	m_prefix
	The prefix value.
uint8_t	m_prefixLength
	The length of the prefix.
uint32_t	m_reserved
	The reserved field.
uint32_t	m_validTime
	The valid time.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

ICMPv6 Option Prefix Information.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1462 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation ( )

Constructor.

Definition at line 1482 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_PREFIX, SetFlags(), ns3::Icmpv6OptionHeader::SetLength(), SetPreferredTime(), SetPrefix(), SetPrefixLength(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), and SetValidTime().

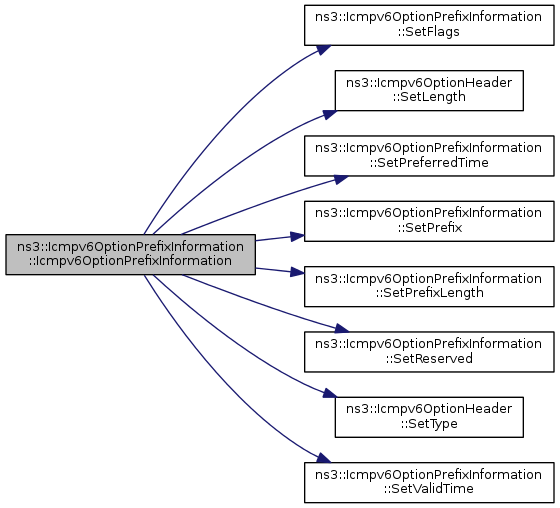

Here is the call graph for this function:

ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation	(	Ipv6Address	network,
		uint8_t	prefixlen
	)

Constructor.

Parameters

network	prefix
prefixlen	prefix length

Definition at line 1494 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_PREFIX, SetFlags(), ns3::Icmpv6OptionHeader::SetLength(), SetPreferredTime(), SetPrefix(), SetPrefixLength(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), and SetValidTime().

Here is the call graph for this function:

ns3::Icmpv6OptionPrefixInformation::~Icmpv6OptionPrefixInformation ( )

virtual

Destructor.

Definition at line 1506 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6OptionPrefixInformation::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1599 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), SetFlags(), ns3::Icmpv6OptionHeader::SetLength(), SetPreferredTime(), SetPrefix(), SetPrefixLength(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), SetValidTime(), and visualizer.core::start().

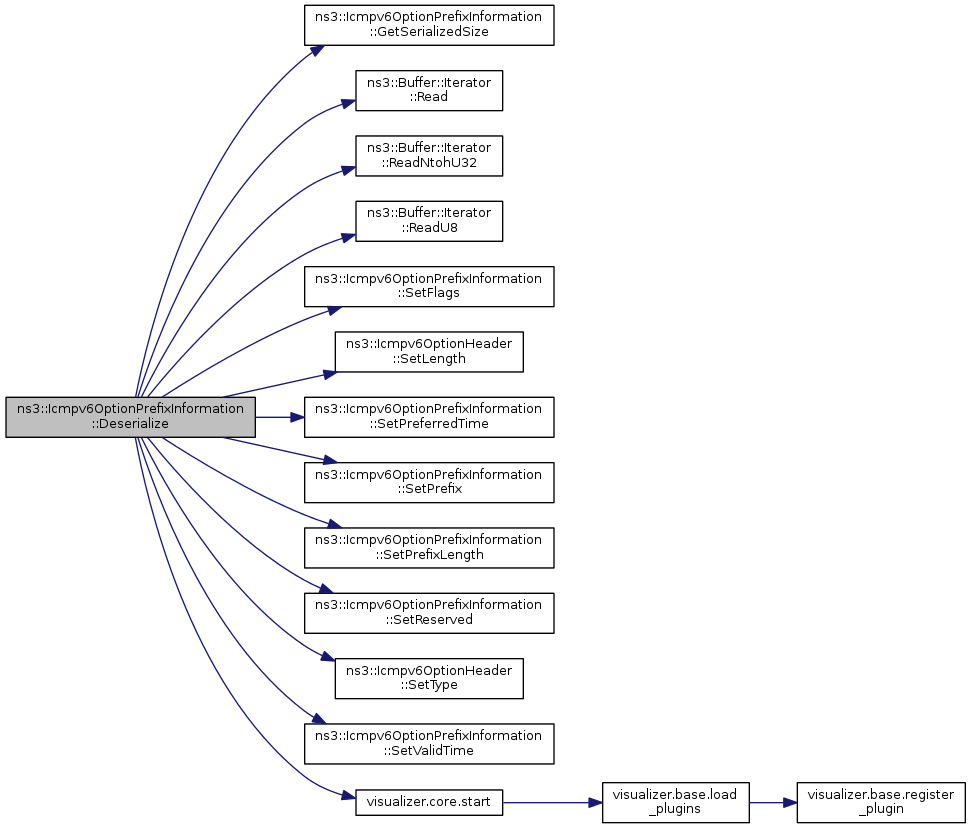

Here is the call graph for this function:

uint8_t ns3::Icmpv6OptionPrefixInformation::GetFlags ( ) const

Get the flags.

Returns: the flags.

Definition at line 1521 of file icmpv6-header.cc.

References m_flags.

TypeId ns3::Icmpv6OptionPrefixInformation::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1477 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::Icmpv6OptionPrefixInformation::GetPreferredTime ( ) const

Get the preferred time of the information.

Returns: preferred time

Definition at line 1541 of file icmpv6-header.cc.

References m_preferredTime.

Ipv6Address ns3::Icmpv6OptionPrefixInformation::GetPrefix ( ) const

Get the IPv6 prefix.

Returns: IPv6 prefix

Definition at line 1561 of file icmpv6-header.cc.

References m_prefix.

uint8_t ns3::Icmpv6OptionPrefixInformation::GetPrefixLength ( ) const

Get the prefix length.

Returns: prefix length

Definition at line 1510 of file icmpv6-header.cc.

References m_prefixLength.

uint32_t ns3::Icmpv6OptionPrefixInformation::GetReserved ( ) const

Get the reserved field.

Returns: the reserved field (should be 0x00000000)

Definition at line 1551 of file icmpv6-header.cc.

References m_preferredTime.

uint32_t ns3::Icmpv6OptionPrefixInformation::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1576 of file icmpv6-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionPrefixInformation::GetTypeId ( void )

static

Get the UID of this class.

Returns: UID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1468 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::Icmpv6OptionPrefixInformation::GetValidTime ( ) const

Get the valid time of the information.

Returns: valid time

Definition at line 1531 of file icmpv6-header.cc.

References m_validTime.

void ns3::Icmpv6OptionPrefixInformation::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1571 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), and m_prefix.

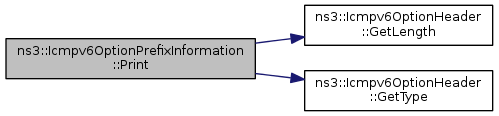

Here is the call graph for this function:

void ns3::Icmpv6OptionPrefixInformation::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1581 of file icmpv6-header.cc.

References ns3::Ipv6Address::GetBytes(), ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_flags, m_preferredTime, m_prefix, m_prefixLength, m_reserved, m_validTime, visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

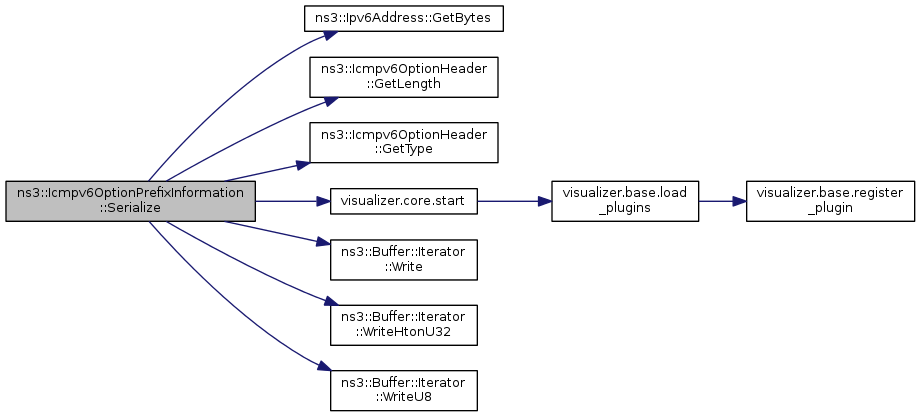

Here is the call graph for this function:

void ns3::Icmpv6OptionPrefixInformation::SetFlags ( uint8_t flags )

Set the flags.

Parameters

flags the flags to set

Definition at line 1526 of file icmpv6-header.cc.

References m_flags.

Referenced by Deserialize(), Icmpv6OptionPrefixInformation(), and ns3::Radvd::Send().

Here is the caller graph for this function:

void ns3::Icmpv6OptionPrefixInformation::SetPreferredTime ( uint32_t preferredTime )

Set the preferred time of the information.

Parameters

preferredTime preferred time

Definition at line 1546 of file icmpv6-header.cc.

References m_preferredTime.

Referenced by Deserialize(), Icmpv6OptionPrefixInformation(), and ns3::Radvd::Send().

Here is the caller graph for this function:

void ns3::Icmpv6OptionPrefixInformation::SetPrefix ( Ipv6Address prefix )

Set the IPv6 prefix.

Parameters

prefix the IPv6 prefix

Definition at line 1566 of file icmpv6-header.cc.

References m_prefix.

Referenced by Deserialize(), Icmpv6OptionPrefixInformation(), and ns3::Radvd::Send().

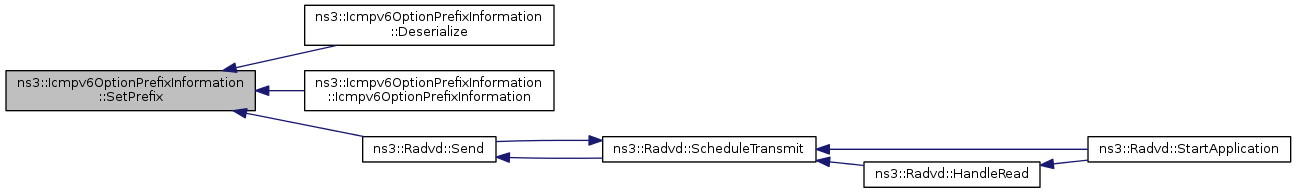

Here is the caller graph for this function:

void ns3::Icmpv6OptionPrefixInformation::SetPrefixLength ( uint8_t prefixLength )

Set the prefix length.

Parameters

prefixLength the prefix length

Definition at line 1515 of file icmpv6-header.cc.

References m_prefixLength, and NS_ASSERT.

Referenced by Deserialize(), Icmpv6OptionPrefixInformation(), and ns3::Radvd::Send().

Here is the caller graph for this function:

void ns3::Icmpv6OptionPrefixInformation::SetReserved ( uint32_t reserved )

Set the reserved field (normally it will be 0x00000000).

Parameters

reserved reserved value

Definition at line 1556 of file icmpv6-header.cc.

References m_reserved.

Referenced by Deserialize(), and Icmpv6OptionPrefixInformation().

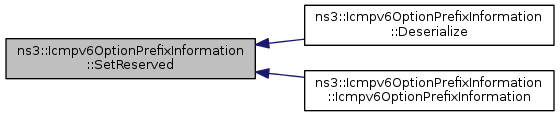

Here is the caller graph for this function:

void ns3::Icmpv6OptionPrefixInformation::SetValidTime ( uint32_t validTime )

Set the valid time of the information.

Parameters

validTime valid time

Definition at line 1536 of file icmpv6-header.cc.

References m_validTime.

Referenced by Deserialize(), Icmpv6OptionPrefixInformation(), and ns3::Radvd::Send().

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Icmpv6OptionPrefixInformation::m_flags

private

The flags.

Definition at line 1605 of file icmpv6-header.h.

Referenced by GetFlags(), Serialize(), and SetFlags().

uint32_t ns3::Icmpv6OptionPrefixInformation::m_preferredTime

private

The preferred time.

Definition at line 1615 of file icmpv6-header.h.

Referenced by GetPreferredTime(), GetReserved(), Serialize(), and SetPreferredTime().

Ipv6Address ns3::Icmpv6OptionPrefixInformation::m_prefix

private

The prefix value.

Definition at line 1595 of file icmpv6-header.h.

Referenced by GetPrefix(), Print(), Serialize(), and SetPrefix().

uint8_t ns3::Icmpv6OptionPrefixInformation::m_prefixLength

private

The length of the prefix.

Definition at line 1600 of file icmpv6-header.h.

Referenced by GetPrefixLength(), Serialize(), and SetPrefixLength().

uint32_t ns3::Icmpv6OptionPrefixInformation::m_reserved

private

The reserved field.

Definition at line 1620 of file icmpv6-header.h.

Referenced by Serialize(), and SetReserved().

uint32_t ns3::Icmpv6OptionPrefixInformation::m_validTime

private

The valid time.

Definition at line 1610 of file icmpv6-header.h.

Referenced by GetValidTime(), Serialize(), and SetValidTime().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc
