ICMPv6 Router Advertisement header. More...

#include <icmpv6-header.h>

Inheritance diagram for ns3::Icmpv6RA:

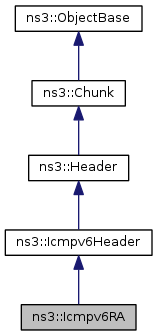

Collaboration diagram for ns3::Icmpv6RA:

Public Member Functions
	Icmpv6RA ()
	Constructor.
virtual	~Icmpv6RA ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
uint8_t	GetCurHopLimit () const
	Get the IPv6 maximum number of jumps.
bool	GetFlagH () const
	Get the H flag.
bool	GetFlagM () const
	Get the M flag.
bool	GetFlagO () const
	Get the O flag.
uint8_t	GetFlags () const
	Getflags.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint16_t	GetLifeTime () const
	Get the node Life time (Neighbor Discovery).
uint32_t	GetReachableTime () const
	Get the node Reachable time (Neighbor Discovery).
uint32_t	GetRetransmissionTime () const
	Get the node Retransmission time (Neighbor Discovery).
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetCurHopLimit (uint8_t m)
	Set the IPv6 maximum number of jumps.
void	SetFlagH (bool h)
	Set the H flag.
void	SetFlagM (bool m)
	Set the M flag.
void	SetFlagO (bool o)
	Set the O flag.
void	SetFlags (uint8_t f)
	Setflags.
void	SetLifeTime (uint16_t l)
	Set the node Life time (Neighbor Discovery).
void	SetReachableTime (uint32_t r)
	Set the node Reachable time (Neighbor Discovery).
void	SetRetransmissionTime (uint32_t r)
	Set the node Retransmission time (Neighbor Discovery).
Public Member Functions inherited from ns3::Icmpv6Header
	Icmpv6Header ()
	Constructor.
virtual	~Icmpv6Header ()
	Destructor.
void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6.
uint16_t	GetChecksum () const
	Get the checksum.
uint8_t	GetCode () const
	Get the code field.
uint8_t	GetType () const
	Get the type field.
void	SetChecksum (uint16_t checksum)
	Set the checksum.
void	SetCode (uint8_t code)
	Set the code field.
void	SetType (uint8_t type)
	Set the type.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Private Attributes
uint8_t	m_curHopLimit
	The max jumps.
bool	m_flagH
	The H flag.
bool	m_flagM
	The M flag.
bool	m_flagO
	The O flag.
uint8_t	m_flags
	The flags field value.
uint16_t	m_LifeTime
	The lifetime value.
uint32_t	m_ReachableTime
	The reachable time value.
uint32_t	m_RetransmissionTimer
	The retransmission timer.

Additional Inherited Members
Public Types inherited from ns3::Icmpv6Header
enum	ErrorDestinationUnreachable_e { ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE, ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable. More...
enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error. More...
enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded. More...
enum	OptionType_e { ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED, ICMPV6_OPT_MTU }
	ICMPv6 Option type code. More...
enum	Type_e { ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR, ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT, ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION, ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST, ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT, ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
Protected Attributes inherited from ns3::Icmpv6Header
bool	m_calcChecksum
	Checksum enable or not.
uint16_t	m_checksum
	The checksum.

Detailed Description

ICMPv6 Router Advertisement header.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 569 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6RA::Icmpv6RA ( )

Constructor.

Definition at line 453 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_ROUTER_ADVERTISEMENT, ns3::Icmpv6Header::SetCode(), SetCurHopLimit(), SetFlagH(), SetFlagM(), SetFlagO(), SetFlags(), SetLifeTime(), SetReachableTime(), SetRetransmissionTime(), and ns3::Icmpv6Header::SetType().

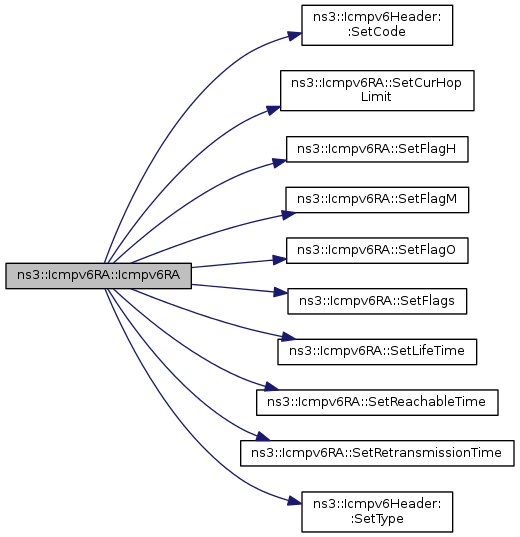

Here is the call graph for this function:

ns3::Icmpv6RA::~Icmpv6RA ( )

virtual

Destructor.

Definition at line 467 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6RA::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 599 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_flagH, m_flagM, m_flagO, m_flags, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6Header::SetCode(), SetCurHopLimit(), SetLifeTime(), SetReachableTime(), SetRetransmissionTime(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

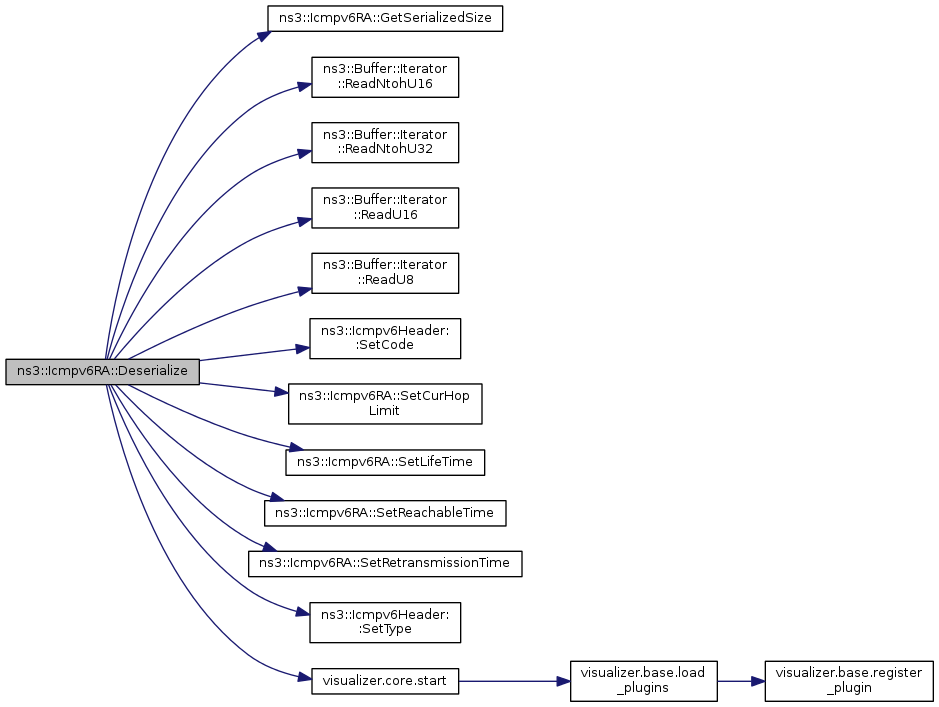

Here is the call graph for this function:

uint8_t ns3::Icmpv6RA::GetCurHopLimit ( ) const

Get the IPv6 maximum number of jumps.

Returns: maximum jumps

Definition at line 476 of file icmpv6-header.cc.

References m_curHopLimit.

bool ns3::Icmpv6RA::GetFlagH ( ) const

Get the H flag.

Returns: H flag

Definition at line 531 of file icmpv6-header.cc.

References m_flagH.

bool ns3::Icmpv6RA::GetFlagM ( ) const

Get the M flag.

Returns: M flag

Definition at line 511 of file icmpv6-header.cc.

References m_flagM.

bool ns3::Icmpv6RA::GetFlagO ( ) const

Get the O flag.

Returns: O flag

Definition at line 521 of file icmpv6-header.cc.

References m_flagO.

uint8_t ns3::Icmpv6RA::GetFlags ( ) const

Getflags.

Returns: the flags value

Definition at line 541 of file icmpv6-header.cc.

References m_flags.

TypeId ns3::Icmpv6RA::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 448 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::Icmpv6RA::GetLifeTime ( ) const

Get the node Life time (Neighbor Discovery).

Returns: life time

Definition at line 481 of file icmpv6-header.cc.

References m_LifeTime.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6RA::GetReachableTime ( ) const

Get the node Reachable time (Neighbor Discovery).

Returns: reachable time

Definition at line 486 of file icmpv6-header.cc.

References m_ReachableTime.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6RA::GetRetransmissionTime ( ) const

Get the node Retransmission time (Neighbor Discovery).

Returns: retransmission time

Definition at line 491 of file icmpv6-header.cc.

References m_RetransmissionTimer.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6RA::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 556 of file icmpv6-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::Icmpv6RA::GetTypeId ( void )

static

Get the UID of this class.

Returns: UID

Reimplemented from ns3::Icmpv6Header.

Definition at line 439 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6RA::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 551 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), and ns3::Icmpv6Header::GetType().

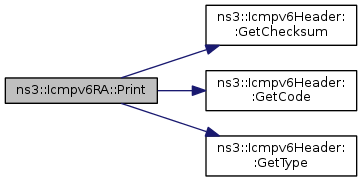

Here is the call graph for this function:

void ns3::Icmpv6RA::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 561 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), GetLifeTime(), GetReachableTime(), GetRetransmissionTime(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), m_curHopLimit, m_flagH, m_flagM, m_flagO, ns3::Buffer::Iterator::Next(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

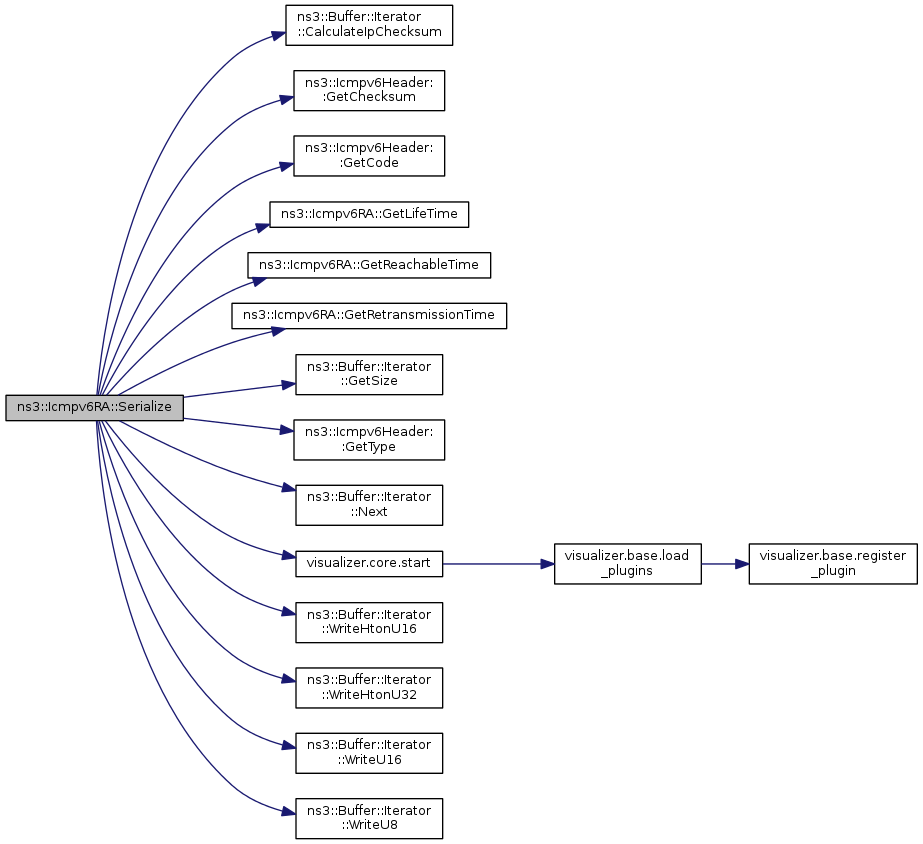

Here is the call graph for this function:

void ns3::Icmpv6RA::SetCurHopLimit ( uint8_t m )

Set the IPv6 maximum number of jumps.

Parameters

m	maximum jumps

Definition at line 471 of file icmpv6-header.cc.

References m_curHopLimit.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlagH ( bool h )

Set the H flag.

Parameters

h value

Definition at line 536 of file icmpv6-header.cc.

References m_flagH.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlagM ( bool m )

Set the M flag.

Parameters

m value

Definition at line 516 of file icmpv6-header.cc.

References m_flagM.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlagO ( bool o )

Set the O flag.

Parameters

o value

Definition at line 526 of file icmpv6-header.cc.

References m_flagO.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlags ( uint8_t f )

Setflags.

Parameters

f	the flags value

Definition at line 546 of file icmpv6-header.cc.

References m_flags.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetLifeTime ( uint16_t l )

Set the node Life time (Neighbor Discovery).

Parameters

l life time

Definition at line 496 of file icmpv6-header.cc.

References m_LifeTime.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetReachableTime ( uint32_t r )

Set the node Reachable time (Neighbor Discovery).

Parameters

r	Reachable time

Definition at line 501 of file icmpv6-header.cc.

References m_ReachableTime.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetRetransmissionTime ( uint32_t r )

Set the node Retransmission time (Neighbor Discovery).

Parameters

r	Retransmission time

Definition at line 506 of file icmpv6-header.cc.

References m_RetransmissionTimer.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Icmpv6RA::m_curHopLimit

private

The max jumps.

Definition at line 754 of file icmpv6-header.h.

Referenced by GetCurHopLimit(), Serialize(), and SetCurHopLimit().

bool ns3::Icmpv6RA::m_flagH

private

The H flag.

Definition at line 729 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagH(), Serialize(), and SetFlagH().

bool ns3::Icmpv6RA::m_flagM

private

The M flag.

Definition at line 719 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagM(), Serialize(), and SetFlagM().

bool ns3::Icmpv6RA::m_flagO

private

The O flag.

Definition at line 724 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagO(), Serialize(), and SetFlagO().

uint8_t ns3::Icmpv6RA::m_flags

private

The flags field value.

Definition at line 734 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlags(), and SetFlags().

uint16_t ns3::Icmpv6RA::m_LifeTime

private

The lifetime value.

Definition at line 739 of file icmpv6-header.h.

Referenced by GetLifeTime(), and SetLifeTime().

uint32_t ns3::Icmpv6RA::m_ReachableTime

private

The reachable time value.

Definition at line 744 of file icmpv6-header.h.

Referenced by GetReachableTime(), and SetReachableTime().

uint32_t ns3::Icmpv6RA::m_RetransmissionTimer

private

The retransmission timer.

Definition at line 749 of file icmpv6-header.h.

Referenced by GetRetransmissionTime(), and SetRetransmissionTime().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
