ns3::Icmpv6Redirection Class Reference

ICMPv6 Redirection header. More...

#include <icmpv6-header.h>

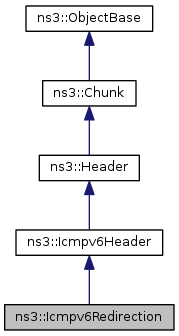

+ Inheritance diagram for ns3::Icmpv6Redirection:

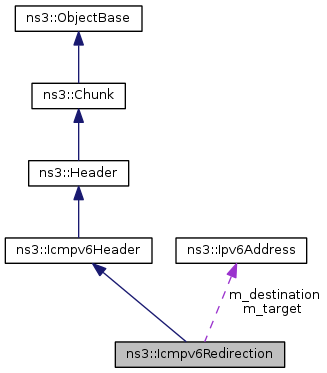

+ Collaboration diagram for ns3::Icmpv6Redirection:

Public Member Functions

 Icmpv6Redirection ()
 Constructor.
virtual ~Icmpv6Redirection ()
 Destructor.
virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet.
Ipv6Address GetDestination () const
 Get the IPv6 destination address.
virtual TypeId GetInstanceTypeId () const
 Get the instance type ID.
uint32_t GetReserved () const
 Get the reserved field.
virtual uint32_t GetSerializedSize () const
 Get the serialized size.
Ipv6Address GetTarget () const
 Get the IPv6 target address.
virtual void Print (std::ostream &os) const
 Print informations.
virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet.
void SetDestination (Ipv6Address destination)
 Set the IPv6 destination address.
void SetReserved (uint32_t reserved)
 Set the reserved field.
void SetTarget (Ipv6Address target)
 Set the IPv6 target address.
- Public Member Functions inherited from ns3::Icmpv6Header
 Icmpv6Header ()
 Constructor.
virtual ~Icmpv6Header ()
 Destructor.
void CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
 Calculate pseudo header checksum for IPv6.
uint16_t GetChecksum () const
 Get the checksum.
uint8_t GetCode () const
 Get the code field.
uint8_t GetType () const
 Get the type field.
void SetChecksum (uint16_t checksum)
 Set the checksum.
void SetCode (uint8_t code)
 Set the code field.
void SetType (uint8_t type)
 Set the type.
- Public Member Functions inherited from ns3::Header
virtual ~Header ()

Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class.

Private Attributes

Ipv6Address m_destination
 IPv6 destination address.
uint32_t m_reserved
 Reserved value.
Ipv6Address m_target
 IPv6 target address.

Additional Inherited Members

- Public Types inherited from ns3::Icmpv6Header
enum  ErrorDestinationUnreachable_e {
  ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE,
  ICMPV6_PORT_UNREACHABLE
}
 ICMPv6 error code : Destination Unreachable. More...
enum  ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
 ICMPv6 error code : Parameter Error. More...
enum  ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
 ICMPv6 error code : Time Exceeded. More...
enum  OptionType_e {
  ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED,
  ICMPV6_OPT_MTU
}
 ICMPv6 Option type code. More...
enum  Type_e {
  ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR,
  ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT,
  ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION,
  ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST,
  ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT,
  ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION,
  ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY
}
 ICMPv6 type code. More...
- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
virtual void NotifyConstructionCompleted (void)
- Protected Attributes inherited from ns3::Icmpv6Header
bool m_calcChecksum
 Checksum enable or not.
uint16_t m_checksum
 The checksum.

Detailed Description

ICMPv6 Redirection header.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 834 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6Redirection::Icmpv6Redirection ( )

Constructor.

Definition at line 731 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_REDIRECTION, ns3::Icmpv6Header::m_checksum, ns3::Icmpv6Header::SetCode(), and ns3::Icmpv6Header::SetType().

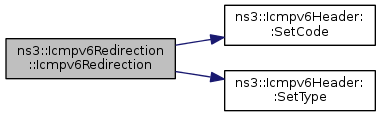

+ Here is the call graph for this function:

ns3::Icmpv6Redirection::~Icmpv6Redirection ( )
virtual

Destructor.

Definition at line 741 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6Redirection::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 813 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_destination, m_target, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6Address::Set(), ns3::Icmpv6Header::SetCode(), SetReserved(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

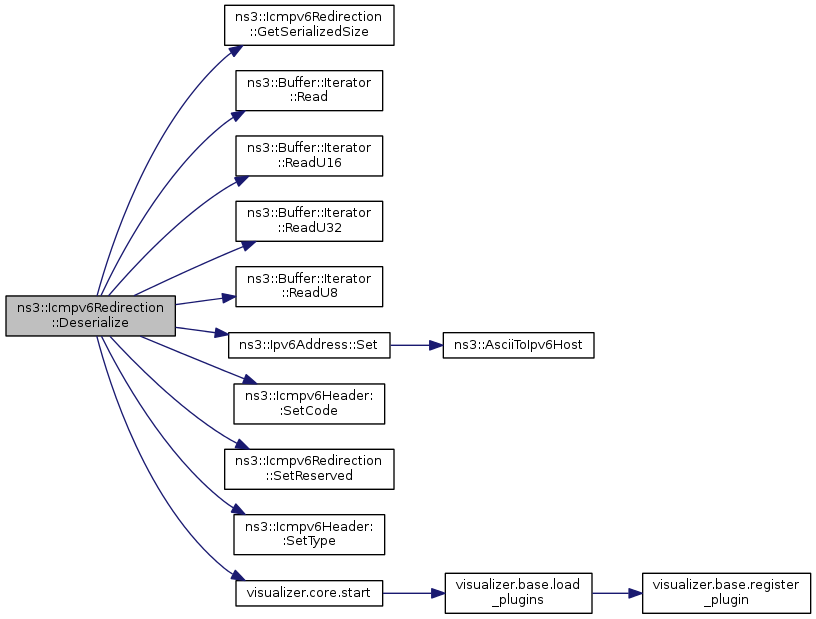

+ Here is the call graph for this function:

Ipv6Address ns3::Icmpv6Redirection::GetDestination ( void  ) const

Get the IPv6 destination address.

Returns
the IPv6 destination address

Definition at line 765 of file icmpv6-header.cc.

References m_destination.

Referenced by ns3::Icmpv6L4Protocol::HandleRedirection().

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6Redirection::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 726 of file icmpv6-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::Icmpv6Redirection::GetReserved ( ) const

Get the reserved field.

Returns
reserved value

Definition at line 750 of file icmpv6-header.cc.

References m_reserved.

uint32_t ns3::Icmpv6Redirection::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 780 of file icmpv6-header.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

Ipv6Address ns3::Icmpv6Redirection::GetTarget ( ) const

Get the IPv6 target address.

Returns
the IPv6 target address

Definition at line 755 of file icmpv6-header.cc.

References m_target.

Referenced by ns3::Icmpv6L4Protocol::HandleRedirection().

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6Redirection::GetTypeId ( void  )
static

Get the UID of this class.

Returns
UID

Reimplemented from ns3::Icmpv6Header.

Definition at line 717 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6Redirection::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 775 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6Header::GetType(), m_destination, and m_target.

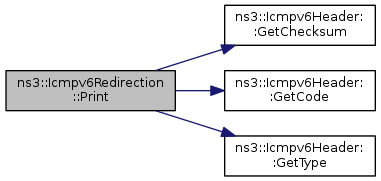

+ Here is the call graph for this function:

void ns3::Icmpv6Redirection::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startstart offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 785 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), ns3::Icmpv6Header::m_calcChecksum, m_destination, m_reserved, m_target, ns3::Buffer::Iterator::Next(), ns3::Ipv6Address::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

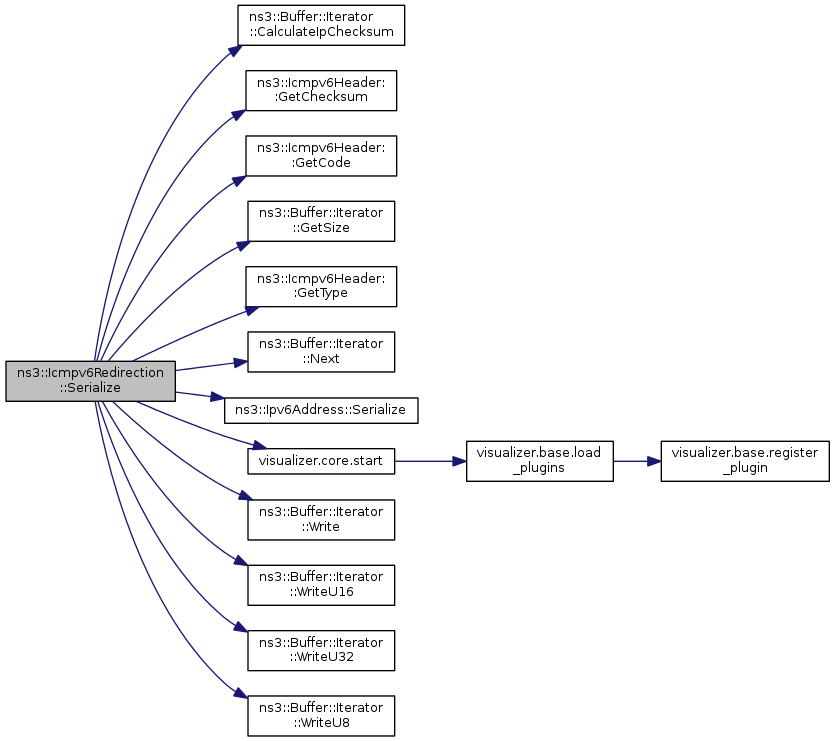

+ Here is the call graph for this function:

void ns3::Icmpv6Redirection::SetDestination ( Ipv6Address  destination)

Set the IPv6 destination address.

Parameters
destinationIPv6 destination address

Definition at line 770 of file icmpv6-header.cc.

References m_destination.

Referenced by ns3::Icmpv6L4Protocol::SendRedirection().

+ Here is the caller graph for this function:

void ns3::Icmpv6Redirection::SetReserved ( uint32_t  reserved)

Set the reserved field.

Parameters
reservedthe reserved value

Definition at line 745 of file icmpv6-header.cc.

References m_reserved.

Referenced by Deserialize().

+ Here is the caller graph for this function:

void ns3::Icmpv6Redirection::SetTarget ( Ipv6Address  target)

Set the IPv6 target address.

Parameters
targetIPv6 target address

Definition at line 760 of file icmpv6-header.cc.

References m_target.

Referenced by ns3::Icmpv6L4Protocol::SendRedirection().

+ Here is the caller graph for this function:

Member Data Documentation

Ipv6Address ns3::Icmpv6Redirection::m_destination
private

IPv6 destination address.

Definition at line 929 of file icmpv6-header.h.

Referenced by Deserialize(), GetDestination(), Print(), Serialize(), and SetDestination().

uint32_t ns3::Icmpv6Redirection::m_reserved
private

Reserved value.

Definition at line 934 of file icmpv6-header.h.

Referenced by GetReserved(), Serialize(), and SetReserved().

Ipv6Address ns3::Icmpv6Redirection::m_target
private

IPv6 target address.

Definition at line 924 of file icmpv6-header.h.

Referenced by Deserialize(), GetTarget(), Print(), Serialize(), and SetTarget().

The documentation for this class was generated from the following files:
