IPv6 Option Padn. More...
#include <ipv6-option.h>

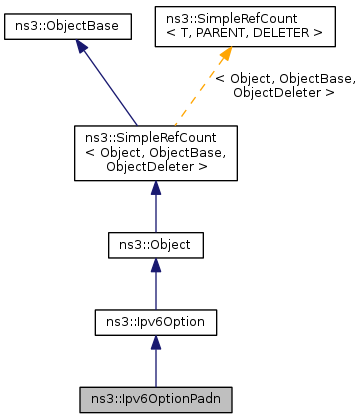

Inheritance diagram for ns3::Ipv6OptionPadn: Collaboration diagram for ns3::Ipv6OptionPadn:Public Member Functions | |
| Ipv6OptionPadn () | |
| Constructor. | |
| ~Ipv6OptionPadn () | |
| Destructor. | |
| virtual uint8_t | GetOptionNumber () const |
| Get the option number. | |
| virtual uint8_t | Process (Ptr< Packet > packet, uint8_t offset, Ipv6Header const &ipv6Header, bool &isDropped) |
| Process method. | |
| Public Member Functions inherited from ns3::Ipv6Option | |
| virtual | ~Ipv6Option () |
| Destructor. | |
| void | SetNode (Ptr< Node > node) |
| Set the node. | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Start (void) |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| SimpleRefCount (const SimpleRefCount &o) | |
| uint32_t | GetReferenceCount (void) const |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| void | Ref (void) const |
| void | Unref (void) const |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. | |
Static Public Attributes | |
| static const uint8_t | OPT_NUMBER = 60 |
| PadN option number. | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoDispose (void) |
| virtual void | DoStart (void) |
| virtual void | NotifyNewAggregate (void) |
IPv6 Option Padn.
This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 141 of file ipv6-option.h.
| ns3::Ipv6OptionPadn::Ipv6OptionPadn | ( | ) |
| ns3::Ipv6OptionPadn::~Ipv6OptionPadn | ( | ) |
|
virtual |
Get the option number.
Implements ns3::Ipv6Option.
Definition at line 123 of file ipv6-option.cc.
References NS_LOG_FUNCTION_NOARGS, and OPT_NUMBER.
|
static |
Get the type identificator.
Reimplemented from ns3::Ipv6Option.
Definition at line 104 of file ipv6-option.cc.
References ns3::TypeId::SetParent().
Here is the call graph for this function:
|
virtual |
Process method.
Called from Ipv6L3Protocol::Receive.
| packet | the packet |
| offset | the offset of the extension to process |
| ipv6Header | the IPv6 header of packet received |
| isDropped | if the packet must be dropped |
Implements ns3::Ipv6Option.
Definition at line 130 of file ipv6-option.cc.
References ns3::Packet::Copy(), ns3::Ipv6OptionPadnHeader::GetSerializedSize(), NS_LOG_FUNCTION, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

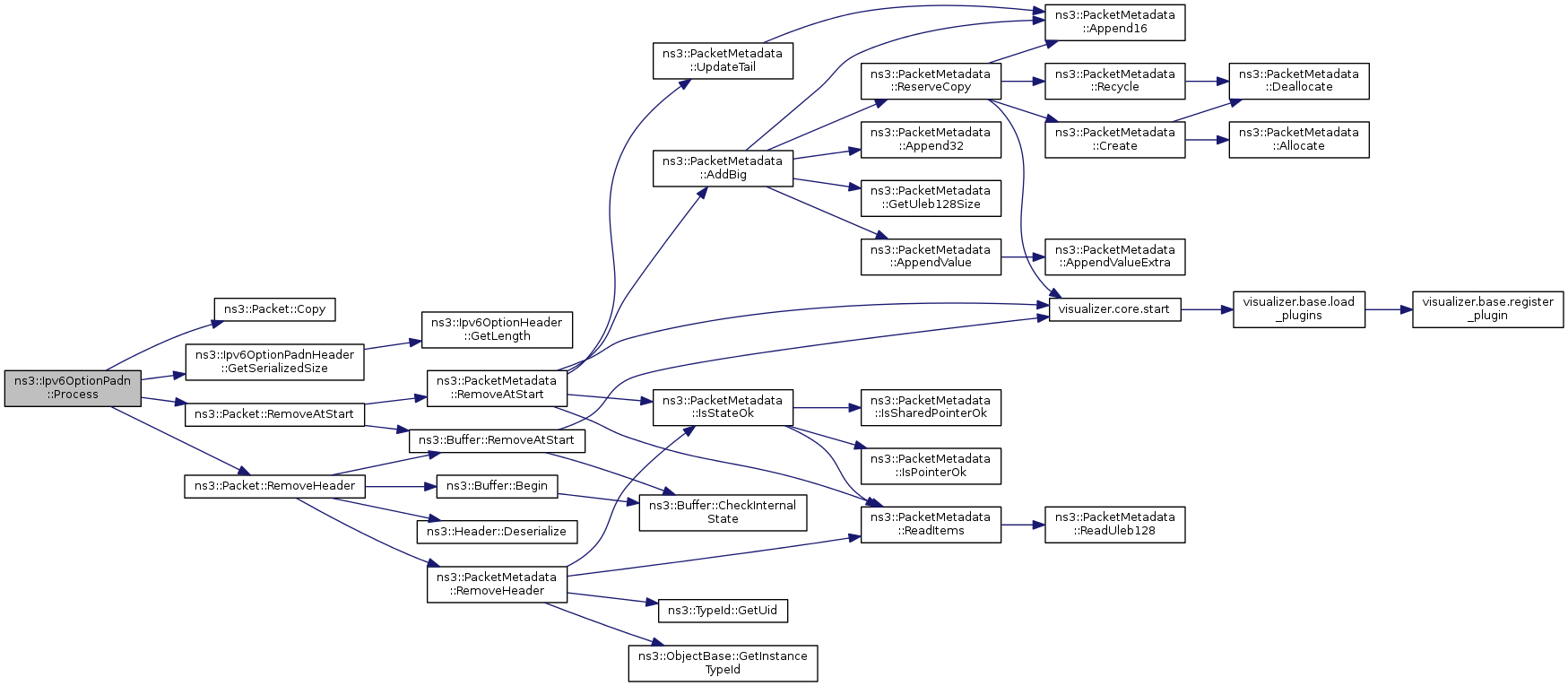

Here is the call graph for this function:
|
static |
