ns3::LtePathlossModelSystemTestCase Class Reference

#include <lte-test-pathloss-model.h>

Inheritance diagram for ns3::LtePathlossModelSystemTestCase:

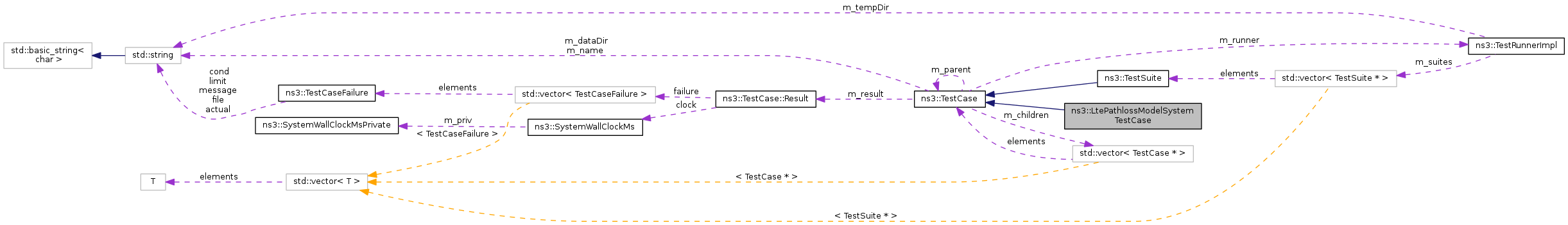

Collaboration diagram for ns3::LtePathlossModelSystemTestCase:

Public Member Functions
	LtePathlossModelSystemTestCase (std::string name, double snrDb, double dist, uint16_t mcsIndex)
	LtePathlossModelSystemTestCase ()
virtual	~LtePathlossModelSystemTestCase ()
void	DlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcsTb1, uint16_t sizeTb1, uint8_t mcsTb2, uint16_t sizeTb2)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()

Private Member Functions
virtual void	DoRun (void)

Private Attributes
double	m_distance
uint16_t	m_mcsIndex
double	m_snrDb

Additional Inherited Members
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase)
	Add an individual test case to this test suite.
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

Definition at line 45 of file lte-test-pathloss-model.h.

Constructor & Destructor Documentation

ns3::LtePathlossModelSystemTestCase::LtePathlossModelSystemTestCase	(	std::string	name,
		double	snrDb,
		double	dist,
		uint16_t	mcsIndex
	)

Definition at line 178 of file lte-test-pathloss-model.cc.

References NS_LOG_INFO.

ns3::LtePathlossModelSystemTestCase::LtePathlossModelSystemTestCase

(

)

ns3::LtePathlossModelSystemTestCase::~LtePathlossModelSystemTestCase ( )

virtual

Definition at line 191 of file lte-test-pathloss-model.cc.

Member Function Documentation

void ns3::LtePathlossModelSystemTestCase::DlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcsTb1,
		uint16_t	sizeTb1,
		uint8_t	mcsTb2,
		uint16_t	sizeTb2
	)

Note: For first 4 subframeNo in the first frameNo, the MCS cannot be properly evaluated, because CQI feedback is still not available at the eNB.

Definition at line 291 of file lte-test-pathloss-model.cc.

References m_mcsIndex, m_snrDb, NS_LOG_INFO, and NS_TEST_ASSERT_MSG_EQ.

Referenced by ns3::LteTestPathlossDlSchedCallback().

Here is the caller graph for this function:

void ns3::LtePathlossModelSystemTestCase::DoRun ( void  )

privatevirtual

Simulation Topology

Definition at line 196 of file lte-test-pathloss-model.cc.

References ns3::LteHelper::ActivateEpsBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::EpcTft::Default(), ns3::Simulator::Destroy(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), ns3::LOG_LEVEL_ALL, ns3::LogComponentEnable(), m_distance, m_snrDb, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::TestCase::Run(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::LteHelper::SetEnbDeviceAttribute(), ns3::MobilityHelper::SetMobilityModel(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerType(), and ns3::Simulator::Stop().

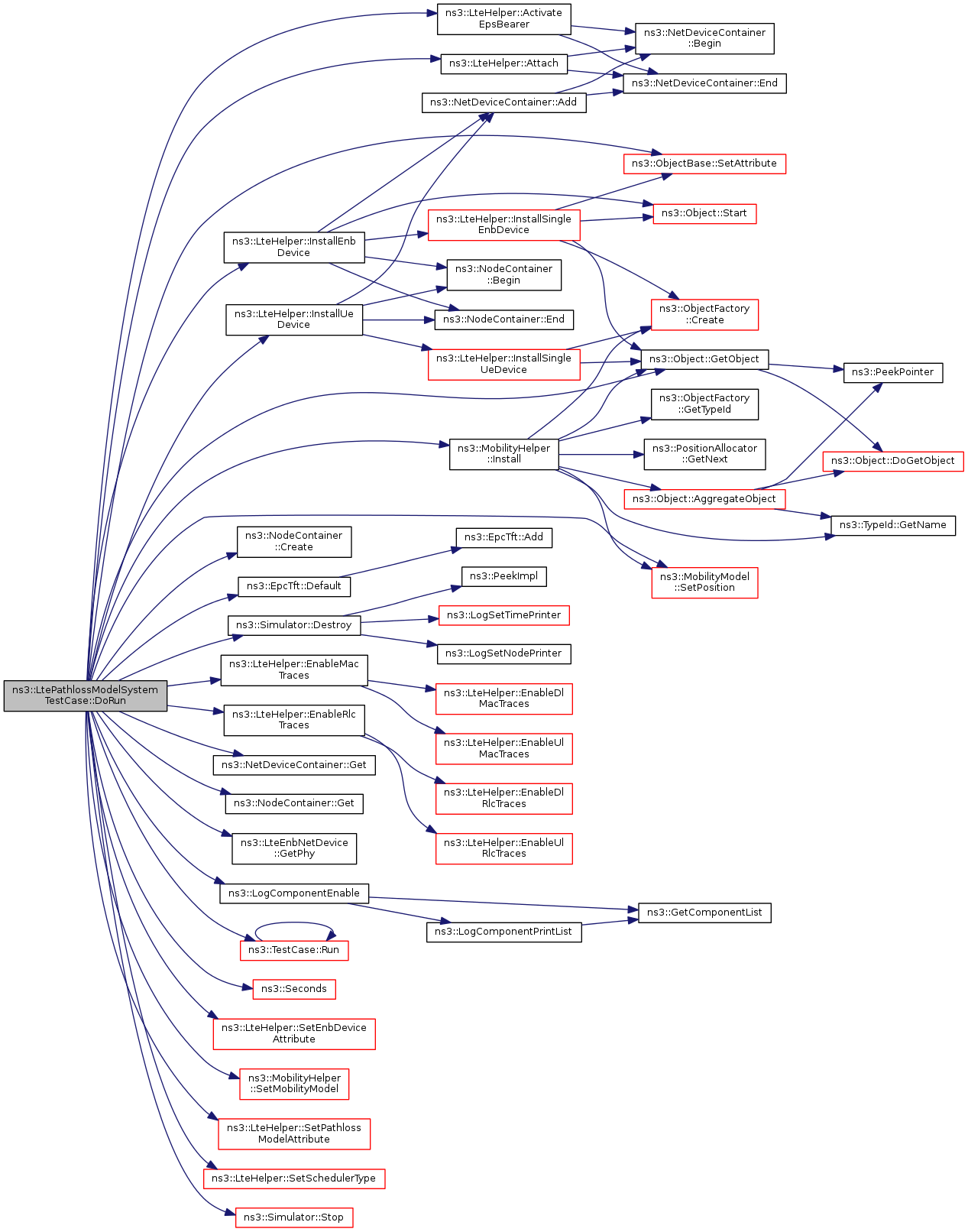

Here is the call graph for this function:

Member Data Documentation

double ns3::LtePathlossModelSystemTestCase::m_distance

private

Definition at line 59 of file lte-test-pathloss-model.h.

Referenced by DoRun().

uint16_t ns3::LtePathlossModelSystemTestCase::m_mcsIndex

private

Definition at line 60 of file lte-test-pathloss-model.h.

Referenced by DlScheduling().

double ns3::LtePathlossModelSystemTestCase::m_snrDb

private

Definition at line 58 of file lte-test-pathloss-model.h.

Referenced by DlScheduling(), and DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-pathloss-model.h
• src/lte/test/lte-test-pathloss-model.cc
