#include <lte-rlc-um.h>

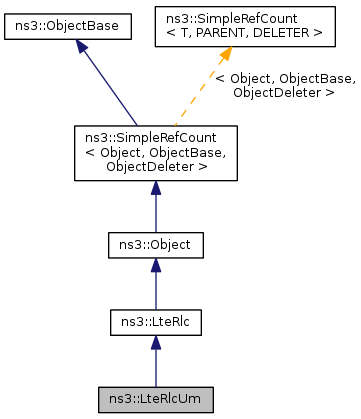

Inheritance diagram for ns3::LteRlcUm:

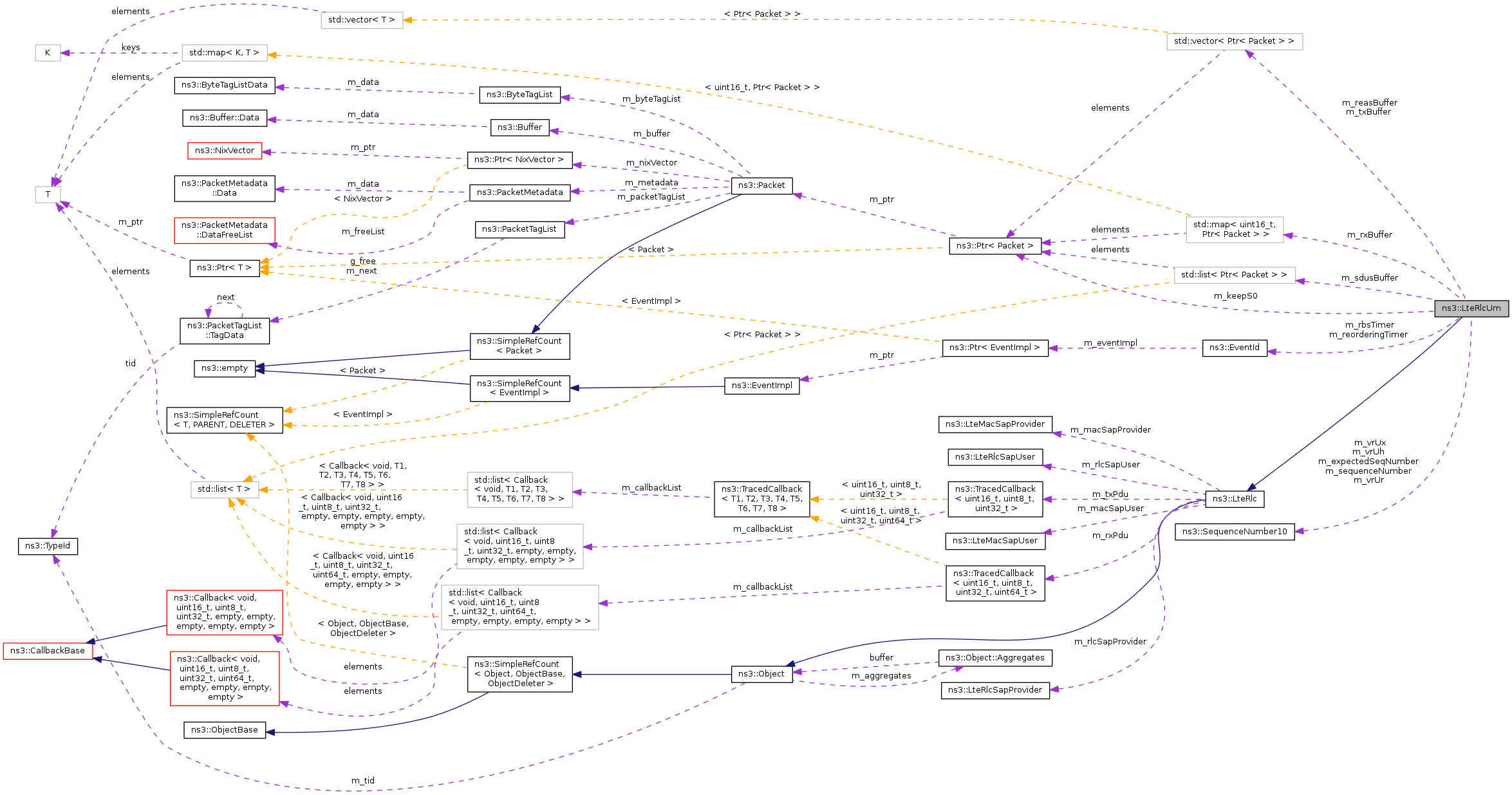

Collaboration diagram for ns3::LteRlcUm:

Public Member Functions
	LteRlcUm ()
virtual	~LteRlcUm ()
virtual void	DoNotifyHarqDeliveryFailure ()
virtual void	DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer)
virtual void	DoReceivePdu (Ptr< Packet > p)
virtual void	DoTransmitPdcpPdu (Ptr< Packet > p)
void	Start ()
Public Member Functions inherited from ns3::LteRlc
	LteRlc ()
virtual	~LteRlc ()
LteMacSapUser *	GetLteMacSapUser ()
LteRlcSapProvider *	GetLteRlcSapProvider ()
void	SetLcId (uint8_t lcId)
void	SetLteMacSapProvider (LteMacSapProvider *s)
void	SetLteRlcSapUser (LteRlcSapUser *s)
void	SetRnti (uint16_t rnti)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Types
enum	ReassemblingState_t { NONE = 0, WAITING_S0_FULL = 1, WAITING_SI_SF = 2 }

Private Member Functions
void	DoReportBufferStatus ()
void	ExpireRbsTimer (void)
void	ExpireReorderingTimer (void)
bool	IsInsideReorderingWindow (SequenceNumber10 seqNumber)
void	ReassembleAndDeliver (Ptr< Packet > packet)
void	ReassembleOutsideWindow (void)
void	ReassembleSnInterval (SequenceNumber10 lowSeqNumber, SequenceNumber10 highSeqNumber)

Private Attributes
SequenceNumber10	m_expectedSeqNumber
Ptr< Packet >	m_keepS0
uint32_t	m_maxTxBufferSize
EventId	m_rbsTimer
std::vector< Ptr< Packet > >	m_reasBuffer
ReassemblingState_t	m_reassemblingState
EventId	m_reorderingTimer
std::map< uint16_t, Ptr< Packet > >	m_rxBuffer
std::list< Ptr< Packet > >	m_sdusBuffer
SequenceNumber10	m_sequenceNumber
std::vector< Ptr< Packet > >	m_txBuffer
uint32_t	m_txBufferSize
SequenceNumber10	m_vrUh
SequenceNumber10	m_vrUr
SequenceNumber10	m_vrUx
uint16_t	m_windowSize

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::LteRlc
uint8_t	m_lcid
LteMacSapProvider *	m_macSapProvider
LteMacSapUser *	m_macSapUser
LteRlcSapProvider *	m_rlcSapProvider
LteRlcSapUser *	m_rlcSapUser
uint16_t	m_rnti
TracedCallback< uint16_t, uint8_t, uint32_t, uint64_t >	m_rxPdu
TracedCallback< uint16_t, uint8_t, uint32_t >	m_txPdu

Detailed Description

LTE RLC Unacknowledged Mode (UM), see 3GPP TS 36.322

Config Paths

ns3::LteRlcUm is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm

Attributes

MaxTxBufferSize: Maximum Size of the Transmission Buffer (in Bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2097152
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::LteRlc

TxPDU: PDU transmission notified to the MAC.
RxPDU: PDU received.

Definition at line 35 of file lte-rlc-um.h.

Member Enumeration Documentation

enum ns3::LteRlcUm::ReassemblingState_t

private

Reassembling state

Enumerator:

NONE
WAITING_S0_FULL
WAITING_SI_SF

Definition at line 101 of file lte-rlc-um.h.

Constructor & Destructor Documentation

ns3::LteRlcUm::LteRlcUm ( )

Definition at line 35 of file lte-rlc-um.cc.

References m_reassemblingState, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), Start(), and WAITING_S0_FULL.

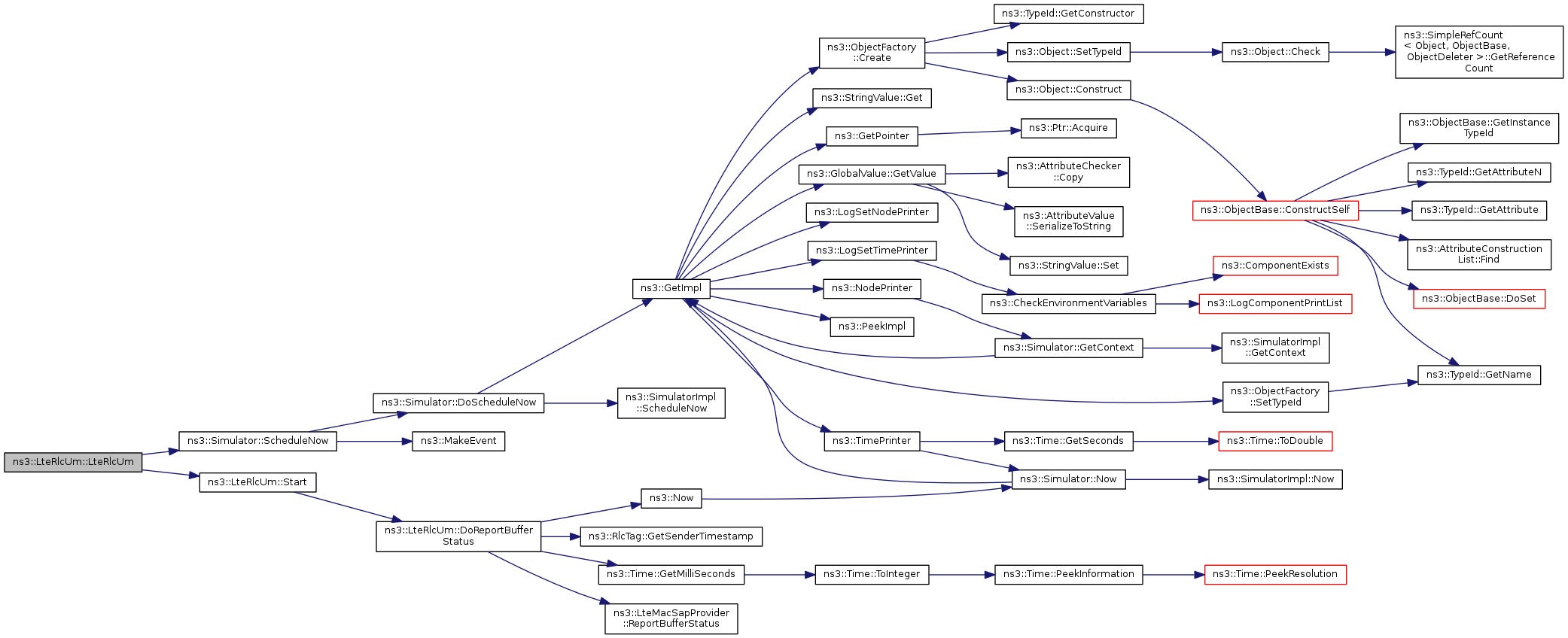

Here is the call graph for this function:

ns3::LteRlcUm::~LteRlcUm ( )

virtual

Definition at line 51 of file lte-rlc-um.cc.

Member Function Documentation

void ns3::LteRlcUm::DoNotifyHarqDeliveryFailure ( )

virtual

Implements ns3::LteRlc.

Definition at line 386 of file lte-rlc-um.cc.

References NS_LOG_FUNCTION.

void ns3::LteRlcUm::DoNotifyTxOpportunity	(	uint32_t	bytes,
		uint8_t	layer
	)

virtual

MAC SAP

Implements ns3::LteRlc.

Definition at line 118 of file lte-rlc-um.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddByteTag(), ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), ns3::Packet::Copy(), ns3::Packet::CreateFragment(), ns3::LteRlcHeader::DATA_FIELD_FOLLOWS, ns3::LteRlcHeader::E_LI_FIELDS_FOLLOWS, ExpireRbsTimer(), ns3::LteRlcHeader::FIRST_BYTE, ns3::LteRlcSduStatusTag::FIRST_SEGMENT, ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlcSduStatusTag::GetStatus(), ns3::LteRlcHeader::LAST_BYTE, ns3::LteRlcSduStatusTag::LAST_SEGMENT, ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, m_rbsTimer, ns3::LteRlc::m_rnti, m_sequenceNumber, m_txBuffer, m_txBufferSize, ns3::LteRlc::m_txPdu, ns3::LteRlcSduStatusTag::MIDDLE_SEGMENT, ns3::MilliSeconds(), ns3::LteRlcHeader::NO_FIRST_BYTE, ns3::LteRlcHeader::NO_LAST_BYTE, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::Packet::RemoveAtStart(), ns3::Packet::RemovePacketTag(), ns3::Simulator::Schedule(), and ns3::LteMacSapProvider::TransmitPdu().

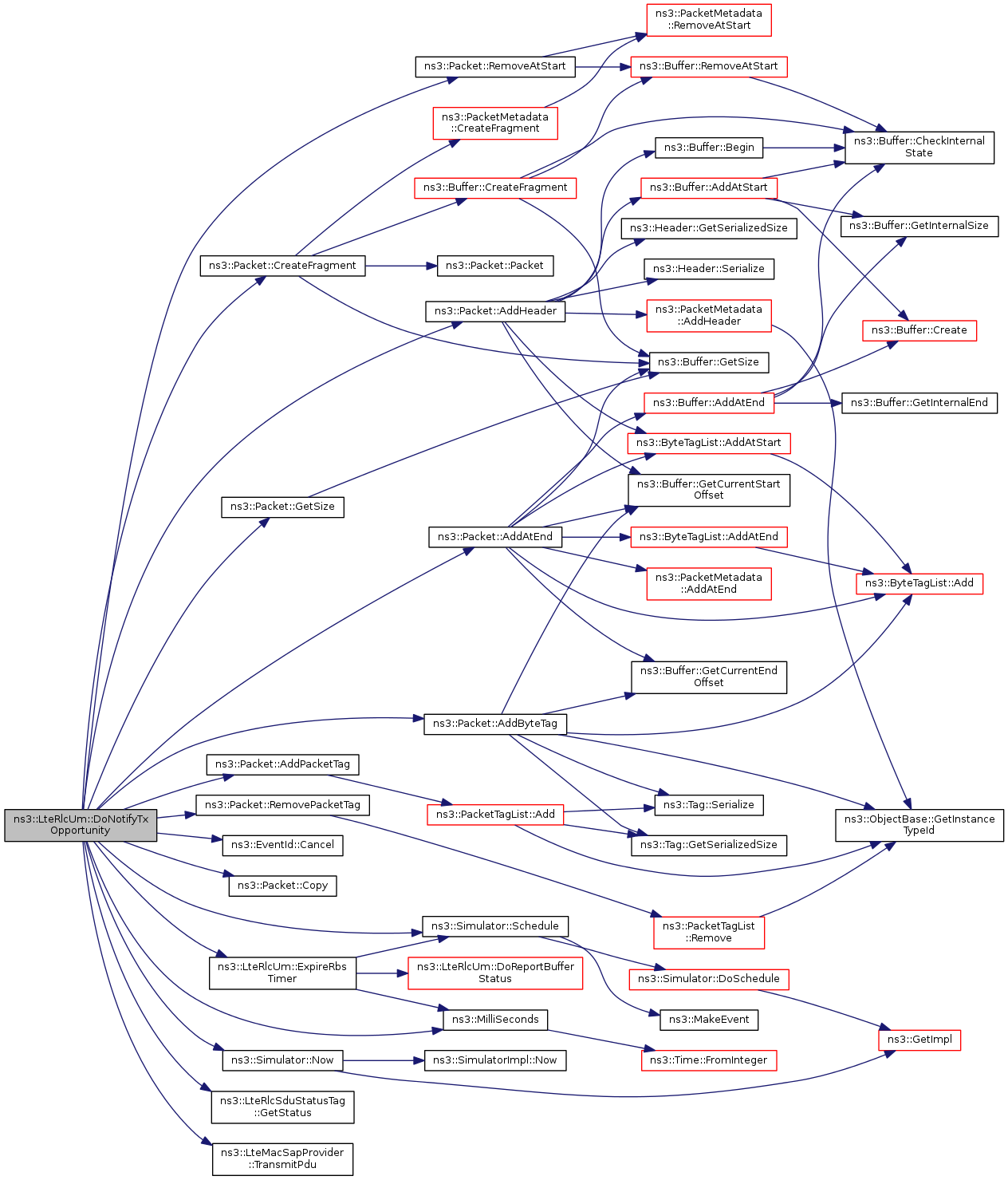

Here is the call graph for this function:

void ns3::LteRlcUm::DoReceivePdu ( Ptr< Packet > p )

virtual

Implements ns3::LteRlc.

Definition at line 392 of file lte-rlc-um.cc.

References ns3::EventId::Cancel(), ExpireReorderingTimer(), ns3::Packet::FindFirstMatchingByteTag(), ns3::Time::GetNanoSeconds(), ns3::Packet::GetSize(), ns3::SequenceNumber10::GetValue(), IsInsideReorderingWindow(), ns3::EventId::IsRunning(), ns3::LteRlc::m_lcid, m_reorderingTimer, ns3::LteRlc::m_rnti, m_rxBuffer, ns3::LteRlc::m_rxPdu, m_vrUh, m_vrUr, m_vrUx, m_windowSize, ns3::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::PeekHeader(), ReassembleOutsideWindow(), ReassembleSnInterval(), ns3::Simulator::Schedule(), and ns3::SequenceNumber10::SetModulusBase().

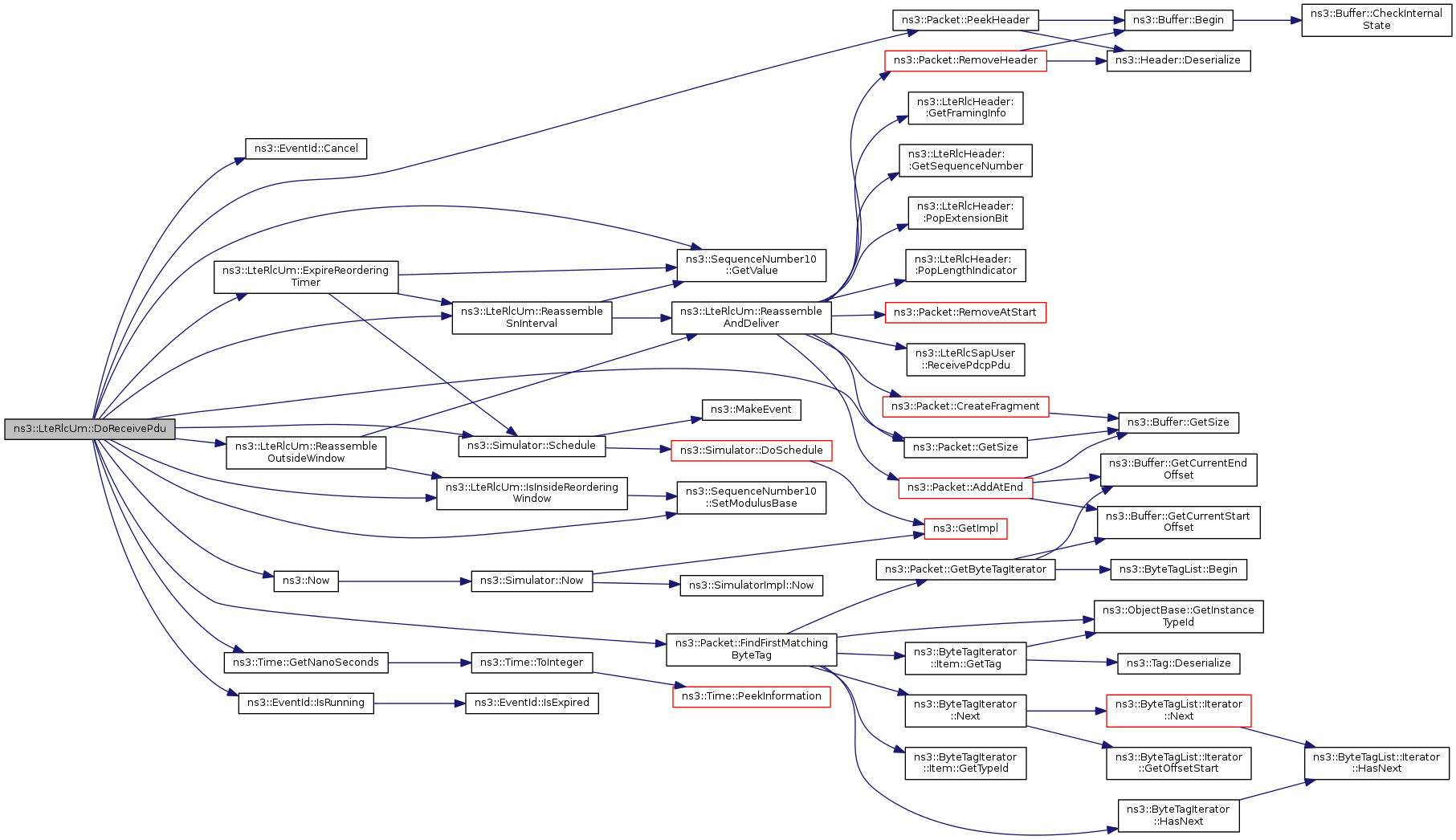

Here is the call graph for this function:

void ns3::LteRlcUm::DoReportBufferStatus ( void )

private

Definition at line 1111 of file lte-rlc-um.cc.

Referenced by DoTransmitPdcpPdu(), ExpireRbsTimer(), and Start().

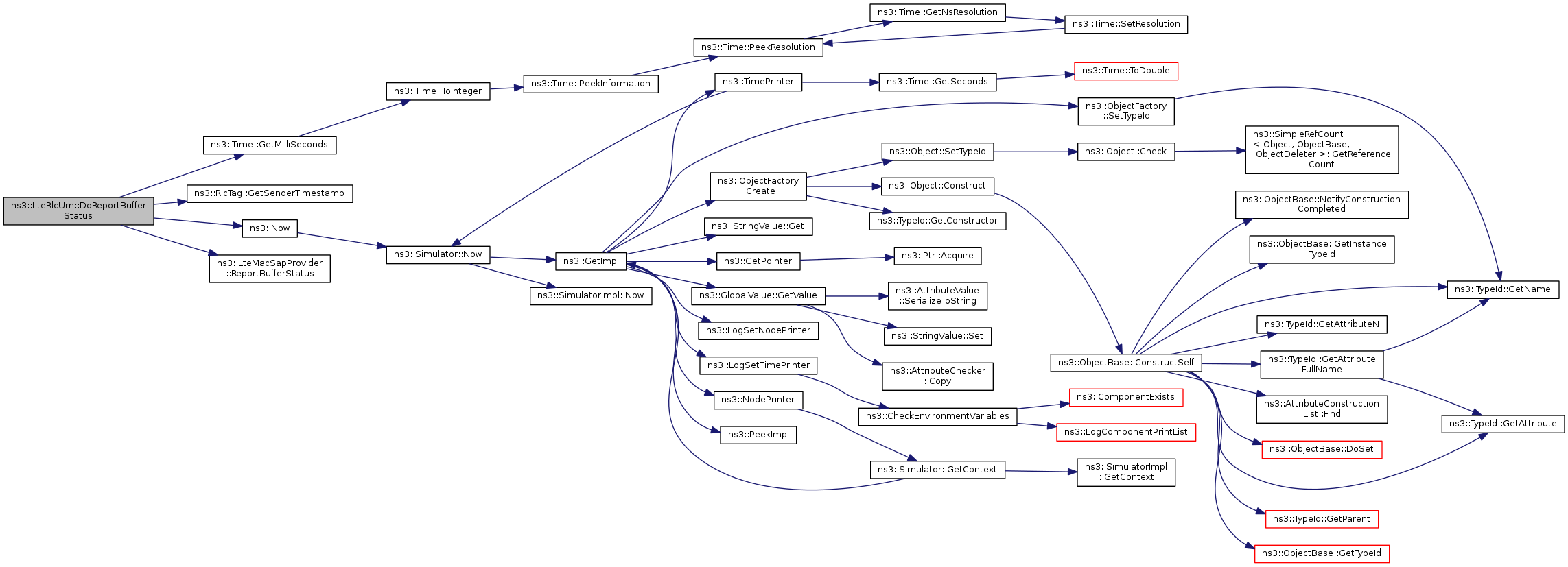

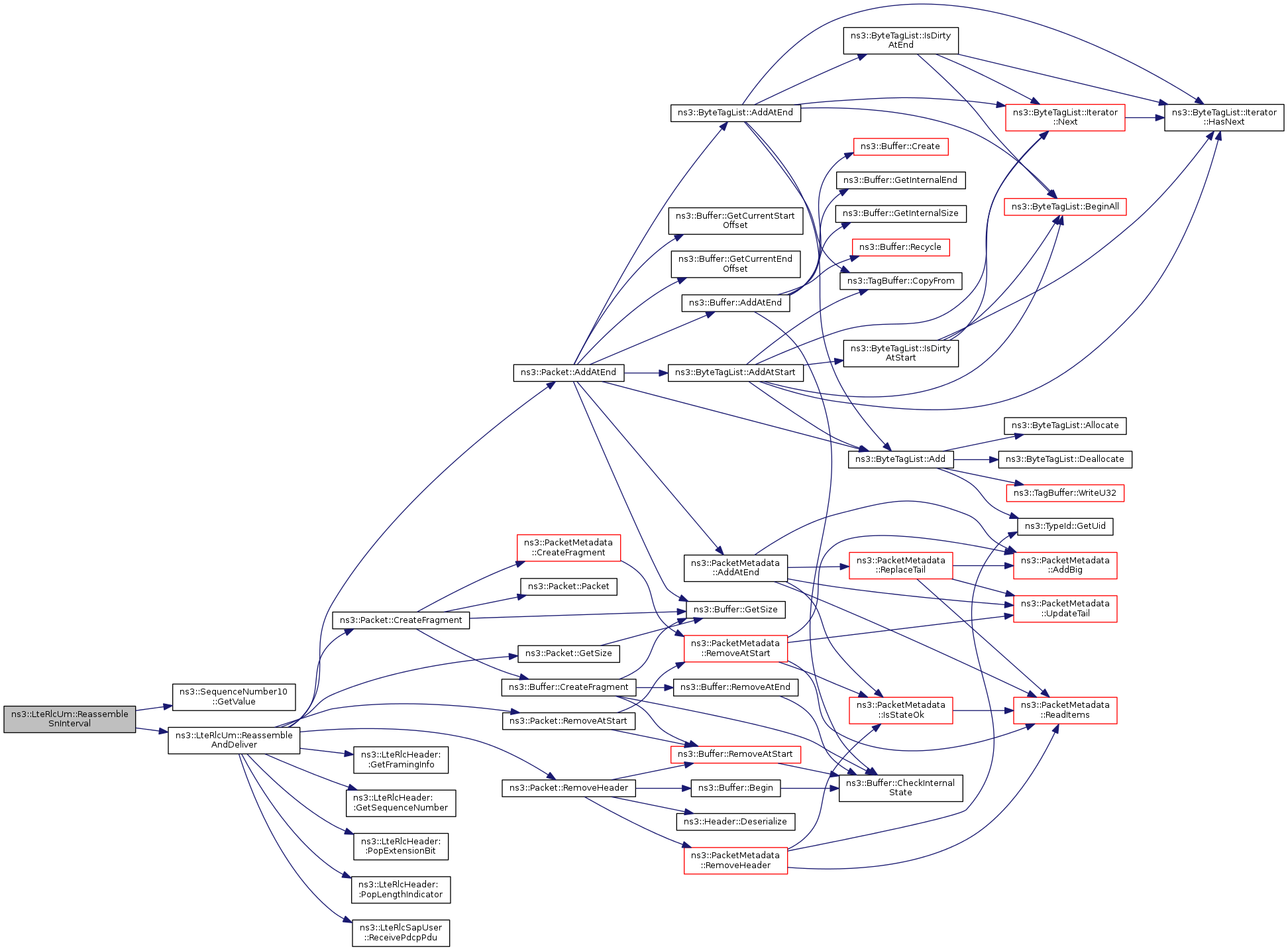

Here is the call graph for this function:

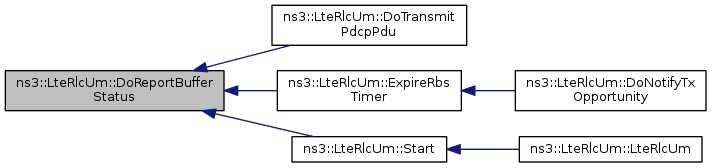

Here is the caller graph for this function:

void ns3::LteRlcUm::DoTransmitPdcpPdu ( Ptr< Packet > p )

virtual

RLC SAP

Store arrival time

Store PDCP PDU

Report Buffer Status

Implements ns3::LteRlc.

Definition at line 76 of file lte-rlc-um.cc.

References ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), DoReportBufferStatus(), ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, m_maxTxBufferSize, m_rbsTimer, ns3::LteRlc::m_rnti, m_txBuffer, m_txBufferSize, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::LteRlcSduStatusTag::SetStatus().

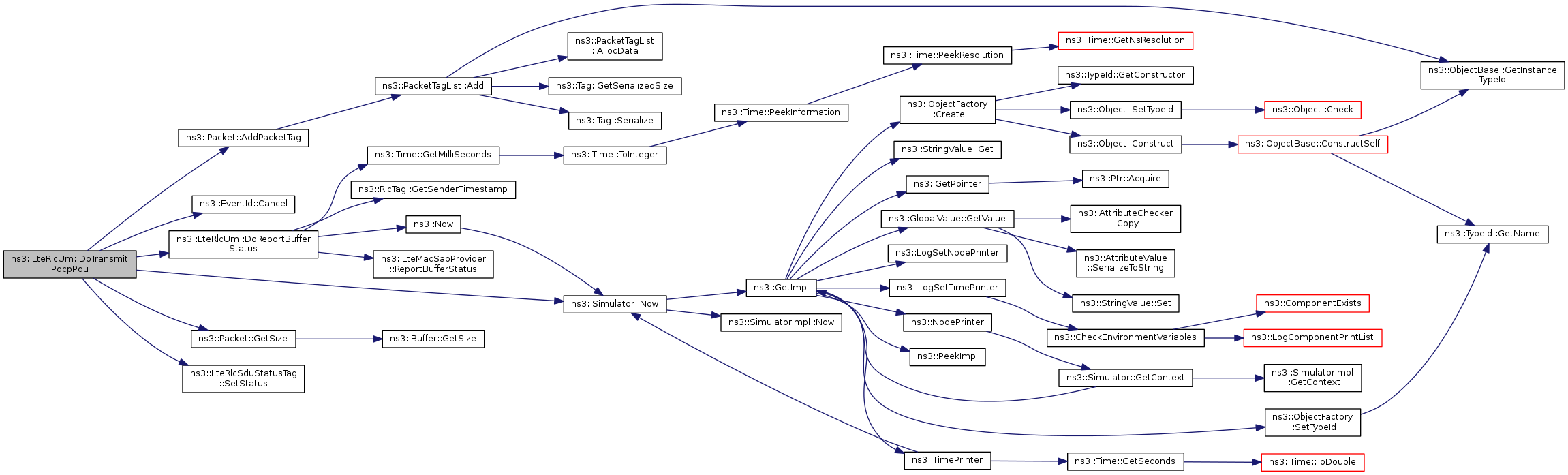

Here is the call graph for this function:

void ns3::LteRlcUm::ExpireRbsTimer ( void )

private

Definition at line 1179 of file lte-rlc-um.cc.

References DoReportBufferStatus(), m_rbsTimer, m_txBuffer, ns3::MilliSeconds(), NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by DoNotifyTxOpportunity().

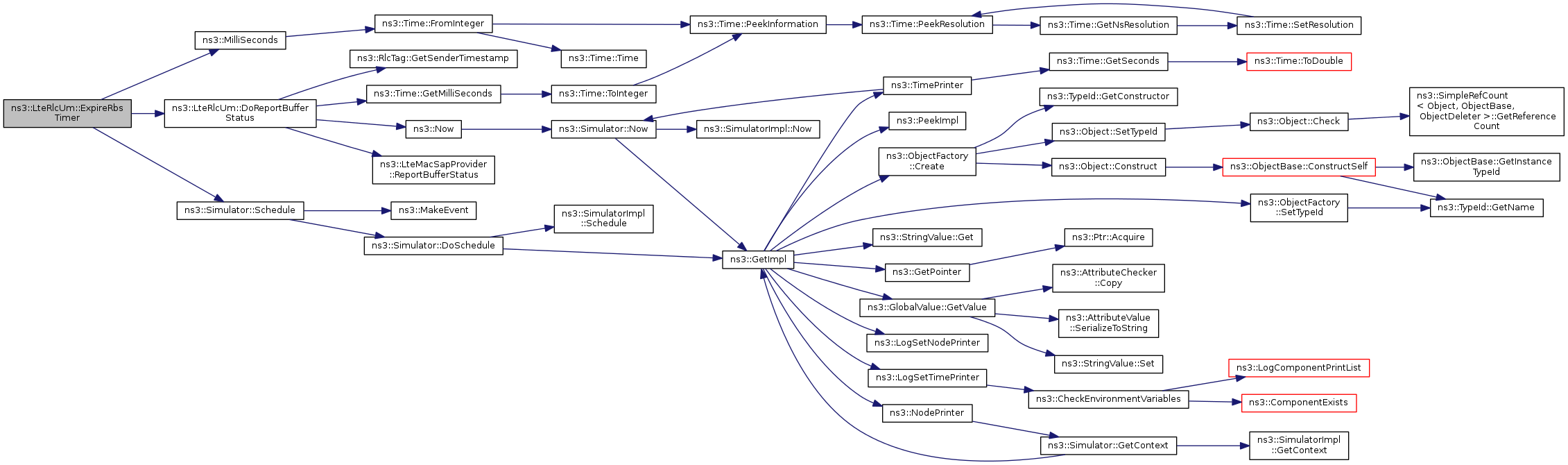

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcUm::ExpireReorderingTimer ( void )

private

Definition at line 1140 of file lte-rlc-um.cc.

References ns3::SequenceNumber10::GetValue(), ns3::LteRlc::m_lcid, m_reorderingTimer, ns3::LteRlc::m_rnti, m_rxBuffer, m_vrUh, m_vrUr, m_vrUx, NS_LOG_FUNCTION, NS_LOG_LOGIC, ReassembleSnInterval(), and ns3::Simulator::Schedule().

Referenced by DoReceivePdu().

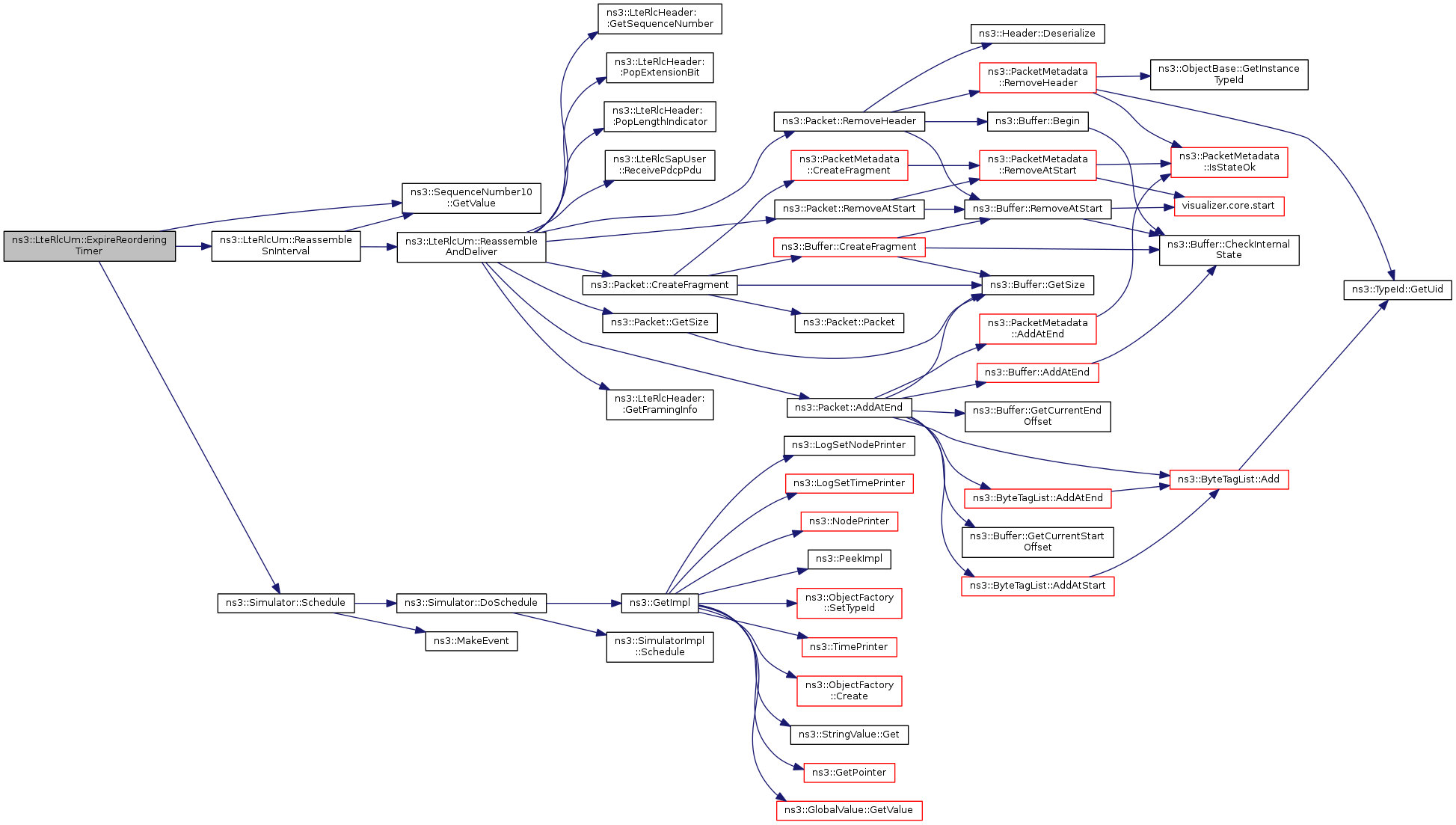

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::LteRlcUm::GetTypeId ( void )

static

Reimplemented from ns3::LteRlc.

Definition at line 56 of file lte-rlc-um.cc.

References m_maxTxBufferSize, and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::LteRlcUm::IsInsideReorderingWindow ( SequenceNumber10 seqNumber )

private

Definition at line 564 of file lte-rlc-um.cc.

References m_vrUh, m_windowSize, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SequenceNumber10::SetModulusBase().

Referenced by DoReceivePdu(), and ReassembleOutsideWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcUm::ReassembleAndDeliver ( Ptr< Packet > packet )

private

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep SI

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

Discard SN

Deliver zero, one or multiple PDUs

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Discard S0

Deliver one or multiple PDUs

Discard S0

Deliver zero, one or multiple PDUs

Keep S0

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Definition at line 587 of file lte-rlc-um.cc.

Referenced by ReassembleOutsideWindow(), and ReassembleSnInterval().

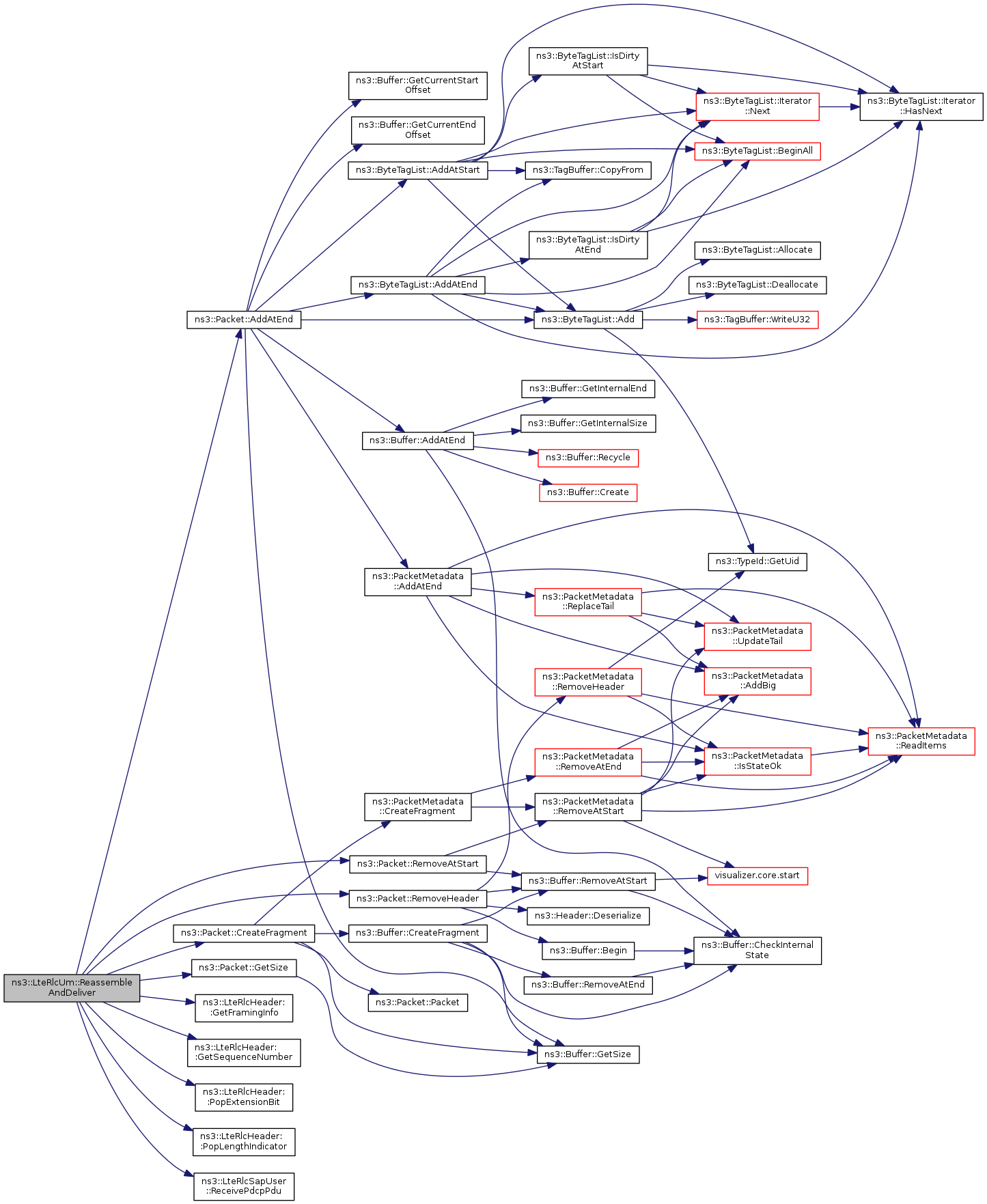

Here is the call graph for this function:

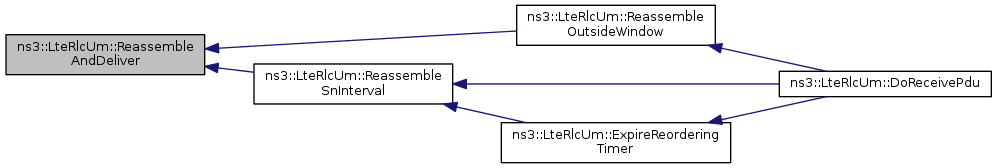

Here is the caller graph for this function:

void ns3::LteRlcUm::ReassembleOutsideWindow ( void )

private

Definition at line 1054 of file lte-rlc-um.cc.

References IsInsideReorderingWindow(), m_rxBuffer, NS_LOG_LOGIC, and ReassembleAndDeliver().

Referenced by DoReceivePdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcUm::ReassembleSnInterval	(	SequenceNumber10	lowSeqNumber,
		SequenceNumber10	highSeqNumber
	)

private

Definition at line 1080 of file lte-rlc-um.cc.

References ns3::SequenceNumber10::GetValue(), m_rxBuffer, NS_LOG_LOGIC, and ReassembleAndDeliver().

Referenced by DoReceivePdu(), and ExpireReorderingTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcUm::Start ( void )

This method calls the virtual DoStart method on all the objects aggregated to this object. DoStart will be called only once over the lifetime of an object, just like DoDispose is called only once.

See Also: DoStart

Note: the code here is a bit tricky because we need to protect ourselves from modifications in the aggregate array while DoStart is called. The user's implementation of the DoStart method could call GetObject (which could reorder the array) and it could call AggregateObject which would add an object at the end of the array. To be safe, we restart iteration over the array whenever we call some user code, just in case.

Reimplemented from ns3::Object.

Definition at line 555 of file lte-rlc-um.cc.

References DoReportBufferStatus(), and NS_LOG_FUNCTION.

Referenced by LteRlcUm().

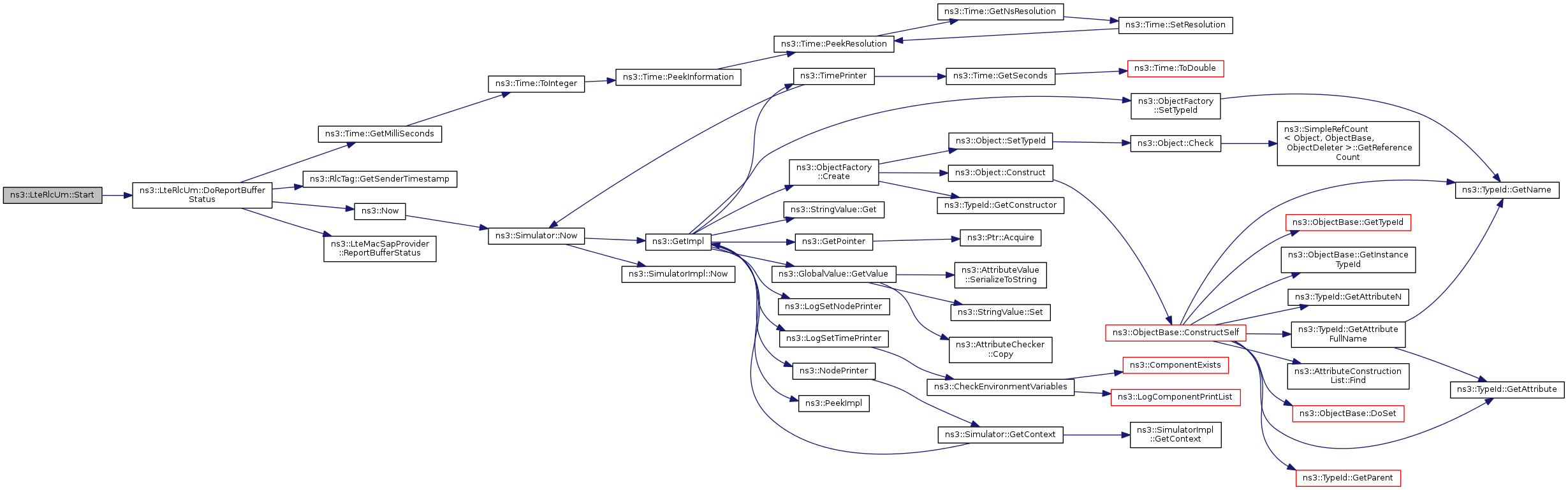

Here is the call graph for this function:
