#include <mgt-headers.h>

Inheritance diagram for ns3::MgtAddBaRequestHeader:

Collaboration diagram for ns3::MgtAddBaRequestHeader:

Public Member Functions
	MgtAddBaRequestHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
uint16_t	GetBufferSize (void) const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
uint16_t	GetStartingSequence (void) const
uint8_t	GetTid (void) const
uint16_t	GetTimeout (void) const
bool	IsAmsduSupported (void) const
bool	IsImmediateBlockAck (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetAmsduSupport (bool supported)
void	SetBufferSize (uint16_t size)
void	SetDelayedBlockAck ()
void	SetImmediateBlockAck ()
void	SetStartingSequence (uint16_t seq)
void	SetTid (uint8_t tid)
void	SetTimeout (uint16_t timeout)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
uint16_t	GetParameterSet (void) const
uint16_t	GetStartingSequenceControl (void) const
void	SetParameterSet (uint16_t params)
void	SetStartingSequenceControl (uint16_t seqControl)

Private Attributes
uint8_t	m_amsduSupport
uint16_t	m_bufferSize
uint8_t	m_dialogToken
uint8_t	m_policy
uint16_t	m_startingSeq
uint8_t	m_tid
uint16_t	m_timeoutValue

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implement the header for management frames of type add block ack request.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 263 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtAddBaRequestHeader::MgtAddBaRequestHeader ( )

Definition at line 578 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtAddBaRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 627 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_dialogToken, m_timeoutValue, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), SetParameterSet(), SetStartingSequenceControl(), and visualizer.core::start().

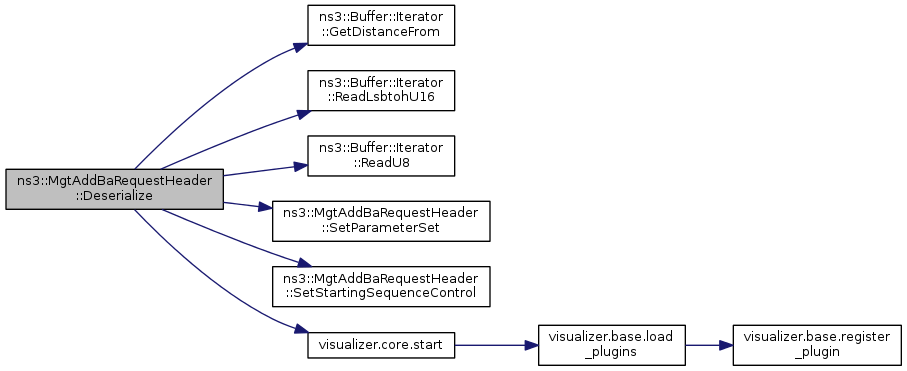

Here is the call graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetBufferSize ( void ) const

Definition at line 699 of file mgt-headers.cc.

References m_bufferSize.

TypeId ns3::MgtAddBaRequestHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 595 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetParameterSet ( void ) const

private

Definition at line 729 of file mgt-headers.cc.

References m_amsduSupport, m_bufferSize, m_policy, and m_tid.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::MgtAddBaRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 606 of file mgt-headers.cc.

uint16_t ns3::MgtAddBaRequestHeader::GetStartingSequence ( void ) const

Definition at line 711 of file mgt-headers.cc.

References m_startingSeq.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetStartingSequenceControl ( void ) const

private

Definition at line 717 of file mgt-headers.cc.

References m_startingSeq.

Referenced by Serialize().

Here is the caller graph for this function:

uint8_t ns3::MgtAddBaRequestHeader::GetTid ( void ) const

Definition at line 681 of file mgt-headers.cc.

References m_tid.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

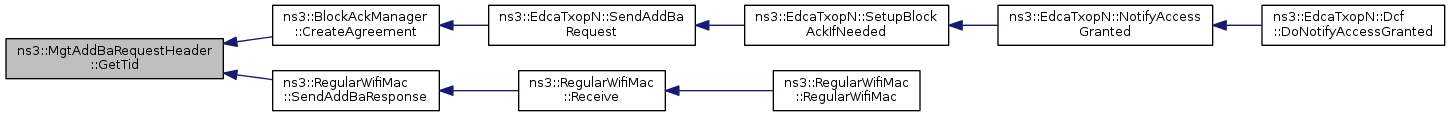

Here is the caller graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetTimeout ( void ) const

Definition at line 693 of file mgt-headers.cc.

References m_timeoutValue.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

TypeId ns3::MgtAddBaRequestHeader::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 586 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MgtAddBaRequestHeader::IsAmsduSupported ( void ) const

Definition at line 705 of file mgt-headers.cc.

References m_amsduSupport.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

bool ns3::MgtAddBaRequestHeader::IsImmediateBlockAck ( void ) const

Definition at line 687 of file mgt-headers.cc.

References m_policy.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

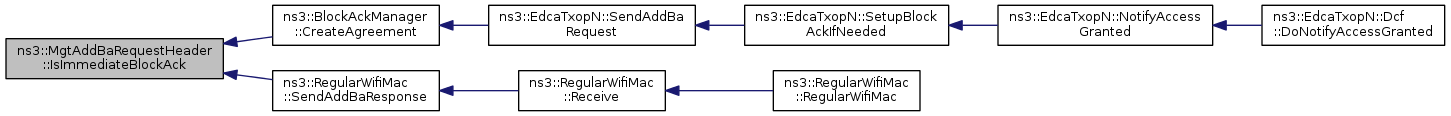

Here is the caller graph for this function:

void ns3::MgtAddBaRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 601 of file mgt-headers.cc.

void ns3::MgtAddBaRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 617 of file mgt-headers.cc.

References GetParameterSet(), GetStartingSequenceControl(), m_dialogToken, m_timeoutValue, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

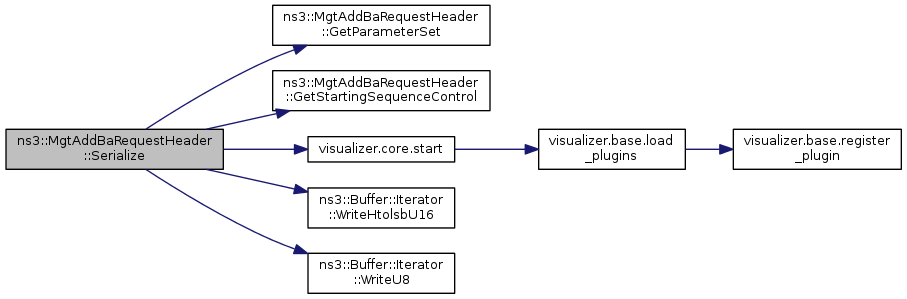

Here is the call graph for this function:
