A message within a PbbPacket packet. More...

#include <packetbb.h>

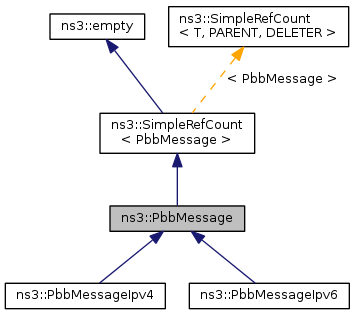

Inheritance diagram for ns3::PbbMessage:

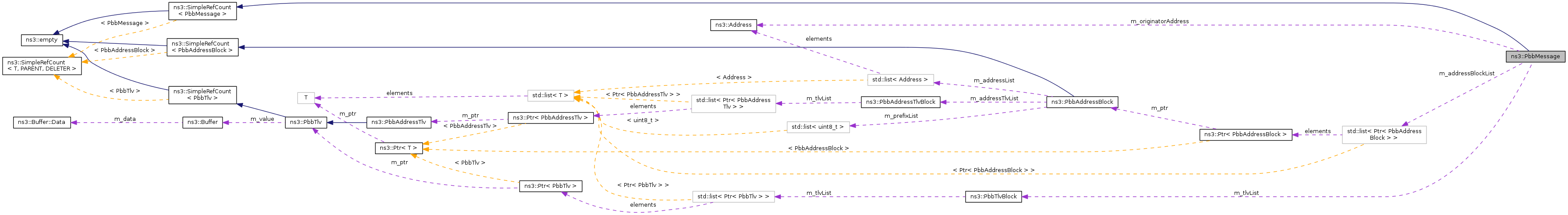

Collaboration diagram for ns3::PbbMessage:

Public Types
typedef std::list< Ptr < PbbAddressBlock > >::iterator	AddressBlockIterator
typedef std::list< Ptr < PbbAddressBlock > >::const_iterator	ConstAddressBlockIterator
typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator

Public Member Functions
	PbbMessage ()
virtual	~PbbMessage ()
Ptr< PbbAddressBlock >	AddressBlockBack (void)
const Ptr< PbbAddressBlock >	AddressBlockBack (void) const
AddressBlockIterator	AddressBlockBegin ()
ConstAddressBlockIterator	AddressBlockBegin () const
void	AddressBlockClear (void)
	Removes all address blocks from this message.
bool	AddressBlockEmpty (void) const
AddressBlockIterator	AddressBlockEnd ()
ConstAddressBlockIterator	AddressBlockEnd () const
AddressBlockIterator	AddressBlockErase (AddressBlockIterator position)
	Removes the address block at the specified position.
AddressBlockIterator	AddressBlockErase (AddressBlockIterator first, AddressBlockIterator last)
	Removes all address blocks from [first, last) (includes first, not includes last).
Ptr< PbbAddressBlock >	AddressBlockFront (void)
const Ptr< PbbAddressBlock >	AddressBlockFront (void) const
void	AddressBlockPopBack (void)
	Removes an address block from the back of this message.
void	AddressBlockPopFront (void)
	Removes an address block from the front of this message.
void	AddressBlockPushBack (Ptr< PbbAddressBlock > block)
	Appends an address block to the front of this message.
void	AddressBlockPushFront (Ptr< PbbAddressBlock > block)
	Prepends an address block to the front of this message.
int	AddressBlockSize (void) const

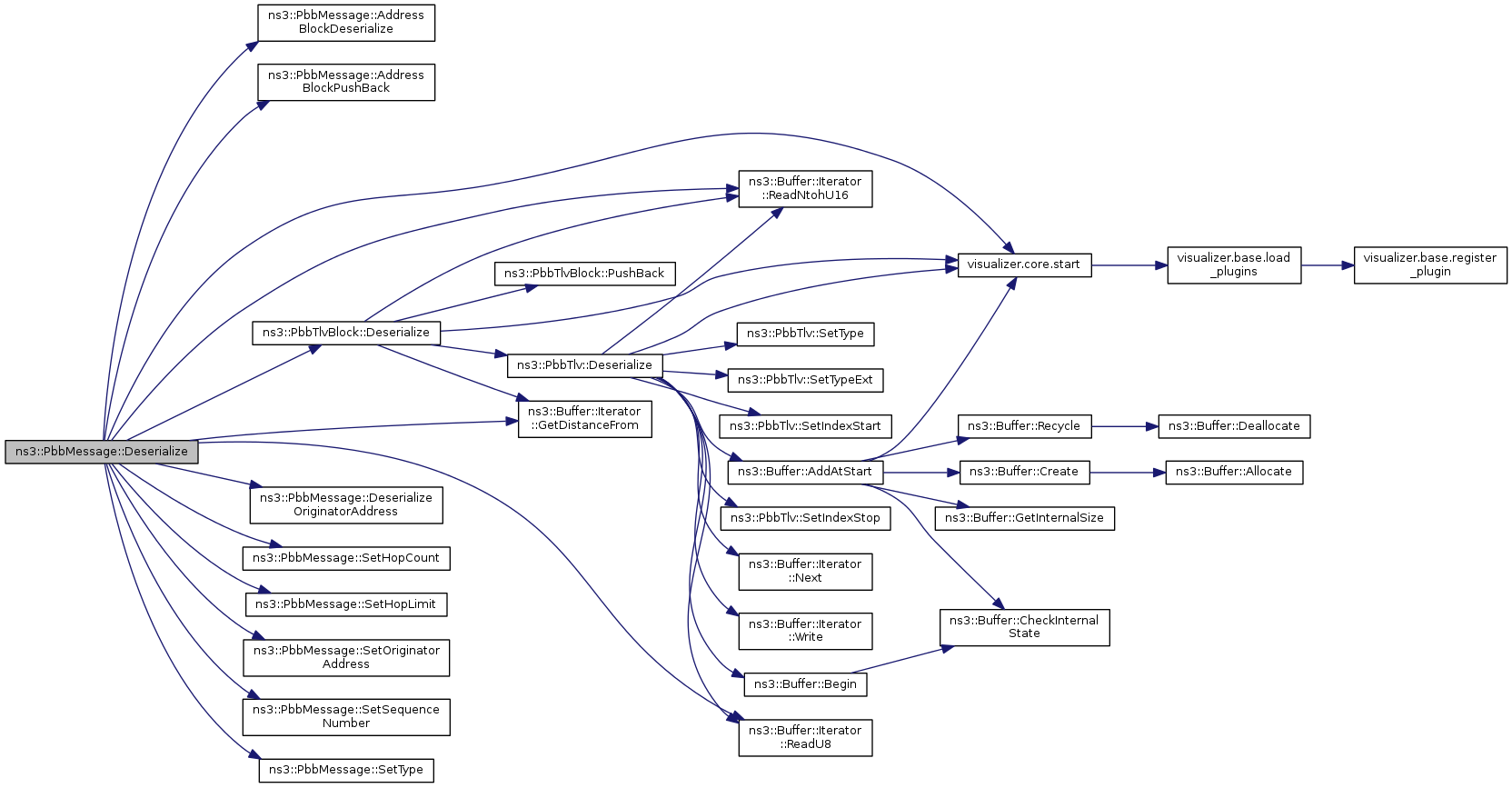

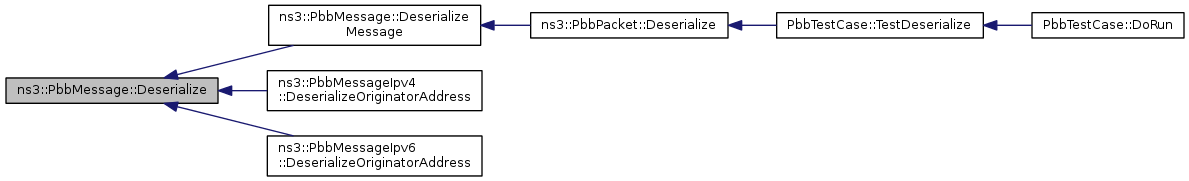

void	Deserialize (Buffer::Iterator &start)
	Deserializes a message from the specified buffer.

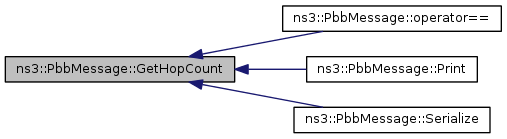

uint8_t	GetHopCount (void) const

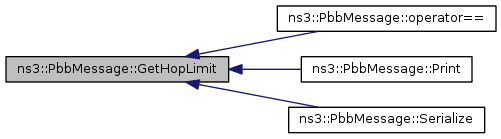

uint8_t	GetHopLimit (void) const
Address	GetOriginatorAddress (void) const

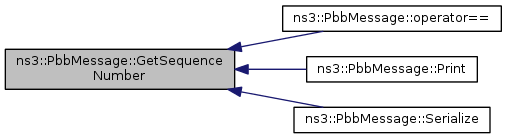

uint16_t	GetSequenceNumber (void) const
uint32_t	GetSerializedSize (void) const

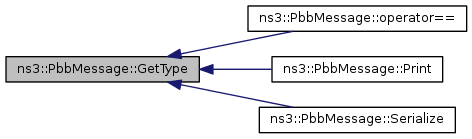

uint8_t	GetType (void) const

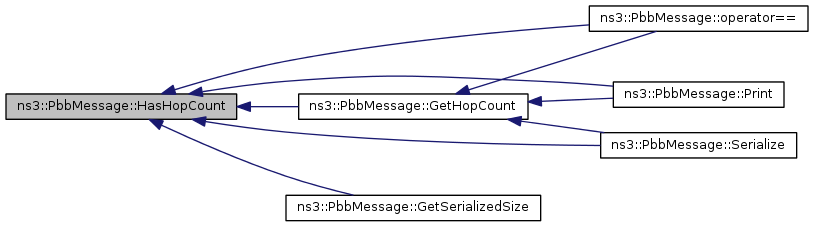

bool	HasHopCount (void) const
	Tests whether or not this message has a hop count.
bool	HasHopLimit (void) const
	Tests whether or not this message has a hop limit.

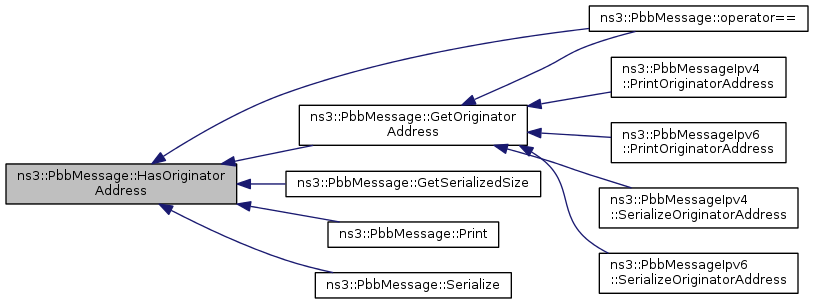

bool	HasOriginatorAddress (void) const
	Tests whether or not this message has an originator address.
bool	HasSequenceNumber (void) const
	Tests whether or not this message has a sequence number.
bool	operator!= (const PbbMessage &other) const
bool	operator== (const PbbMessage &other) const
void	Print (std::ostream &os) const
	Pretty-prints the contents of this message.
void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this message, with specified indentation.
void	Serialize (Buffer::Iterator &start) const
	Serializes this message into the specified buffer.
void	SetHopCount (uint8_t hopcount)
	Sets the current number of hops this message has traveled.
void	SetHopLimit (uint8_t hoplimit)
	Sets the maximum number of hops this message should travel.
void	SetOriginatorAddress (Address address)
	Sets the address for the node that created this packet.

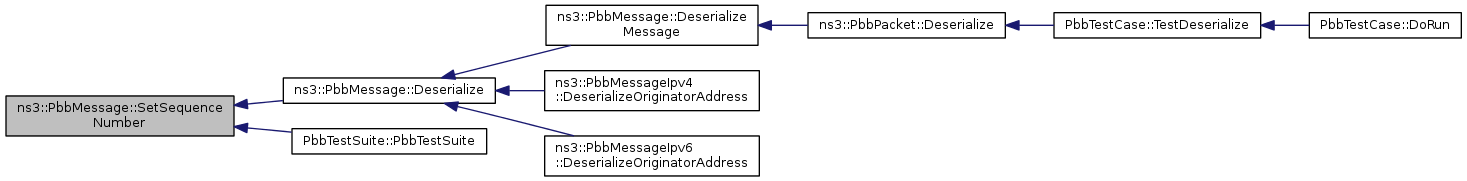

void	SetSequenceNumber (uint16_t seqnum)
	Sets the sequence number of this message.
void	SetType (uint8_t type)
	Sets the type for this message.
Ptr< PbbTlv >	TlvBack (void)
const Ptr< PbbTlv >	TlvBack (void) const
TlvIterator	TlvBegin ()
ConstTlvIterator	TlvBegin () const
void	TlvClear (void)
	Removes all message TLVs from this block.
bool	TlvEmpty (void) const
TlvIterator	TlvEnd ()
ConstTlvIterator	TlvEnd () const
TlvIterator	TlvErase (TlvIterator position)
	Removes the message TLV at the specified position.
TlvIterator	TlvErase (TlvIterator first, TlvIterator last)
	Removes all message TLVs from [first, last) (includes first, not includes last).
Ptr< PbbTlv >	TlvFront (void)
const Ptr< PbbTlv >	TlvFront (void) const
void	TlvPopBack (void)
	Removes a message TLV from the back of this message.
void	TlvPopFront (void)
	Removes a message TLV from the front of this message.
void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a message TLV to the back of this message.
void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a message TLV to the front of this message.
int	TlvSize (void) const
Public Member Functions inherited from ns3::SimpleRefCount< PbbMessage >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Static Public Member Functions

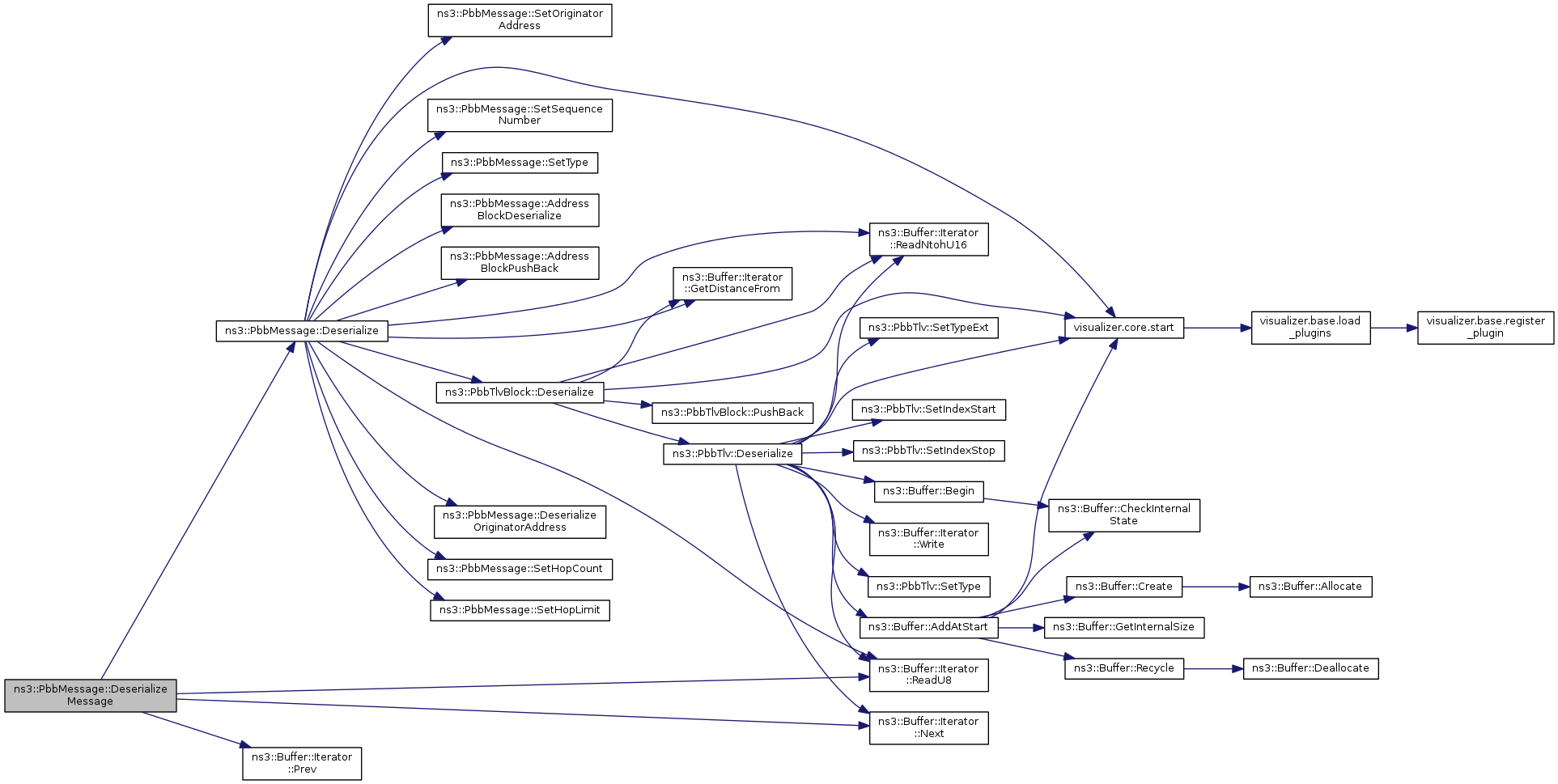

static Ptr< PbbMessage >	DeserializeMessage (Buffer::Iterator &start)
	Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message.
Static Public Member Functions inherited from ns3::SimpleRefCount< PbbMessage >
static void	Cleanup (void)

Protected Member Functions
virtual Ptr< PbbAddressBlock >	AddressBlockDeserialize (Buffer::Iterator &start) const =0

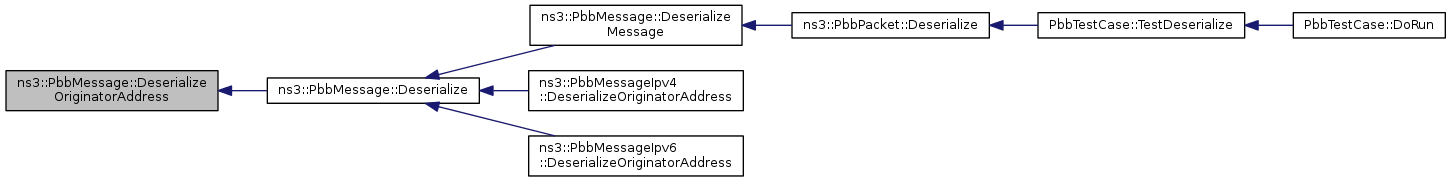

virtual Address	DeserializeOriginatorAddress (Buffer::Iterator &start) const =0

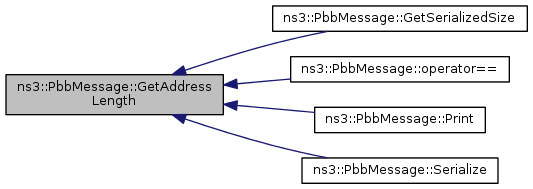

virtual PbbAddressLength	GetAddressLength (void) const =0
virtual void	PrintOriginatorAddress (std::ostream &os) const =0
virtual void	SerializeOriginatorAddress (Buffer::Iterator &start) const =0

Private Attributes
std::list< Ptr< PbbAddressBlock > >	m_addressBlockList
PbbAddressLength	m_addrSize
bool	m_hasHopCount
bool	m_hasHopLimit
bool	m_hasOriginatorAddress
bool	m_hasSequenceNumber
uint8_t	m_hopCount
uint8_t	m_hopLimit
Address	m_originatorAddress
uint16_t	m_sequenceNumber
PbbTlvBlock	m_tlvList
uint8_t	m_type

Detailed Description

A message within a PbbPacket packet.

There may be any number of messages in one packet packet. This is a pure virtual base class, when creating a message, you should instantiate either PbbMessageIpv4 or PbbMessageIpv6.

Definition at line 652 of file packetbb.h.

Member Typedef Documentation

typedef std::list< Ptr<PbbAddressBlock> >::iterator ns3::PbbMessage::AddressBlockIterator

Definition at line 657 of file packetbb.h.

typedef std::list< Ptr<PbbAddressBlock> >::const_iterator ns3::PbbMessage::ConstAddressBlockIterator

Definition at line 658 of file packetbb.h.

typedef std::list< Ptr<PbbTlv> >::const_iterator ns3::PbbMessage::ConstTlvIterator

Definition at line 656 of file packetbb.h.

typedef std::list< Ptr<PbbTlv> >::iterator ns3::PbbMessage::TlvIterator

Definition at line 655 of file packetbb.h.

Constructor & Destructor Documentation

ns3::PbbMessage::PbbMessage ( )

Definition at line 1024 of file packetbb.cc.

References ns3::IPV4, m_addrSize, m_hasHopCount, m_hasHopLimit, m_hasOriginatorAddress, m_hasSequenceNumber, and NS_LOG_FUNCTION.

ns3::PbbMessage::~PbbMessage ( )

virtual

Definition at line 1035 of file packetbb.cc.

References AddressBlockClear(), and NS_LOG_FUNCTION.

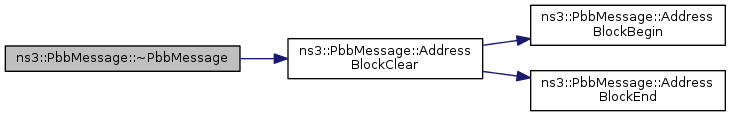

Here is the call graph for this function:

Member Function Documentation

Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockBack ( void )

Returns: a smart pointer to the last address block in this message.

Definition at line 1334 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

const Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockBack ( void ) const

Returns: a const smart pointer to the last address block in this message.

Definition at line 1341 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockBegin ( void )

Returns: an iterator to the first address block in this message.

Definition at line 1278 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by AddressBlockClear(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

PbbMessage::ConstAddressBlockIterator ns3::PbbMessage::AddressBlockBegin ( void ) const

Returns: a const iterator to the first address block in this message.

Definition at line 1285 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

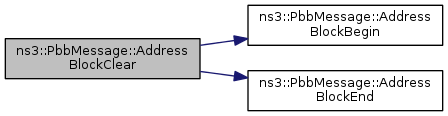

void ns3::PbbMessage::AddressBlockClear ( void )

Removes all address blocks from this message.

Definition at line 1391 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by ~PbbMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Ptr<PbbAddressBlock> ns3::PbbMessage::AddressBlockDeserialize ( Buffer::Iterator & start ) const

protectedpure virtual

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Deserialize().

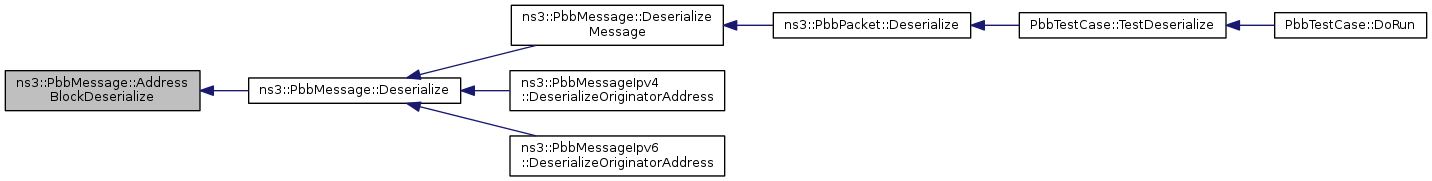

Here is the caller graph for this function:

bool ns3::PbbMessage::AddressBlockEmpty ( void ) const

Returns: true if there are no address blocks in this message, false otherwise.

Definition at line 1313 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockEnd ( void )

Returns: an iterator to the past-the-end address block element in this message.

Definition at line 1292 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by AddressBlockClear(), GetSerializedSize(), operator==(), Print(), and Serialize().

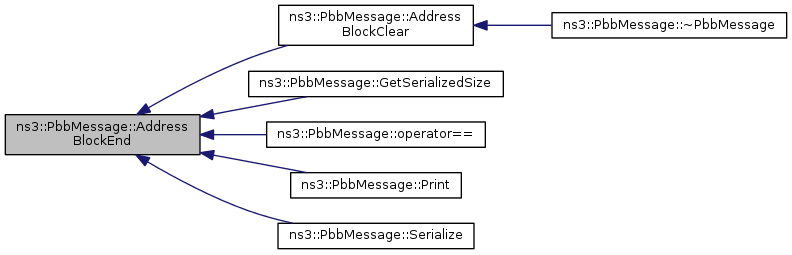

Here is the caller graph for this function:

PbbMessage::ConstAddressBlockIterator ns3::PbbMessage::AddressBlockEnd ( void ) const

Returns: a const iterator to the past-the-end address block element in this message.

Definition at line 1299 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockErase ( PbbMessage::AddressBlockIterator position )

Removes the address block at the specified position.

Parameters

position an Iterator pointing to the address block to erase.

Returns: an iterator pointing to the next address block in the message.

Definition at line 1376 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockErase	(	PbbMessage::AddressBlockIterator	first,
		PbbMessage::AddressBlockIterator	last
	)

Removes all address blocks from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first address block to erase (inclusive).
last	an Iterator pointing to the element past the last address block to erase.

Returns: an iterator pointing to the next address block in the message.

Definition at line 1383 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockFront ( void )

Returns: a smart pointer to the first address block in this message.

Definition at line 1320 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

const Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockFront ( void ) const

Returns: a const smart pointer to the first address block in this message.

Definition at line 1327 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

void ns3::PbbMessage::AddressBlockPopBack ( void )

Removes an address block from the back of this message.

Definition at line 1369 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

void ns3::PbbMessage::AddressBlockPopFront ( void )

Removes an address block from the front of this message.

Definition at line 1355 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

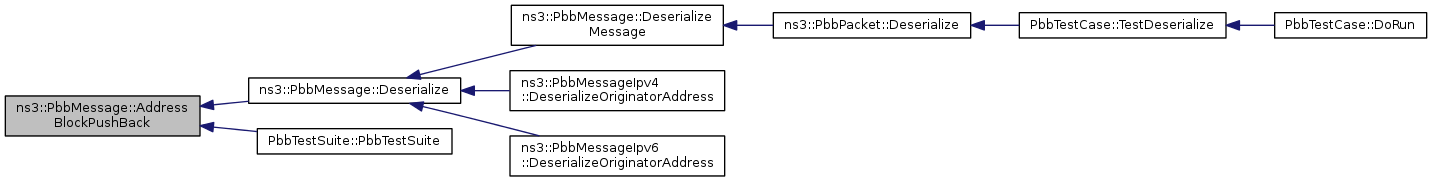

void ns3::PbbMessage::AddressBlockPushBack ( Ptr< PbbAddressBlock > block )

Appends an address block to the front of this message.

Parameters

block a smart pointer to the address block to append.

Definition at line 1362 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

void ns3::PbbMessage::AddressBlockPushFront ( Ptr< PbbAddressBlock > block )

Prepends an address block to the front of this message.

Parameters

block a smart pointer to the address block to prepend.

Definition at line 1348 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

int ns3::PbbMessage::AddressBlockSize ( void ) const

Returns: the number of address blocks in this message.

Definition at line 1306 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by operator==().

Here is the caller graph for this function:

void ns3::PbbMessage::Deserialize ( Buffer::Iterator & start )

Deserializes a message from the specified buffer.

Parameters

start a reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 1533 of file packetbb.cc.

References AddressBlockDeserialize(), AddressBlockPushBack(), ns3::PbbTlvBlock::Deserialize(), DeserializeOriginatorAddress(), ns3::Buffer::Iterator::GetDistanceFrom(), m_tlvList, MHAS_HOP_COUNT, MHAS_HOP_LIMIT, MHAS_ORIG, MHAS_SEQ_NUM, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), SetHopCount(), SetHopLimit(), SetOriginatorAddress(), SetSequenceNumber(), SetType(), and visualizer.core::start().

Referenced by DeserializeMessage(), ns3::PbbMessageIpv4::DeserializeOriginatorAddress(), and ns3::PbbMessageIpv6::DeserializeOriginatorAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< PbbMessage > ns3::PbbMessage::DeserializeMessage ( Buffer::Iterator & start )

static

Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message.

Parameters

start a reference to the point in a buffer to begin deserializing.

Returns: A pointer to the deserialized message, or 0 on error.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 1500 of file packetbb.cc.

References Deserialize(), ns3::IPV4, ns3::IPV6, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::Prev(), and ns3::Buffer::Iterator::ReadU8().

Referenced by ns3::PbbPacket::Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Address ns3::PbbMessage::DeserializeOriginatorAddress ( Buffer::Iterator & start ) const

protectedpure virtual

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Deserialize().

Here is the caller graph for this function:

PbbAddressLength ns3::PbbMessage::GetAddressLength ( void ) const

protectedpure virtual

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Definition at line 1056 of file packetbb.cc.

References m_addrSize, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

uint8_t ns3::PbbMessage::GetHopCount ( void ) const

Returns: the current number of hops this message has traveled.

Calling this while HasHopCount is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1117 of file packetbb.cc.

References HasHopCount(), m_hopCount, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::PbbMessage::GetHopLimit ( void ) const

Returns: the maximum number of hops this message should travel.

Calling this while HasHopLimit is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1094 of file packetbb.cc.

References HasHopLimit(), m_hopLimit, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

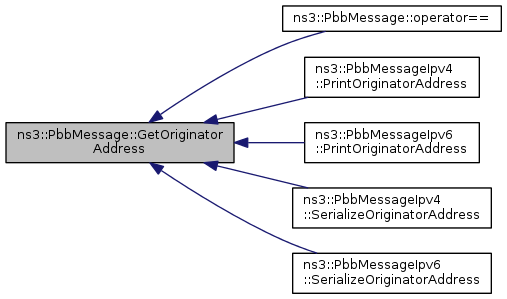

Address ns3::PbbMessage::GetOriginatorAddress ( void ) const

Returns: the address of the node that created this packet.

Calling this while HasOriginatorAddress is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1071 of file packetbb.cc.

References HasOriginatorAddress(), m_originatorAddress, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), ns3::PbbMessageIpv4::PrintOriginatorAddress(), ns3::PbbMessageIpv6::PrintOriginatorAddress(), ns3::PbbMessageIpv4::SerializeOriginatorAddress(), and ns3::PbbMessageIpv6::SerializeOriginatorAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::PbbMessage::GetSequenceNumber ( void ) const

Returns: the sequence number of this message.

Calling this while HasSequenceNumber is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1140 of file packetbb.cc.

References HasSequenceNumber(), m_sequenceNumber, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

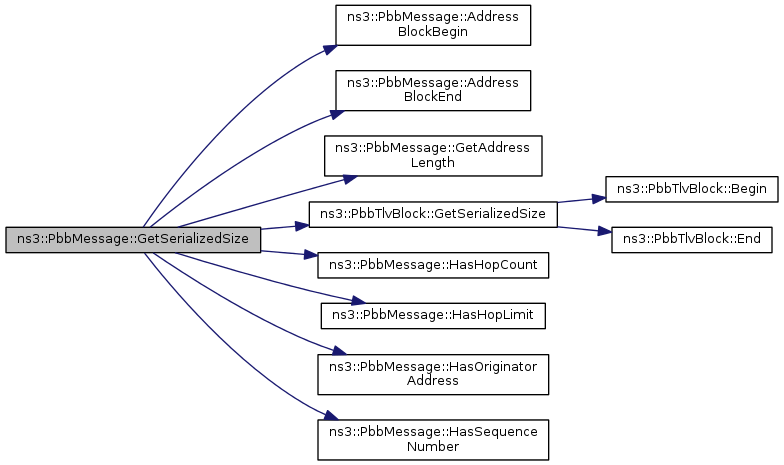

uint32_t ns3::PbbMessage::GetSerializedSize ( void ) const

Returns: The size (in bytes) needed to serialize this message.

Definition at line 1404 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), GetAddressLength(), ns3::PbbTlvBlock::GetSerializedSize(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::PbbMessage::GetType ( void ) const

Returns: the type assigned to this packet

Definition at line 1049 of file packetbb.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the caller graph for this function:

bool ns3::PbbMessage::HasHopCount ( void ) const

Tests whether or not this message has a hop count.

Returns: true if this message has a hop limit, false otherwise.

Definition at line 1125 of file packetbb.cc.

References m_hasHopCount, and NS_LOG_FUNCTION.

Referenced by GetHopCount(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

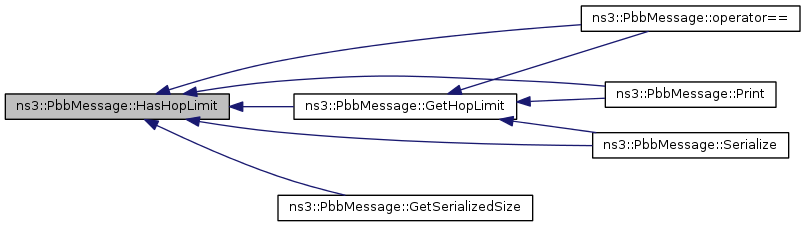

bool ns3::PbbMessage::HasHopLimit ( void ) const

Tests whether or not this message has a hop limit.

Returns: true if this message has a hop limit, false otherwise.

If this is set, messages should not hop further than this limit.

Definition at line 1102 of file packetbb.cc.

References m_hasHopLimit, and NS_LOG_FUNCTION.

Referenced by GetHopLimit(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

bool ns3::PbbMessage::HasOriginatorAddress ( void ) const

Tests whether or not this message has an originator address.

Returns: true if this message has an originator address, false otherwise.

Definition at line 1079 of file packetbb.cc.

References m_hasOriginatorAddress, and NS_LOG_FUNCTION.

Referenced by GetOriginatorAddress(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

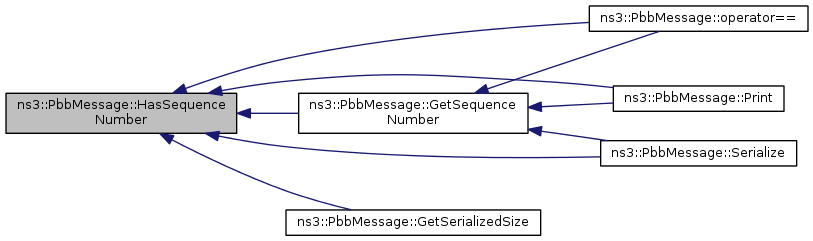

bool ns3::PbbMessage::HasSequenceNumber ( void ) const

Tests whether or not this message has a sequence number.

Returns: true if this message has a sequence number, false otherwise.

Definition at line 1148 of file packetbb.cc.

References m_hasSequenceNumber, and NS_LOG_FUNCTION.

Referenced by GetSequenceNumber(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

bool ns3::PbbMessage::operator!= ( const PbbMessage & other ) const

Definition at line 1718 of file packetbb.cc.

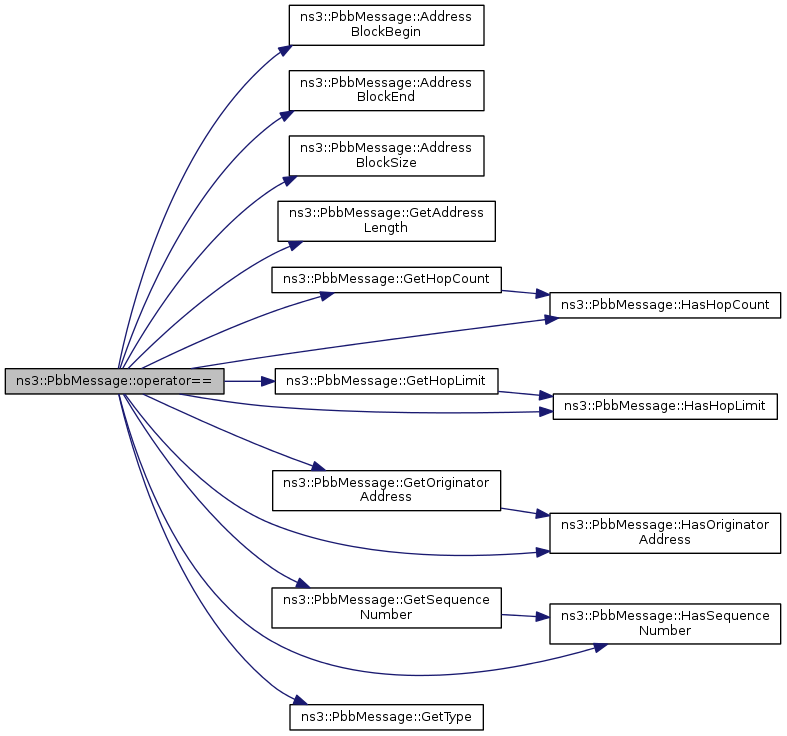

bool ns3::PbbMessage::operator== ( const PbbMessage & other ) const

Definition at line 1630 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), AddressBlockSize(), GetAddressLength(), GetHopCount(), GetHopLimit(), GetOriginatorAddress(), GetSequenceNumber(), GetType(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), and m_tlvList.

Here is the call graph for this function:

void ns3::PbbMessage::Print ( std::ostream & os ) const

Pretty-prints the contents of this message.

Parameters

os	a stream object to print to.

Definition at line 1575 of file packetbb.cc.

References NS_LOG_FUNCTION.

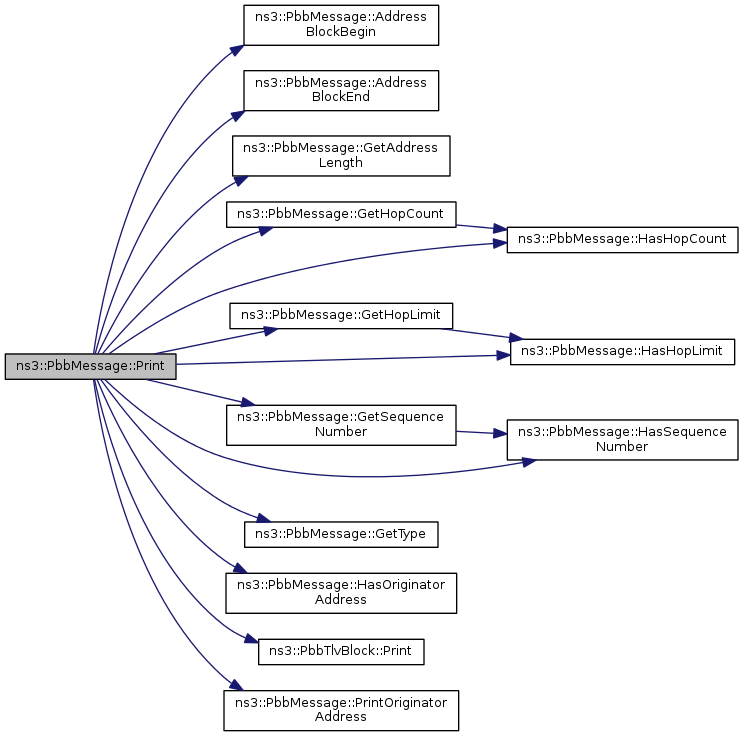

void ns3::PbbMessage::Print	(	std::ostream &	os,
		int	level
	)		const

Pretty-prints the contents of this message, with specified indentation.

Parameters

os	a stream object to print to.
level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 1582 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), GetAddressLength(), GetHopCount(), GetHopLimit(), GetSequenceNumber(), GetType(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), m_tlvList, NS_LOG_FUNCTION, ns3::PbbTlvBlock::Print(), and PrintOriginatorAddress().

Here is the call graph for this function:

virtual void ns3::PbbMessage::PrintOriginatorAddress ( std::ostream & os ) const

protectedpure virtual

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Print().

Here is the caller graph for this function:

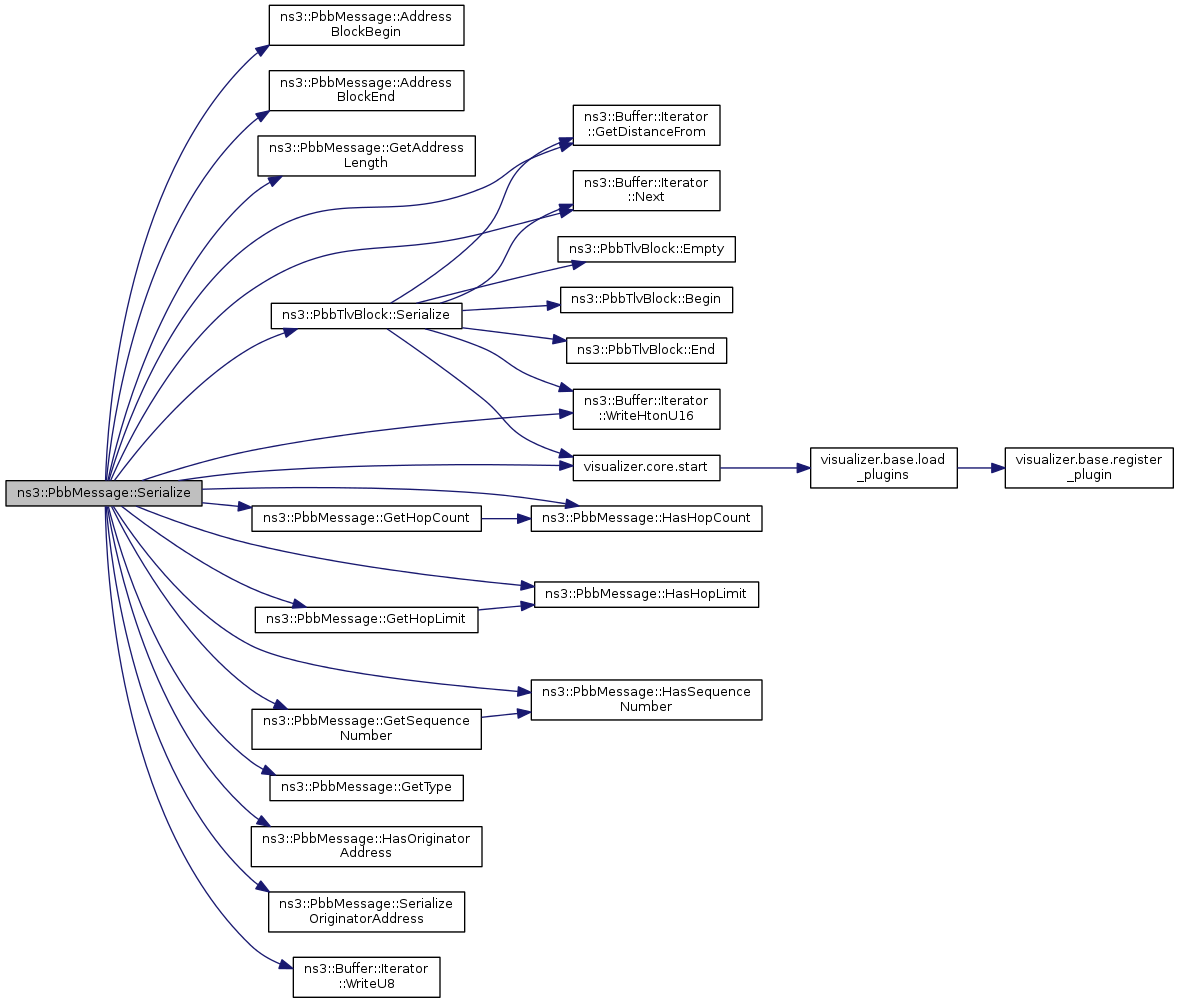

void ns3::PbbMessage::Serialize ( Buffer::Iterator & start ) const

Serializes this message into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 1443 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), GetAddressLength(), ns3::Buffer::Iterator::GetDistanceFrom(), GetHopCount(), GetHopLimit(), GetSequenceNumber(), GetType(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), m_tlvList, MHAS_HOP_COUNT, MHAS_HOP_LIMIT, MHAS_ORIG, MHAS_SEQ_NUM, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::PbbTlvBlock::Serialize(), SerializeOriginatorAddress(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

virtual void ns3::PbbMessage::SerializeOriginatorAddress ( Buffer::Iterator & start ) const

protectedpure virtual

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Serialize().

Here is the caller graph for this function:

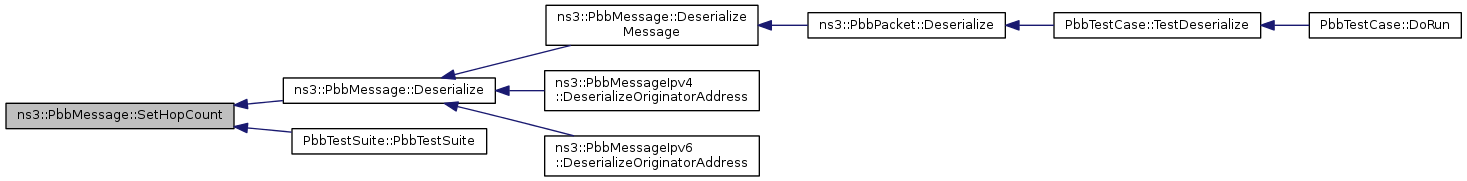

void ns3::PbbMessage::SetHopCount ( uint8_t hopcount )

Sets the current number of hops this message has traveled.

Parameters

hopcount the current number of hops

Definition at line 1109 of file packetbb.cc.

References m_hasHopCount, m_hopCount, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

void ns3::PbbMessage::SetHopLimit ( uint8_t hoplimit )

Sets the maximum number of hops this message should travel.

Parameters

hoplimit the limit to set

Definition at line 1086 of file packetbb.cc.

References m_hasHopLimit, m_hopLimit, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

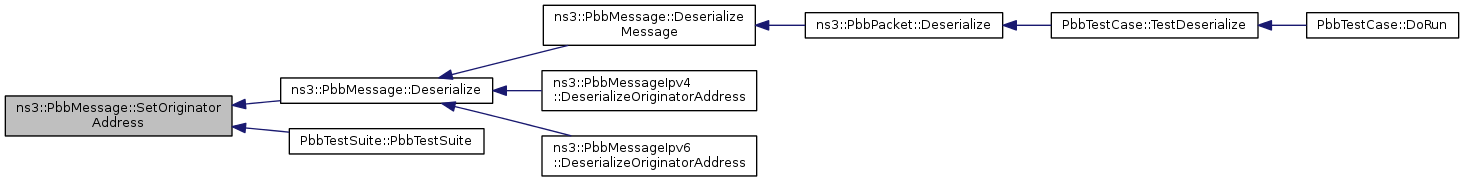

void ns3::PbbMessage::SetOriginatorAddress ( Address address )

Sets the address for the node that created this packet.

Parameters

address the originator address.

Definition at line 1063 of file packetbb.cc.

References m_hasOriginatorAddress, m_originatorAddress, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

void ns3::PbbMessage::SetSequenceNumber ( uint16_t seqnum )

Sets the sequence number of this message.

Parameters

seqnum the sequence number to set.

Definition at line 1132 of file packetbb.cc.

References m_hasSequenceNumber, m_sequenceNumber, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

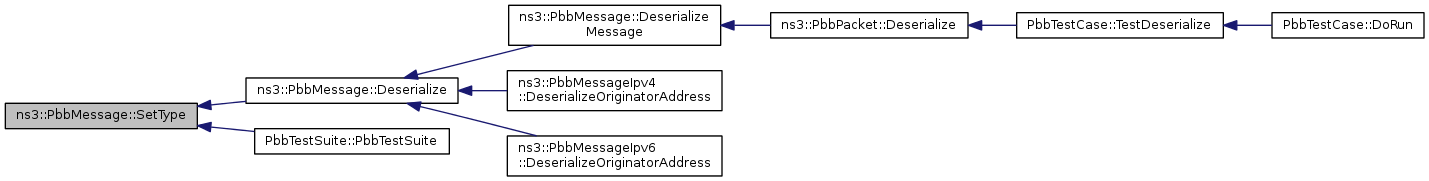

void ns3::PbbMessage::SetType ( uint8_t type )

Sets the type for this message.

Parameters

type	the type to set.

Definition at line 1042 of file packetbb.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

Ptr< PbbTlv > ns3::PbbMessage::TlvBack ( void )

Returns: a smart pointer to the last message TLV in this message.

Definition at line 1213 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

const Ptr< PbbTlv > ns3::PbbMessage::TlvBack ( void ) const

Returns: a const smart pointer to the last message TLV in this message.

Definition at line 1220 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbMessage::TlvIterator ns3::PbbMessage::TlvBegin ( void )

Returns: an iterator to the first message TLV in this message.

Definition at line 1157 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbMessage::ConstTlvIterator ns3::PbbMessage::TlvBegin ( void ) const

Returns: a const iterator to the first message TLV in this message.

Definition at line 1164 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PbbMessage::TlvClear ( void )

Removes all message TLVs from this block.

Definition at line 1269 of file packetbb.cc.

References ns3::PbbTlvBlock::Clear(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::PbbMessage::TlvEmpty ( void ) const

Returns: true if there are no message TLVs in this message, false otherwise.

Definition at line 1192 of file packetbb.cc.

References ns3::PbbTlvBlock::Empty(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbMessage::TlvIterator ns3::PbbMessage::TlvEnd ( void )

Returns: an iterator to the past-the-end message TLV element in this message.

Definition at line 1171 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbMessage::ConstTlvIterator ns3::PbbMessage::TlvEnd ( void ) const

Returns: a const iterator to the past-the-end message TLV element in this message.

Definition at line 1178 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbMessage::TlvIterator ns3::PbbMessage::TlvErase ( PbbMessage::TlvIterator position )

Removes the message TLV at the specified position.

Parameters

position an Iterator pointing to the message TLV to erase.

Returns: an iterator pointing to the next TLV in the block.

Definition at line 1255 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbMessage::TlvIterator ns3::PbbMessage::TlvErase	(	PbbMessage::TlvIterator	first,
		PbbMessage::TlvIterator	last
	)

Removes all message TLVs from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first message TLV to erase (inclusive).
last	an Iterator pointing to the element past the last message TLV to erase.

Returns: an iterator pointing to the next message TLV in the message.

Definition at line 1262 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< PbbTlv > ns3::PbbMessage::TlvFront ( void )

Returns: a smart pointer to the first message TLV in this message.

Definition at line 1199 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

const Ptr< PbbTlv > ns3::PbbMessage::TlvFront ( void ) const

Returns: a const smart pointer to the first message TLV in this message.

Definition at line 1206 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PbbMessage::TlvPopBack ( void )

Removes a message TLV from the back of this message.

Definition at line 1248 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopBack().

Here is the call graph for this function:

void ns3::PbbMessage::TlvPopFront ( void )

Removes a message TLV from the front of this message.

Definition at line 1234 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopFront().

Here is the call graph for this function:

void ns3::PbbMessage::TlvPushBack ( Ptr< PbbTlv > tlv )

Appends a message TLV to the back of this message.

Parameters

tlv	a smart pointer to the message TLV to append.

Definition at line 1241 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushBack().

Referenced by PbbTestSuite::PbbTestSuite().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PbbMessage::TlvPushFront ( Ptr< PbbTlv > tlv )

Prepends a message TLV to the front of this message.

Parameters

tlv	a smart pointer to the message TLV to prepend.

Definition at line 1227 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushFront().

Here is the call graph for this function:

int ns3::PbbMessage::TlvSize ( void ) const

Returns: the number of message TLVs in this message.

Definition at line 1185 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::Size().

Here is the call graph for this function:

Member Data Documentation

std::list< Ptr<PbbAddressBlock> > ns3::PbbMessage::m_addressBlockList

private

Definition at line 1025 of file packetbb.h.

Referenced by AddressBlockBack(), AddressBlockBegin(), AddressBlockClear(), AddressBlockEmpty(), AddressBlockEnd(), AddressBlockErase(), AddressBlockFront(), AddressBlockPopBack(), AddressBlockPopFront(), AddressBlockPushBack(), AddressBlockPushFront(), and AddressBlockSize().

PbbAddressLength ns3::PbbMessage::m_addrSize

private

Definition at line 1028 of file packetbb.h.

Referenced by GetAddressLength(), and PbbMessage().

bool ns3::PbbMessage::m_hasHopCount

private

Definition at line 1036 of file packetbb.h.

Referenced by HasHopCount(), PbbMessage(), and SetHopCount().

bool ns3::PbbMessage::m_hasHopLimit

private

Definition at line 1033 of file packetbb.h.

Referenced by HasHopLimit(), PbbMessage(), and SetHopLimit().

bool ns3::PbbMessage::m_hasOriginatorAddress

private

Definition at line 1030 of file packetbb.h.

Referenced by HasOriginatorAddress(), PbbMessage(), and SetOriginatorAddress().

bool ns3::PbbMessage::m_hasSequenceNumber

private

Definition at line 1039 of file packetbb.h.

Referenced by HasSequenceNumber(), PbbMessage(), and SetSequenceNumber().

uint8_t ns3::PbbMessage::m_hopCount

private

Definition at line 1037 of file packetbb.h.

Referenced by GetHopCount(), and SetHopCount().

uint8_t ns3::PbbMessage::m_hopLimit

private

Definition at line 1034 of file packetbb.h.

Referenced by GetHopLimit(), and SetHopLimit().

Address ns3::PbbMessage::m_originatorAddress

private

Definition at line 1031 of file packetbb.h.

Referenced by GetOriginatorAddress(), and SetOriginatorAddress().

uint16_t ns3::PbbMessage::m_sequenceNumber

private

Definition at line 1040 of file packetbb.h.

Referenced by GetSequenceNumber(), and SetSequenceNumber().

PbbTlvBlock ns3::PbbMessage::m_tlvList

private

Definition at line 1024 of file packetbb.h.

Referenced by Deserialize(), GetSerializedSize(), operator==(), Print(), Serialize(), TlvBack(), TlvBegin(), TlvClear(), TlvEmpty(), TlvEnd(), TlvErase(), TlvFront(), TlvPopBack(), TlvPopFront(), TlvPushBack(), TlvPushFront(), and TlvSize().

uint8_t ns3::PbbMessage::m_type

private

Definition at line 1027 of file packetbb.h.

Referenced by GetType(), and SetType().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
