#include <pcap-file-wrapper.h>

Inheritance diagram for ns3::PcapFileWrapper:

Collaboration diagram for ns3::PcapFileWrapper:

Public Member Functions
	PcapFileWrapper ()
	~PcapFileWrapper ()
void	Clear (void)
void	Close (void)
bool	Eof (void) const
bool	Fail (void) const
uint32_t	GetDataLinkType (void)
uint32_t	GetMagic (void)
uint32_t	GetSigFigs (void)
uint32_t	GetSnapLen (void)
int32_t	GetTimeZoneOffset (void)
uint16_t	GetVersionMajor (void)
uint16_t	GetVersionMinor (void)
void	Init (uint32_t dataLinkType, uint32_t snapLen=std::numeric_limits< uint32_t >::max(), int32_t tzCorrection=PcapFile::ZONE_DEFAULT)
void	Open (std::string const &filename, std::ios::openmode mode)
void	Write (Time t, Ptr< const Packet > p)
	Write the next packet to file.
void	Write (Time t, Header &header, Ptr< const Packet > p)
	Write the provided header along with the packet to the pcap file.
void	Write (Time t, uint8_t const *buffer, uint32_t length)
	Write the provided data buffer to the pcap file.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
PcapFile	m_file
uint32_t	m_snapLen

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This type is not accessible from the Config system.

Attributes

CaptureSize: Maximum length of captured packets (cf. pcap snaplen)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:65535
- Initial value: 65535
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 39 of file pcap-file-wrapper.h.

Constructor & Destructor Documentation

ns3::PcapFileWrapper::PcapFileWrapper ( )

Definition at line 47 of file pcap-file-wrapper.cc.

References NS_LOG_FUNCTION.

ns3::PcapFileWrapper::~PcapFileWrapper ( )

Definition at line 52 of file pcap-file-wrapper.cc.

References Close(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

void ns3::PcapFileWrapper::Clear ( void )

Clear all state bits of the underlying iostream.

Definition at line 72 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Clear(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PcapFileWrapper::Close ( void )

Close the underlying pcap file.

Definition at line 79 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Close(), m_file, and NS_LOG_FUNCTION.

Referenced by ~PcapFileWrapper().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PcapFileWrapper::Eof ( void ) const

Returns: true if the 'eof' bit is set in the underlying iostream, false otherwise.

Definition at line 66 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Eof(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::PcapFileWrapper::Fail ( void ) const

Returns: true if the 'fail' bit is set in the underlying iostream, false otherwise.

Definition at line 60 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Fail(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::PcapFileWrapper::GetDataLinkType ( void )

Definition at line 187 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetDataLinkType(), m_file, and NS_LOG_FUNCTION.

Referenced by ns3::PcapSniffRxEvent(), and ns3::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::PcapFileWrapper::GetMagic ( void )

Definition at line 145 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetMagic(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::PcapFileWrapper::GetSigFigs ( void )

Definition at line 173 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetSigFigs(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::PcapFileWrapper::GetSnapLen ( void )

Definition at line 180 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetSnapLen(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

int32_t ns3::PcapFileWrapper::GetTimeZoneOffset ( void )

Definition at line 166 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetTimeZoneOffset(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::PcapFileWrapper::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 32 of file pcap-file-wrapper.cc.

References m_snapLen, ns3::TypeId::SetParent(), and ns3::PcapFile::SNAPLEN_DEFAULT.

Here is the call graph for this function:

uint16_t ns3::PcapFileWrapper::GetVersionMajor ( void )

Definition at line 152 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetVersionMajor(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::PcapFileWrapper::GetVersionMinor ( void )

Definition at line 159 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetVersionMinor(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PcapFileWrapper::Init	(	uint32_t	dataLinkType,
		uint32_t	snapLen = `std::numeric_limits<uint32_t>::max ()`,
		int32_t	tzCorrection = `PcapFile::ZONE_DEFAULT`
	)

Initialize the pcap file associated with this wrapper. This file must have been previously opened with write permissions.

Parameters

dataLinkType	A data link type as defined in the pcap library. If you want to make resulting pcap files visible in existing tools, the data link type must match existing definitions, such as PCAP_ETHERNET, PCAP_PPP, PCAP_80211, etc. If you are storing different kinds of packet data, such as naked TCP headers, you are at liberty to locally define your own data link types. According to the pcap-linktype man page, "well-known" pcap linktypes range from 0 to 177. If you use a large random number for your type, chances are small for a collision.
snapLen	An optional maximum size for packets written to the file. Defaults to 65535. If packets exceed this length they are truncated.
tzCorrection	An integer describing the offset of your local time zone from UTC/GMT. For example, Pacific Standard Time in the US is GMT-8, so one would enter -8 for that correction. Defaults to 0 (UTC).

Warning: Calling this method on an existing file will result in the loss any existing data.

Definition at line 93 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Init(), m_file, m_snapLen, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PcapFileWrapper::Open	(	std::string const &	filename,
		std::ios::openmode	mode
	)

Create a new pcap file or open an existing pcap file. Semantics are similar to the stdc++ io stream classes.

Since a pcap file is always a binary file, the file type is automatically selected as a binary file (fstream::binary is automatically ored with the mode field).

Parameters

filename	String containing the name of the file.
mode	String containing the access mode for the file.

Definition at line 86 of file pcap-file-wrapper.cc.

References m_file, NS_LOG_FUNCTION, and ns3::PcapFile::Open().

Here is the call graph for this function:

void ns3::PcapFileWrapper::Write	(	Time	t,
		Ptr< const Packet >	p
	)

Write the next packet to file.

Parameters

t	Packet timestamp as ns3::Time.
p	Packet to write to the pcap file.

Definition at line 112 of file pcap-file-wrapper.cc.

References ns3::Time::GetMicroSeconds(), m_file, NS_LOG_FUNCTION, and ns3::PcapFile::Write().

Referenced by ns3::Ipv4L3ProtocolRxTxSink(), ns3::Ipv6L3ProtocolRxTxSink(), ns3::PcapSniffRxEvent(), ns3::PcapSniffTxEvent(), and ns3::PcapSniffTxRxEvent().

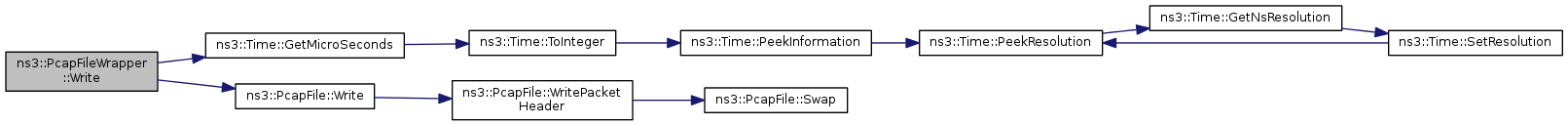

Here is the call graph for this function:

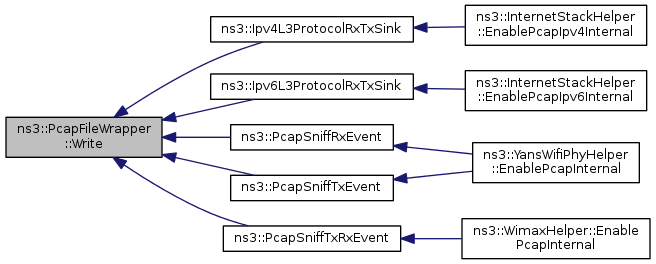

Here is the caller graph for this function:

void ns3::PcapFileWrapper::Write	(	Time	t,
		Header &	header,
		Ptr< const Packet >	p
	)

Write the provided header along with the packet to the pcap file.

It is the case that adding a header to a packet prior to writing it to a file must trigger a deep copy in the Packet. By providing the header separately, we can avoid that copy.

Parameters
