Base class for all RTT Estimators. More...

#include <rtt-estimator.h>

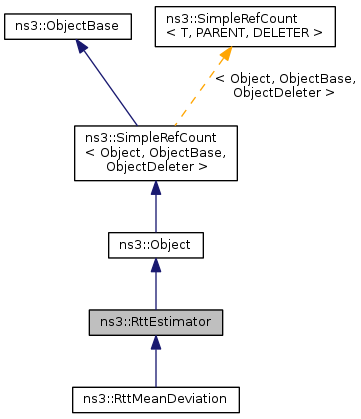

Inheritance diagram for ns3::RttEstimator:

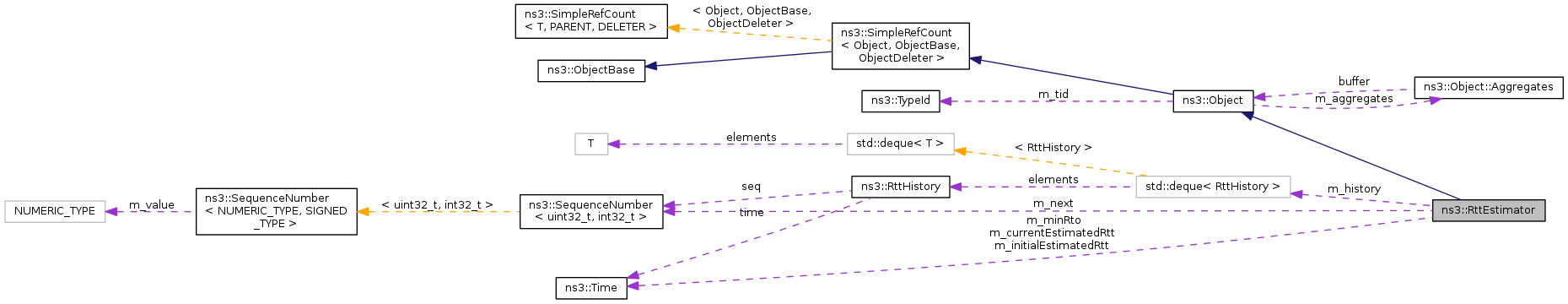

Collaboration diagram for ns3::RttEstimator:

Public Member Functions
	RttEstimator ()
	RttEstimator (const RttEstimator &)
virtual	~RttEstimator ()
virtual Time	AckSeq (SequenceNumber32 ackSeq)
	Note that a particular ack sequence has been received.
virtual void	ClearSent ()
	Clear all history entries.
virtual Ptr< RttEstimator >	Copy () const =0
Time	GetCurrentEstimate (void) const
	gets the current RTT estimate.
Time	GetMinRto (void) const
	Get the Minimum RTO.
virtual void	IncreaseMultiplier ()
	Increase the estimation multiplier up to MaxMultiplier.
virtual void	Measurement (Time t)=0
	Add a new measurement to the estimator. Pure virtual function.
virtual void	Reset ()
	Resets the estimation to its initial state.
virtual void	ResetMultiplier ()
	Resets the estimation multiplier to 1.
virtual Time	RetransmitTimeout ()=0
	Returns the estimated RTO. Pure virtual function.
virtual void	SentSeq (SequenceNumber32 seq, uint32_t size)
	Note that a particular sequence has been sent.
void	SetCurrentEstimate (Time estimate)
	Sets the current RTT estimate (forcefully).
void	SetMinRto (Time minRto)
	Sets the Minimum RTO.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Attributes
Time	m_currentEstimatedRtt
Time	m_minRto
uint16_t	m_multiplier
uint32_t	m_nSamples

Private Attributes
RttHistory_t	m_history
Time	m_initialEstimatedRtt
uint16_t	m_maxMultiplier
SequenceNumber32	m_next

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Base class for all RTT Estimators.

This type is not accessible from the Config system.

Attributes

MaxMultiplier: Maximum RTO Multiplier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 64
- Flags: construct write read
InitialEstimation: Initial RTT estimation
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +1000000000.0ns
- Flags: construct write read
MinRTO: Minimum retransmit timeout value
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +200000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 58 of file rtt-estimator.h.

Constructor & Destructor Documentation

ns3::RttEstimator::RttEstimator ( )

Definition at line 107 of file rtt-estimator.cc.

References ns3::ObjectBase::ConstructSelf(), ns3::Time::GetSeconds(), m_currentEstimatedRtt, m_initialEstimatedRtt, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

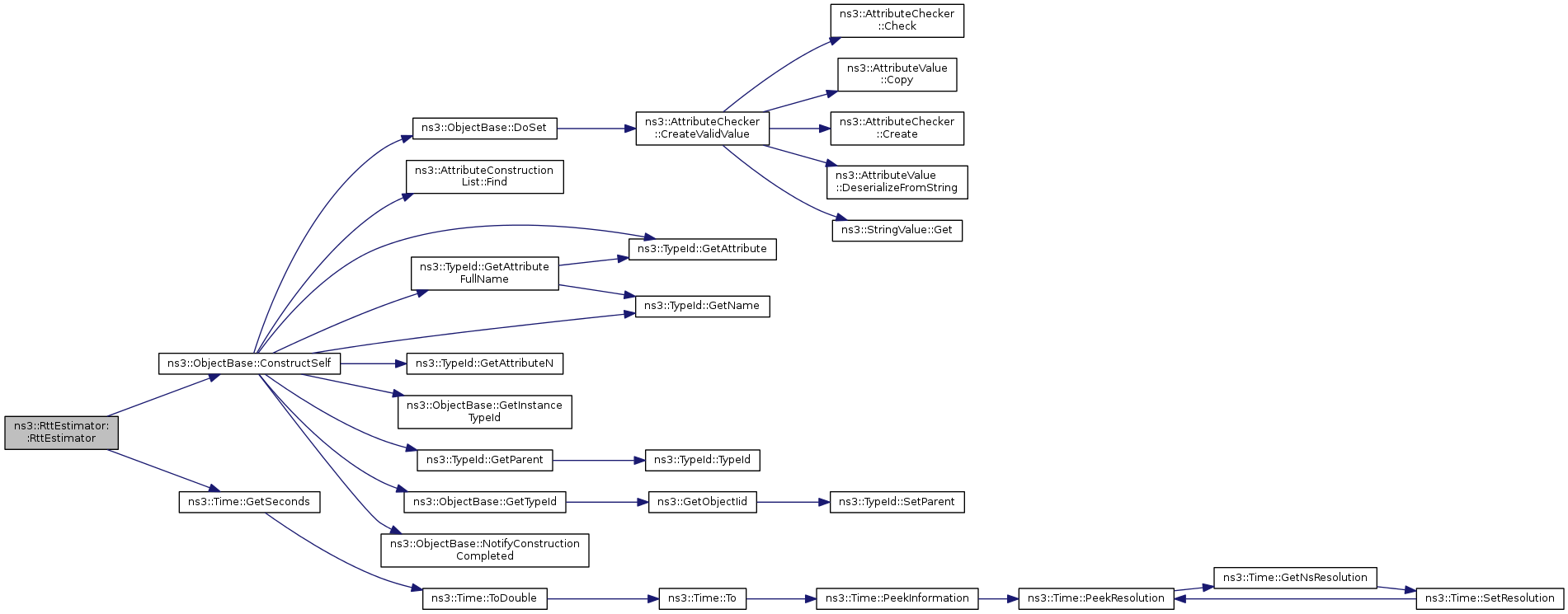

Here is the call graph for this function:

ns3::RttEstimator::RttEstimator ( const RttEstimator & c )

Definition at line 122 of file rtt-estimator.cc.

References NS_LOG_FUNCTION.

ns3::RttEstimator::~RttEstimator ( )

virtual

Definition at line 132 of file rtt-estimator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Time ns3::RttEstimator::AckSeq ( SequenceNumber32 ackSeq )

virtual

Note that a particular ack sequence has been received.

Parameters

ackSeq the ack sequence number.

Returns: The measured RTT for this ack.

Definition at line 165 of file rtt-estimator.cc.

References ns3::RttHistory::count, m_history, Measurement(), ns3::Now(), NS_LOG_FUNCTION, ResetMultiplier(), ns3::RttHistory::retx, ns3::Seconds(), ns3::RttHistory::seq, and ns3::RttHistory::time.

Referenced by ns3::TcpSocketBase::EstimateRtt().

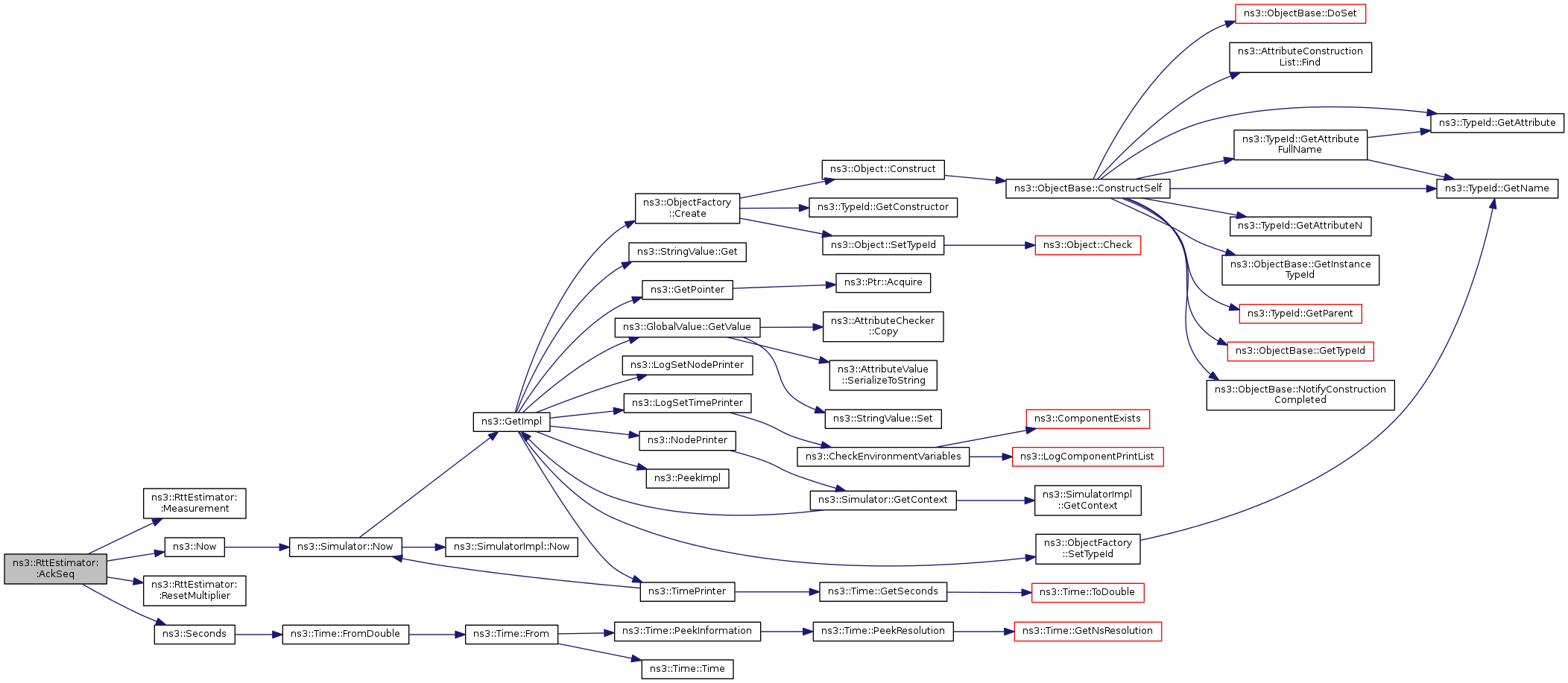

Here is the call graph for this function:

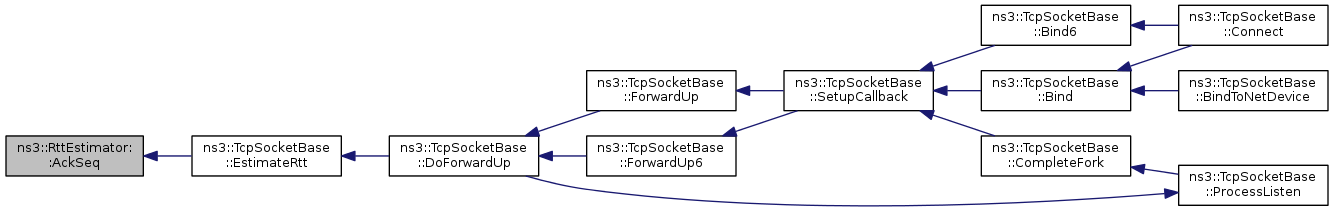

Here is the caller graph for this function:

void ns3::RttEstimator::ClearSent ( )

virtual

Clear all history entries.

Definition at line 190 of file rtt-estimator.cc.

References m_history, m_next, and NS_LOG_FUNCTION.

virtual Ptr<RttEstimator> ns3::RttEstimator::Copy ( ) const

pure virtual

Implemented in ns3::RttMeanDeviation.

Referenced by ns3::TcpSocketBase::TcpSocketBase().

Here is the caller graph for this function:

Time ns3::RttEstimator::GetCurrentEstimate ( void ) const

gets the current RTT estimate.

Returns: The current RTT estimate.

Definition at line 86 of file rtt-estimator.cc.

References m_currentEstimatedRtt.

Time ns3::RttEstimator::GetMinRto ( void ) const

Get the Minimum RTO.

Returns: The minimum RTO returned by the estimator.

Definition at line 75 of file rtt-estimator.cc.

References m_minRto.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::RttEstimator::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Reimplemented in ns3::RttMeanDeviation.

Definition at line 44 of file rtt-estimator.cc.

References GetMinRto(), m_initialEstimatedRtt, m_maxMultiplier, ns3::Seconds(), SetMinRto(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::RttEstimator::IncreaseMultiplier ( )

virtual

Increase the estimation multiplier up to MaxMultiplier.

Definition at line 198 of file rtt-estimator.cc.

References m_maxMultiplier, m_multiplier, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::TcpNewReno::Retransmit(), ns3::TcpReno::Retransmit(), ns3::TcpTahoe::Retransmit(), and ns3::TcpSocketBase::Retransmit().

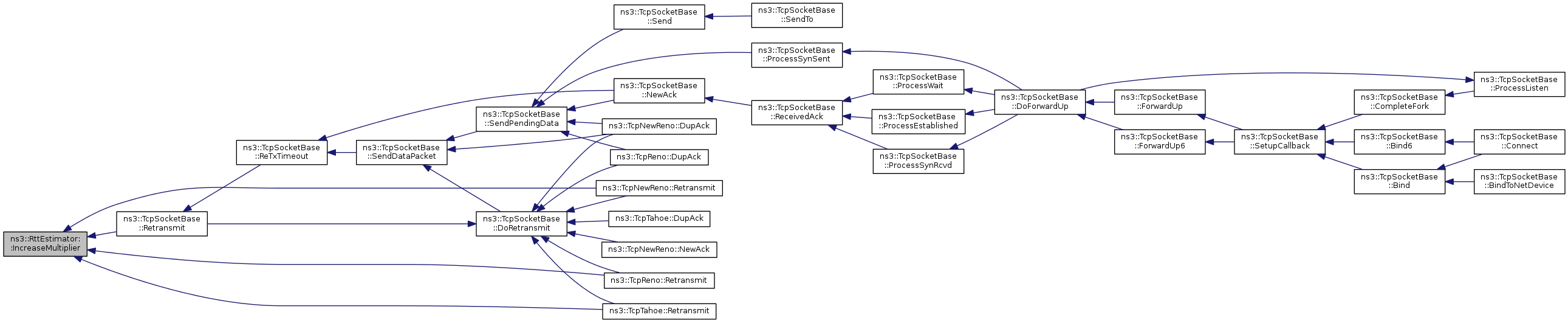

Here is the caller graph for this function:

virtual void ns3::RttEstimator::Measurement ( Time t )

pure virtual

Add a new measurement to the estimator. Pure virtual function.

Parameters

t	the new RTT measure.

Implemented in ns3::RttMeanDeviation.

Referenced by AckSeq().

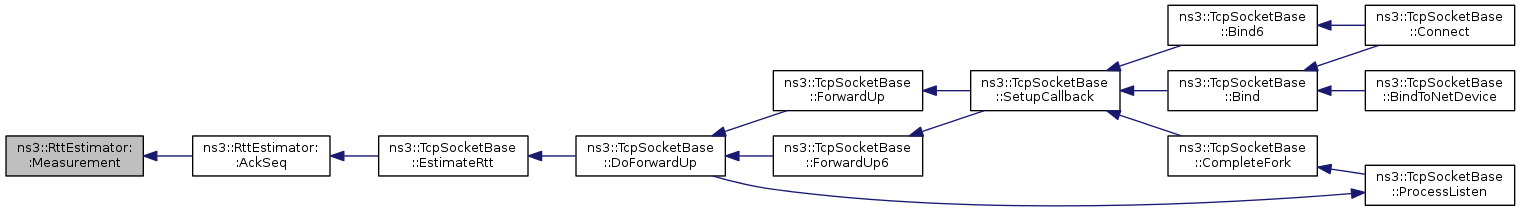

Here is the caller graph for this function:

void ns3::RttEstimator::Reset ( void )

virtual

Resets the estimation to its initial state.

Reimplemented in ns3::RttMeanDeviation.

Definition at line 211 of file rtt-estimator.cc.

References m_currentEstimatedRtt, m_history, m_initialEstimatedRtt, m_next, m_nSamples, NS_LOG_FUNCTION, and ResetMultiplier().

Referenced by ns3::TcpSocketBase::Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RttEstimator::ResetMultiplier ( )

virtual

Resets the estimation multiplier to 1.

Definition at line 205 of file rtt-estimator.cc.

References m_multiplier, and NS_LOG_FUNCTION.

Referenced by AckSeq(), and Reset().

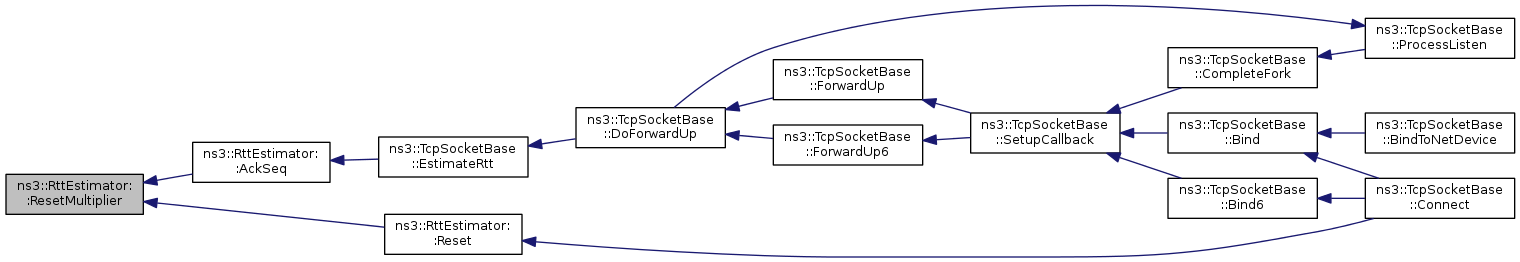

Here is the caller graph for this function:

virtual Time ns3::RttEstimator::RetransmitTimeout ( )

pure virtual

Returns the estimated RTO. Pure virtual function.

Returns: the estimated RTO.

Implemented in ns3::RttMeanDeviation.

Referenced by ns3::TcpSocketBase::DoPeerClose(), ns3::TcpSocketBase::NewAck(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

void ns3::RttEstimator::SentSeq	(	SequenceNumber32	seq,
		uint32_t	size
	)

virtual

Note that a particular sequence has been sent.

Parameters

seq	the packet sequence number.
size	the packet size.

Definition at line 137 of file rtt-estimator.cc.

References m_history, m_next, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::SendDataPacket().

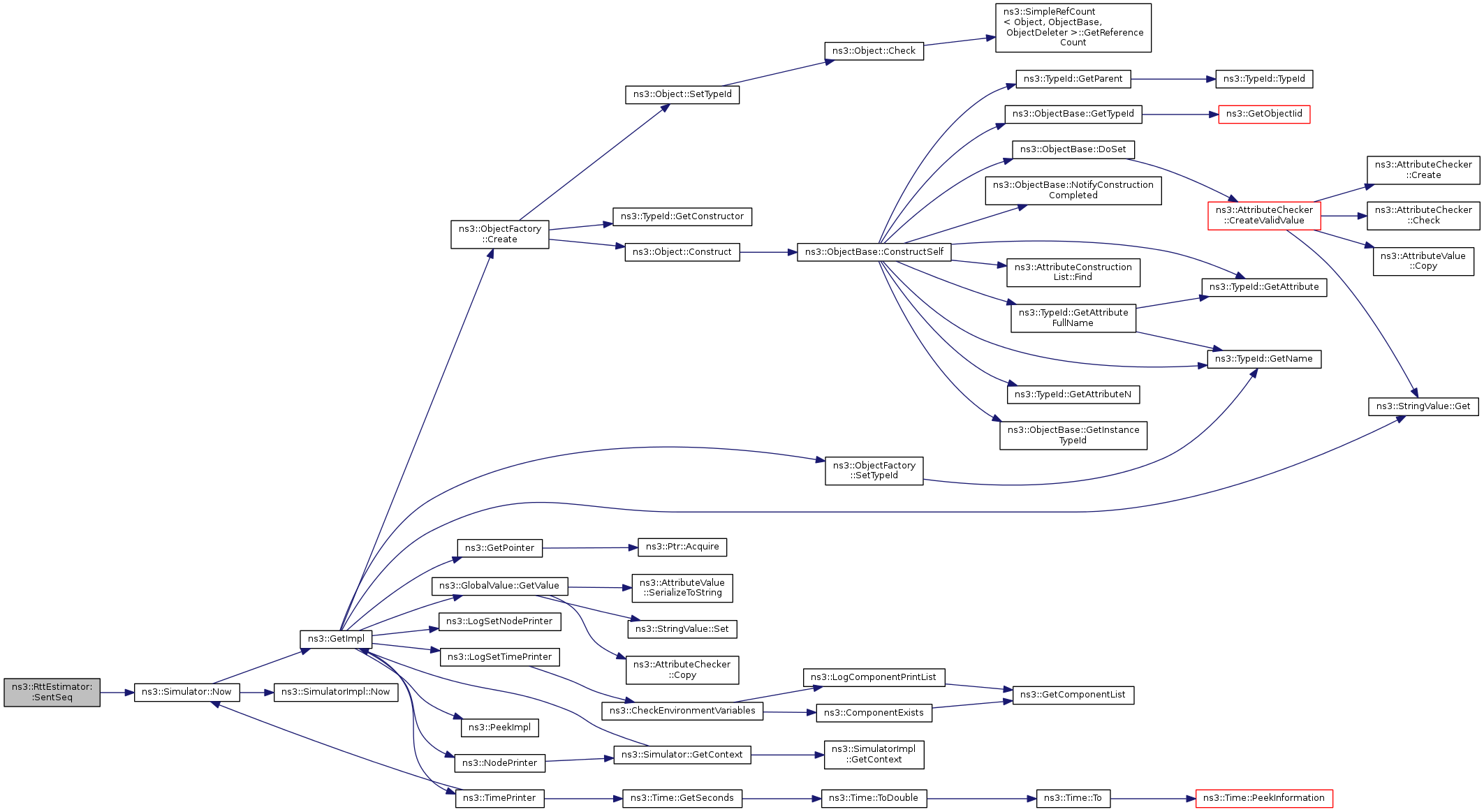

Here is the call graph for this function:

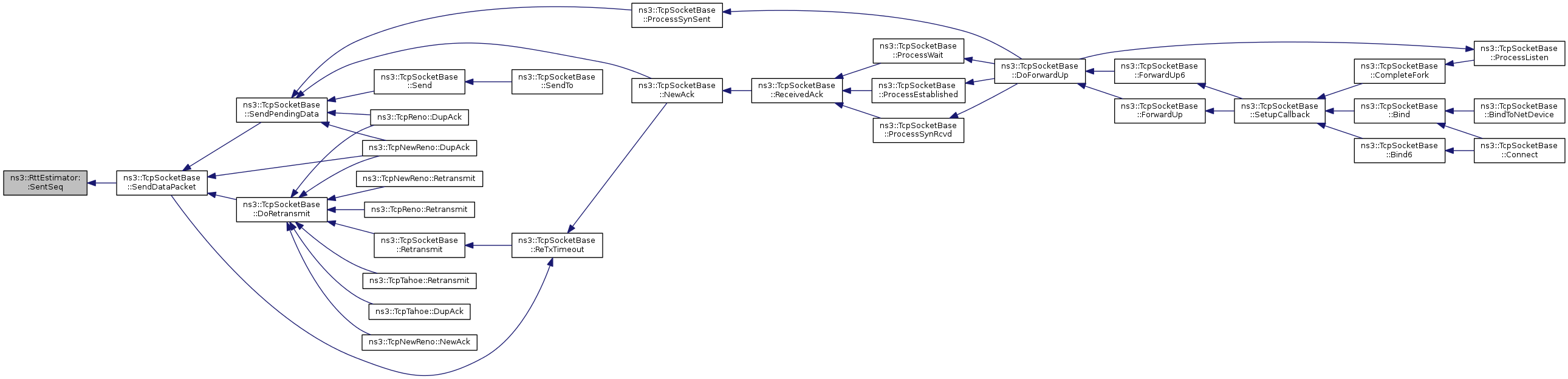

Here is the caller graph for this function:

void ns3::RttEstimator::SetCurrentEstimate ( Time estimate )

Sets the current RTT estimate (forcefully).

Parameters

estimate The current RTT estimate.

Definition at line 80 of file rtt-estimator.cc.

References m_currentEstimatedRtt, and NS_LOG_FUNCTION.

void ns3::RttEstimator::SetMinRto ( Time minRto )

Sets the Minimum RTO.

Parameters

minRto The minimum RTO returned by the estimator.

Definition at line 69 of file rtt-estimator.cc.

References m_minRto, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

Time ns3::RttEstimator::m_currentEstimatedRtt

protected

Definition at line 146 of file rtt-estimator.h.

Referenced by GetCurrentEstimate(), ns3::RttMeanDeviation::Measurement(), Reset(), ns3::RttMeanDeviation::RetransmitTimeout(), RttEstimator(), and SetCurrentEstimate().

RttHistory_t ns3::RttEstimator::m_history

private

Definition at line 141 of file rtt-estimator.h.

Referenced by AckSeq(), ClearSent(), Reset(), and SentSeq().

Time ns3::RttEstimator::m_initialEstimatedRtt

private

Definition at line 143 of file rtt-estimator.h.

Referenced by GetTypeId(), Reset(), and RttEstimator().

uint16_t ns3::RttEstimator::m_maxMultiplier

private

Definition at line 142 of file rtt-estimator.h.

Referenced by GetTypeId(), and IncreaseMultiplier().

Time ns3::RttEstimator::m_minRto

protected

Definition at line 147 of file rtt-estimator.h.

Referenced by GetMinRto(), ns3::RttMeanDeviation::RetransmitTimeout(), and SetMinRto().

uint16_t ns3::RttEstimator::m_multiplier

protected

Definition at line 149 of file rtt-estimator.h.

Referenced by IncreaseMultiplier(), ResetMultiplier(), and ns3::RttMeanDeviation::RetransmitTimeout().

SequenceNumber32 ns3::RttEstimator::m_next

private

Definition at line 140 of file rtt-estimator.h.

Referenced by ClearSent(), Reset(), and SentSeq().

uint32_t ns3::RttEstimator::m_nSamples

protected

Definition at line 148 of file rtt-estimator.h.

Referenced by ns3::RttMeanDeviation::Measurement(), and Reset().

The documentation for this class was generated from the following files:

src/internet/model/rtt-estimator.h
src/internet/model/rtt-estimator.cc
