ns3::Scheduler Class Reference

Maintain the event list. More...

#include <scheduler.h>

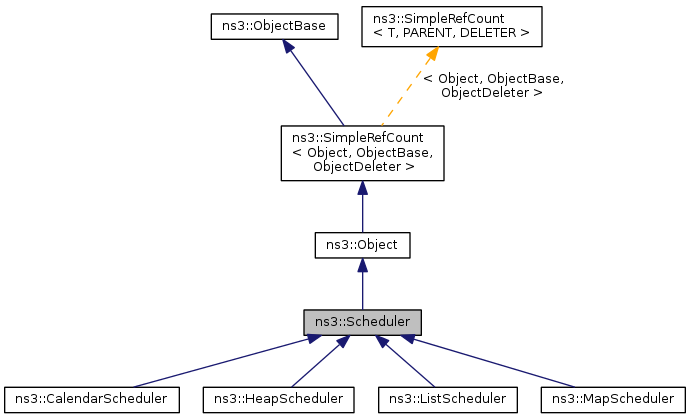

Inheritance diagram for ns3::Scheduler:

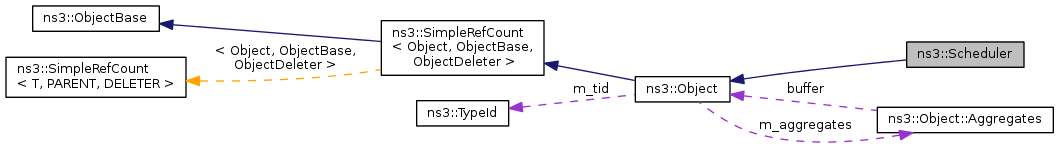

Collaboration diagram for ns3::Scheduler:

Classes
struct	Event
struct	EventKey

Public Member Functions
virtual	~Scheduler ()=0
virtual void	Insert (const Event &ev)=0
virtual bool	IsEmpty (void) const =0
virtual Event	PeekNext (void) const =0
virtual void	Remove (const Event &ev)=0
virtual Event	RemoveNext (void)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Maintain the event list.

This base class specifies the interface used to maintain the event list. If you want to provide a new event list scheduler, you need to create a subclass of this base class and implement all the pure virtual methods defined here.

The only tricky aspect of this API is the memory management of the EventImpl pointer which is a member of the Event data structure. The lifetime of this pointer is assumed to always be longer than the lifetime of the Scheduler class which means that the caller is responsible for ensuring that this invariant holds through calling EventId::Ref and SimpleRefCount::Unref at the right time. Typically, EventId::Ref is called before Insert and SimpleRefCount::Unref is called after a call to one of the Remove methods.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 53 of file scheduler.h.

Constructor & Destructor Documentation

ns3::Scheduler::~Scheduler ( )

pure virtual

Definition at line 31 of file scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

TypeId ns3::Scheduler::GetTypeId ( void  )

static

Reimplemented from ns3::Object.

Reimplemented in ns3::CalendarScheduler, ns3::HeapScheduler, ns3::ListScheduler, and ns3::MapScheduler.

Definition at line 37 of file scheduler.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

virtual void ns3::Scheduler::Insert ( const Event &  ev )

pure virtual

Parameters

ev	event to store in the event list

Implemented in ns3::CalendarScheduler, ns3::ListScheduler, and ns3::MapScheduler.

Referenced by ns3::DefaultSimulatorImpl::ProcessEventsWithContext(), ns3::DefaultSimulatorImpl::Schedule(), ns3::RealtimeSimulatorImpl::Schedule(), ns3::DistributedSimulatorImpl::Schedule(), ns3::DefaultSimulatorImpl::ScheduleNow(), ns3::RealtimeSimulatorImpl::ScheduleNow(), ns3::DistributedSimulatorImpl::ScheduleNow(), ns3::RealtimeSimulatorImpl::ScheduleRealtimeNowWithContext(), ns3::RealtimeSimulatorImpl::ScheduleRealtimeWithContext(), ns3::DefaultSimulatorImpl::ScheduleWithContext(), ns3::RealtimeSimulatorImpl::ScheduleWithContext(), ns3::DistributedSimulatorImpl::ScheduleWithContext(), ns3::DefaultSimulatorImpl::SetScheduler(), ns3::RealtimeSimulatorImpl::SetScheduler(), and ns3::DistributedSimulatorImpl::SetScheduler().

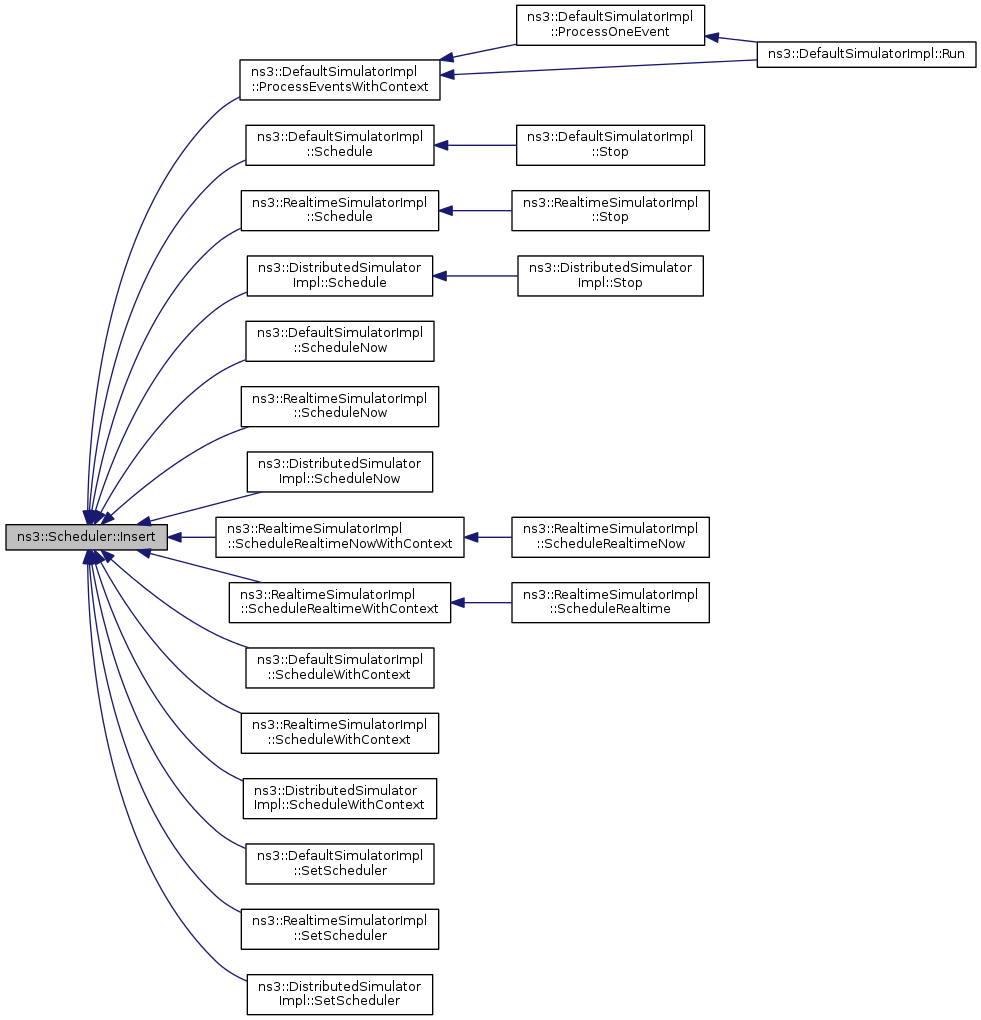

Here is the caller graph for this function:

virtual bool ns3::Scheduler::IsEmpty ( void  ) const

pure virtual

Returns

true if the event list is empty and false otherwise.

Implemented in ns3::CalendarScheduler, ns3::HeapScheduler, ns3::ListScheduler, and ns3::MapScheduler.

Referenced by ns3::DefaultSimulatorImpl::DoDispose(), ns3::RealtimeSimulatorImpl::DoDispose(), ns3::DistributedSimulatorImpl::DoDispose(), ns3::DefaultSimulatorImpl::IsFinished(), ns3::RealtimeSimulatorImpl::IsFinished(), ns3::DistributedSimulatorImpl::IsFinished(), ns3::RealtimeSimulatorImpl::NextTs(), ns3::DistributedSimulatorImpl::NextTs(), ns3::RealtimeSimulatorImpl::ProcessOneEvent(), ns3::DefaultSimulatorImpl::Run(), ns3::RealtimeSimulatorImpl::Run(), ns3::DistributedSimulatorImpl::Run(), ns3::DefaultSimulatorImpl::SetScheduler(), ns3::RealtimeSimulatorImpl::SetScheduler(), and ns3::DistributedSimulatorImpl::SetScheduler().

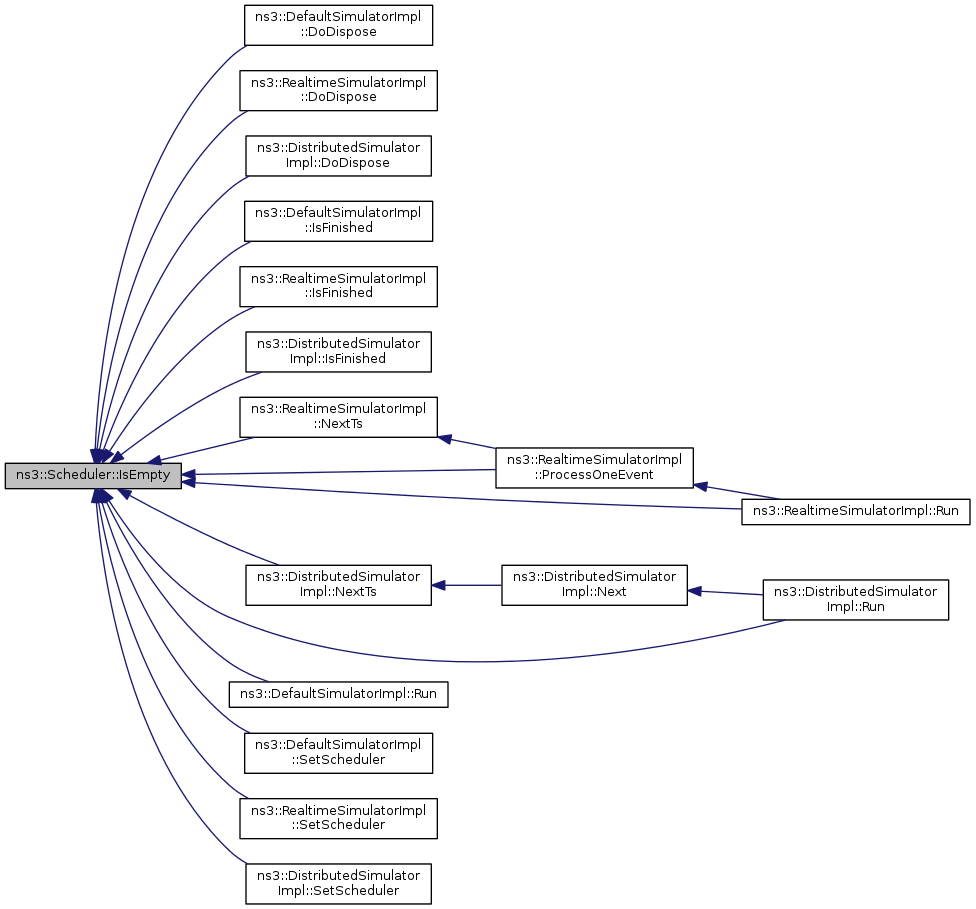

Here is the caller graph for this function:

virtual Event ns3::Scheduler::PeekNext ( void  ) const

pure virtual

Returns

a pointer to the next earliest event. The caller takes ownership of the returned pointer.

This method cannot be invoked if the list is empty.

Implemented in ns3::CalendarScheduler, ns3::HeapScheduler, ns3::ListScheduler, and ns3::MapScheduler.

Referenced by ns3::RealtimeSimulatorImpl::NextTs(), and ns3::DistributedSimulatorImpl::NextTs().

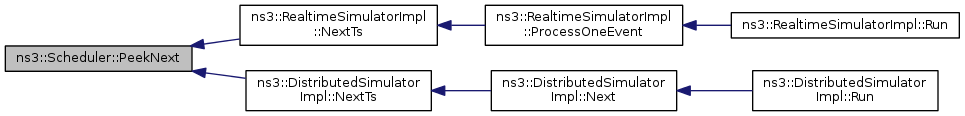

Here is the caller graph for this function:

virtual void ns3::Scheduler::Remove ( const Event &  ev )

pure virtual

Parameters

ev	the event to remove

This methods cannot be invoked if the list is empty.

Implemented in ns3::CalendarScheduler, ns3::ListScheduler, and ns3::MapScheduler.

Referenced by ns3::DefaultSimulatorImpl::Remove(), ns3::RealtimeSimulatorImpl::Remove(), and ns3::DistributedSimulatorImpl::Remove().

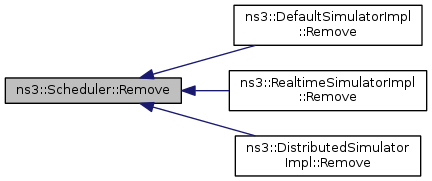

Here is the caller graph for this function:

virtual Event ns3::Scheduler::RemoveNext ( void  )

pure virtual

This method cannot be invoked if the list is empty. Remove the next earliest event from the event list.

Implemented in ns3::CalendarScheduler, ns3::HeapScheduler, ns3::ListScheduler, and ns3::MapScheduler.

Referenced by ns3::DefaultSimulatorImpl::DoDispose(), ns3::RealtimeSimulatorImpl::DoDispose(), ns3::DistributedSimulatorImpl::DoDispose(), ns3::DefaultSimulatorImpl::ProcessOneEvent(), ns3::RealtimeSimulatorImpl::ProcessOneEvent(), ns3::DistributedSimulatorImpl::ProcessOneEvent(), ns3::DefaultSimulatorImpl::SetScheduler(), ns3::RealtimeSimulatorImpl::SetScheduler(), and ns3::DistributedSimulatorImpl::SetScheduler().

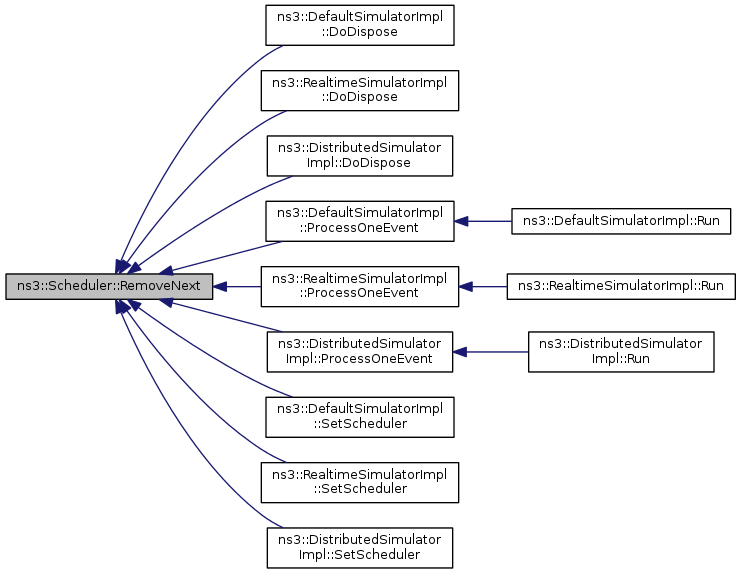

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/core/model/scheduler.h
• src/core/model/scheduler.cc
