ns3::Tag Class Reference

tag a set of bytes in a packet More...

#include <tag.h>

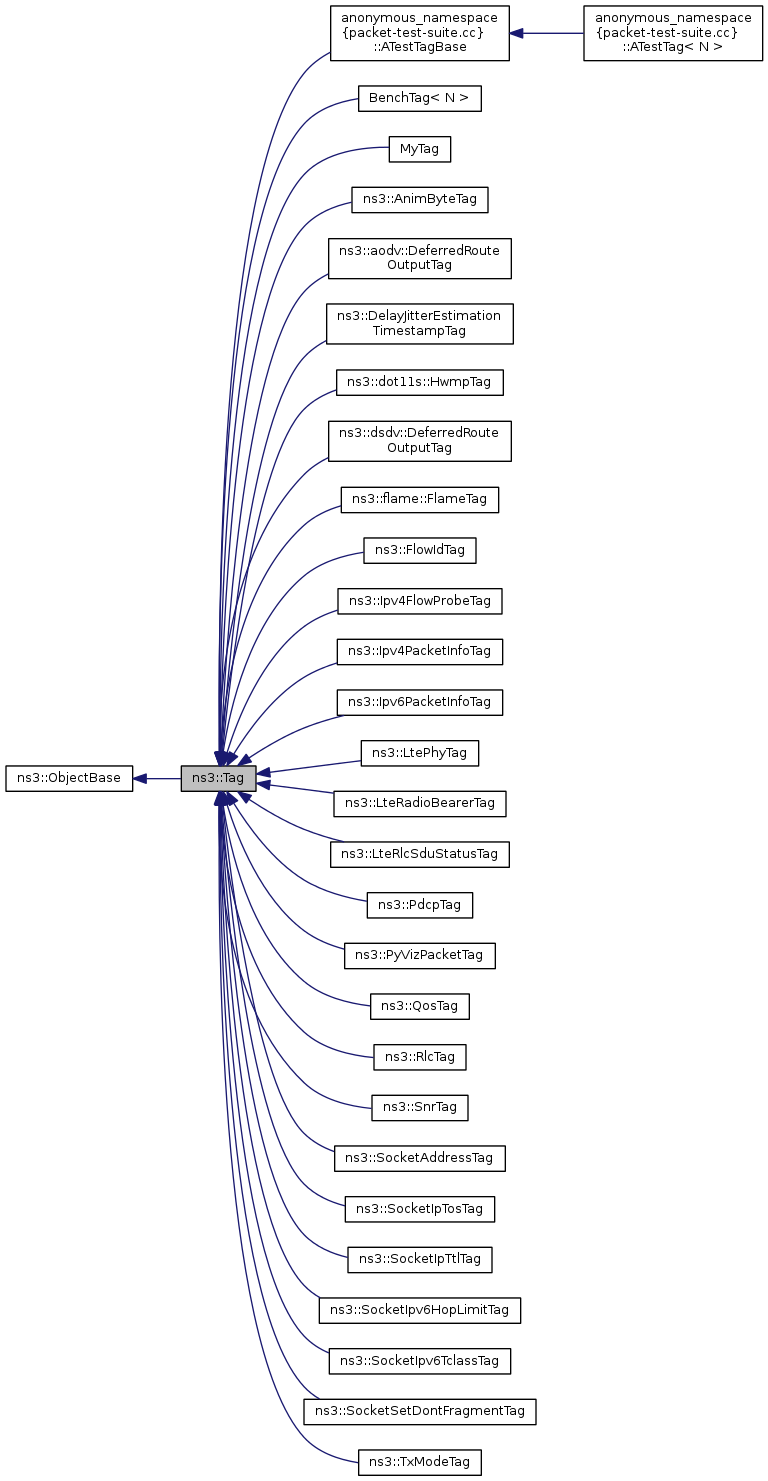

Inheritance diagram for ns3::Tag:

Collaboration diagram for ns3::Tag:

Public Member Functions
virtual void	Deserialize (TagBuffer i)=0
virtual uint32_t	GetSerializedSize (void) const =0
virtual void	Print (std::ostream &os) const =0
virtual void	Serialize (TagBuffer i) const =0
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
virtual TypeId	GetInstanceTypeId (void) const =0
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

tag a set of bytes in a packet

New kinds of tags can be created by subclassing this base class.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 36 of file tag.h.

Member Function Documentation

virtual void ns3::Tag::Deserialize ( TagBuffer  i )

pure virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implemented in ns3::SocketIpv6TclassTag, ns3::SocketIpTosTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpv6HopLimitTag, ns3::SocketIpTtlTag, ns3::SocketAddressTag, ns3::AnimByteTag, BenchTag< N >, ns3::aodv::DeferredRouteOutputTag, ns3::QosTag, ns3::dsdv::DeferredRouteOutputTag, ns3::LteRadioBearerTag, ns3::PyVizPacketTag, ns3::flame::FlameTag, ns3::Ipv6PacketInfoTag, ns3::Ipv4PacketInfoTag, ns3::dot11s::HwmpTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, ns3::TxModeTag, ns3::PdcpTag, ns3::SnrTag, ns3::RlcTag, ns3::LtePhyTag, ns3::Ipv4FlowProbeTag, ns3::LteRlcSduStatusTag, MyTag, ns3::FlowIdTag, and ns3::DelayJitterEstimationTimestampTag.

Referenced by ns3::ByteTagIterator::Item::GetTag(), ns3::PacketTagIterator::Item::GetTag(), ns3::PacketTagList::Peek(), and ns3::PacketTagList::Remove().

Here is the caller graph for this function:

virtual uint32_t ns3::Tag::GetSerializedSize ( void  ) const

pure virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implemented in ns3::SocketIpv6TclassTag, ns3::SocketIpTosTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpv6HopLimitTag, ns3::SocketIpTtlTag, ns3::SocketAddressTag, ns3::AnimByteTag, BenchTag< N >, ns3::QosTag, ns3::aodv::DeferredRouteOutputTag, ns3::dsdv::DeferredRouteOutputTag, ns3::LteRadioBearerTag, ns3::PyVizPacketTag, ns3::flame::FlameTag, ns3::Ipv6PacketInfoTag, ns3::Ipv4PacketInfoTag, ns3::dot11s::HwmpTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, ns3::PdcpTag, ns3::RlcTag, ns3::TxModeTag, ns3::LtePhyTag, ns3::SnrTag, ns3::Ipv4FlowProbeTag, ns3::LteRlcSduStatusTag, MyTag, ns3::FlowIdTag, and ns3::DelayJitterEstimationTimestampTag.

Referenced by ns3::PacketTagList::Add(), and ns3::Packet::AddByteTag().

Here is the caller graph for this function:

TypeId ns3::Tag::GetTypeId ( void  )

static

Reimplemented from ns3::ObjectBase.

Reimplemented in ns3::SocketIpv6TclassTag, ns3::SocketIpTosTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpv6HopLimitTag, ns3::SocketIpTtlTag, ns3::SocketAddressTag, ns3::AnimByteTag, BenchTag< N >, ns3::PyVizPacketTag, ns3::flame::FlameTag, ns3::aodv::DeferredRouteOutputTag, ns3::dsdv::DeferredRouteOutputTag, ns3::Ipv6PacketInfoTag, ns3::QosTag, ns3::Ipv4PacketInfoTag, ns3::dot11s::HwmpTag, ns3::TxModeTag, ns3::SnrTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, ns3::Ipv4FlowProbeTag, ns3::LteRlcSduStatusTag, ns3::PdcpTag, ns3::RlcTag, ns3::LteRadioBearerTag, ns3::LtePhyTag, MyTag, ns3::FlowIdTag, and ns3::DelayJitterEstimationTimestampTag.

Definition at line 27 of file tag.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

virtual void ns3::Tag::Print ( std::ostream &  os ) const

pure virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implemented in ns3::SocketIpv6TclassTag, ns3::SocketIpTosTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpv6HopLimitTag, ns3::SocketIpTtlTag, ns3::SocketAddressTag, ns3::AnimByteTag, BenchTag< N >, ns3::aodv::DeferredRouteOutputTag, ns3::QosTag, ns3::dsdv::DeferredRouteOutputTag, ns3::LteRadioBearerTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, ns3::PyVizPacketTag, ns3::flame::FlameTag, ns3::Ipv6PacketInfoTag, ns3::Ipv4PacketInfoTag, ns3::dot11s::HwmpTag, ns3::TxModeTag, ns3::PdcpTag, ns3::RlcTag, ns3::SnrTag, ns3::LtePhyTag, ns3::Ipv4FlowProbeTag, ns3::LteRlcSduStatusTag, MyTag, ns3::FlowIdTag, and ns3::DelayJitterEstimationTimestampTag.

Referenced by ns3::Packet::PrintByteTags(), and ns3::Packet::PrintPacketTags().

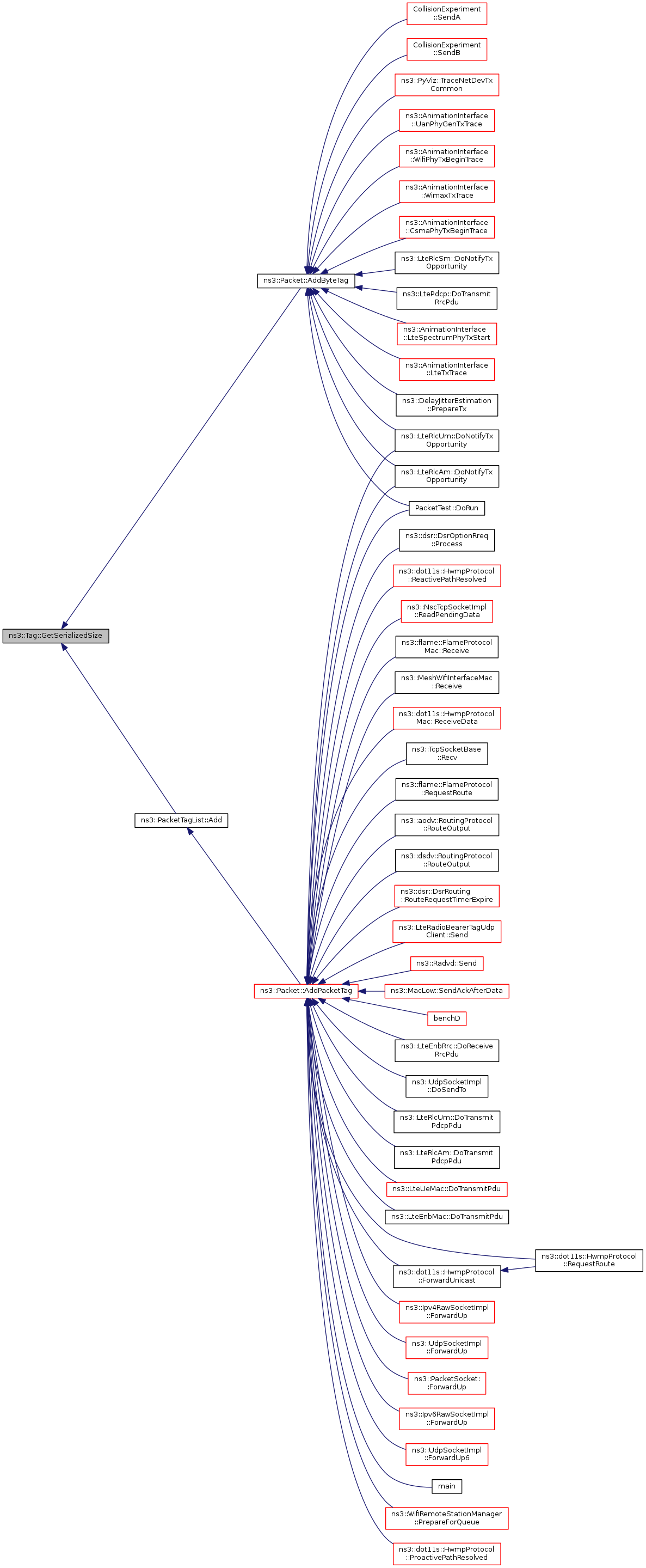

Here is the caller graph for this function:

virtual void ns3::Tag::Serialize ( TagBuffer  i ) const

pure virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implemented in ns3::SocketIpv6TclassTag, ns3::SocketIpTosTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpv6HopLimitTag, ns3::SocketIpTtlTag, ns3::SocketAddressTag, ns3::AnimByteTag, BenchTag< N >, ns3::QosTag, ns3::aodv::DeferredRouteOutputTag, ns3::dsdv::DeferredRouteOutputTag, ns3::LteRadioBearerTag, ns3::PyVizPacketTag, ns3::flame::FlameTag, ns3::Ipv6PacketInfoTag, ns3::Ipv4PacketInfoTag, ns3::dot11s::HwmpTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, ns3::TxModeTag, ns3::PdcpTag, ns3::SnrTag, ns3::RlcTag, ns3::LtePhyTag, ns3::Ipv4FlowProbeTag, ns3::LteRlcSduStatusTag, MyTag, ns3::FlowIdTag, and ns3::DelayJitterEstimationTimestampTag.

Referenced by ns3::PacketTagList::Add(), and ns3::Packet::AddByteTag().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/network/model/tag.h
• src/network/model/tag.cc
