Interface for input file readers management. More...

#include <topology-reader.h>

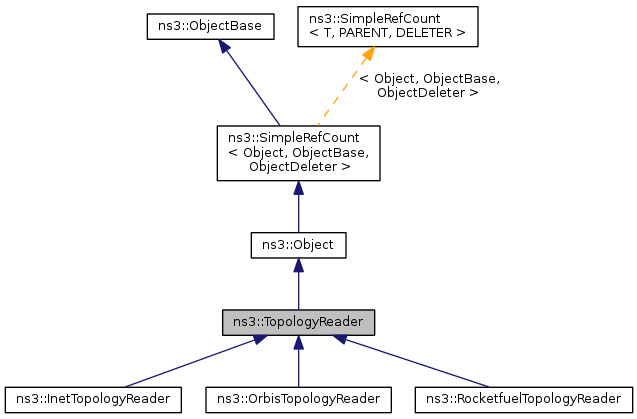

Inheritance diagram for ns3::TopologyReader:

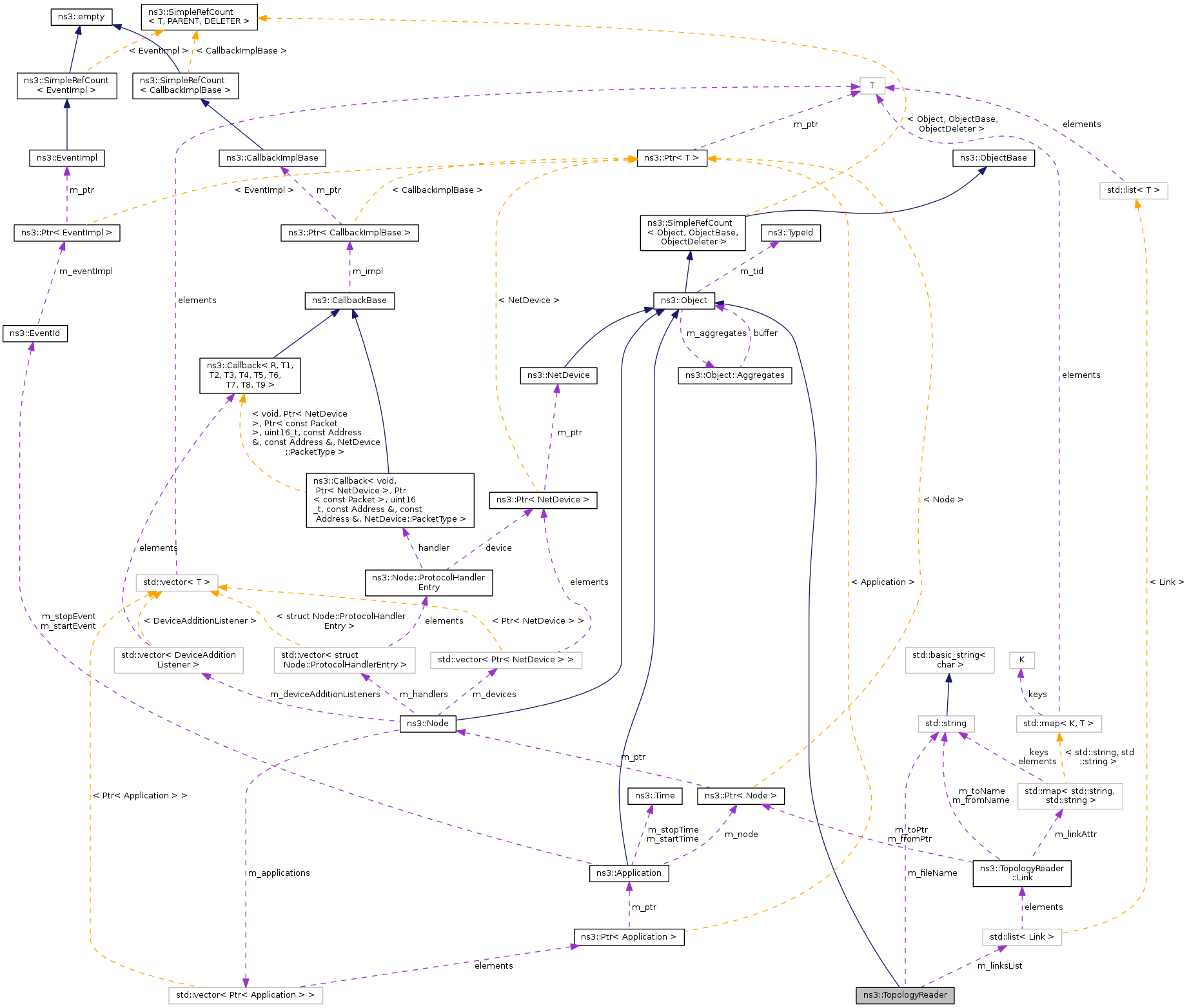

Collaboration diagram for ns3::TopologyReader:

Classes
class	Link
	Inner class holding the details about a link between two nodes. More...

Public Types
typedef std::list< Link > ::const_iterator	ConstLinksIterator
	Constant iterator to the list of the links.

Public Member Functions
	TopologyReader ()
virtual	~TopologyReader ()
void	AddLink (Link link)
	Adds a link to the topology.
std::string	GetFileName (void) const
	Returns the input file name.
ConstLinksIterator	LinksBegin (void) const
	Returns an iterator to the the first link in this block.
bool	LinksEmpty (void) const
	Checks if the block contains any links.
ConstLinksIterator	LinksEnd (void) const
	Returns an iterator to the the last link in this block.
int	LinksSize (void) const
	Returns the number of links in this block.
virtual NodeContainer	Read (void)=0
	Main topology reading function.
void	SetFileName (const std::string &fileName)
	Sets the input file name.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
	TopologyReader (const TopologyReader &)
TopologyReader &	operator= (const TopologyReader &)

Private Attributes
std::string	m_fileName
std::list< Link >	m_linksList

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Interface for input file readers management.

This interface perform the shared tasks among all possible input file readers. Each different file format is handled by its own topology reader.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file topology-reader.h.

Member Typedef Documentation

typedef std::list< Link >::const_iterator ns3::TopologyReader::ConstLinksIterator

Constant iterator to the list of the links.

Definition at line 136 of file topology-reader.h.

Constructor & Destructor Documentation

ns3::TopologyReader::TopologyReader ( )

Definition at line 41 of file topology-reader.cc.

References NS_LOG_FUNCTION.

ns3::TopologyReader::~TopologyReader ( )

virtual

Definition at line 46 of file topology-reader.cc.

References NS_LOG_FUNCTION.

ns3::TopologyReader::TopologyReader ( const TopologyReader & )

private

Member Function Documentation

void ns3::TopologyReader::AddLink ( Link link )

Adds a link to the topology.

Parameters

link	the link to be added.

Definition at line 90 of file topology-reader.cc.

References m_linksList.

Referenced by ns3::RocketfuelTopologyReader::GenerateFromMapsFile(), ns3::RocketfuelTopologyReader::GenerateFromWeightsFile(), ns3::OrbisTopologyReader::Read(), and ns3::InetTopologyReader::Read().

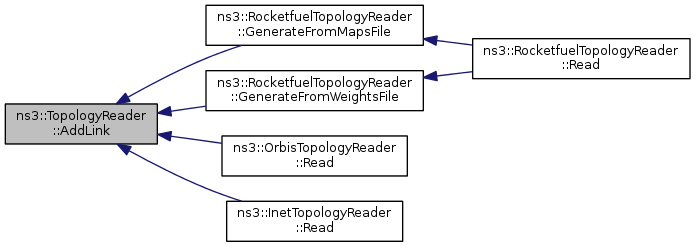

Here is the caller graph for this function:

std::string ns3::TopologyReader::GetFileName ( void ) const

Returns the input file name.

Returns: the input file name.

Definition at line 58 of file topology-reader.cc.

References m_fileName.

Referenced by ns3::RocketfuelTopologyReader::Read(), ns3::OrbisTopologyReader::Read(), and ns3::InetTopologyReader::Read().

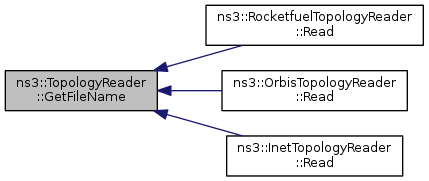

Here is the caller graph for this function:

TypeId ns3::TopologyReader::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Reimplemented in ns3::InetTopologyReader, ns3::OrbisTopologyReader, and ns3::RocketfuelTopologyReader.

Definition at line 33 of file topology-reader.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

TopologyReader::ConstLinksIterator ns3::TopologyReader::LinksBegin ( void ) const

Returns an iterator to the the first link in this block.

Returns: a const iterator to the first link in this block.

Definition at line 66 of file topology-reader.cc.

References m_linksList.

Referenced by ns3::RocketfuelTopologyReader::GenerateFromWeightsFile(), and main().

Here is the caller graph for this function:

bool ns3::TopologyReader::LinksEmpty ( void ) const

Checks if the block contains any links.

Returns: true if there are no links in this block, false otherwise.

Definition at line 84 of file topology-reader.cc.

References m_linksList.

TopologyReader::ConstLinksIterator ns3::TopologyReader::LinksEnd ( void ) const

Returns an iterator to the the last link in this block.

Returns: a const iterator to the last link in this block.

Definition at line 72 of file topology-reader.cc.

References m_linksList.

Referenced by ns3::RocketfuelTopologyReader::GenerateFromWeightsFile(), and main().

Here is the caller graph for this function:

int ns3::TopologyReader::LinksSize ( void ) const

Returns the number of links in this block.

Returns: the number of links in this block.

Definition at line 78 of file topology-reader.cc.

References m_linksList.

Referenced by main().

Here is the caller graph for this function:

TopologyReader& ns3::TopologyReader::operator= ( const TopologyReader & )

private

virtual NodeContainer ns3::TopologyReader::Read ( void )

pure virtual

Main topology reading function.

The data is parsed and the results are returned in the passed lists. The rationale behind this choice is to allow non-progressive node IDs in the topology files, as well as to separate the topology reader from the choices about actual IP number assignment and kind of links between nodes.
