ns3::UanPhyPerGenDefault Class Reference

Default Packet Error Rate calculator for UanPhyGen Considers no error if SINR is > user defined threshold (configured by an attribute). More...

#include <uan-phy-gen.h>

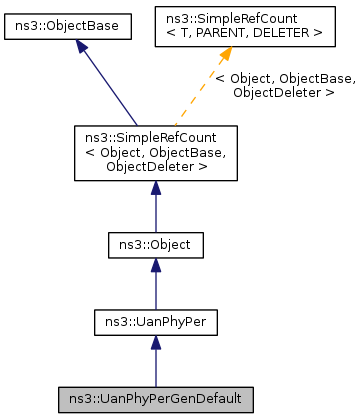

Inheritance diagram for ns3::UanPhyPerGenDefault:

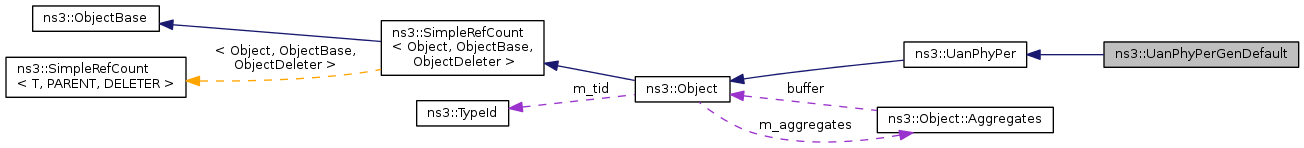

Collaboration diagram for ns3::UanPhyPerGenDefault:

Public Member Functions
	UanPhyPerGenDefault ()
virtual	~UanPhyPerGenDefault ()
virtual double	CalcPer (Ptr< Packet > pkt, double sinrDb, UanTxMode mode)
Public Member Functions inherited from ns3::UanPhyPer
virtual void	Clear (void)
virtual void	DoDispose (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
double	m_thresh

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Default Packet Error Rate calculator for UanPhyGen Considers no error if SINR is > user defined threshold (configured by an attribute).

This type is not accessible from the Config system.

Attributes

• Threshold: SINR cutoff for good packet reception
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 8
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 41 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyPerGenDefault::UanPhyPerGenDefault

(

)

Definition at line 204 of file uan-phy-gen.cc.

ns3::UanPhyPerGenDefault::~UanPhyPerGenDefault ( )

virtual

Definition at line 209 of file uan-phy-gen.cc.

Member Function Documentation

double ns3::UanPhyPerGenDefault::CalcPer ( Ptr< Packet >  pkt, double  sinrDb, UanTxMode  mode  )

virtual

Calculates the prob. of packet error based on SINR at the receiver and a tx mode.

Parameters

pkt	Packet which is under consideration
sinrDb	SINR at receiver
mode	TX mode used to transmit packet

Returns

Probability of packet error

Implements ns3::UanPhyPer.

Definition at line 230 of file uan-phy-gen.cc.

References m_thresh.

TypeId ns3::UanPhyPerGenDefault::GetTypeId ( void  )

static

Reimplemented from ns3::UanPhyPer.

Definition at line 214 of file uan-phy-gen.cc.

References m_thresh, and ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

double ns3::UanPhyPerGenDefault::m_thresh

private

Definition at line 50 of file uan-phy-gen.h.

Referenced by CalcPer(), and GetTypeId().

---

The documentation for this class was generated from the following files:

• src/uan/model/uan-phy-gen.h
• src/uan/model/uan-phy-gen.cc
