Uses Thorp's approximation to compute pathloss. Assumes implulse PDP. More...

#include <uan-prop-model-thorp.h>

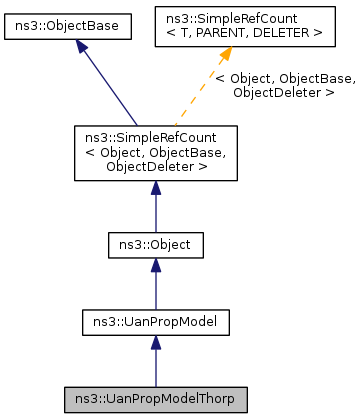

Inheritance diagram for ns3::UanPropModelThorp:

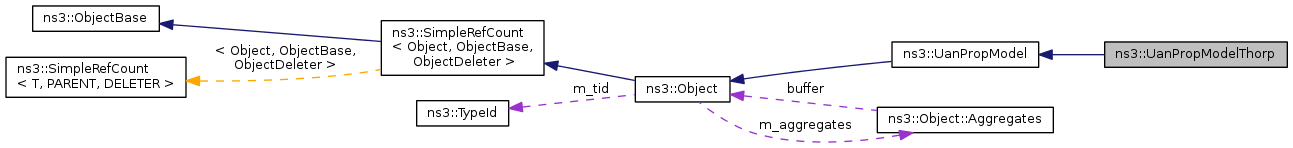

Collaboration diagram for ns3::UanPropModelThorp:

Public Member Functions
	UanPropModelThorp ()
virtual	~UanPropModelThorp ()
virtual Time	GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)
virtual double	GetPathLossDb (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)
virtual UanPdp	GetPdp (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)
Public Member Functions inherited from ns3::UanPropModel
virtual void	Clear (void)
virtual void	DoDispose (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
double	GetAttenDbKm (double freqKhz)
double	GetAttenDbKyd (double freqKhz)

Private Attributes
double	m_SpreadCoef

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Uses Thorp's approximation to compute pathloss. Assumes implulse PDP.

This type is not accessible from the Config system.

Attributes

SpreadCoef: Spreading coefficient used in calculation of Thorp's approximation
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.5
- Flags: construct write read
