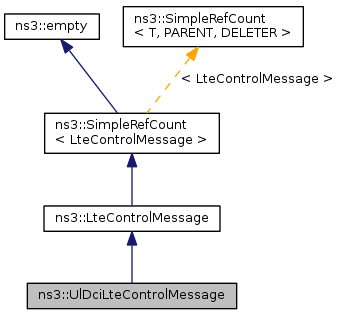

Inheritance diagram for ns3::UlDciLteControlMessage:

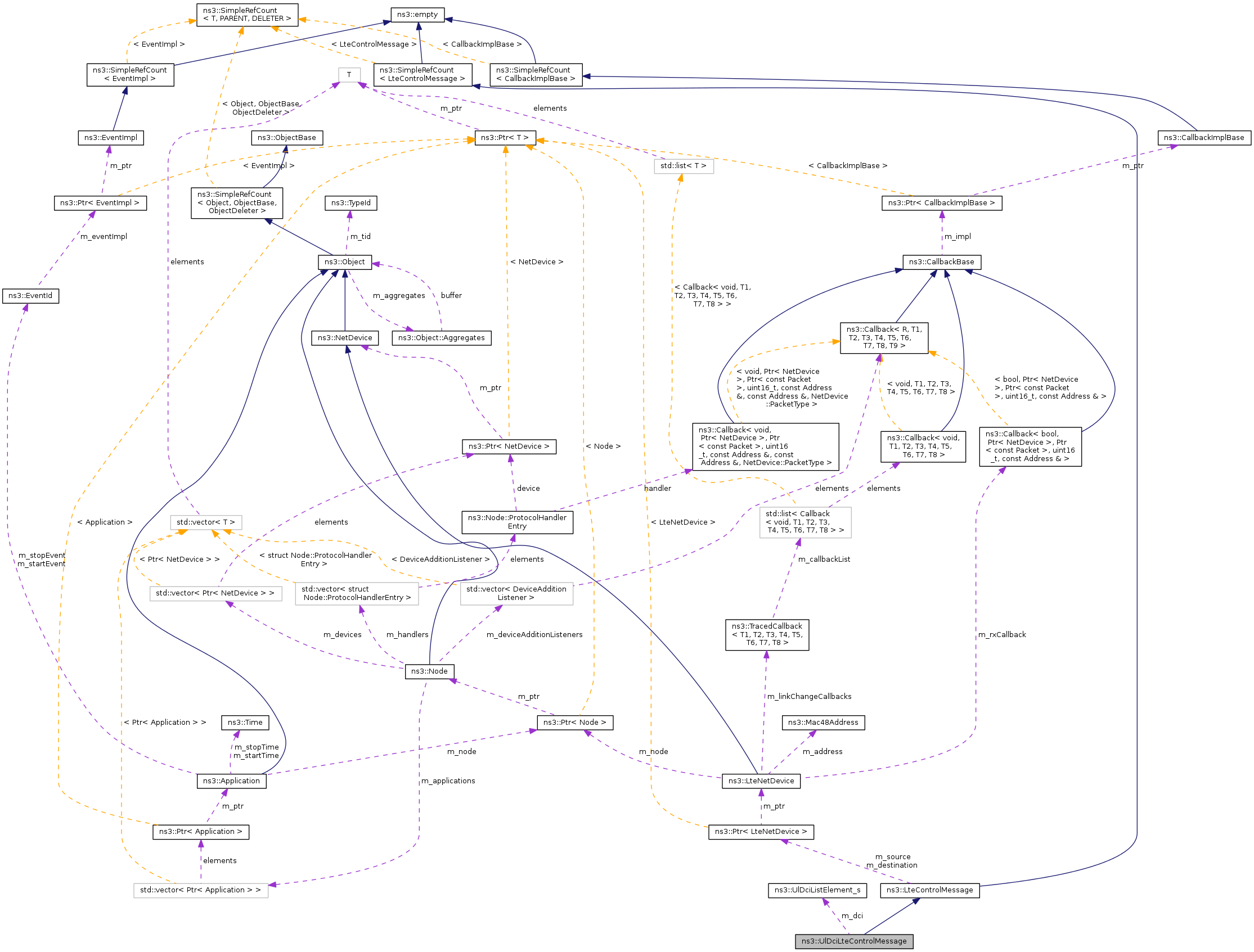

Collaboration diagram for ns3::UlDciLteControlMessage:

Public Member Functions
	UlDciLteControlMessage (void)
virtual	~UlDciLteControlMessage (void)
UlDciListElement_s	GetDci (void)
	Get dic informations.
void	SetDci (UlDciListElement_s dci)
	add a DCI into the message
Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)
virtual	~LteControlMessage (void)
MessageType	GetMessageType (void)
	Get the type of the message.
void	SetMessageType (MessageType type)
	Set the type of the message.
Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
UlDciListElement_s	m_dci

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR }
Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)

Detailed Description

The Uplink Data Control Indicator messages defines the RB allocation for the users in the uplink

Definition at line 139 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::UlDciLteControlMessage::UlDciLteControlMessage ( void )

Definition at line 94 of file lte-control-messages.cc.

Here is the call graph for this function:

ns3::UlDciLteControlMessage::~UlDciLteControlMessage ( void )

virtual

Definition at line 100 of file lte-control-messages.cc.

UlDciListElement_s ns3::UlDciLteControlMessage::GetDci ( void )

Get dic informations.

Definition at line 114 of file lte-control-messages.cc.

References m_dci.

void ns3::UlDciLteControlMessage::SetDci ( UlDciListElement_s dci )

add a DCI into the message

Parameters

dci the dci

Definition at line 106 of file lte-control-messages.cc.

References m_dci.

UlDciListElement_s ns3::UlDciLteControlMessage::m_dci

private

Definition at line 159 of file lte-control-messages.h.

Referenced by GetDci(), and SetDci().

The documentation for this class was generated from the following files:
