ns3::WifiChannel Class Reference
Wifi Models

Wifi Channel interface specificationThis class works in tandem with the ns3::WifiPhy class. If you want to provide a new Wifi PHY layer, you have to subclass both ns3::WifiChannel and ns3::WifiPhy. More...

#include <wifi-channel.h>

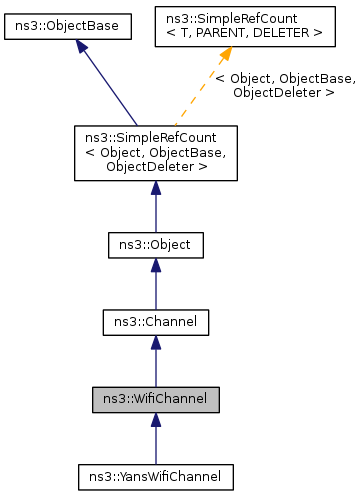

+ Inheritance diagram for ns3::WifiChannel:

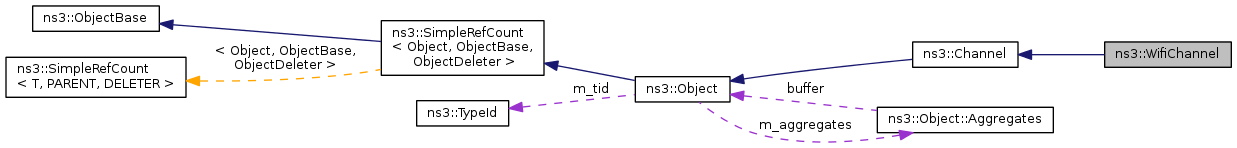

+ Collaboration diagram for ns3::WifiChannel:

Static Public Member Functions

static TypeId GetTypeId (void)

Additional Inherited Members

- Public Member Functions inherited from ns3::Channel
 Channel ()
virtual ~Channel ()
virtual Ptr< NetDevice > GetDevice (uint32_t i) const =0
uint32_t GetId (void) const
virtual uint32_t GetNDevices (void) const =0
- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Wifi Channel interface specification

This class works in tandem with the ns3::WifiPhy class. If you want to provide a new Wifi PHY layer, you have to subclass both ns3::WifiChannel and ns3::WifiPhy.

Typically, MyWifiChannel will define a Send method whose job is to distribute packets from a MyWifiPhy source to a set of MyWifiPhy destinations. MyWifiPhy also typically defines a Receive method which is invoked by MyWifiPhy.

Config Paths

ns3::WifiChannel is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 42 of file wifi-channel.h.

Member Function Documentation

TypeId ns3::WifiChannel::GetTypeId ( void  )
static

Reimplemented from ns3::Channel.

Reimplemented in ns3::YansWifiChannel.

Definition at line 41 of file wifi-channel.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
