Information element vectorImplements a vector of WifiInformationElements. Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format. More...

#include <wifi-information-element-vector.h>

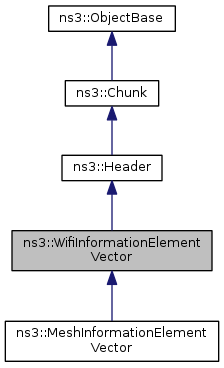

Inheritance diagram for ns3::WifiInformationElementVector:

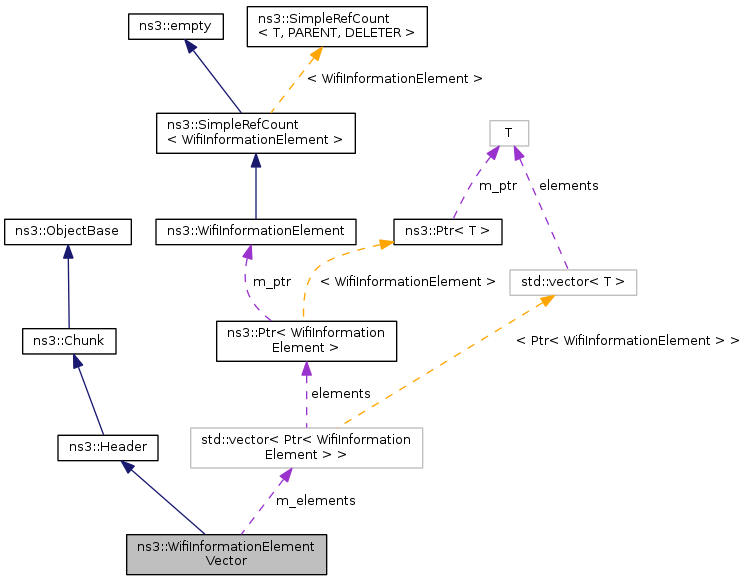

Collaboration diagram for ns3::WifiInformationElementVector:

Public Types
typedef std::vector< Ptr < WifiInformationElement > >::iterator	Iterator
	As soon as this is a vector, we define an Iterator.

Public Member Functions
	WifiInformationElementVector ()
	~WifiInformationElementVector ()
bool	AddInformationElement (Ptr< WifiInformationElement > element)
	add an IE, if maxSize has exceeded, returns false
Iterator	Begin ()
	Returns Begin of the vector.
virtual uint32_t	DeserializeSingleIe (Buffer::Iterator start)
	Needed when you try to deserialize a lonely IE inside other header.
Iterator	End ()
	Returns End of the vector.
Ptr< WifiInformationElement >	FindFirst (WifiInformationElementId id) const
	vector of pointers to information elements is the body of IeVector
virtual bool	operator== (const WifiInformationElementVector &a) const
void	SetMaxSize (uint16_t size)
	Set maximum size to control overflow of the max packet length.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Protected Types
typedef std::vector< Ptr < WifiInformationElement > >	IE_VECTOR

Protected Member Functions
uint32_t	GetSize () const
	Current number of bytes.

Protected Attributes
IE_VECTOR	m_elements
uint16_t	m_maxSize
	Size in bytes (actually, max packet length)

Inherited from Header
TypeId	GetInstanceTypeId () const
virtual uint32_t	GetSerializedSize () const
virtual void	Serialize (Buffer::Iterator start) const
virtual uint32_t	Deserialize (Buffer::Iterator start)
virtual void	Print (std::ostream &os) const
static TypeId	GetTypeId ()

Detailed Description

Information element vector

Implements a vector of WifiInformationElements. Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file wifi-information-element-vector.h.

Member Typedef Documentation

typedef std::vector<Ptr<WifiInformationElement> > ns3::WifiInformationElementVector::IE_VECTOR

protected

Definition at line 84 of file wifi-information-element-vector.h.

typedef std::vector<Ptr<WifiInformationElement> >::iterator ns3::WifiInformationElementVector::Iterator

As soon as this is a vector, we define an Iterator.

Definition at line 72 of file wifi-information-element-vector.h.

Constructor & Destructor Documentation

ns3::WifiInformationElementVector::WifiInformationElementVector ( )

Definition at line 29 of file wifi-information-element-vector.cc.

ns3::WifiInformationElementVector::~WifiInformationElementVector ( )

Definition at line 33 of file wifi-information-element-vector.cc.

References m_elements.

Member Function Documentation

bool ns3::WifiInformationElementVector::AddInformationElement ( Ptr< WifiInformationElement > element )

add an IE, if maxSize has exceeded, returns false

Definition at line 123 of file wifi-information-element-vector.cc.

References ns3::WifiInformationElement::GetInformationFieldSize(), GetSize(), m_elements, and m_maxSize.

Referenced by ns3::MeshWifiBeacon::AddInformationElement(), ns3::MeshInformationElementVectorBist::DoRun(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), and ns3::dot11s::HwmpProtocolMac::SendPreq().

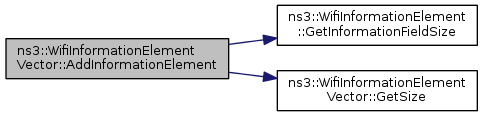

Here is the call graph for this function:

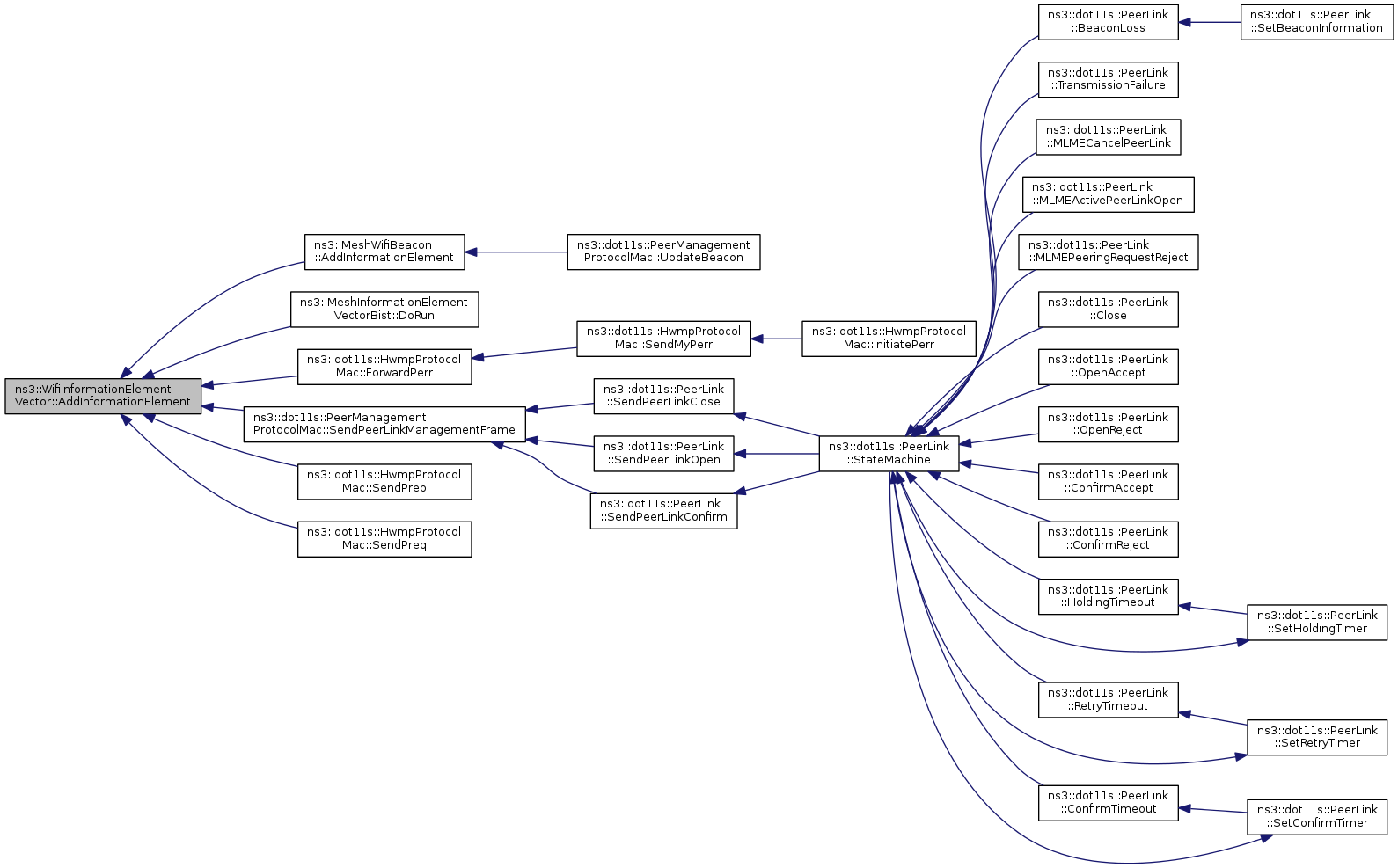

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::Begin ( void )

Returns Begin of the vector.

Definition at line 113 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

uint32_t ns3::WifiInformationElementVector::Deserialize ( Buffer::Iterator start )

virtual

Attention: When you use RemoveHeader, WifiInformationElementVector supposes, that all buffer consists of information elements

Parameters

start

Returns

Implements ns3::Header.

Definition at line 68 of file wifi-information-element-vector.cc.

References DeserializeSingleIe(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::GetSize(), ns3::Buffer::Iterator::Next(), and visualizer.core::start().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::DeserializeSingleIe ( Buffer::Iterator start )

virtual

Needed when you try to deserialize a lonely IE inside other header.

Parameters

start is the start of the buffer

Returns: deserialized bytes

Reimplemented in ns3::MeshInformationElementVector.

Definition at line 81 of file wifi-information-element-vector.cc.

References ns3::WifiInformationElement::DeserializeInformationField(), ns3::Buffer::Iterator::GetDistanceFrom(), GetSize(), m_elements, m_maxSize, ns3::Buffer::Iterator::Next(), NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by Deserialize().

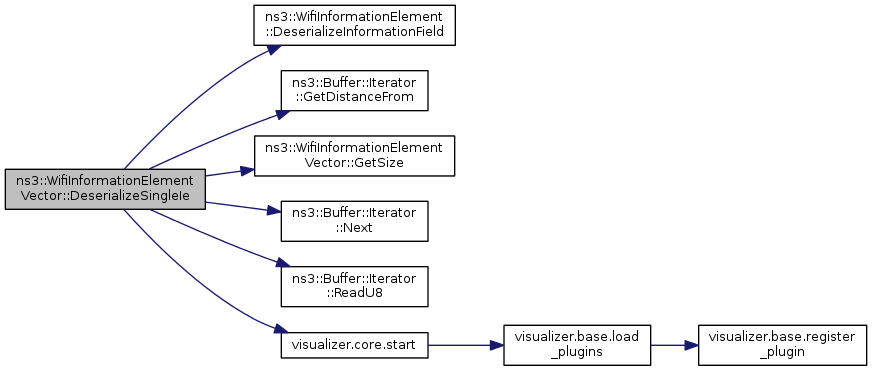

Here is the call graph for this function:

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::End ( void )

Returns End of the vector.

Definition at line 118 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

Ptr< WifiInformationElement > ns3::WifiInformationElementVector::FindFirst ( WifiInformationElementId id ) const

vector of pointers to information elements is the body of IeVector

Definition at line 133 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 50 of file wifi-information-element-vector.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 55 of file wifi-information-element-vector.cc.

References GetSize().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSize ( void ) const

protected

Current number of bytes.

Definition at line 155 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by AddInformationElement(), ns3::MeshInformationElementVector::DeserializeSingleIe(), DeserializeSingleIe(), and GetSerializedSize().

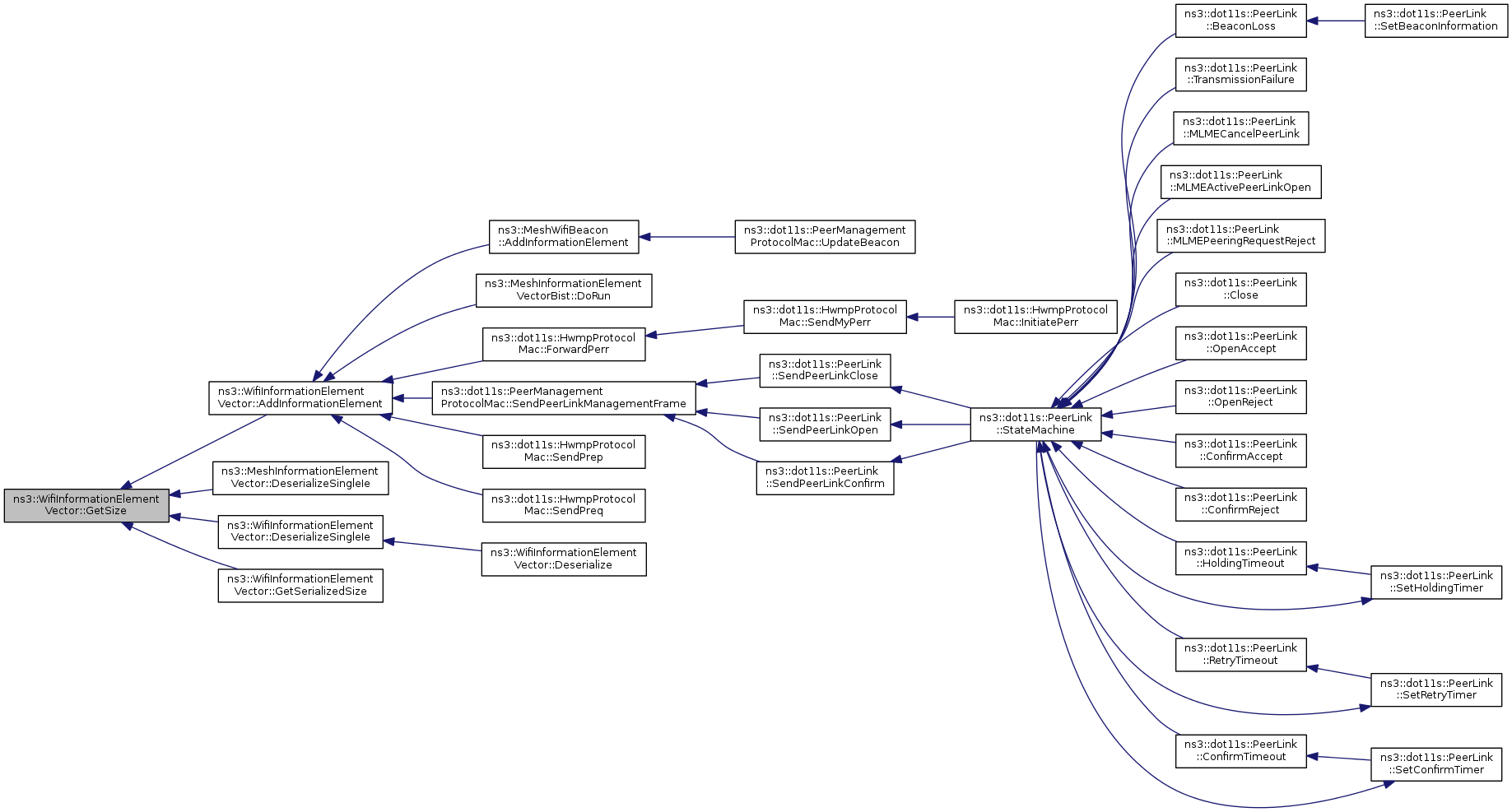

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 42 of file wifi-information-element-vector.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiInformationElementVector::operator== ( const WifiInformationElementVector & a ) const

virtual

Definition at line 166 of file wifi-information-element-vector.cc.

References m_elements, and NS_ASSERT.

void ns3::WifiInformationElementVector::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 103 of file wifi-information-element-vector.cc.

void ns3::WifiInformationElementVector::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 60 of file wifi-information-element-vector.cc.

References m_elements.

void ns3::WifiInformationElementVector::SetMaxSize ( uint16_t size )

Set maximum size to control overflow of the max packet length.

Definition at line 108 of file wifi-information-element-vector.cc.

References m_maxSize.
