a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0 More...

#include <ie-dot11s-metric-report.h>

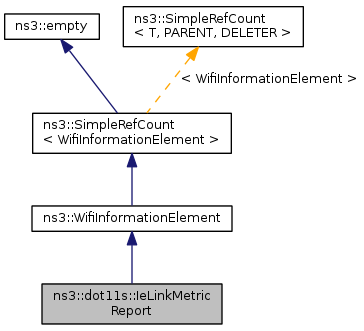

Inheritance diagram for ns3::dot11s::IeLinkMetricReport:

Collaboration diagram for ns3::dot11s::IeLinkMetricReport:

Public Member Functions
	IeLinkMetricReport ()
	IeLinkMetricReport (uint32_t metric)
uint32_t	GetMetric ()
void	SetMetric (uint32_t metric)
Inherited from WifiInformationElement
virtual WifiInformationElementId	ElementId () const
	Own unique Element ID.
virtual void	SerializeInformationField (Buffer::Iterator i) const
virtual uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following...
virtual uint8_t	GetInformationFieldSize () const
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
uint16_t	GetSerializedSize () const
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields.
virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID.
virtual bool	operator== (WifiInformationElement const &a) const
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
uint32_t	m_metric

Friends
bool	operator< (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
bool	operator== (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
bool	operator> (const IeLinkMetricReport &a, const IeLinkMetricReport &b)

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)

Detailed Description

a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0

Definition at line 34 of file ie-dot11s-metric-report.h.

Constructor & Destructor Documentation

ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport ( )

Definition at line 26 of file ie-dot11s-metric-report.cc.

ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport ( uint32_t metric )

Definition at line 30 of file ie-dot11s-metric-report.cc.

References m_metric.

Member Function Documentation

uint8_t ns3::dot11s::IeLinkMetricReport::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Implements ns3::WifiInformationElement.

Definition at line 60 of file ie-dot11s-metric-report.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_metric, ns3::Buffer::Iterator::ReadLsbtohU32(), and visualizer.core::start().

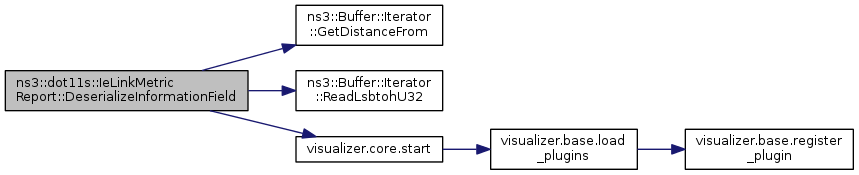

Here is the call graph for this function:

WifiInformationElementId ns3::dot11s::IeLinkMetricReport::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 35 of file ie-dot11s-metric-report.cc.

References IE11S_LINK_METRIC_REPORT.

Referenced by Print().

Here is the caller graph for this function:

uint8_t ns3::dot11s::IeLinkMetricReport::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. This is the value that will appear in the second octet of the entire IE - the length field)

Implements ns3::WifiInformationElement.

Definition at line 40 of file ie-dot11s-metric-report.cc.

uint32_t ns3::dot11s::IeLinkMetricReport::GetMetric ( void )

Definition at line 45 of file ie-dot11s-metric-report.cc.

References m_metric.

void ns3::dot11s::IeLinkMetricReport::Print ( std::ostream & os ) const

virtual

In addition, a subclass may optionally override the following...

Generate human-readable form of IE

Reimplemented from ns3::WifiInformationElement.

Definition at line 67 of file ie-dot11s-metric-report.cc.

References ElementId(), and m_metric.
