#include <ie-dot11s-peering-protocol.h>

Inheritance diagram for ns3::dot11s::IePeeringProtocol:

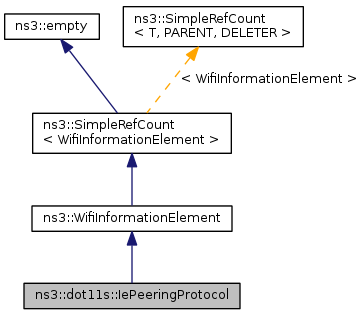

Collaboration diagram for ns3::dot11s::IePeeringProtocol:

Public Member Functions
	IePeeringProtocol ()
Inherited from WifiInformationElement
virtual WifiInformationElementId	ElementId () const
	Own unique Element ID.
virtual uint8_t	GetInformationFieldSize () const
virtual void	SerializeInformationField (Buffer::Iterator i) const
virtual uint8_t	DeserializeInformationField (Buffer::Iterator i, uint8_t length)
virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following...
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
uint16_t	GetSerializedSize () const
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields.
virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID.
virtual bool	operator== (WifiInformationElement const &a) const
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
uint8_t	m_protocol

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)

Detailed Description

Definition at line 30 of file ie-dot11s-peering-protocol.h.

Constructor & Destructor Documentation

ns3::dot11s::IePeeringProtocol::IePeeringProtocol ( )

Definition at line 29 of file ie-dot11s-peering-protocol.cc.

Member Function Documentation

uint8_t ns3::dot11s::IePeeringProtocol::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Implements ns3::WifiInformationElement.

Definition at line 44 of file ie-dot11s-peering-protocol.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_protocol, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize().

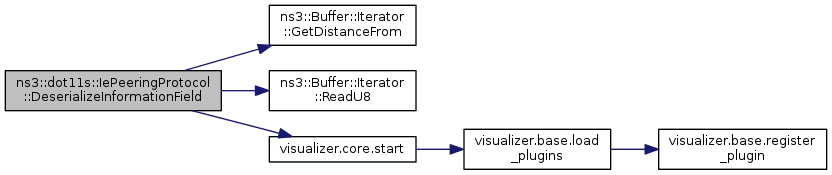

Here is the call graph for this function:

Here is the caller graph for this function:

WifiInformationElementId ns3::dot11s::IePeeringProtocol::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 34 of file ie-dot11s-peering-protocol.cc.

References IE11S_MESH_PEERING_PROTOCOL_VERSION.

Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize(), and Print().

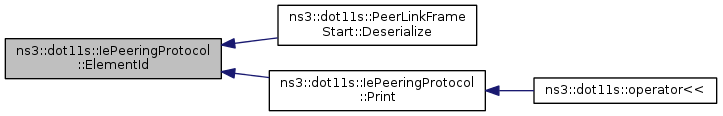

Here is the caller graph for this function:

uint8_t ns3::dot11s::IePeeringProtocol::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. This is the value that will appear in the second octet of the entire IE - the length field)

Implements ns3::WifiInformationElement.

Definition at line 25 of file ie-dot11s-peering-protocol.cc.

Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize().

Here is the caller graph for this function:
