Routing table for FLAME. More...

#include <flame-rtable.h>

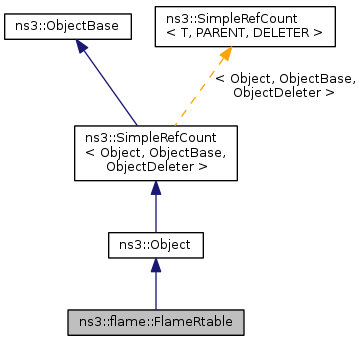

Inheritance diagram for ns3::flame::FlameRtable:

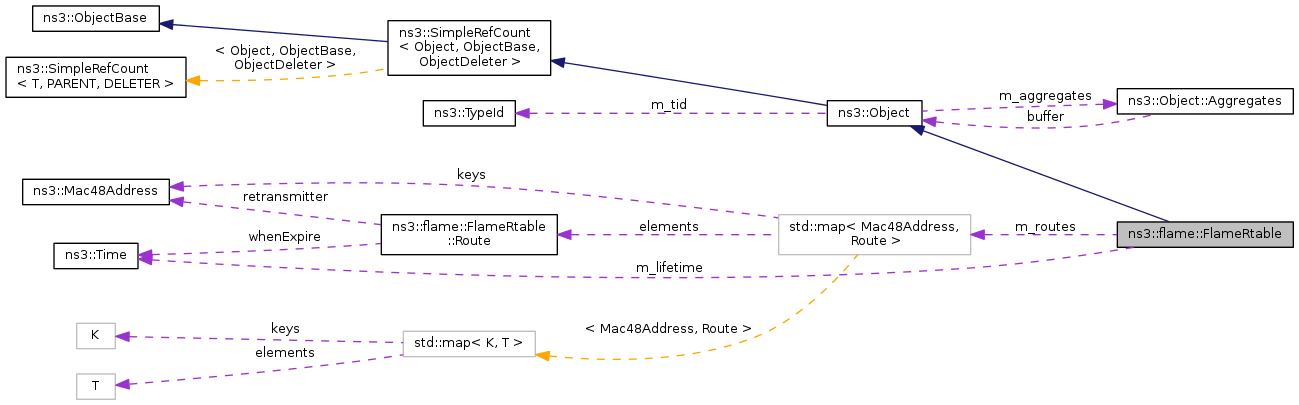

Collaboration diagram for ns3::flame::FlameRtable:

Classes
struct	LookupResult
	Route lookup result, return type of LookupXXX methods. More...
struct	Route
	Routing table entry. More...

Public Member Functions
	FlameRtable ()
	~FlameRtable ()
void	AddPath (const Mac48Address destination, const Mac48Address retransmitter, const uint32_t interface, const uint8_t cost, const uint16_t seqnum)
	Add path.
void	DoDispose ()
LookupResult	Lookup (Mac48Address destination)
	Lookup path to destination.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Attributes
static const uint32_t	INTERFACE_ANY = 0xffffffff
	Means all interfaces.
static const uint32_t	MAX_COST = 0xff
	Maximum (the best?) path cost.

Private Member Functions
	FlameRtable (const FlameRtable &)
FlameRtable &	operator= (const FlameRtable &)

Private Attributes
Time	m_lifetime
	Lifetime parameter.
std::map< Mac48Address, Route >	m_routes
	List of routes.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Routing table for FLAME.

This type is not accessible from the Config system.

Attributes

Lifetime: The lifetime of the routing enrty
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +120000000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 36 of file flame-rtable.h.

Constructor & Destructor Documentation

ns3::flame::FlameRtable::FlameRtable ( )

Definition at line 48 of file flame-rtable.cc.

ns3::flame::FlameRtable::~FlameRtable ( )

Definition at line 52 of file flame-rtable.cc.

ns3::flame::FlameRtable::FlameRtable ( const FlameRtable & )

private

Member Function Documentation

void ns3::flame::FlameRtable::AddPath	(	const Mac48Address	destination,
		const Mac48Address	retransmitter,
		const uint32_t	interface,
		const uint8_t	cost,
		const uint16_t	seqnum
	)

Add path.

Definition at line 61 of file flame-rtable.cc.

References ns3::flame::FlameRtable::Route::cost, ns3::flame::FlameRtable::Route::interface, m_lifetime, m_routes, ns3::Now(), NS_ASSERT, ns3::flame::FlameRtable::Route::retransmitter, ns3::flame::FlameRtable::Route::seqnum, and ns3::flame::FlameRtable::Route::whenExpire.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame(), ns3::flame::FlameRtableTest::TestAddPath(), and ns3::flame::FlameRtableTest::TestLookup().

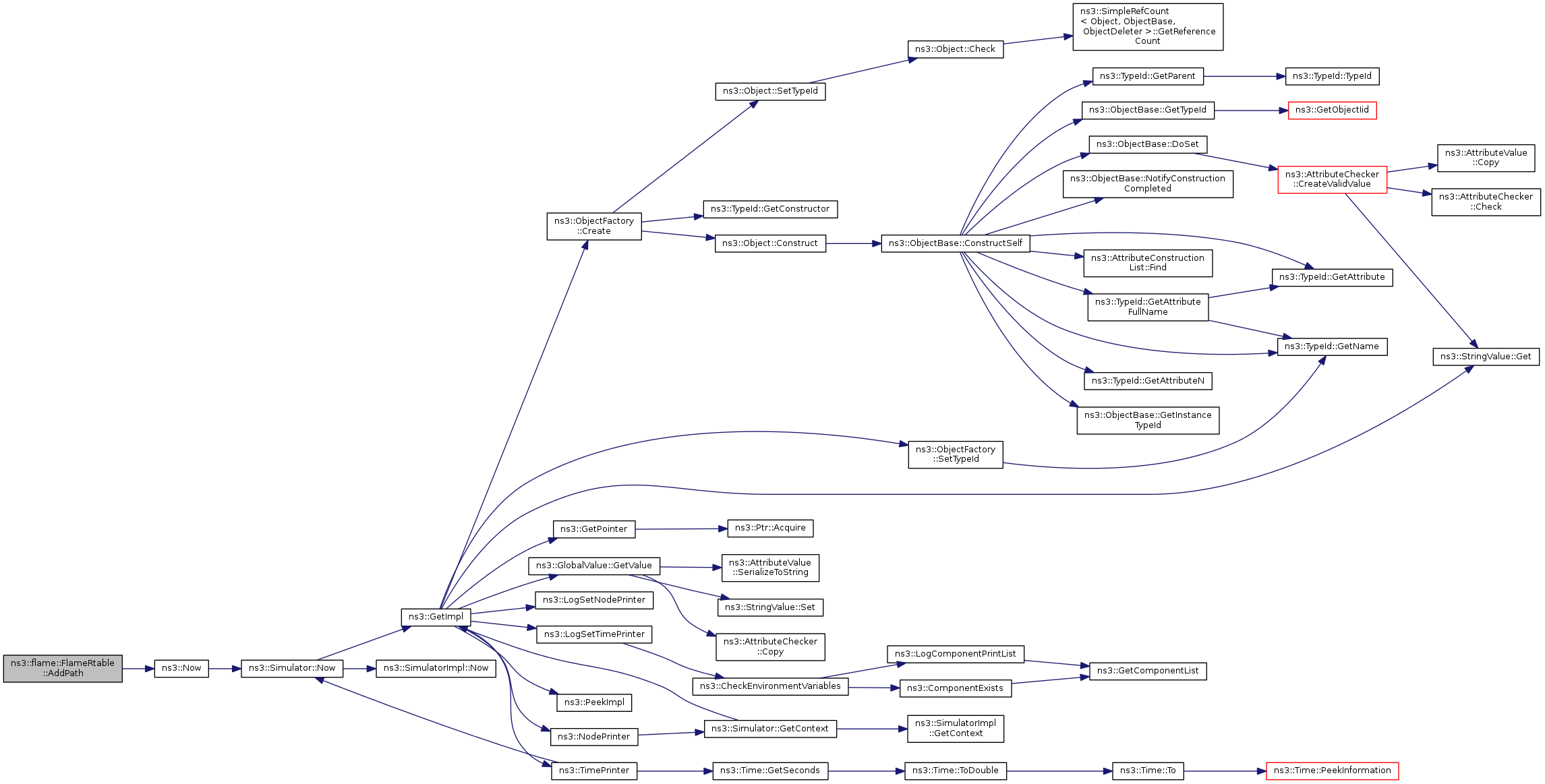

Here is the call graph for this function:

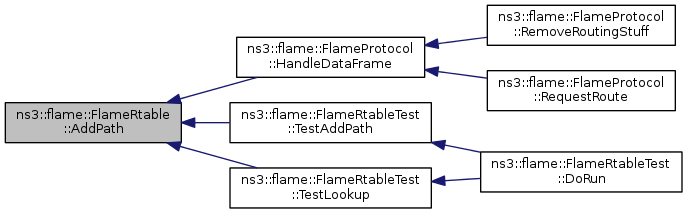

Here is the caller graph for this function:

void ns3::flame::FlameRtable::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 56 of file flame-rtable.cc.

References m_routes.

TypeId ns3::flame::FlameRtable::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 34 of file flame-rtable.cc.

References m_lifetime, ns3::Seconds(), and ns3::TypeId::SetParent().

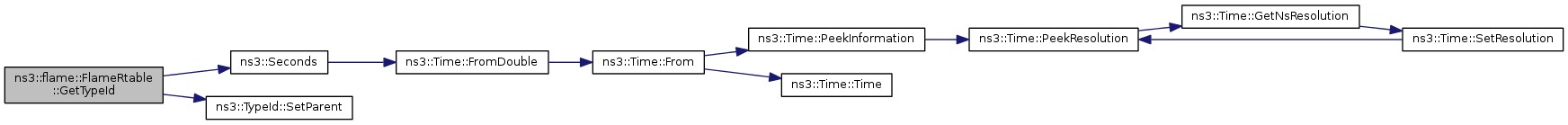

Here is the call graph for this function:
