lena-dual-stripe.cc File Reference
#include <ns3/core-module.h>
#include <ns3/network-module.h>
#include <ns3/mobility-module.h>
#include <ns3/internet-module.h>
#include <ns3/lte-module.h>
#include <ns3/config-store-module.h>
#include <ns3/buildings-module.h>
#include <ns3/point-to-point-helper.h>
#include <ns3/applications-module.h>
#include <ns3/log.h>
#include <iomanip>
#include <string>
#include <vector>

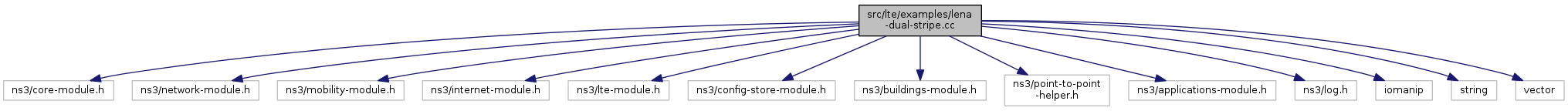

+ Include dependency graph for lena-dual-stripe.cc:

Go to the source code of this file.

Classes

class  FemtocellBlockAllocator

Functions

bool AreOverlapping (Box a, Box b)
int main (int argc, char *argv[])
 NS_LOG_COMPONENT_DEFINE ("LenaDualStripe")
void PrintGnuplottableBuildingListToFile (std::string filename)
void PrintGnuplottableEnbListToFile (std::string filename)
void PrintGnuplottableUeListToFile (std::string filename)

Variables

static ns3::GlobalValue g_areaMarginFactor ("areaMarginFactor","how much the UE area extends outside the macrocell grid, ""expressed as fraction of the interSiteDistance", ns3::DoubleValue(0.5), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_epc ("epc","if true, will setup the EPC to simulate an end-to-end topology;""if false, only the LTE radio access will be simulated.", ns3::BooleanValue(false), ns3::MakeBooleanChecker())
static ns3::GlobalValue g_epcDl ("epcDl","if true, will activate data flows in the downlink when EPC is being used. ""If false, downlink flows won't be activated. ""If EPC is not used, this parameter will be ignored.", ns3::BooleanValue(true), ns3::MakeBooleanChecker())
static ns3::GlobalValue g_epcUl ("epcUl","if true, will activate data flows in the uplink when EPC is being used. ""If false, uplink flows won't be activated. ""If EPC is not used, this parameter will be ignored.", ns3::BooleanValue(true), ns3::MakeBooleanChecker())
static ns3::GlobalValue g_fadingTrace ("fadingTrace","The path of the fading trace (by default no fading trace ""is loaded, i.e., fading is not considered)", ns3::StringValue(""), ns3::MakeStringChecker())
static ns3::GlobalValue g_generateRem ("generateRem","if true, will generate a REM and then abort the simulation;""if false, will run the simulation normally (without generating any REM)", ns3::BooleanValue(false), ns3::MakeBooleanChecker())
static ns3::GlobalValue g_homeEnbActivationRatio ("homeEnbActivationRatio","The HeNB activation ratio as per 3GPP R4-092042", ns3::DoubleValue(0.5), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_homeEnbBandwidth ("homeEnbBandwidth","bandwidth [num RBs] used by HeNBs", ns3::UintegerValue(25), ns3::MakeUintegerChecker< uint16_t >())
static ns3::GlobalValue g_homeEnbDeploymentRatio ("homeEnbDeploymentRatio","The HeNB deployment ratio as per 3GPP R4-092042", ns3::DoubleValue(0.2), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_homeEnbDlEarfcn ("homeEnbDlEarfcn","DL EARFCN used by HeNBs", ns3::UintegerValue(100), ns3::MakeUintegerChecker< uint16_t >())
static ns3::GlobalValue g_homeEnbTxPowerDbm ("homeEnbTxPowerDbm","TX power [dBm] used by HeNBs", ns3::DoubleValue(20.0), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_homeUesHomeEnbRatio ("homeUesHomeEnbRatio","How many (on average) home UEs per HeNB there are in the simulation", ns3::DoubleValue(1.0), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_interSiteDistance ("interSiteDistance","min distance between two nearby macro cell sites", ns3::DoubleValue(500), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_macroEnbBandwidth ("macroEnbBandwidth","bandwidth [num RBs] used by macro eNBs", ns3::UintegerValue(25), ns3::MakeUintegerChecker< uint16_t >())
static ns3::GlobalValue g_macroEnbDlEarfcn ("macroEnbDlEarfcn","DL EARFCN used by macro eNBs", ns3::UintegerValue(100), ns3::MakeUintegerChecker< uint16_t >())
static ns3::GlobalValue g_macroEnbTxPowerDbm ("macroEnbTxPowerDbm","TX power [dBm] used by macro eNBs", ns3::DoubleValue(46.0), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_macroUeDensity ("macroUeDensity","How many macrocell UEs there are per square meter", ns3::DoubleValue(0.0001), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_nApartmentsX ("nApartmentsX","Number of apartments along the X axis in a femtocell block", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())
static ns3::GlobalValue g_nBlocks ("nBlocks","Number of femtocell blocks", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())
static ns3::GlobalValue g_nFloors ("nFloors","Number of floors", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())
static ns3::GlobalValue g_nMacroEnbSites ("nMacroEnbSites","How many macro sites there are", ns3::UintegerValue(3), ns3::MakeUintegerChecker< uint32_t >())
static ns3::GlobalValue g_nMacroEnbSitesX ("nMacroEnbSitesX","(minimum) number of sites along the X-axis of the hex grid", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())
static ns3::GlobalValue g_simTime ("simTime","Total duration of the simulation [s]", ns3::DoubleValue(0.25), ns3::MakeDoubleChecker< double >())
static ns3::GlobalValue g_useUdp ("useUdp","if true, the UdpClient application will be used. ""Otherwise, the BulkSend application will be used over a TCP connection. ""If EPC is not used, this parameter will be ignored.", ns3::BooleanValue(true), ns3::MakeBooleanChecker())

Function Documentation

bool AreOverlapping ( Box  a,
Box  b
)

Definition at line 46 of file lena-dual-stripe.cc.

References ns3::Box::xMax, ns3::Box::xMin, ns3::Box::yMax, and ns3::Box::yMin.

Referenced by FemtocellBlockAllocator::OverlapsWithAnyPrevious().

+ Here is the caller graph for this function:

int main ( int  argc,
char *  argv[]
)

Definition at line 331 of file lena-dual-stripe.cc.

References ns3::LteHelper::ActivateEpsBearer(), ns3::ApplicationContainer::Add(), ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Add(), ns3::Ipv4StaticRouting::AddNetworkRouteTo(), ns3::Ipv4AddressHelper::Assign(), ns3::EpcHelper::AssignUeIpv4Address(), ns3::LteHelper::Attach(), ns3::LteHelper::AttachToClosestEnb(), ns3::NetDeviceContainer::Begin(), ns3::ConfigStore::ConfigureDefaults(), FemtocellBlockAllocator::Create(), ns3::NodeContainer::Create(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnablePdcpTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::End(), ns3::StringValue::Get(), ns3::DoubleValue::Get(), ns3::BooleanValue::Get(), ns3::UintegerValue::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), ns3::EpcHelper::GetPgwNode(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::EpcHelper::GetUeDefaultGatewayAddress(), ns3::PacketSinkHelper::Install(), ns3::RadioEnvironmentMapHelper::Install(), ns3::BulkSendHelper::Install(), ns3::PointToPointHelper::Install(), ns3::InternetStackHelper::Install(), ns3::UdpClientHelper::Install(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), ns3::MilliSeconds(), NS_LOG_LOGIC, ns3::CommandLine::Parse(), PrintGnuplottableBuildingListToFile(), PrintGnuplottableEnbListToFile(), PrintGnuplottableUeListToFile(), ns3::Seconds(), ns3::BulkSendHelper::SetAttribute(), ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::Ipv4StaticRouting::SetDefaultRoute(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::LteHelper::SetEnbAntennaModelAttribute(), ns3::LteHelper::SetEnbAntennaModelType(), ns3::LteHelper::SetEnbDeviceAttribute(), ns3::LteHelper::SetEpcHelper(), ns3::LteHelper::SetFadingModelAttribute(), ns3::LteHexGridEnbTopologyHelper::SetLteHelper(), ns3::MobilityHelper::SetMobilityModel(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityHelper::SetPositionAllocator(), ns3::LteHexGridEnbTopologyHelper::SetPositionAndInstallEnbDevice(), ns3::LteHelper::SetSpectrumChannelType(), ns3::ApplicationContainer::Start(), ns3::Box::xMax, ns3::Box::xMin, ns3::Box::yMax, ns3::Box::yMin, ns3::Box::zMax, and ns3::Box::zMin.

NS_LOG_COMPONENT_DEFINE ( "LenaDualStripe"  )
void PrintGnuplottableBuildingListToFile ( std::string  filename)

Definition at line 143 of file lena-dual-stripe.cc.

References NS_LOG_ERROR, ns3::Box::xMax, ns3::Box::xMin, ns3::Box::yMax, and ns3::Box::yMin.

Referenced by main().

+ Here is the caller graph for this function:

void PrintGnuplottableEnbListToFile ( std::string  filename)

Definition at line 194 of file lena-dual-stripe.cc.

References ns3::LteEnbNetDevice::GetCellId(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), ns3::Object::GetObject(), GetPosition(), NS_LOG_ERROR, ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by main().

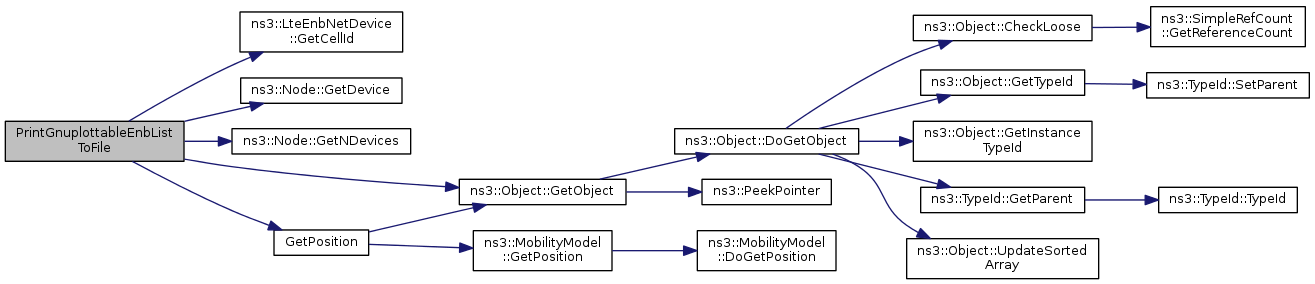

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void PrintGnuplottableUeListToFile ( std::string  filename)

Definition at line 166 of file lena-dual-stripe.cc.

References ns3::Node::GetDevice(), ns3::LteUeNetDevice::GetImsi(), ns3::Node::GetNDevices(), ns3::Object::GetObject(), GetPosition(), NS_LOG_ERROR, ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by main().

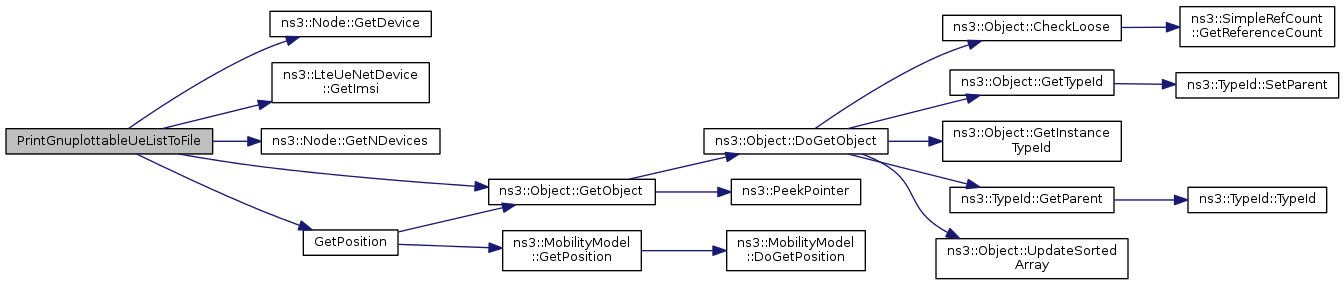

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Variable Documentation

ns3::GlobalValue g_areaMarginFactor("areaMarginFactor","how much the UE area extends outside the macrocell grid, ""expressed as fraction of the interSiteDistance", ns3::DoubleValue(0.5), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_epc("epc","if true, will setup the EPC to simulate an end-to-end topology;""if false, only the LTE radio access will be simulated.", ns3::BooleanValue(false), ns3::MakeBooleanChecker())
static
ns3::GlobalValue g_epcDl("epcDl","if true, will activate data flows in the downlink when EPC is being used. ""If false, downlink flows won't be activated. ""If EPC is not used, this parameter will be ignored.", ns3::BooleanValue(true), ns3::MakeBooleanChecker())
static
ns3::GlobalValue g_epcUl("epcUl","if true, will activate data flows in the uplink when EPC is being used. ""If false, uplink flows won't be activated. ""If EPC is not used, this parameter will be ignored.", ns3::BooleanValue(true), ns3::MakeBooleanChecker())
static
ns3::GlobalValue g_fadingTrace("fadingTrace","The path of the fading trace (by default no fading trace ""is loaded, i.e., fading is not considered)", ns3::StringValue(""), ns3::MakeStringChecker())
static
ns3::GlobalValue g_generateRem("generateRem","if true, will generate a REM and then abort the simulation;""if false, will run the simulation normally (without generating any REM)", ns3::BooleanValue(false), ns3::MakeBooleanChecker())
static
ns3::GlobalValue g_homeEnbActivationRatio("homeEnbActivationRatio","The HeNB activation ratio as per 3GPP R4-092042", ns3::DoubleValue(0.5), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_homeEnbBandwidth("homeEnbBandwidth","bandwidth [num RBs] used by HeNBs", ns3::UintegerValue(25), ns3::MakeUintegerChecker< uint16_t >())
static
ns3::GlobalValue g_homeEnbDeploymentRatio("homeEnbDeploymentRatio","The HeNB deployment ratio as per 3GPP R4-092042", ns3::DoubleValue(0.2), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_homeEnbDlEarfcn("homeEnbDlEarfcn","DL EARFCN used by HeNBs", ns3::UintegerValue(100), ns3::MakeUintegerChecker< uint16_t >())
static
ns3::GlobalValue g_homeEnbTxPowerDbm("homeEnbTxPowerDbm","TX power [dBm] used by HeNBs", ns3::DoubleValue(20.0), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_homeUesHomeEnbRatio("homeUesHomeEnbRatio","How many (on average) home UEs per HeNB there are in the simulation", ns3::DoubleValue(1.0), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_interSiteDistance("interSiteDistance","min distance between two nearby macro cell sites", ns3::DoubleValue(500), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_macroEnbBandwidth("macroEnbBandwidth","bandwidth [num RBs] used by macro eNBs", ns3::UintegerValue(25), ns3::MakeUintegerChecker< uint16_t >())
static
ns3::GlobalValue g_macroEnbDlEarfcn("macroEnbDlEarfcn","DL EARFCN used by macro eNBs", ns3::UintegerValue(100), ns3::MakeUintegerChecker< uint16_t >())
static
ns3::GlobalValue g_macroEnbTxPowerDbm("macroEnbTxPowerDbm","TX power [dBm] used by macro eNBs", ns3::DoubleValue(46.0), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_macroUeDensity("macroUeDensity","How many macrocell UEs there are per square meter", ns3::DoubleValue(0.0001), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_nApartmentsX("nApartmentsX","Number of apartments along the X axis in a femtocell block", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())
static
ns3::GlobalValue g_nBlocks("nBlocks","Number of femtocell blocks", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())
static
ns3::GlobalValue g_nFloors("nFloors","Number of floors", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())
static
ns3::GlobalValue g_nMacroEnbSites("nMacroEnbSites","How many macro sites there are", ns3::UintegerValue(3), ns3::MakeUintegerChecker< uint32_t >())
static
ns3::GlobalValue g_nMacroEnbSitesX("nMacroEnbSitesX","(minimum) number of sites along the X-axis of the hex grid", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())
static
ns3::GlobalValue g_simTime("simTime","Total duration of the simulation [s]", ns3::DoubleValue(0.25), ns3::MakeDoubleChecker< double >())
static
ns3::GlobalValue g_useUdp("useUdp","if true, the UdpClient application will be used. ""Otherwise, the BulkSend application will be used over a TCP connection. ""If EPC is not used, this parameter will be ignored.", ns3::BooleanValue(true), ns3::MakeBooleanChecker())
static
