ns3::ArpCache::Entry Class Reference

A record that that holds information about an ArpCache entry. More...

#include <arp-cache.h>

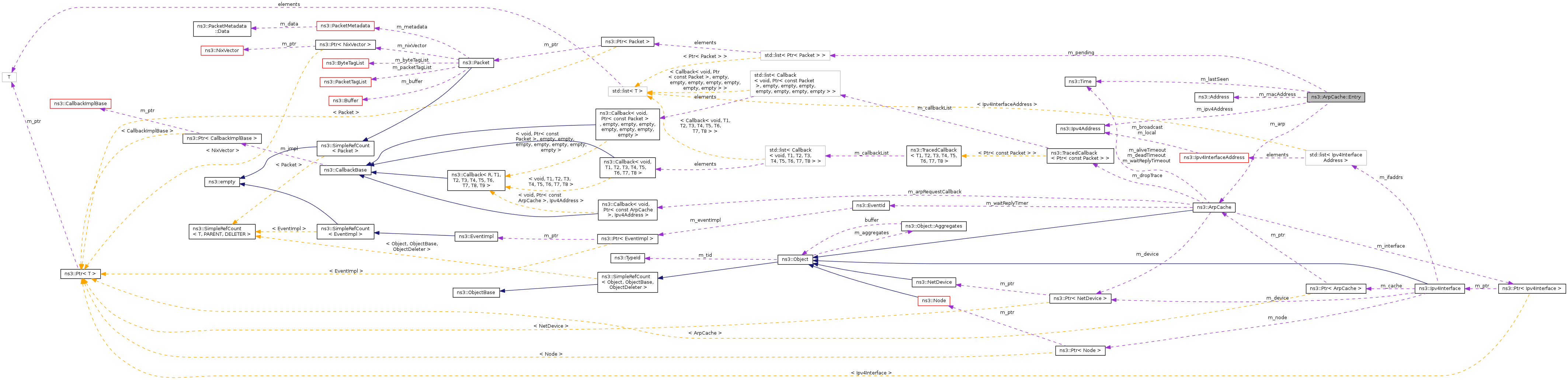

Collaboration diagram for ns3::ArpCache::Entry:

Public Member Functions
	Entry (ArpCache *arp)
	Constructor.
void	ClearRetries (void)
	Zero the counter of number of retries for an entry.
Ptr< Packet >	DequeuePending (void)
Ipv4Address	GetIpv4Address (void) const
Address	GetMacAddress (void) const
uint32_t	GetRetries (void) const
void	IncrementRetries (void)
	Increment the counter of number of retries for an entry.
bool	IsAlive (void)
bool	IsDead (void)
bool	IsExpired (void) const
bool	IsWaitReply (void)
void	MarkAlive (Address macAddress)
void	MarkDead (void)
	Changes the state of this entry to dead.
void	MarkWaitReply (Ptr< Packet > waiting)
void	SetIpv4Address (Ipv4Address destination)
bool	UpdateWaitReply (Ptr< Packet > waiting)

Private Types
enum	ArpCacheEntryState_e { ALIVE, WAIT_REPLY, DEAD }

Private Member Functions
Time	GetTimeout (void) const
void	UpdateSeen (void)

Private Attributes
ArpCache *	m_arp
Ipv4Address	m_ipv4Address
Time	m_lastSeen
Address	m_macAddress
std::list< Ptr< Packet > >	m_pending
uint32_t	m_retries
ArpCacheEntryState_e	m_state

Detailed Description

A record that that holds information about an ArpCache entry.

Definition at line 116 of file arp-cache.h.

Member Enumeration Documentation

enum ns3::ArpCache::Entry::ArpCacheEntryState_e

private

Enumerator:

ALIVE
WAIT_REPLY
DEAD

Definition at line 193 of file arp-cache.h.

Constructor & Destructor Documentation

ns3::ArpCache::Entry::Entry

(

ArpCache *

arp

)

Constructor.

Parameters

arp	The ArpCache this entry belongs to

Definition at line 269 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::ArpCache::Entry::ClearRetries

(

void

)

Zero the counter of number of retries for an entry.

Definition at line 429 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

Ptr< Packet > ns3::ArpCache::Entry::DequeuePending

(

void

)

Returns

0 is no packet is pending, the next packet to send if packets are pending.

Definition at line 395 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), and ns3::ArpL3Protocol::Receive().

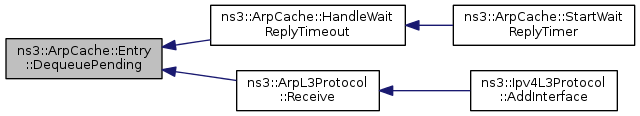

Here is the caller graph for this function:

Ipv4Address ns3::ArpCache::Entry::GetIpv4Address

(

void

)

const

Returns

The Ipv4Address for this entry

Definition at line 353 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

Address ns3::ArpCache::Entry::GetMacAddress

(

void

)

const

Returns

The MacAddress of this entry

Definition at line 346 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::RouteCache::LookupMacAddress().

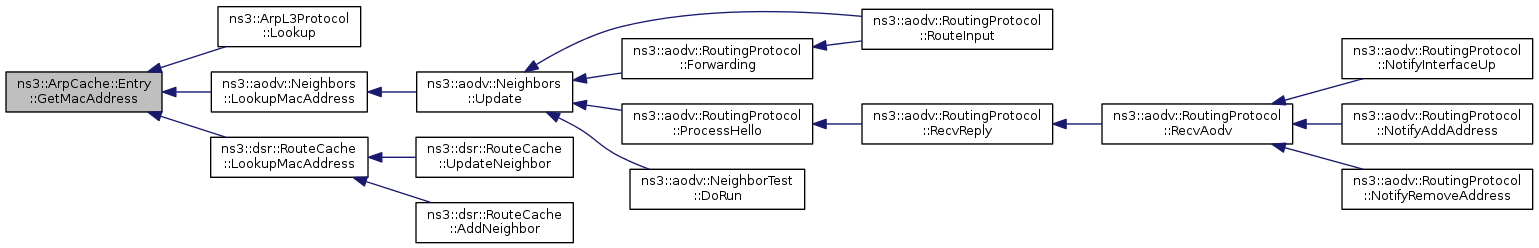

Here is the caller graph for this function:

uint32_t ns3::ArpCache::Entry::GetRetries

(

void

)

const

Returns

number of retries that have been sent for an ArpRequest in WaitReply state.

Definition at line 416 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

Time ns3::ArpCache::Entry::GetTimeout ( void  ) const

private

Definition at line 365 of file arp-cache.cc.

References ALIVE, DEAD, NS_ASSERT, NS_LOG_FUNCTION, ns3::Seconds(), and WAIT_REPLY.

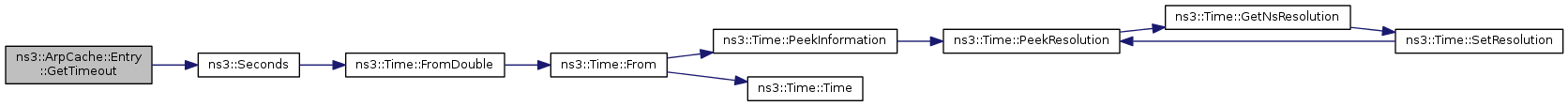

Here is the call graph for this function:

void ns3::ArpCache::Entry::IncrementRetries

(

void

)

Increment the counter of number of retries for an entry.

Definition at line 422 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsAlive

(

void

)

Returns

True if the state of this entry is alive; false otherwise.

Definition at line 285 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::RouteCache::LookupMacAddress().

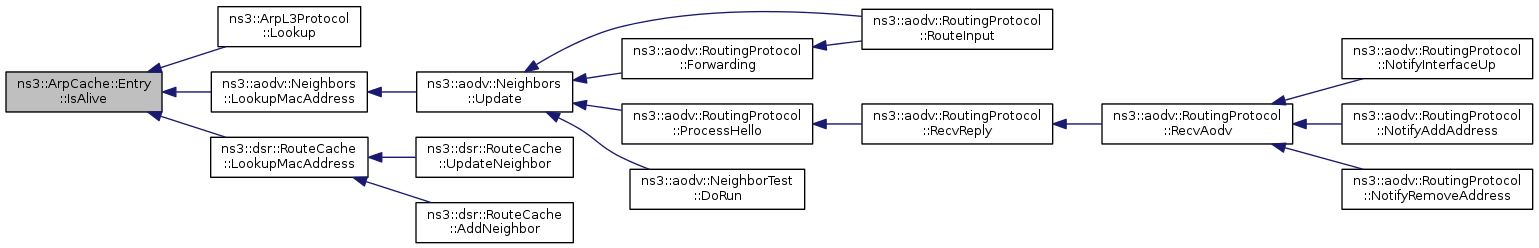

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsDead

(

void

)

Returns

True if the state of this entry is dead; false otherwise.

Definition at line 279 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsExpired

(

void

)

const

Returns

True if this entry has timed out; false otherwise.

This function returns true if the time elapsed strictly exceeds the timeout value (i.e., is not less than or equal to the timeout).

Definition at line 382 of file arp-cache.cc.

References ns3::Time::GetSeconds(), ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::RouteCache::LookupMacAddress().

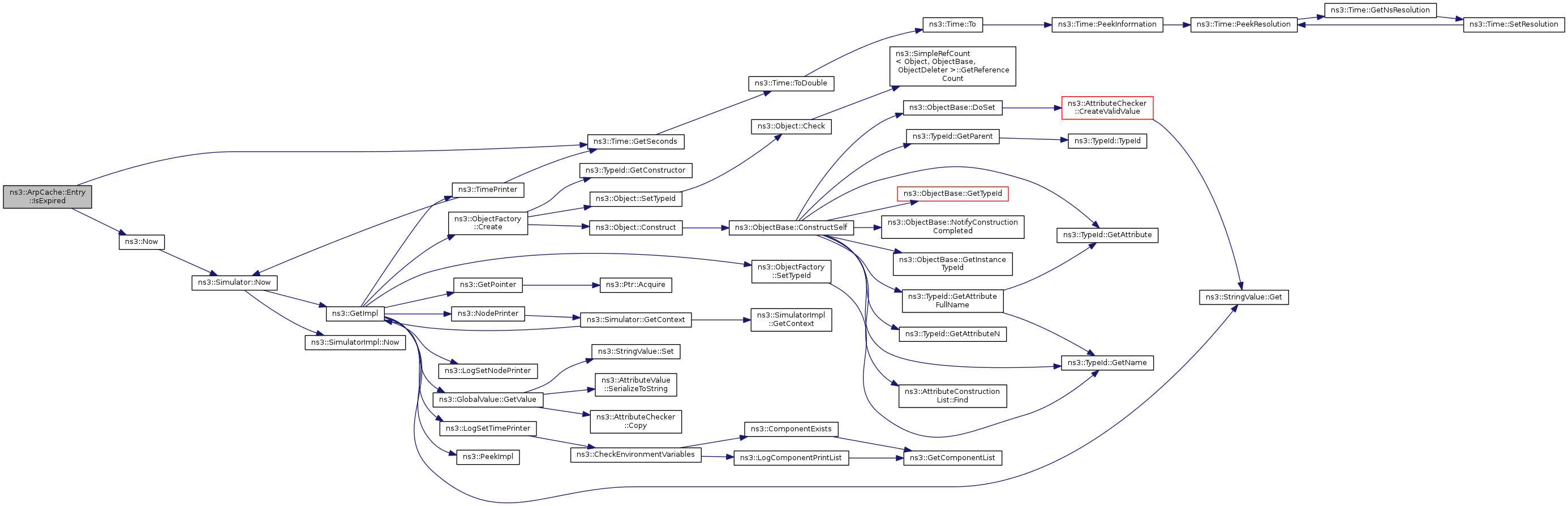

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsWaitReply

(

void

)

Returns

True if the state of this entry is wait_reply; false otherwise.

Definition at line 291 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), ns3::ArpL3Protocol::Lookup(), and ns3::ArpL3Protocol::Receive().

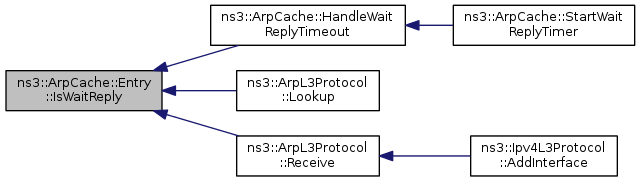

Here is the caller graph for this function:

void ns3::ArpCache::Entry::MarkAlive

(

Address

macAddress

)

Parameters

macAddress

Definition at line 307 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::EpcS1uUlTestCase::DoRun(), and ns3::ArpL3Protocol::Receive().

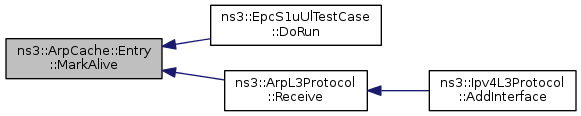

Here is the caller graph for this function:

void ns3::ArpCache::Entry::MarkDead

(

void

)

Changes the state of this entry to dead.

Definition at line 299 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

void ns3::ArpCache::Entry::MarkWaitReply

(

Ptr< Packet >

waiting

)

Parameters

waiting

Definition at line 334 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::EpcS1uUlTestCase::DoRun(), and ns3::ArpL3Protocol::Lookup().

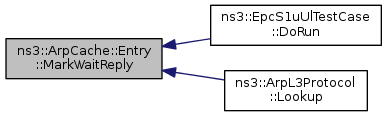

Here is the caller graph for this function:

void ns3::ArpCache::Entry::SetIpv4Address

(

Ipv4Address

destination

)

Parameters

destination

The Ipv4Address for this entry

Definition at line 359 of file arp-cache.cc.

References NS_LOG_FUNCTION.

void ns3::ArpCache::Entry::UpdateSeen ( void  )

private

Definition at line 410 of file arp-cache.cc.

References ns3::Now(), and NS_LOG_FUNCTION.

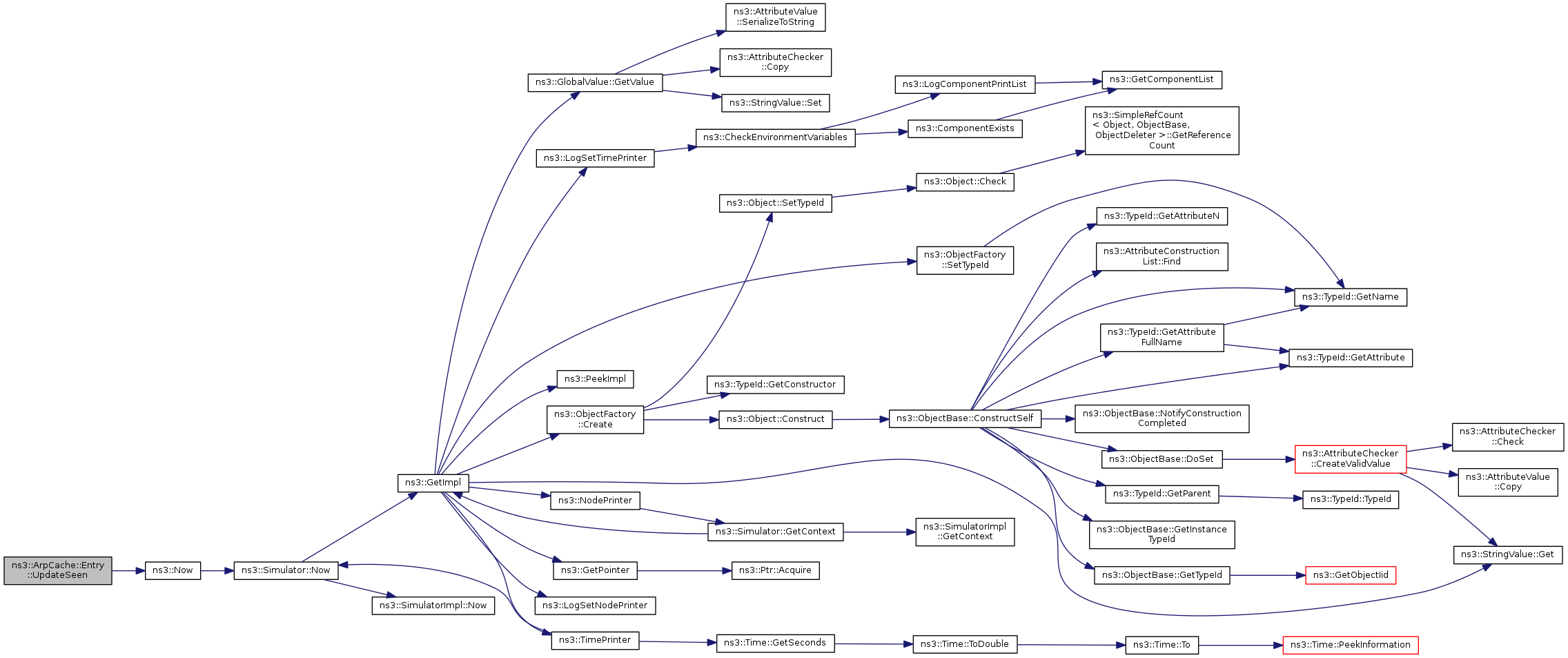

Here is the call graph for this function:

bool ns3::ArpCache::Entry::UpdateWaitReply

(

Ptr< Packet >

waiting

)

Parameters

waiting

Returns

Definition at line 318 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

Member Data Documentation

ArpCache* ns3::ArpCache::Entry::m_arp

private

Definition at line 201 of file arp-cache.h.

Ipv4Address ns3::ArpCache::Entry::m_ipv4Address

private

Definition at line 205 of file arp-cache.h.

Time ns3::ArpCache::Entry::m_lastSeen

private

Definition at line 203 of file arp-cache.h.

Address ns3::ArpCache::Entry::m_macAddress

private

Definition at line 204 of file arp-cache.h.

std::list<Ptr<Packet> > ns3::ArpCache::Entry::m_pending

private

Definition at line 206 of file arp-cache.h.

uint32_t ns3::ArpCache::Entry::m_retries

private

Definition at line 207 of file arp-cache.h.

ArpCacheEntryState_e ns3::ArpCache::Entry::m_state

private

Definition at line 202 of file arp-cache.h.

---

The documentation for this class was generated from the following files:

• src/internet/model/arp-cache.h
• src/internet/model/arp-cache.cc
