this class implements the bandwidth-request mac Header as described by IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems 6.3.2.1.2 Bandwidth request header, page 38 More...

#include <wimax-mac-header.h>

Inheritance diagram for ns3::BandwidthRequestHeader:

Collaboration diagram for ns3::BandwidthRequestHeader:

Public Types
enum	HeaderType { HEADER_TYPE_INCREMENTAL, HEADER_TYPE_AGGREGATE }

Public Member Functions
	BandwidthRequestHeader (void)
	~BandwidthRequestHeader (void)
bool	check_hcs (void) const
uint32_t	Deserialize (Buffer::Iterator start)
uint32_t	GetBr (void) const
Cid	GetCid (void) const
uint8_t	GetEc (void) const
uint8_t	GetHcs (void) const
uint8_t	GetHt (void) const
virtual TypeId	GetInstanceTypeId (void) const
std::string	GetName (void) const
uint32_t	GetSerializedSize (void) const
uint8_t	GetType (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetBr (uint32_t br)
void	SetCid (Cid cid)
void	SetEc (uint8_t ec)
void	SetHcs (uint8_t hcs)
void	SetHt (uint8_t HT)
void	SetType (uint8_t type)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
uint8_t	c_hcs
uint32_t	m_br
Cid	m_cid
uint8_t	m_ec
uint8_t	m_hcs
uint8_t	m_ht
uint8_t	m_type

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

this class implements the bandwidth-request mac Header as described by IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems 6.3.2.1.2 Bandwidth request header, page 38

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 150 of file wimax-mac-header.h.

Member Enumeration Documentation

enum ns3::BandwidthRequestHeader::HeaderType

Enumerator:

HEADER_TYPE_INCREMENTAL
HEADER_TYPE_AGGREGATE

Definition at line 153 of file wimax-mac-header.h.

Constructor & Destructor Documentation

ns3::BandwidthRequestHeader::BandwidthRequestHeader ( void )

Definition at line 301 of file wimax-mac-header.cc.

ns3::BandwidthRequestHeader::~BandwidthRequestHeader ( void )

Definition at line 311 of file wimax-mac-header.cc.

Member Function Documentation

bool ns3::BandwidthRequestHeader::check_hcs ( void ) const

Definition at line 474 of file wimax-mac-header.cc.

References c_hcs, and m_hcs.

Referenced by ns3::BaseStationNetDevice::DoReceive().

Here is the caller graph for this function:

uint32_t ns3::BandwidthRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 437 of file wimax-mac-header.cc.

References c_hcs, ns3::CRC8Calculate(), ns3::Buffer::Iterator::GetDistanceFrom(), m_br, m_cid, m_ec, m_hcs, m_ht, m_type, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

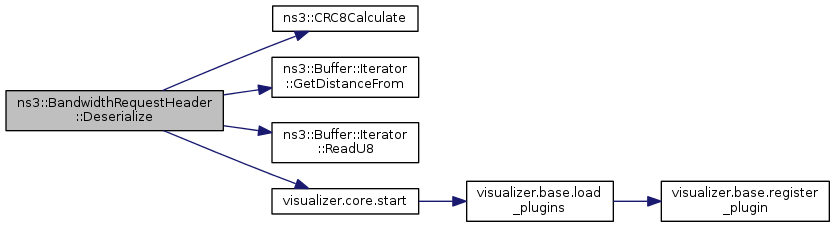

Here is the call graph for this function:

uint32_t ns3::BandwidthRequestHeader::GetBr ( void ) const

Definition at line 360 of file wimax-mac-header.cc.

References m_br.

Referenced by ns3::BandwidthManager::ProcessBandwidthRequest(), and ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest().

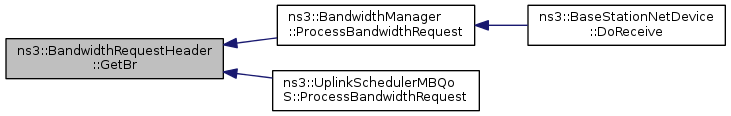

Here is the caller graph for this function:

Cid ns3::BandwidthRequestHeader::GetCid ( void ) const

Definition at line 365 of file wimax-mac-header.cc.

References m_cid.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::BandwidthManager::ProcessBandwidthRequest(), and ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest().

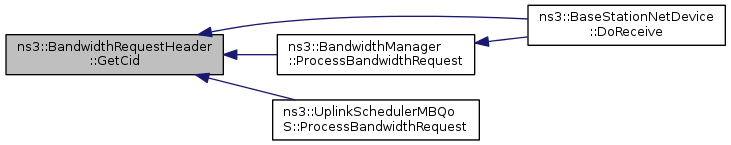

Here is the caller graph for this function:

uint8_t ns3::BandwidthRequestHeader::GetEc ( void ) const

Definition at line 350 of file wimax-mac-header.cc.

References m_ec.

uint8_t ns3::BandwidthRequestHeader::GetHcs ( void ) const

Definition at line 370 of file wimax-mac-header.cc.

References m_hcs.

uint8_t ns3::BandwidthRequestHeader::GetHt ( void ) const

Definition at line 345 of file wimax-mac-header.cc.

References m_ht.

Referenced by ns3::BaseStationNetDevice::DoReceive().

Here is the caller graph for this function:

TypeId ns3::BandwidthRequestHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 387 of file wimax-mac-header.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::BandwidthRequestHeader::GetName ( void ) const

Definition at line 375 of file wimax-mac-header.cc.

uint32_t ns3::BandwidthRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 400 of file wimax-mac-header.cc.

uint8_t ns3::BandwidthRequestHeader::GetType ( void ) const

Definition at line 355 of file wimax-mac-header.cc.

References m_type.

Referenced by ns3::BandwidthManager::ProcessBandwidthRequest().

Here is the caller graph for this function:

TypeId ns3::BandwidthRequestHeader::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 380 of file wimax-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BandwidthRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 392 of file wimax-mac-header.cc.

References ns3::Cid::GetIdentifier(), m_br, m_cid, m_ec, m_hcs, and m_type.

Here is the call graph for this function:

void ns3::BandwidthRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 408 of file wimax-mac-header.cc.

References ns3::CRC8Calculate(), ns3::Cid::GetIdentifier(), m_br, m_cid, m_ec, m_ht, m_type, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

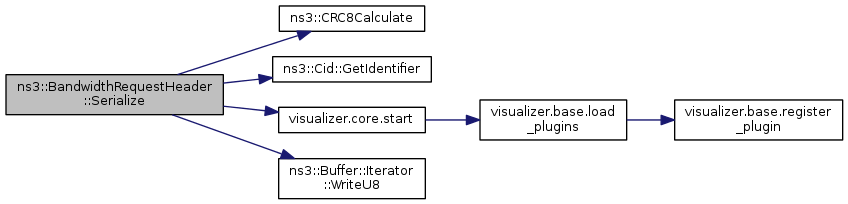

Here is the call graph for this function:
