#include <csma-channel.h>

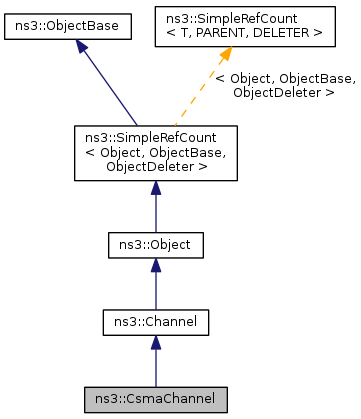

Inheritance diagram for ns3::CsmaChannel:

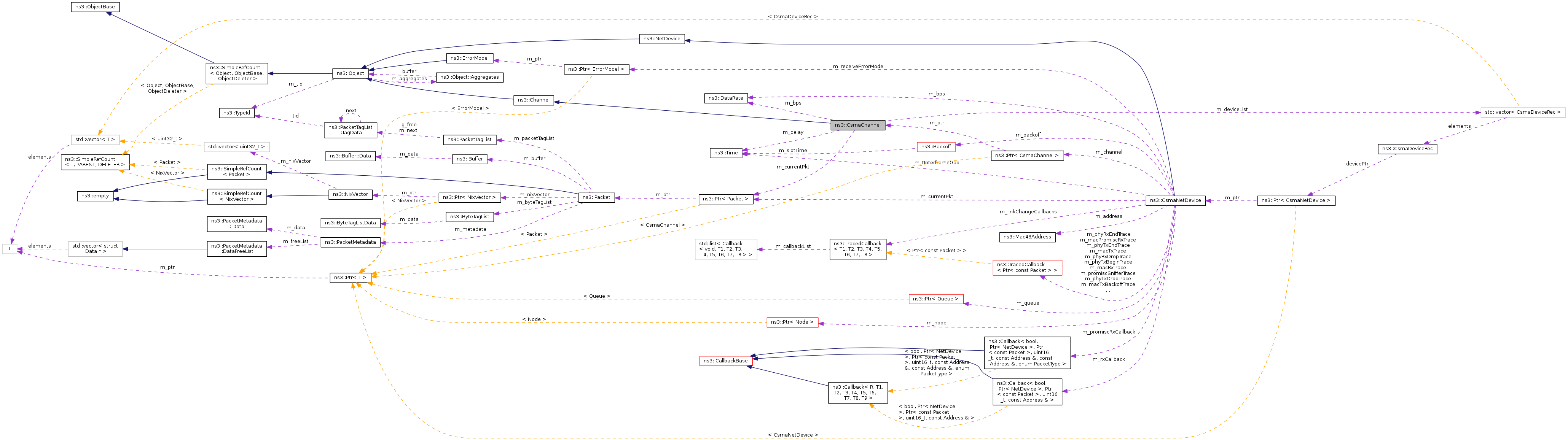

Collaboration diagram for ns3::CsmaChannel:

Public Member Functions
	CsmaChannel ()
	Create a CsmaChannel.
virtual	~CsmaChannel ()
	Destroy a CsmaChannel.
int32_t	Attach (Ptr< CsmaNetDevice > device)
	Attach a given netdevice to this channel.
bool	Detach (Ptr< CsmaNetDevice > device)
	Detach a given netdevice from this channel.
bool	Detach (uint32_t deviceId)
	Detach a given netdevice from this channel.
Ptr< CsmaNetDevice >	GetCsmaDevice (uint32_t i) const
DataRate	GetDataRate (void)
Time	GetDelay (void)
virtual Ptr< NetDevice >	GetDevice (uint32_t i) const
int32_t	GetDeviceNum (Ptr< CsmaNetDevice > device)
virtual uint32_t	GetNDevices (void) const
uint32_t	GetNumActDevices (void)
WireState	GetState ()
bool	IsActive (uint32_t deviceId)
	Indicates if a net device is currently attached or detached from the channel.
bool	IsBusy ()
	Indicates if the channel is busy. The channel will only accept new packets for transmission if it is not busy.
void	PropagationCompleteEvent ()
	Indicates that the channel has finished propagating the current packet. The channel is released and becomes free.
bool	Reattach (uint32_t deviceId)
	Reattach a previously detached net device to the channel.
bool	Reattach (Ptr< CsmaNetDevice > device)
	Reattach a previously detached net device to the channel.
bool	TransmitEnd ()
	Indicates that the net device has finished transmitting the packet over the channel.
bool	TransmitStart (Ptr< Packet > p, uint32_t srcId)

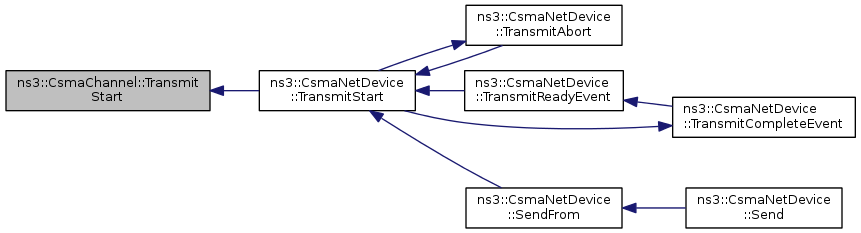

	Start transmitting a packet over the channel.
Public Member Functions inherited from ns3::Channel
	Channel ()
virtual	~Channel ()
uint32_t	GetId (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
	CsmaChannel (CsmaChannel const &)
CsmaChannel &	operator= (CsmaChannel const &)

Private Attributes
DataRate	m_bps
Ptr< Packet >	m_currentPkt
uint32_t	m_currentSrc
Time	m_delay
std::vector< CsmaDeviceRec >	m_deviceList
WireState	m_state

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Csma Channel.

This class represents a simple Csma channel that can be used when many nodes are connected to one wire. It uses a single busy flag to indicate if the channel is currently in use. It does not take into account the distances between stations or the speed of light to determine collisions.

Config Paths

ns3::CsmaChannel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::CsmaChannel

Attributes

DataRate: The transmission data rate to be provided to devices connected to the channel
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 4294967295bps
- Flags: construct write read
Delay: Transmission delay through the channel
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read

Attributes defined in parent class ns3::Channel

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

No TraceSources are defined for this type.

Definition at line 76 of file csma-channel.h.

Constructor & Destructor Documentation

ns3::CsmaChannel::CsmaChannel ( )

Create a CsmaChannel.

Definition at line 52 of file csma-channel.cc.

References ns3::IDLE, m_deviceList, m_state, and NS_LOG_FUNCTION_NOARGS.

ns3::CsmaChannel::~CsmaChannel ( )

virtual

Destroy a CsmaChannel.

Definition at line 61 of file csma-channel.cc.

References m_deviceList, and NS_LOG_FUNCTION.

ns3::CsmaChannel::CsmaChannel ( CsmaChannel const & )

private

Member Function Documentation

int32_t ns3::CsmaChannel::Attach ( Ptr< CsmaNetDevice > device )

Attach a given netdevice to this channel.

Parameters

device Device pointer to the netdevice to attach to the channel

Returns: The assigned device number

Definition at line 68 of file csma-channel.cc.

References m_deviceList, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::CsmaNetDevice::Attach().

Here is the caller graph for this function:

bool ns3::CsmaChannel::Detach ( Ptr< CsmaNetDevice > device )

Detach a given netdevice from this channel.

The net device is marked as inactive and it is not allowed to receive or transmit packets

Parameters

device Device pointer to the netdevice to detach from the channel

Returns: True if the device is found and attached to the channel, false if the device is not currently connected to the channel or can't be found.

Definition at line 154 of file csma-channel.cc.

References m_deviceList, NS_ASSERT, and NS_LOG_FUNCTION.

bool ns3::CsmaChannel::Detach ( uint32_t deviceId )

Detach a given netdevice from this channel.

The net device is marked as inactive and it is not allowed to receive or transmit packets

Parameters

deviceId The deviceID assigned to the net device when it was connected to the channel

Returns: True if the device is found and attached to the channel, false if the device is not currently connected to the channel or can't be found.

Definition at line 126 of file csma-channel.cc.

References m_currentSrc, m_deviceList, m_state, NS_LOG_FUNCTION, NS_LOG_WARN, and ns3::TRANSMITTING.

Ptr< CsmaNetDevice > ns3::CsmaChannel::GetCsmaDevice ( uint32_t i ) const

Returns: Get a CsmaNetDevice pointer to a connected network device.

Parameters

i	The deviceId of the net device for which we want the pointer.

Returns: Returns the pointer to the net device that is associated with deviceId i.

Definition at line 277 of file csma-channel.cc.

References m_deviceList.

Referenced by GetDevice().

Here is the caller graph for this function:

DataRate ns3::CsmaChannel::GetDataRate ( void )

Get the assigned data rate of the channel

Returns: Returns the DataRate to be used by device transmitters. with deviceId i.

Definition at line 320 of file csma-channel.cc.

References m_bps.

Referenced by ns3::CsmaNetDevice::Attach().

Here is the caller graph for this function:

Time ns3::CsmaChannel::GetDelay ( void )

Get the assigned speed-of-light delay of the channel

Returns: Returns the delay used by the channel.

Definition at line 326 of file csma-channel.cc.

References m_delay.

Ptr< NetDevice > ns3::CsmaChannel::GetDevice ( uint32_t i ) const

virtual

Returns: Get a NetDevice pointer to a connected network device.

Parameters

i	The index of the net device.

Returns: Returns the pointer to the net device that is associated with deviceId i.

Implements ns3::Channel.

Definition at line 338 of file csma-channel.cc.

References GetCsmaDevice().

Here is the call graph for this function:

int32_t ns3::CsmaChannel::GetDeviceNum ( Ptr< CsmaNetDevice > device )

Returns: Returns the device number assigned to a net device by the channel

Parameters

device Device pointer to the netdevice for which the device number is needed

Definition at line 284 of file csma-channel.cc.

References m_deviceList.

uint32_t ns3::CsmaChannel::GetNDevices ( void ) const

virtual

Returns: Returns the total number of devices including devices that have been detached from the channel.

Implements ns3::Channel.

Definition at line 271 of file csma-channel.cc.

References m_deviceList.

uint32_t ns3::CsmaChannel::GetNumActDevices ( void )

Returns: Returns the number of net devices that are currently attached to the channel.

Definition at line 256 of file csma-channel.cc.

References m_deviceList.

WireState ns3::CsmaChannel::GetState ( void )

Returns: Returns the state of the channel (IDLE – free, TRANSMITTING – busy, PROPAGATING - busy )

Definition at line 332 of file csma-channel.cc.

References m_state.

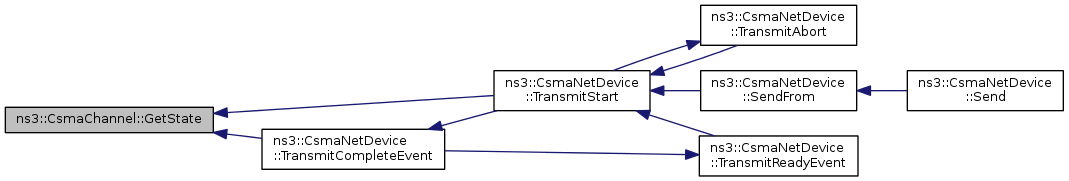

Referenced by ns3::CsmaNetDevice::TransmitCompleteEvent(), and ns3::CsmaNetDevice::TransmitStart().

Here is the caller graph for this function:

TypeId ns3::CsmaChannel::GetTypeId ( void )

static

Reimplemented from ns3::Channel.

Definition at line 34 of file csma-channel.cc.

References m_bps, m_delay, ns3::Seconds(), and ns3::TypeId::SetParent().

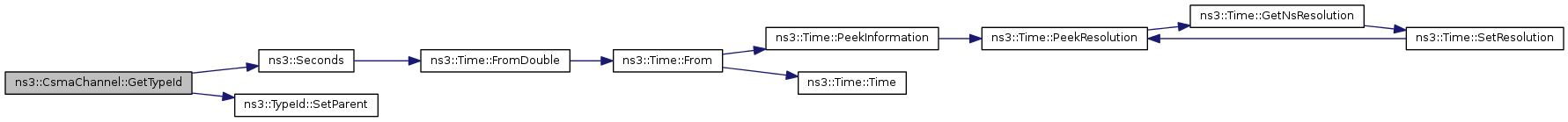

Here is the call graph for this function:

bool ns3::CsmaChannel::IsActive ( uint32_t deviceId )

Indicates if a net device is currently attached or detached from the channel.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel.

Returns: Returns true if the net device is attached to the channel, false otherwise.

Definition at line 197 of file csma-channel.cc.

References m_deviceList.

Referenced by TransmitEnd(), and TransmitStart().

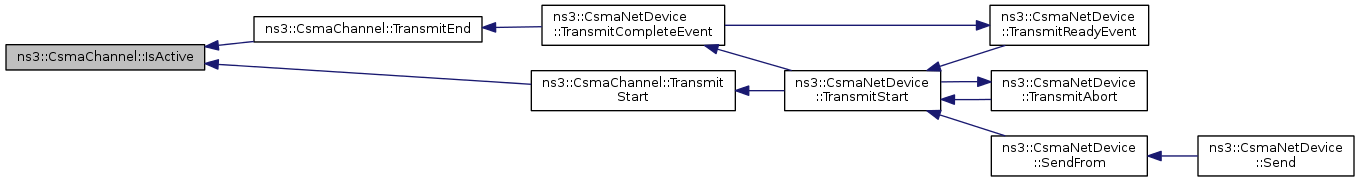

Here is the caller graph for this function:

bool ns3::CsmaChannel::IsBusy ( void )

Indicates if the channel is busy. The channel will only accept new packets for transmission if it is not busy.

Returns: Returns true if the channel is busy and false if it is free.

Definition at line 307 of file csma-channel.cc.

References ns3::IDLE, and m_state.

CsmaChannel& ns3::CsmaChannel::operator= ( CsmaChannel const & )

private

void ns3::CsmaChannel::PropagationCompleteEvent ( )

Indicates that the channel has finished propagating the current packet. The channel is released and becomes free.

Calls the receive function of every active net device that is attached to the channel.

Definition at line 246 of file csma-channel.cc.

References ns3::Packet::GetUid(), ns3::IDLE, m_currentPkt, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::PROPAGATING.

Referenced by TransmitEnd().

Here is the call graph for this function:

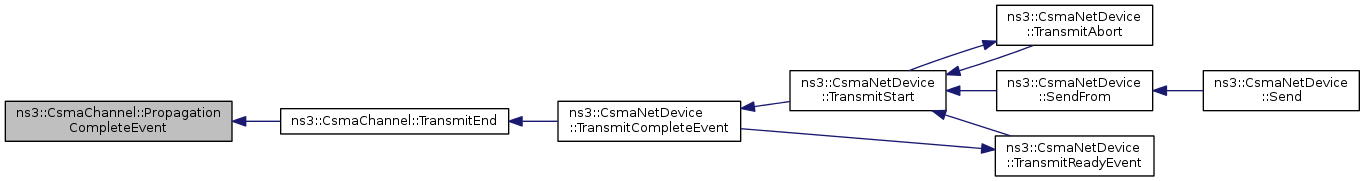

Here is the caller graph for this function:

bool ns3::CsmaChannel::Reattach ( uint32_t deviceId )

Reattach a previously detached net device to the channel.

The net device is marked as active. It is now allowed to receive or transmit packets. The net device must have been previously attached to the channel using the attach function.

Parameters

deviceId The device ID assigned to the net device when it was connected to the channel

Returns: True if the device is found and is not attached to the channel, false if the device is currently connected to the channel or can't be found.

Definition at line 105 of file csma-channel.cc.

References m_deviceList, and NS_LOG_FUNCTION.

bool ns3::CsmaChannel::Reattach ( Ptr< CsmaNetDevice > device )

Reattach a previously detached net device to the channel.

The net device is marked as active. It is now allowed to receive or transmit packets. The net device must have been previously attached to the channel using the attach function.

Parameters

device Device pointer to the netdevice to detach from the channel

Returns: True if the device is found and is not attached to the channel, false if the device is currently connected to the channel or can't be found.

Definition at line 80 of file csma-channel.cc.

References m_deviceList, NS_ASSERT, and NS_LOG_FUNCTION.

bool ns3::CsmaChannel::TransmitEnd ( )

Indicates that the net device has finished transmitting the packet over the channel.

The channel will stay busy until the packet has completely propagated to all net devices attached to the channel. The TransmitEnd function schedules the PropagationCompleteEvent which will free the channel for further transmissions. Stores the packet p as the m_currentPkt, the packet being currently transmitting.

Returns: Returns true unless the source was detached before it completed its transmission.

Definition at line 203 of file csma-channel.cc.

References ns3::Packet::Copy(), ns3::Time::GetSeconds(), ns3::Packet::GetUid(), IsActive(), m_currentPkt, m_currentSrc, m_delay, m_deviceList, m_state, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::PROPAGATING, PropagationCompleteEvent(), ns3::CsmaNetDevice::Receive(), ns3::Simulator::Schedule(), ns3::Simulator::ScheduleWithContext(), and ns3::TRANSMITTING.

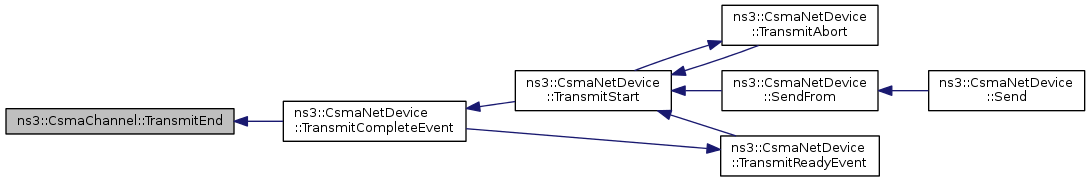

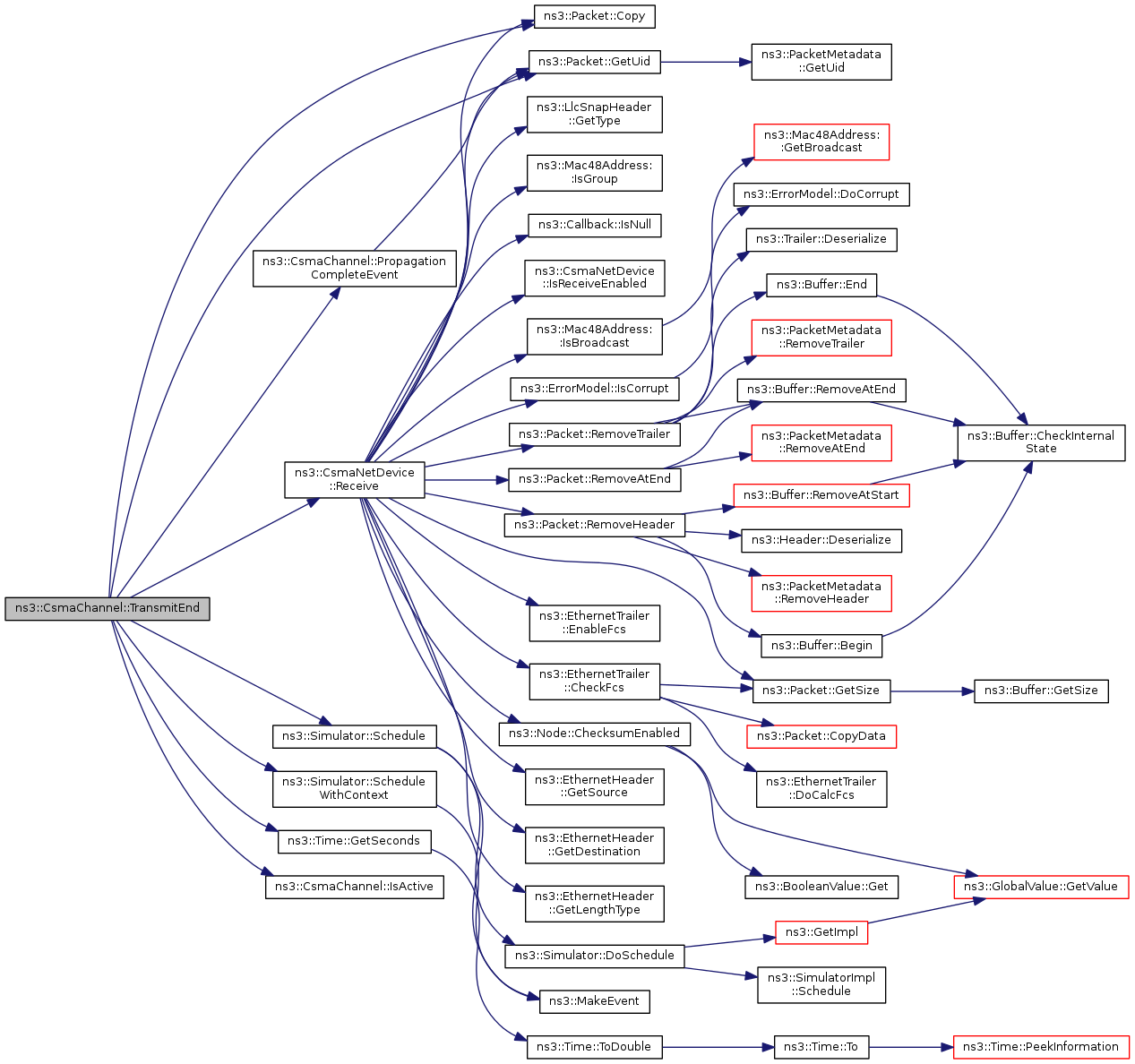

Referenced by ns3::CsmaNetDevice::TransmitCompleteEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::CsmaChannel::TransmitStart	(	Ptr< Packet >	p,
		uint32_t	srcId
	)

Start transmitting a packet over the channel.

If the srcId belongs to a net device that is connected to the channel, packet transmission begins, and the channel becomes busy until the packet has completely reached all destinations.

Parameters

p	A reference to the packet that will be transmitted over the channel
srcId	The device Id of the net device that wants to transmit on the channel.

Returns: True if the channel is not busy and the transmitting net device is currently active.

Definition at line 172 of file csma-channel.cc.

References ns3::Packet::GetUid(), ns3::IDLE, IsActive(), m_currentPkt, m_currentSrc, m_state, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, NS_LOG_WARN, and ns3::TRANSMITTING.

Referenced by ns3::CsmaNetDevice::TransmitStart().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

DataRate ns3::CsmaChannel::m_bps

private

The assigned data rate of the channel

Definition at line 284 of file csma-channel.h.

Referenced by GetDataRate(), and GetTypeId().

Ptr<Packet> ns3::CsmaChannel::m_currentPkt

private

The Packet that is currently being transmitted on the channel (or last packet to have been transmitted on the channel if the channel is free.)

Definition at line 309 of file csma-channel.h.

Referenced by PropagationCompleteEvent(), TransmitEnd(), and TransmitStart().

uint32_t ns3::CsmaChannel::m_currentSrc

private

Device Id of the source that is currently transmitting on the channel. Or last source to have transmitted a packet on the channel, if the channel is currently not busy.

Definition at line 316 of file csma-channel.h.

Referenced by Detach(), TransmitEnd(), and TransmitStart().

Time ns3::CsmaChannel::m_delay

private

The assigned speed-of-light delay of the channel

Definition at line 289 of file csma-channel.h.

Referenced by GetDelay(), GetTypeId(), and TransmitEnd().

std::vector<CsmaDeviceRec> ns3::CsmaChannel::m_deviceList

private

List of the net devices that have been or are currently connected to the channel.

Devices are nor removed from this list, they are marked as inactive. Otherwise the assigned device IDs will not refer to the correct NetDevice. The DeviceIds are used so that it is possible to have a number to refer to an entry in the list so that the whole list does not have to be searched when making sure that a source is attached to a channel when it is transmitting data.

Definition at line 302 of file csma-channel.h.

Referenced by Attach(), CsmaChannel(), Detach(), GetCsmaDevice(), GetDeviceNum(), GetNDevices(), GetNumActDevices(), IsActive(), Reattach(), TransmitEnd(), and ~CsmaChannel().

WireState ns3::CsmaChannel::m_state

private

Current state of the channel

Definition at line 321 of file csma-channel.h.

Referenced by CsmaChannel(), Detach(), GetState(), IsBusy(), PropagationCompleteEvent(), TransmitEnd(), and TransmitStart().

The documentation for this class was generated from the following files:

src/csma/model/csma-channel.h
src/csma/model/csma-channel.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Channel

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
