ns3::EdcaTxopN Class Reference

#include <edca-txop-n.h>

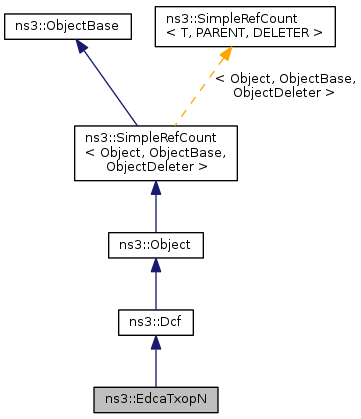

Inheritance diagram for ns3::EdcaTxopN:

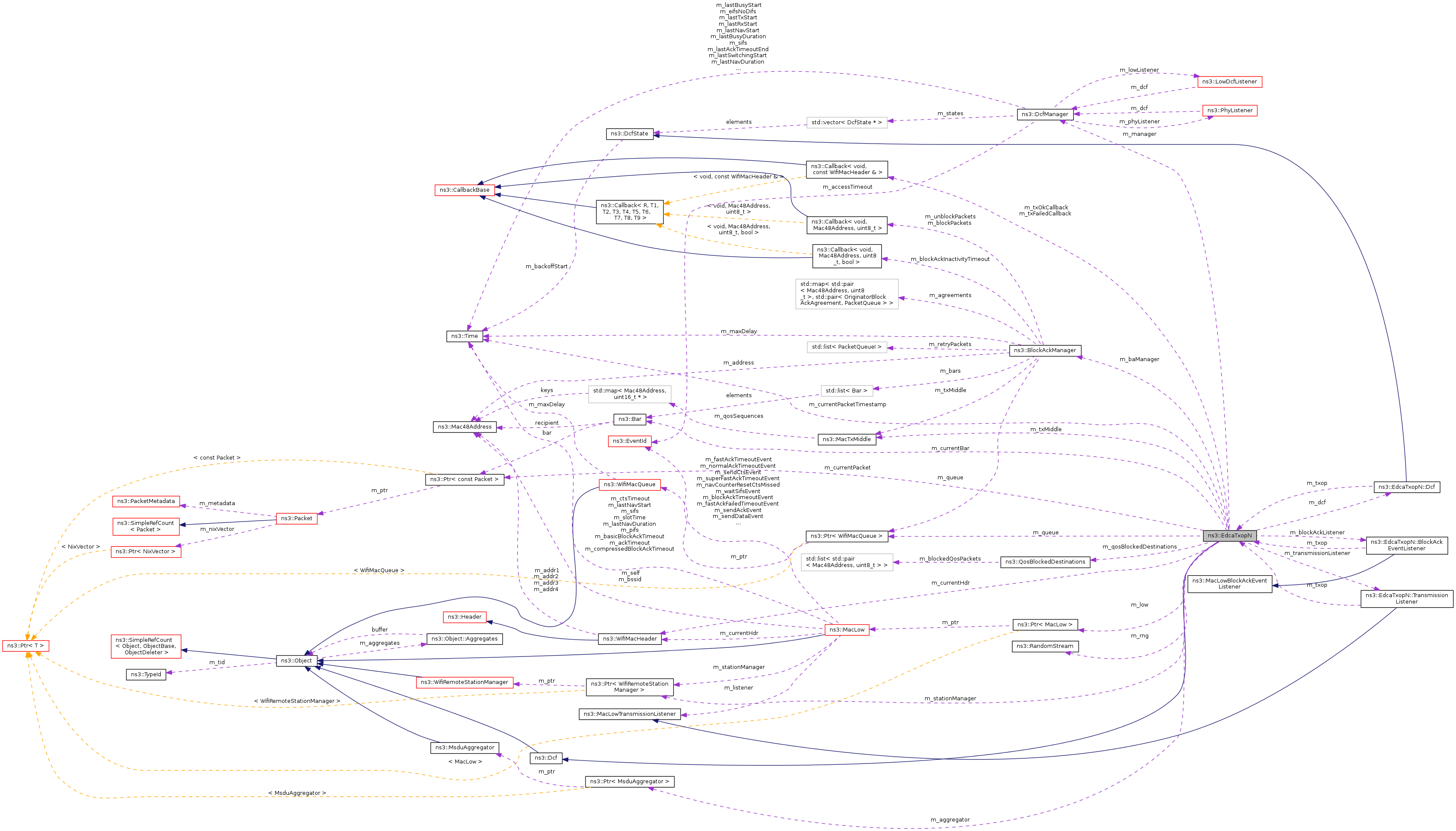

Collaboration diagram for ns3::EdcaTxopN:

Classes
class	BlockAckEventListener
class	Dcf
class	TransmissionListener

Public Types
typedef Callback< void, const WifiMacHeader & >	TxFailed
typedef Callback< void, const WifiMacHeader & >	TxOk

Public Member Functions
	EdcaTxopN ()
virtual	~EdcaTxopN ()
int64_t	AssignStreams (int64_t stream)
void	Cancel (void)
void	CompleteConfig (void)
void	DoDispose ()
void	EndTxNoAck (void)
virtual uint32_t	GetAifsn (void) const
uint8_t	GetBlockAckThreshold (void) const
uint32_t	GetFragmentOffset (void)
Ptr< Packet >	GetFragmentPacket (WifiMacHeader *hdr)
uint32_t	GetFragmentSize (void)
virtual uint32_t	GetMaxCw (void) const
virtual uint32_t	GetMinCw (void) const
Ptr< MsduAggregator >	GetMsduAggregator (void) const
uint32_t	GetNextFragmentSize (void)
Ptr< WifiMacQueue >	GetQueue () const
enum TypeOfStation	GetTypeOfStation (void) const
void	GotAck (double snr, WifiMode txMode)
void	GotAddBaResponse (const MgtAddBaResponseHeader *respHdr, Mac48Address recipient)
void	GotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address recipient)
void	GotCts (double snr, WifiMode txMode)
void	GotDelBaFrame (const MgtDelBaHeader *delBaHdr, Mac48Address recipient)
bool	IsLastFragment (void) const
Ptr< MacLow >	Low (void)
void	MissedAck (void)
void	MissedBlockAck (void)
void	MissedCts (void)
bool	NeedDataRetransmission (void)
bool	NeedFragmentation (void) const
bool	NeedRts (void)
bool	NeedRtsRetransmission (void)
bool	NeedsAccess (void) const
void	NextFragment (void)
void	NotifyAccessGranted (void)
void	NotifyChannelSwitching (void)
void	NotifyCollision (void)
void	NotifyInternalCollision (void)
void	PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)
void	Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)
void	RestartAccessIfNeeded (void)
void	SendDelbaFrame (Mac48Address addr, uint8_t tid, bool byOriginator)
void	SetAccessCategory (enum AcIndex ac)
virtual void	SetAifsn (uint32_t aifsn)
void	SetBlockAckInactivityTimeout (uint16_t timeout)
void	SetBlockAckThreshold (uint8_t threshold)
void	SetLow (Ptr< MacLow > low)
void	SetManager (DcfManager *manager)
virtual void	SetMaxCw (uint32_t maxCw)
virtual void	SetMinCw (uint32_t minCw)
void	SetMsduAggregator (Ptr< MsduAggregator > aggr)
void	SetTxFailedCallback (TxFailed callback)
void	SetTxMiddle (MacTxMiddle *txMiddle)
void	SetTxOkCallback (TxOk callback)
void	SetTypeOfStation (enum TypeOfStation type)
void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > remoteManager)
void	StartAccessIfNeeded (void)
void	StartNext (void)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
	EdcaTxopN (const EdcaTxopN &)
void	CompleteTx (void)
void	DoInitialize ()
Mac48Address	MapDestAddressForAggregation (const WifiMacHeader &hdr)
Mac48Address	MapSrcAddressForAggregation (const WifiMacHeader &hdr)
EdcaTxopN &	operator= (const EdcaTxopN &)
void	SendAddBaRequest (Mac48Address recipient, uint8_t tid, uint16_t startSeq, uint16_t timeout, bool immediateBAck)
void	SendBlockAckRequest (const struct Bar &bar)
bool	SetupBlockAckIfNeeded ()
void	VerifyBlockAck (void)

Private Attributes
AcIndex	m_ac
Ptr< MsduAggregator >	m_aggregator
BlockAckManager *	m_baManager
uint16_t	m_blockAckInactivityTimeout
BlockAckEventListener *	m_blockAckListener
uint8_t	m_blockAckThreshold
enum BlockAckType	m_blockAckType
struct Bar	m_currentBar
WifiMacHeader	m_currentHdr
Ptr< const Packet >	m_currentPacket
Time	m_currentPacketTimestamp
Dcf *	m_dcf
uint8_t	m_fragmentNumber
Ptr< MacLow >	m_low
DcfManager *	m_manager
QosBlockedDestinations *	m_qosBlockedDestinations
Ptr< WifiMacQueue >	m_queue
RandomStream *	m_rng
Ptr< WifiRemoteStationManager >	m_stationManager
TransmissionListener *	m_transmissionListener
TxFailed	m_txFailedCallback
MacTxMiddle *	m_txMiddle
TxOk	m_txOkCallback
TypeOfStation	m_typeOfStation

Friends
class	Dcf
class	TransmissionListener

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This queue contains packets for a particular access class. possibles access classes are:

-AC_VO : voice, tid = 6,7 ^ -AC_VI : video, tid = 4,5 | -AC_BE : best-effort, tid = 0,3 | priority -AC_BK : background, tid = 1,2 |

For more details see section 9.1.3.1 in 802.11 standard.

Config Paths

ns3::EdcaTxopN is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN

Attributes

• BlockAckThreshold: If number of packets in this queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:64
  • Initial value: 0
  • Flags: construct write read
• BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ack inactivity. If this value isn't equal to 0 a timer start after that a block ack setup is completed and will be reset every time that a block ack frame is received. If this value is 0, block ack inactivity timeout won't be used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 0
  • Flags: construct write
• Queue: The WifiMacQueue object
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::WifiMacQueue >
  • Flags: read

Attributes defined in parent class ns3::Dcf

• MinCw: The minimum value of the contention window.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 15
  • Flags: construct write read
• MaxCw: The maximum value of the contention window.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1023
  • Flags: construct write read
• Aifsn: The AIFSN: the default value conforms to simple DCA.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 2
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 77 of file edca-txop-n.h.

Member Typedef Documentation

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxFailed

Definition at line 81 of file edca-txop-n.h.

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxOk

Definition at line 80 of file edca-txop-n.h.

Constructor & Destructor Documentation

ns3::EdcaTxopN::EdcaTxopN

(

)

Definition at line 170 of file edca-txop-n.cc.

References ns3::QosBlockedDestinations::Block(), Dcf, ns3::WifiMacQueue::GetMaxDelay(), m_baManager, m_blockAckListener, m_blockAckType, m_dcf, m_qosBlockedDestinations, m_queue, m_rng, m_transmissionListener, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::BlockAckManager::SetBlockAckType(), ns3::BlockAckManager::SetBlockDestinationCallback(), ns3::BlockAckManager::SetMaxPacketDelay(), ns3::BlockAckManager::SetQueue(), ns3::BlockAckManager::SetUnblockDestinationCallback(), TransmissionListener, and ns3::QosBlockedDestinations::Unblock().

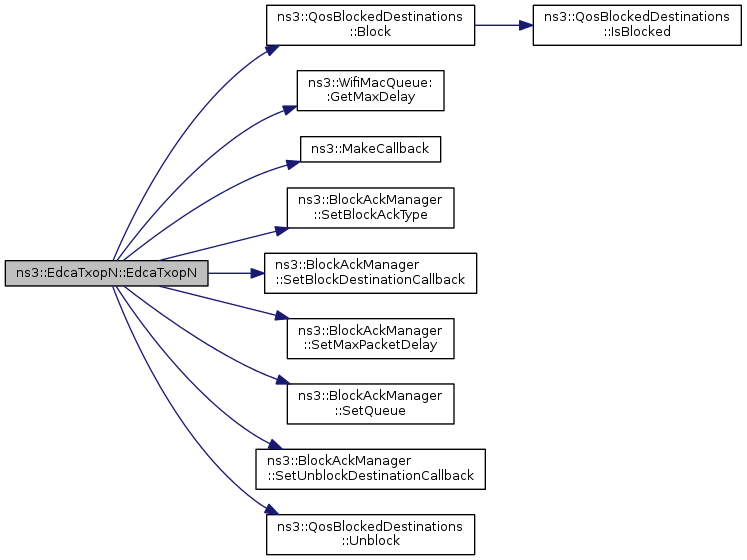

Here is the call graph for this function:

ns3::EdcaTxopN::~EdcaTxopN ( )

virtual

Definition at line 191 of file edca-txop-n.cc.

References NS_LOG_FUNCTION.

ns3::EdcaTxopN::EdcaTxopN ( const EdcaTxopN &  )

private

Member Function Documentation

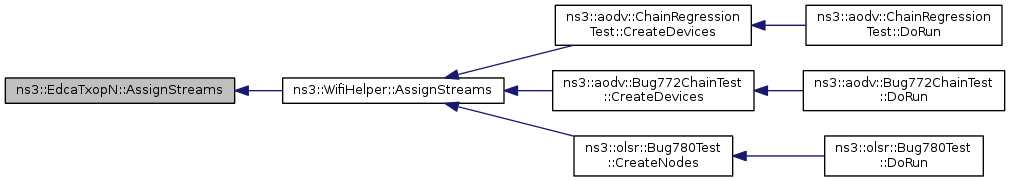

int64_t ns3::EdcaTxopN::AssignStreams

(

int64_t

stream

)

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream

first stream index to use

Returns

the number of stream indices assigned by this model

Definition at line 1148 of file edca-txop-n.cc.

References ns3::RandomStream::AssignStreams(), m_rng, and NS_LOG_FUNCTION.

Referenced by ns3::WifiHelper::AssignStreams().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::Cancel

(

void

)

Definition at line 743 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::Cancel().

Here is the caller graph for this function:

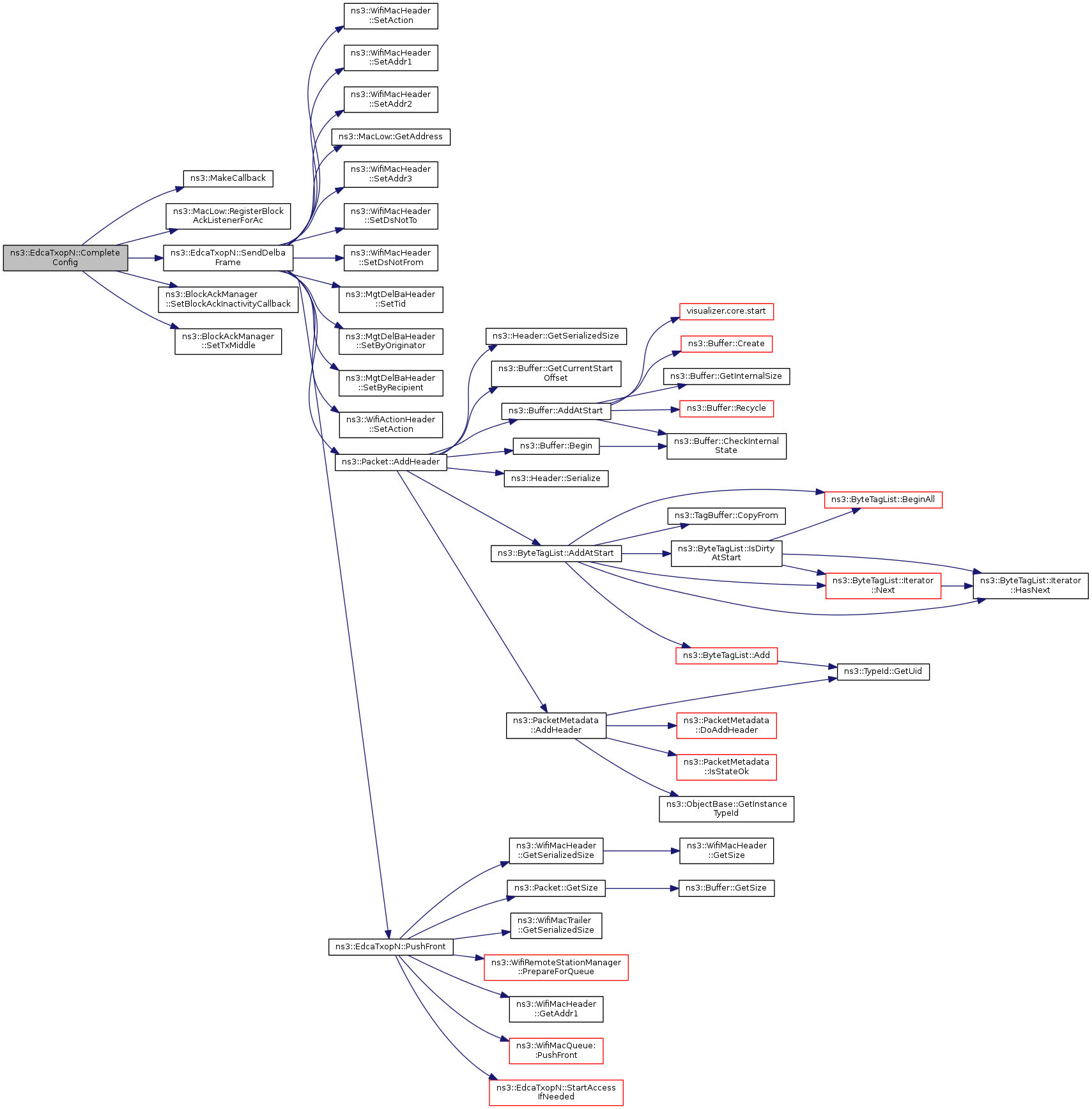

void ns3::EdcaTxopN::CompleteConfig

(

void

)

Definition at line 1019 of file edca-txop-n.cc.

References m_ac, m_baManager, m_blockAckListener, m_low, m_txMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::MacLow::RegisterBlockAckListenerForAc(), SendDelbaFrame(), ns3::BlockAckManager::SetBlockAckInactivityCallback(), and ns3::BlockAckManager::SetTxMiddle().

Here is the call graph for this function:

void ns3::EdcaTxopN::CompleteTx ( void  )

private

Definition at line 940 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsRetry(), m_baManager, m_currentHdr, m_currentPacket, m_currentPacketTimestamp, m_txMiddle, ns3::BlockAckManager::NotifyMpduTransmission(), NS_LOG_FUNCTION, and ns3::BlockAckManager::StorePacket().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::DoDispose ( void  )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 197 of file edca-txop-n.cc.

References m_aggregator, m_baManager, m_blockAckListener, m_dcf, m_low, m_qosBlockedDestinations, m_queue, m_rng, m_stationManager, m_transmissionListener, m_txMiddle, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::DoInitialize ( void  )

private

Definition at line 1156 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), and ns3::DcfState::StartBackoffNow().

Here is the call graph for this function:

void ns3::EdcaTxopN::EndTxNoAck

(

void

)

Definition at line 750 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentPacket, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), StartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::EndTxNoAck().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetAifsn ( void  ) const

virtual

Implements ns3::Dcf.

Definition at line 304 of file edca-txop-n.cc.

References ns3::DcfState::GetAifsn(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::EdcaTxopN::GetBlockAckThreshold

(

void

)

const

Definition at line 1043 of file edca-txop-n.cc.

References m_blockAckThreshold, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

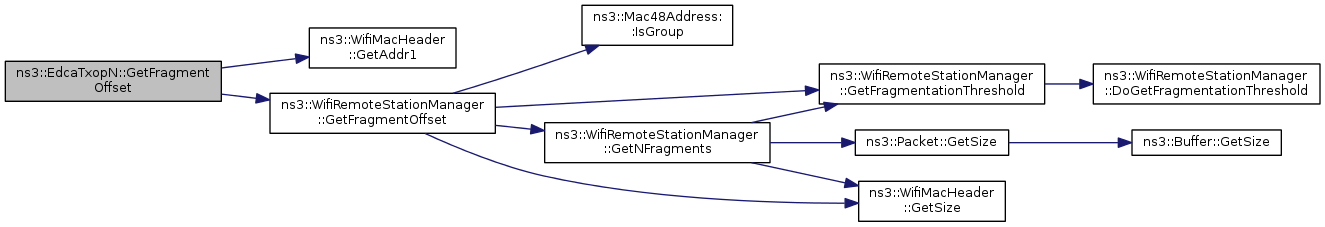

uint32_t ns3::EdcaTxopN::GetFragmentOffset

(

void

)

Definition at line 785 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentOffset(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

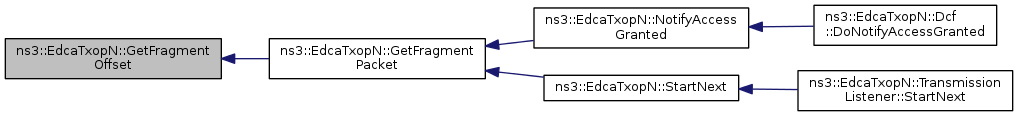

Here is the caller graph for this function:

Ptr< Packet > ns3::EdcaTxopN::GetFragmentPacket

(

WifiMacHeader *

hdr

)

Definition at line 802 of file edca-txop-n.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNext().

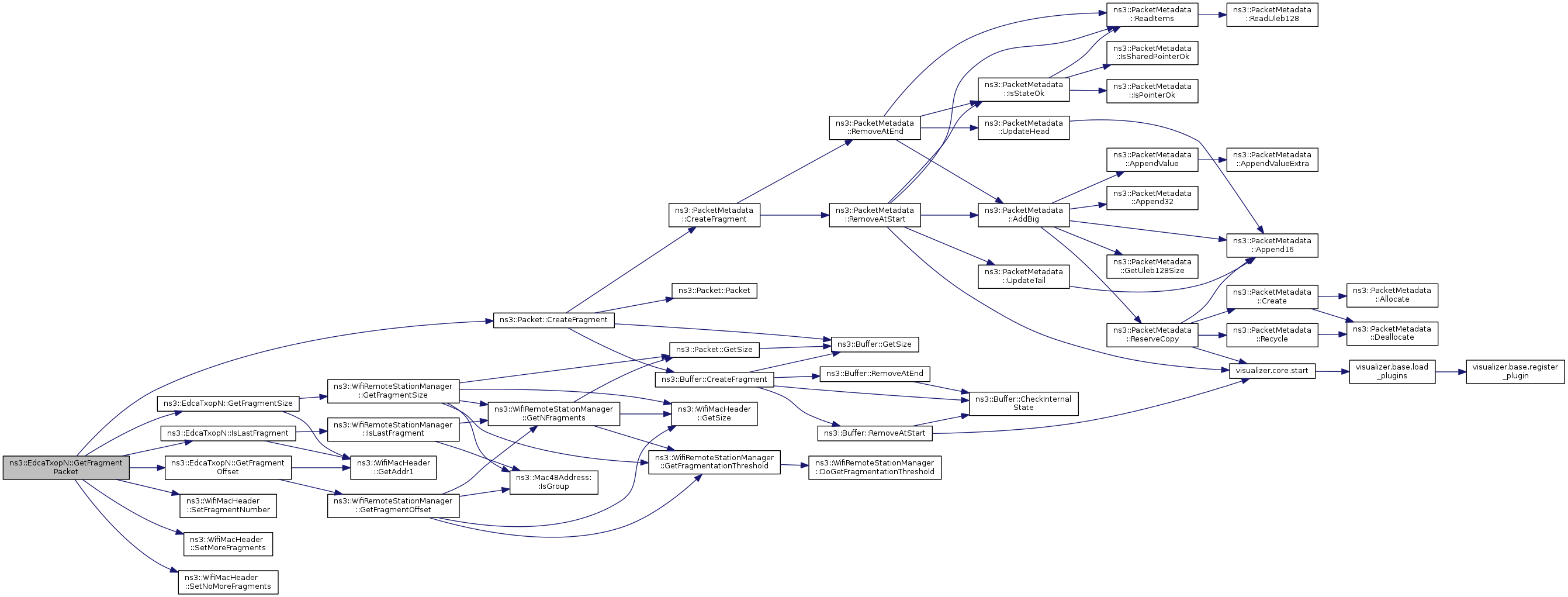

Here is the call graph for this function:

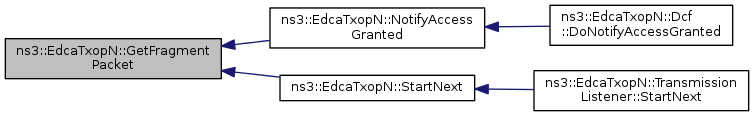

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetFragmentSize

(

void

)

Definition at line 769 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

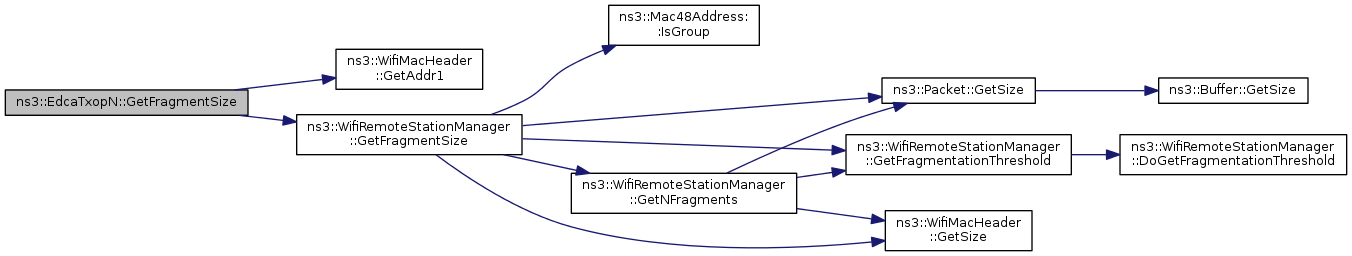

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetMaxCw ( void  ) const

virtual

Implements ns3::Dcf.

Definition at line 297 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMax(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::EdcaTxopN::GetMinCw ( void  ) const

virtual

Implements ns3::Dcf.

Definition at line 290 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMin(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< MsduAggregator > ns3::EdcaTxopN::GetMsduAggregator

(

void

)

const

Definition at line 658 of file edca-txop-n.cc.

References m_aggregator.

uint32_t ns3::EdcaTxopN::GetNextFragmentSize

(

void

)

Definition at line 777 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNext().

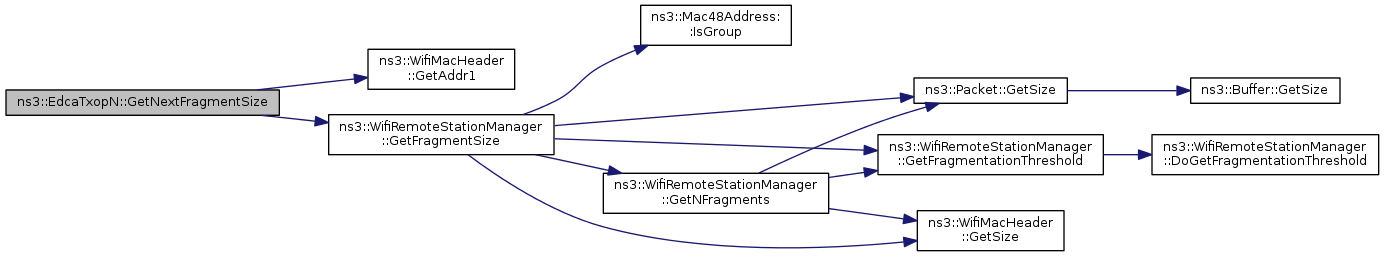

Here is the call graph for this function:

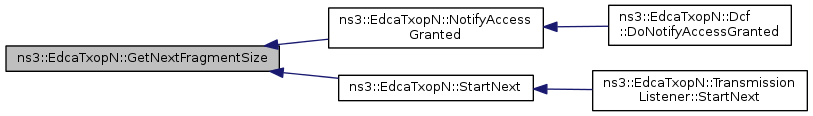

Here is the caller graph for this function:

Ptr< WifiMacQueue > ns3::EdcaTxopN::GetQueue

(

void

)

const

Definition at line 262 of file edca-txop-n.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

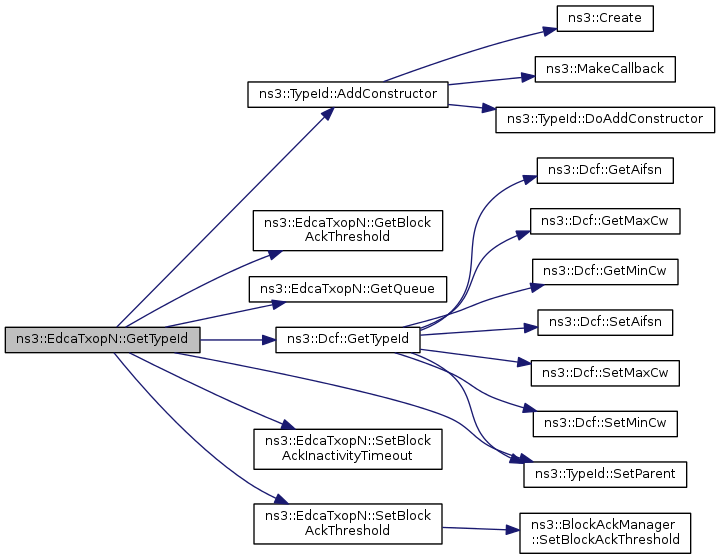

TypeId ns3::EdcaTxopN::GetTypeId ( void  )

static

Reimplemented from ns3::Dcf.

Definition at line 144 of file edca-txop-n.cc.

References ns3::TypeId::AddConstructor(), GetBlockAckThreshold(), GetQueue(), ns3::Dcf::GetTypeId(), SetBlockAckInactivityTimeout(), SetBlockAckThreshold(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

enum TypeOfStation ns3::EdcaTxopN::GetTypeOfStation

(

void

)

const

Definition at line 255 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

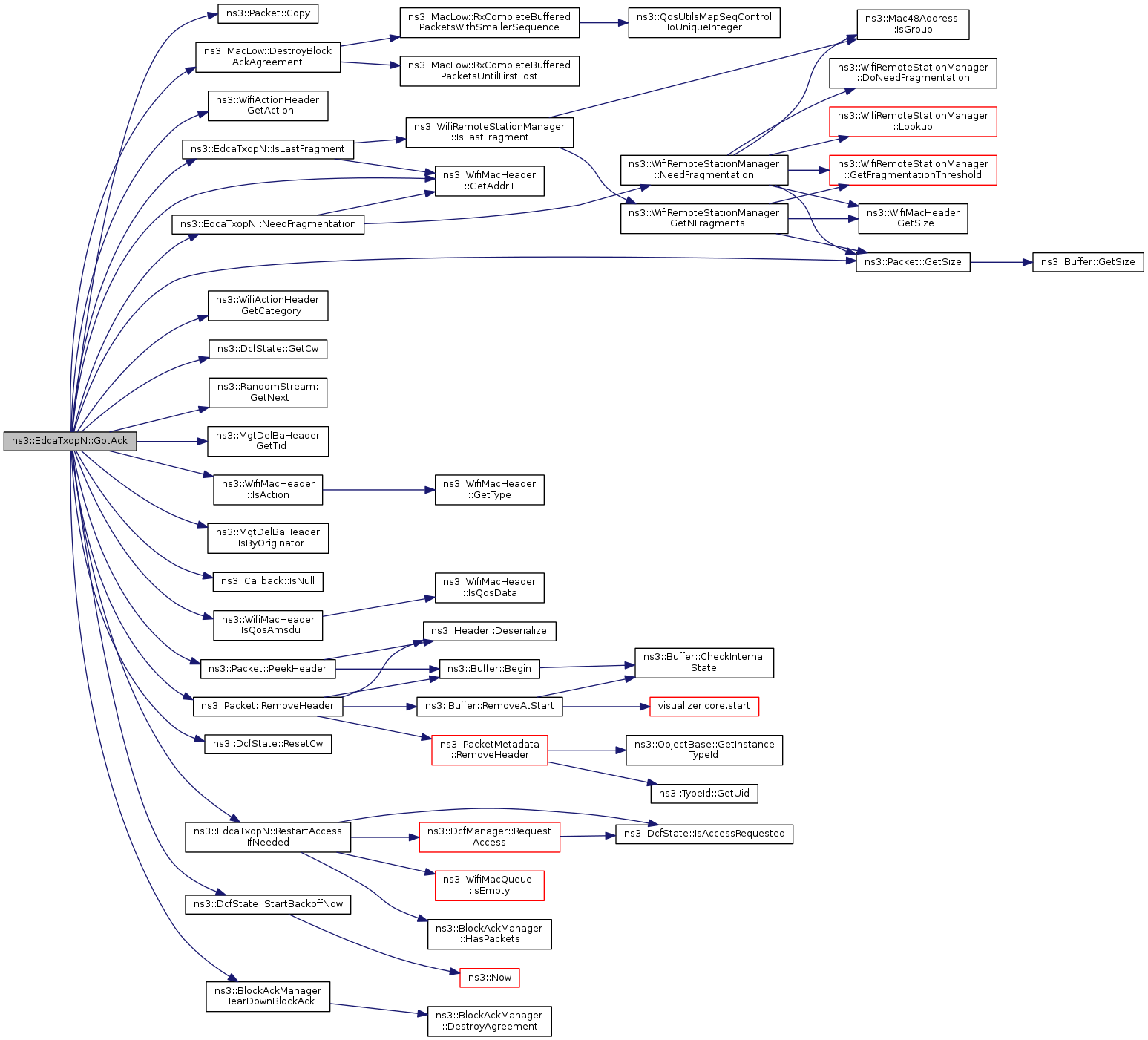

void ns3::EdcaTxopN::GotAck	(	double	snr,
		WifiMode	txMode
	)

Definition at line 571 of file edca-txop-n.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::Packet::Copy(), ns3::MacLow::DestroyBlockAckAgreement(), ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiActionHeader::GetCategory(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Packet::GetSize(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::WifiMacHeader::IsQosAmsdu(), m_baManager, m_currentHdr, m_currentPacket, m_dcf, m_low, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), ns3::Packet::RemoveHeader(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::BlockAckManager::TearDownBlockAck().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotAck().

Here is the call graph for this function:

Here is the caller graph for this function:

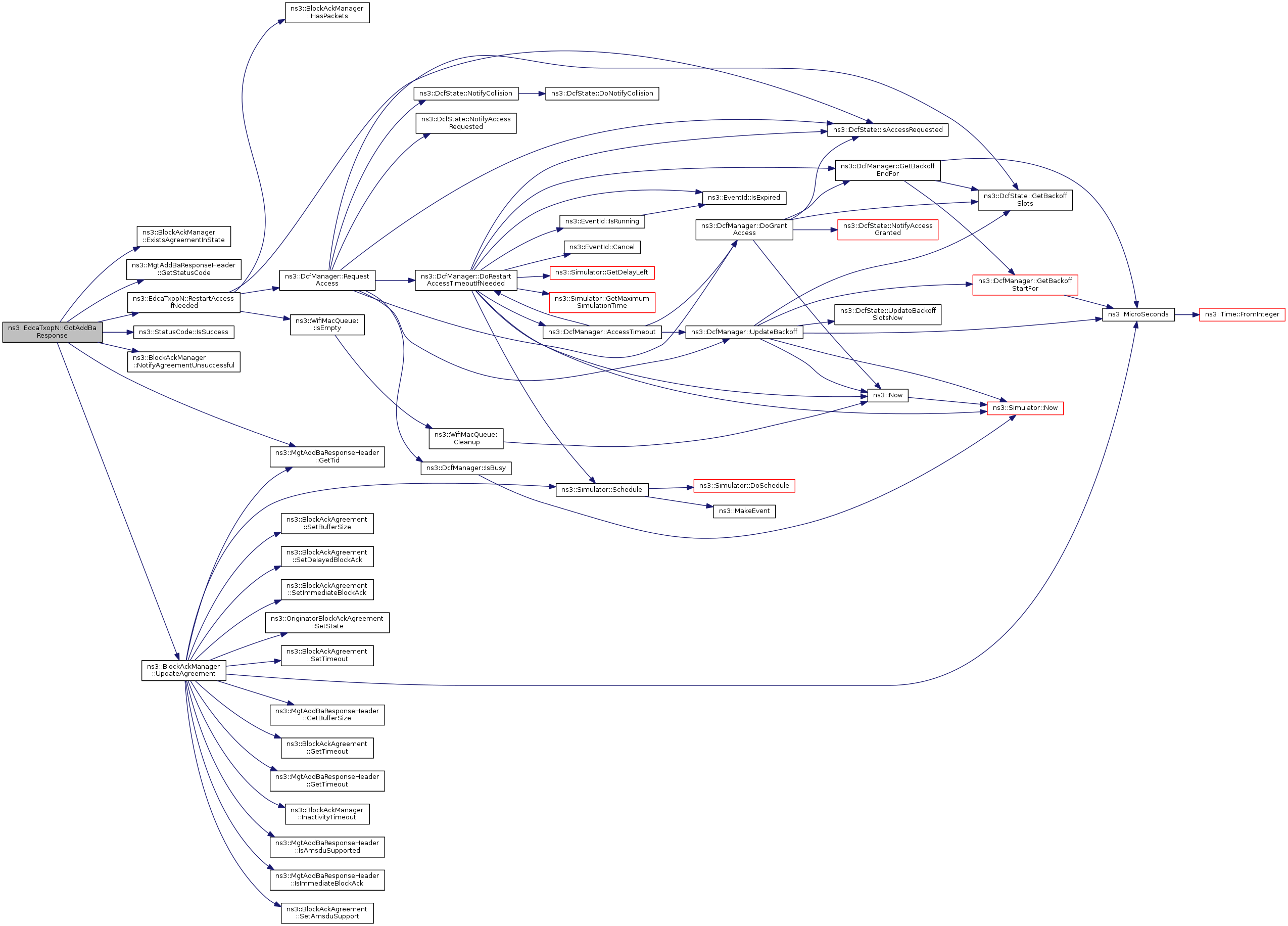

void ns3::EdcaTxopN::GotAddBaResponse	(	const MgtAddBaResponseHeader *	respHdr,
		Mac48Address	recipient
	)

Definition at line 881 of file edca-txop-n.cc.

References ns3::BlockAckManager::ExistsAgreementInState(), ns3::MgtAddBaResponseHeader::GetStatusCode(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::StatusCode::IsSuccess(), m_baManager, ns3::BlockAckManager::NotifyAgreementUnsuccessful(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, RestartAccessIfNeeded(), and ns3::BlockAckManager::UpdateAgreement().

Here is the call graph for this function:

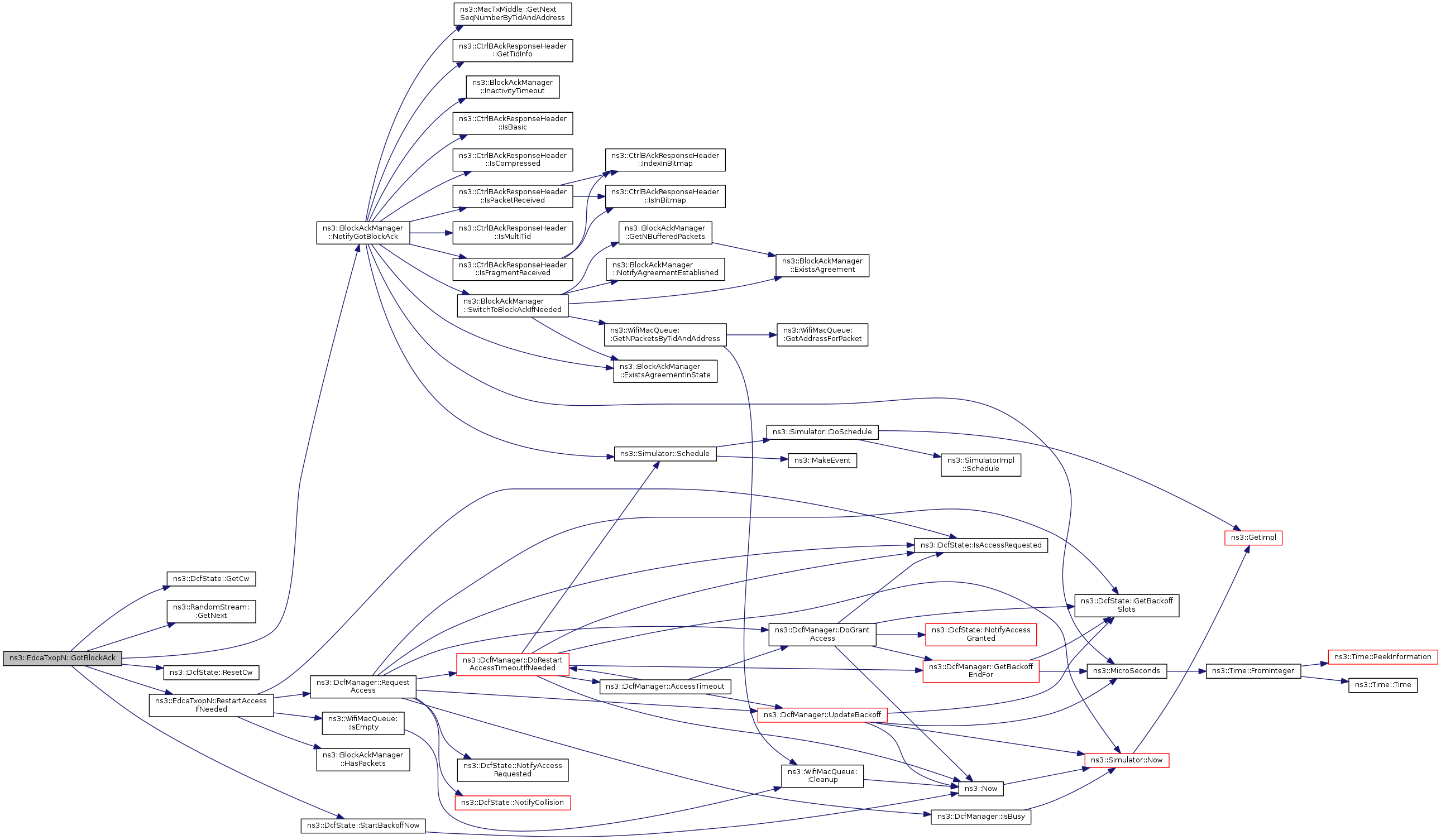

void ns3::EdcaTxopN::GotBlockAck	(	const CtrlBAckResponseHeader *	blockAck,
		Mac48Address	recipient
	)

Definition at line 911 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_baManager, m_currentPacket, m_dcf, m_rng, ns3::BlockAckManager::NotifyGotBlockAck(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::GotCts	(	double	snr,
		WifiMode	txMode
	)

Definition at line 519 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::GotCts().

Here is the caller graph for this function:

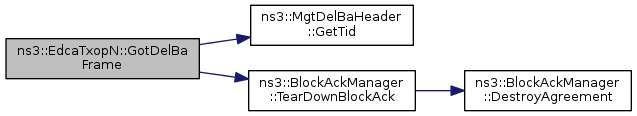

void ns3::EdcaTxopN::GotDelBaFrame	(	const MgtDelBaHeader *	delBaHdr,
		Mac48Address	recipient
	)

Definition at line 903 of file edca-txop-n.cc.

References ns3::MgtDelBaHeader::GetTid(), m_baManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::BlockAckManager::TearDownBlockAck().

Here is the call graph for this function:

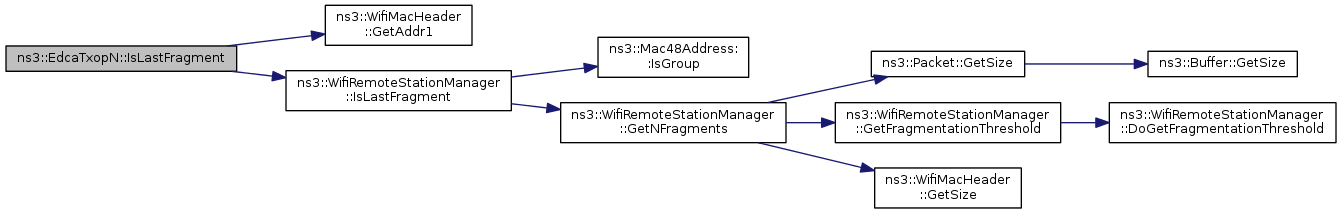

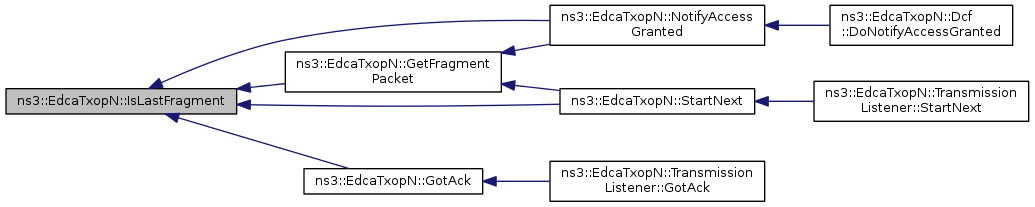

bool ns3::EdcaTxopN::IsLastFragment

(

void

)

const

Definition at line 794 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< MacLow > ns3::EdcaTxopN::Low

(

void

)

Definition at line 318 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by StartNext().

Here is the caller graph for this function:

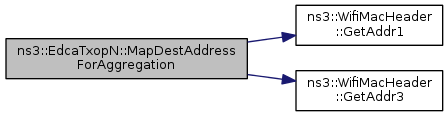

Mac48Address ns3::EdcaTxopN::MapDestAddressForAggregation ( const WifiMacHeader &  hdr )

private

Definition at line 846 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::AP, ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

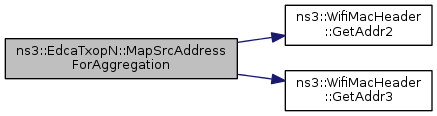

Mac48Address ns3::EdcaTxopN::MapSrcAddressForAggregation ( const WifiMacHeader &  hdr )

private

This functions are used only to correctly set addresses in a-msdu subframe. If aggregating sta is a STA (in an infrastructured network): SA = Address2 DA = Address3 If aggregating sta is an AP SA = Address3 DA = Address1

Definition at line 830 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, NS_LOG_FUNCTION, and ns3::STA.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

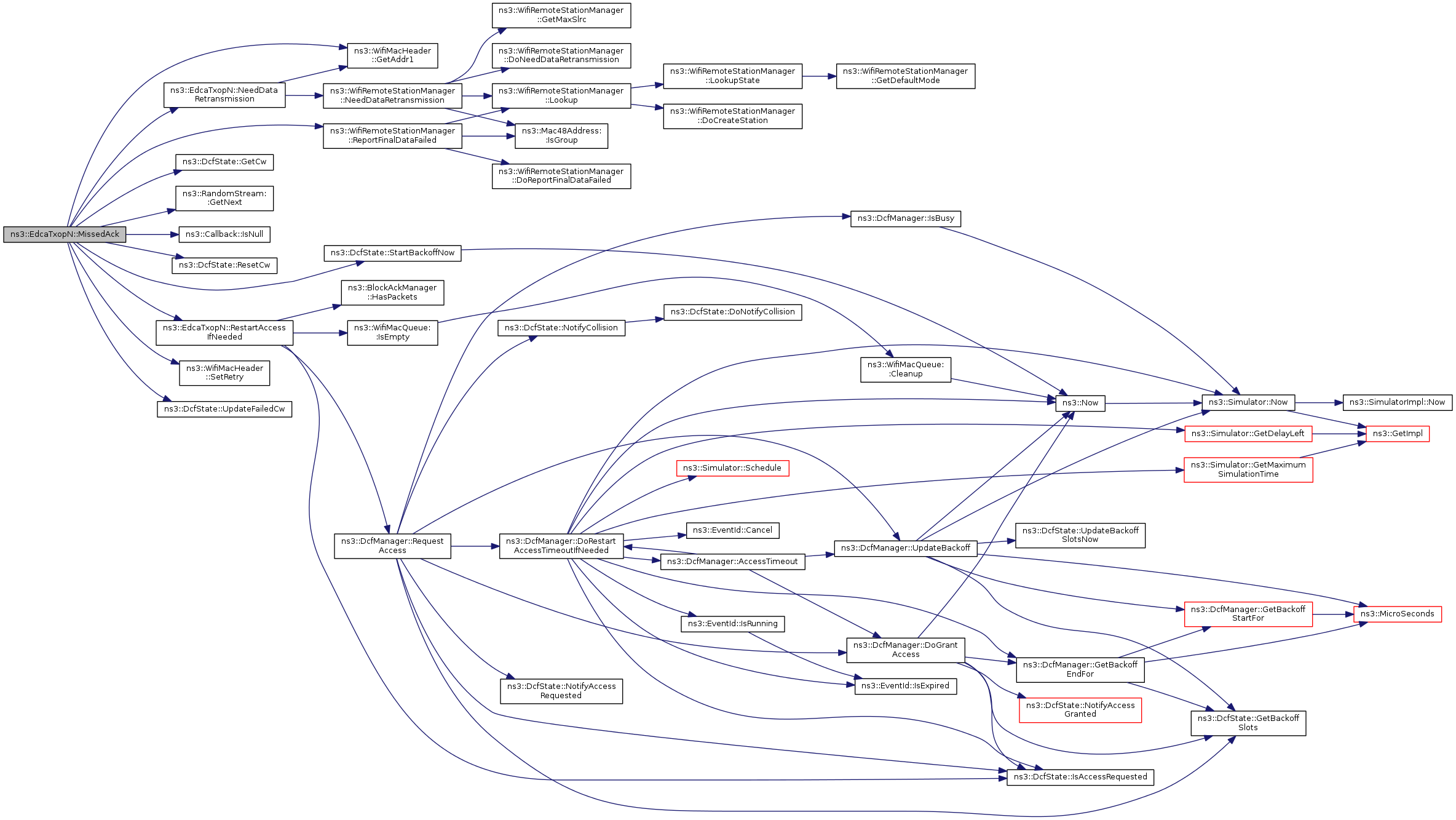

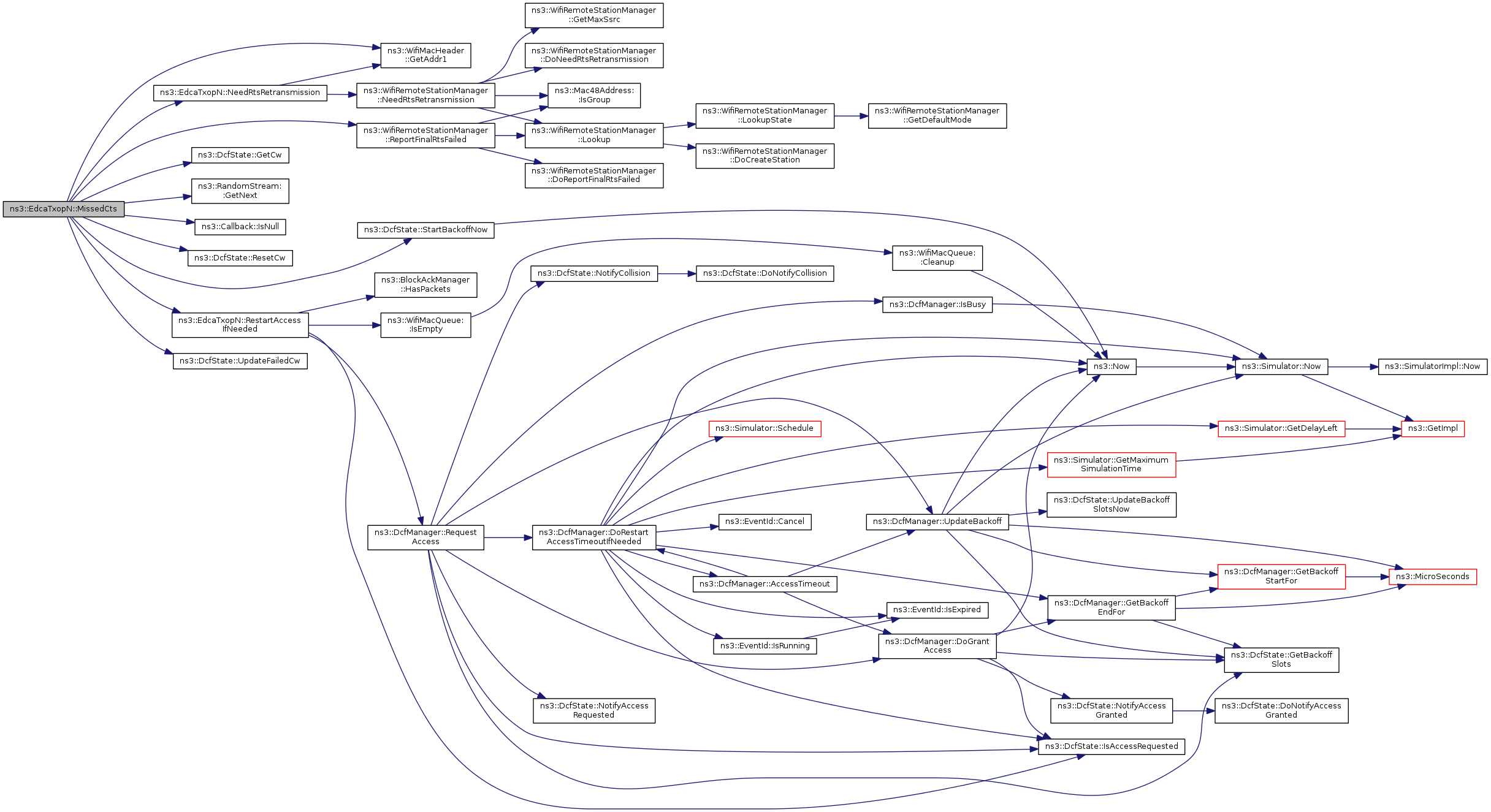

void ns3::EdcaTxopN::MissedAck

(

void

)

Definition at line 617 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

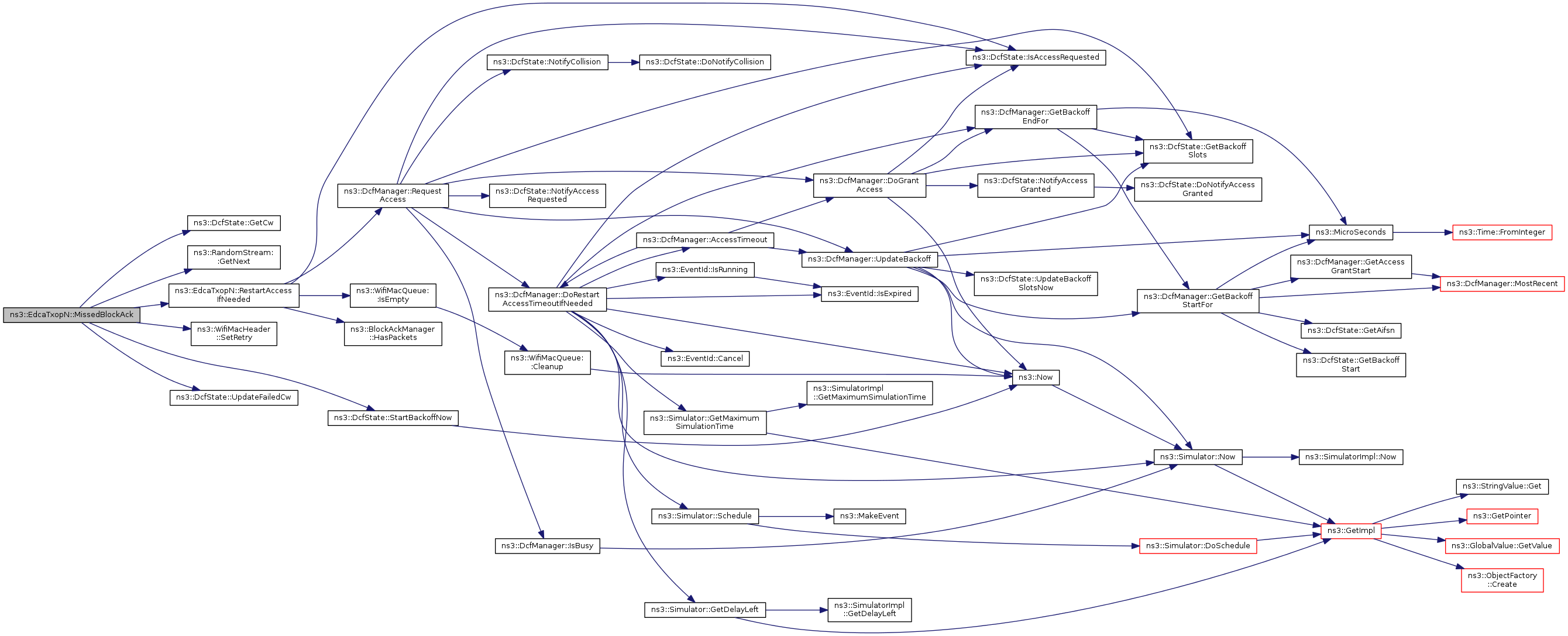

void ns3::EdcaTxopN::MissedBlockAck

(

void

)

Definition at line 644 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentHdr, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

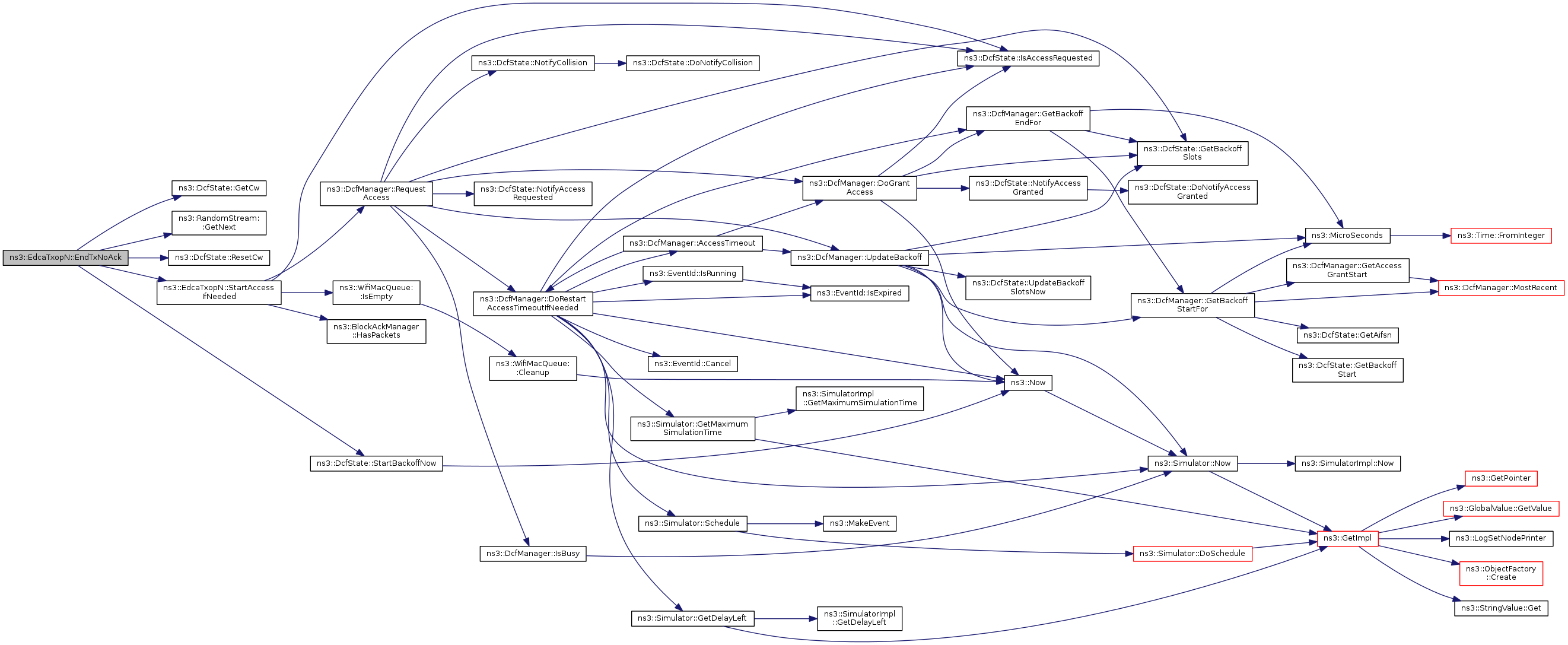

void ns3::EdcaTxopN::MissedCts

(

void

)

Definition at line 526 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedRtsRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalRtsFailed(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

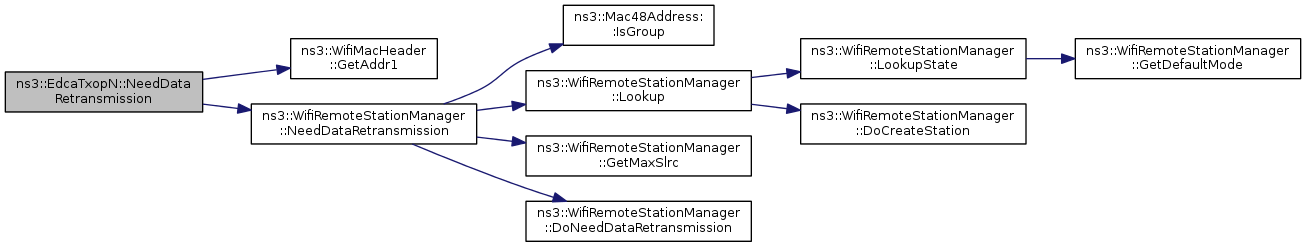

bool ns3::EdcaTxopN::NeedDataRetransmission

(

void

)

Definition at line 704 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedDataRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

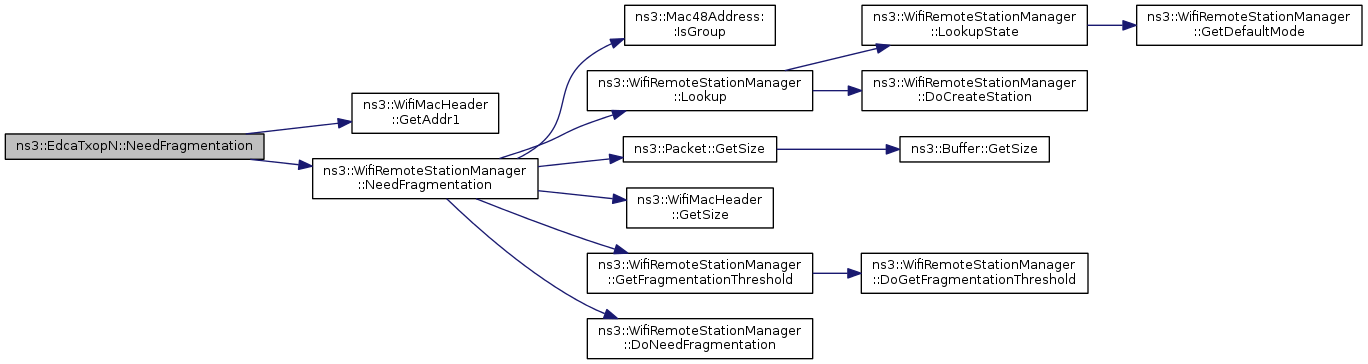

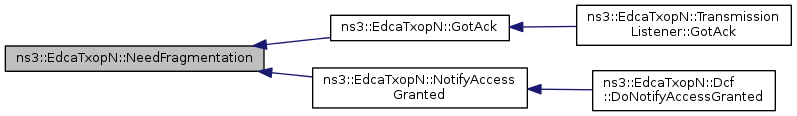

bool ns3::EdcaTxopN::NeedFragmentation

(

void

)

const

Definition at line 761 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedFragmentation(), and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

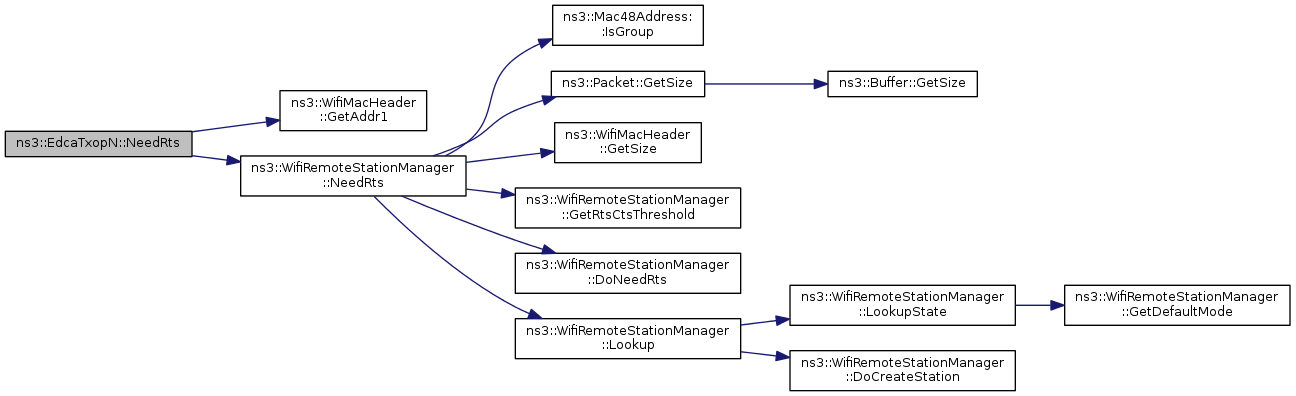

bool ns3::EdcaTxopN::NeedRts

(

void

)

Definition at line 688 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedRts(), and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

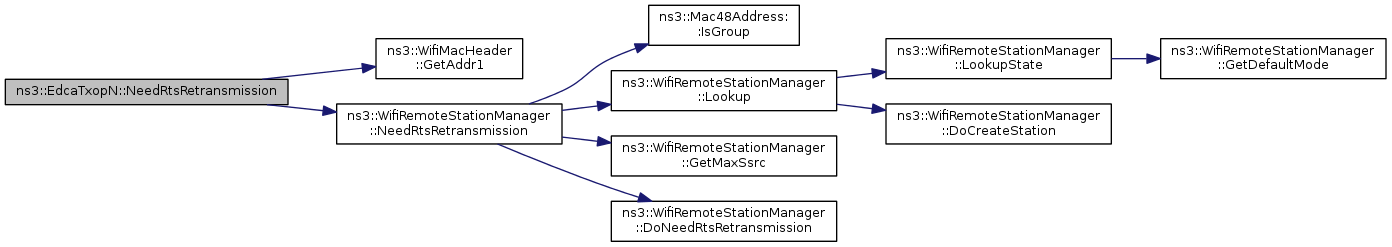

bool ns3::EdcaTxopN::NeedRtsRetransmission

(

void

)

Definition at line 696 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedRtsRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

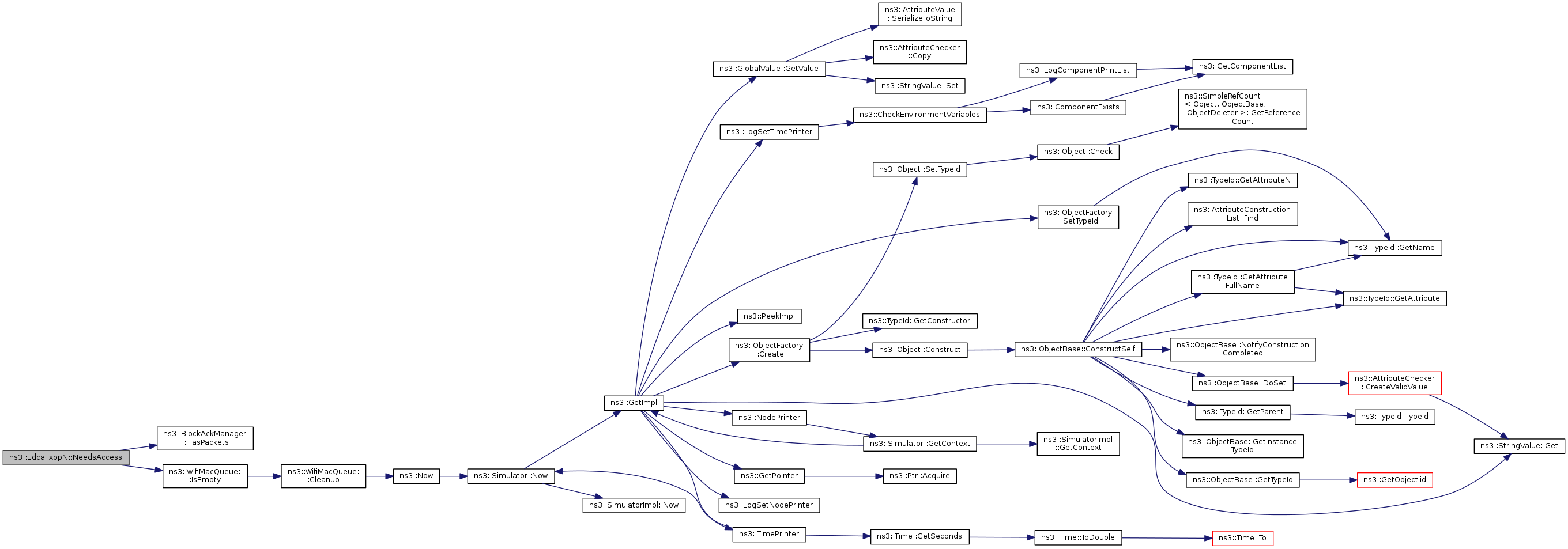

bool ns3::EdcaTxopN::NeedsAccess

(

void

)

const

Definition at line 332 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::WifiMacQueue::IsEmpty(), m_baManager, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::EdcaTxopN::NextFragment

(

void

)

Definition at line 712 of file edca-txop-n.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNext().

Here is the caller graph for this function:

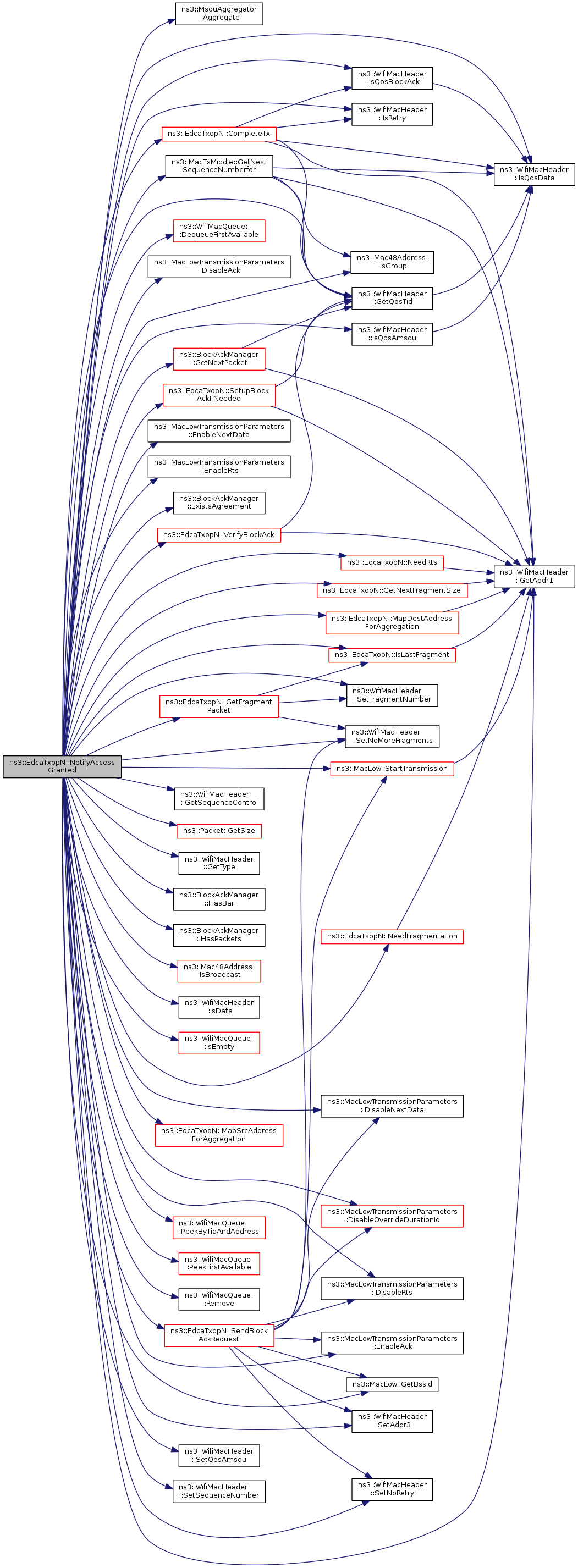

void ns3::EdcaTxopN::NotifyAccessGranted

(

void

)

Definition at line 339 of file edca-txop-n.cc.

References ns3::WifiMacHeader::ADDR1, ns3::MsduAggregator::Aggregate(), ns3::BASIC_BLOCK_ACK, CompleteTx(), ns3::WifiMacQueue::DequeueFirstAvailable(), ns3::MacLowTransmissionParameters::DisableAck(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), ns3::MacLowTransmissionParameters::EnableRts(), ns3::BlockAckManager::ExistsAgreement(), ns3::WifiMacHeader::GetAddr1(), ns3::MacLow::GetBssid(), GetFragmentPacket(), GetNextFragmentSize(), ns3::BlockAckManager::GetNextPacket(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceControl(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetType(), ns3::BlockAckManager::HasBar(), ns3::BlockAckManager::HasPackets(), ns3::Mac48Address::IsBroadcast(), ns3::WifiMacHeader::IsData(), ns3::WifiMacQueue::IsEmpty(), ns3::Mac48Address::IsGroup(), IsLastFragment(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsRetry(), m_aggregator, m_baManager, m_blockAckThreshold, m_blockAckType, m_currentBar, m_currentHdr, m_currentPacket, m_currentPacketTimestamp, m_fragmentNumber, m_low, m_qosBlockedDestinations, m_queue, m_transmissionListener, m_txMiddle, MapDestAddressForAggregation(), MapSrcAddressForAggregation(), NeedFragmentation(), NeedRts(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacQueue::PeekByTidAndAddress(), ns3::WifiMacQueue::PeekFirstAvailable(), ns3::WifiMacQueue::Remove(), SendBlockAckRequest(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetQosAmsdu(), ns3::WifiMacHeader::SetSequenceNumber(), SetupBlockAckIfNeeded(), ns3::MacLow::StartTransmission(), VerifyBlockAck(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyChannelSwitching

(

void

)

When a channel switching occurs, enqueued packets are removed.

Definition at line 551 of file edca-txop-n.cc.

References ns3::WifiMacQueue::Flush(), m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyChannelSwitching().

Here is the call graph for this function:

Here is the caller graph for this function:

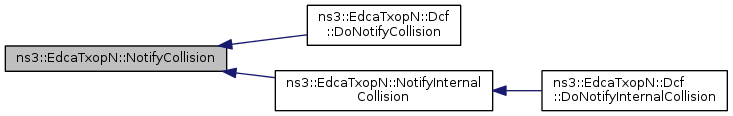

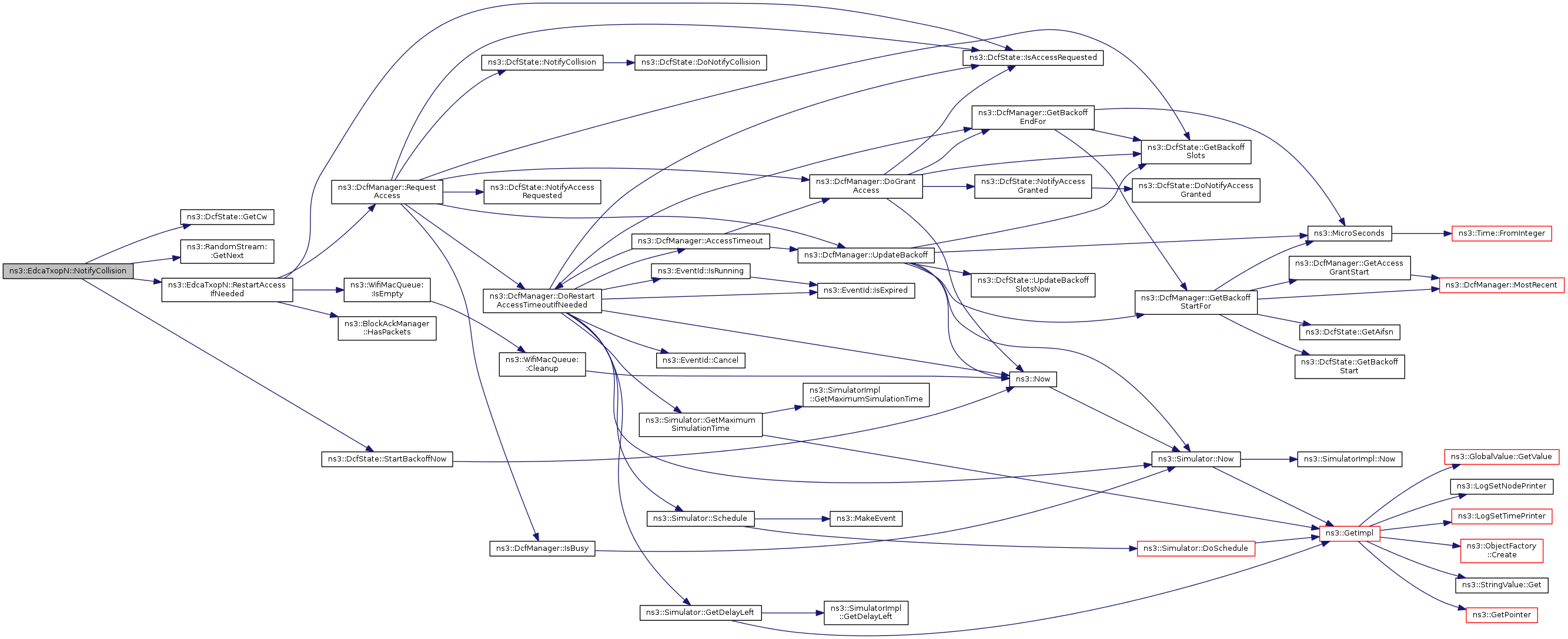

void ns3::EdcaTxopN::NotifyCollision

(

void

)

Definition at line 511 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyCollision(), and NotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

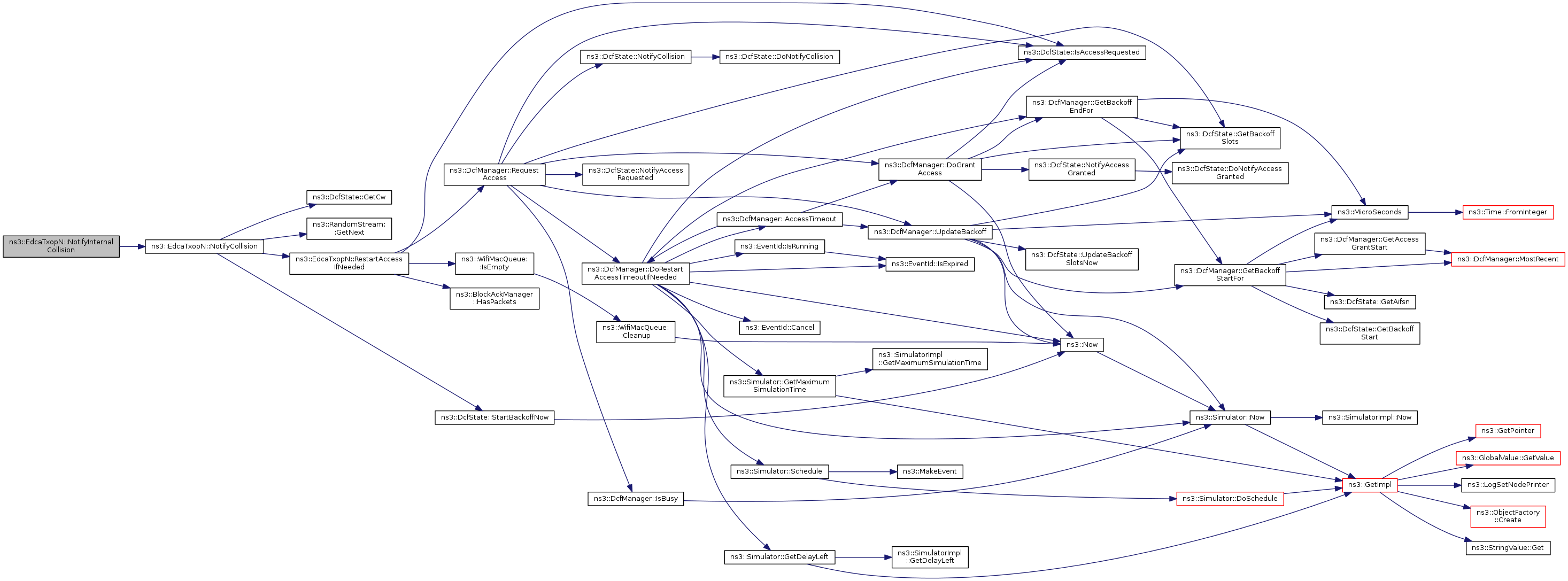

void ns3::EdcaTxopN::NotifyInternalCollision

(

void

)

Definition at line 504 of file edca-txop-n.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

EdcaTxopN& ns3::EdcaTxopN::operator= ( const EdcaTxopN &  )

private

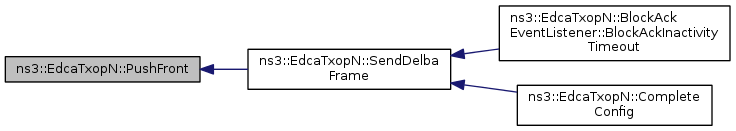

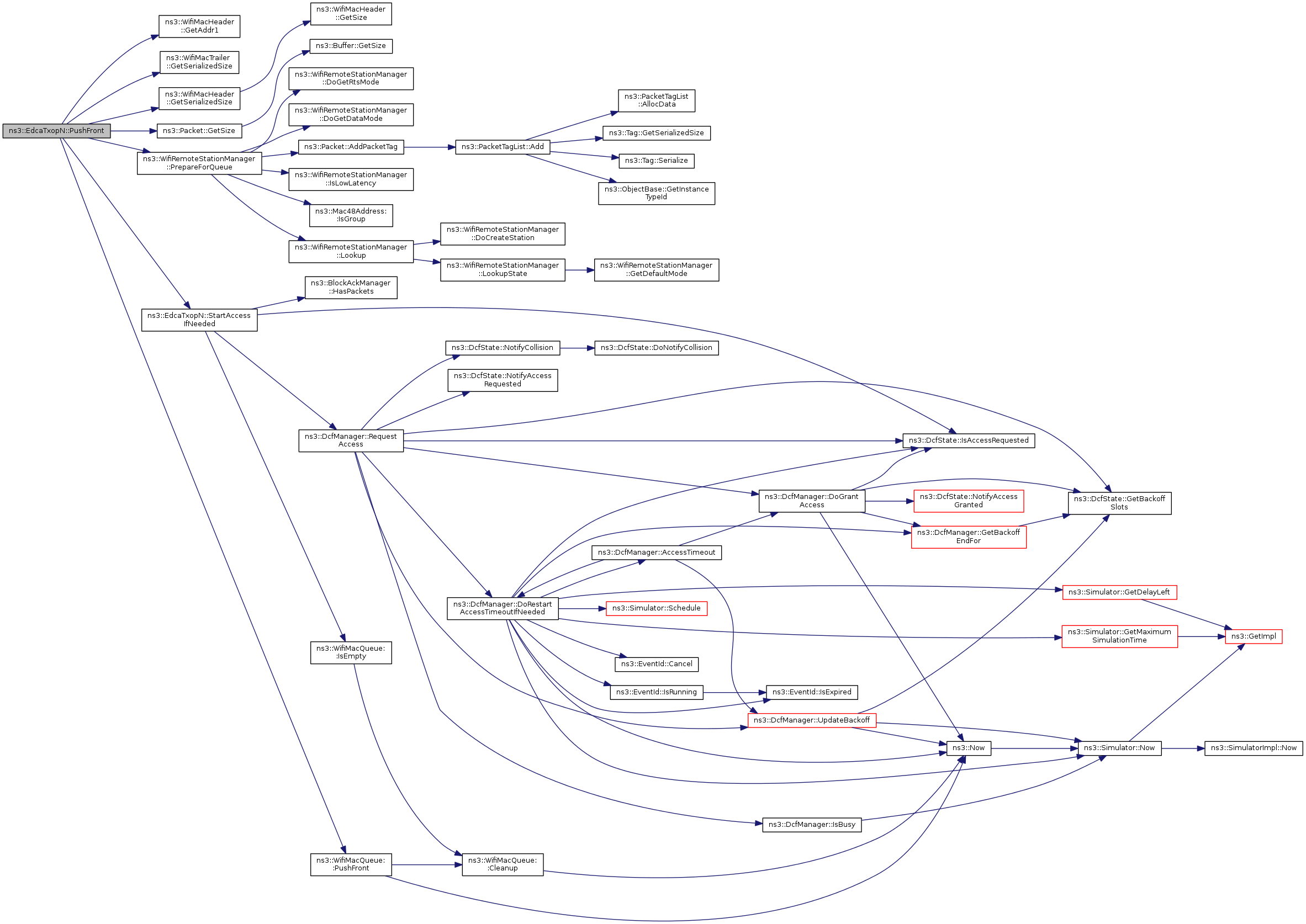

void ns3::EdcaTxopN::PushFront	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Definition at line 869 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::PrepareForQueue(), ns3::WifiMacQueue::PushFront(), and StartAccessIfNeeded().

Referenced by SendDelbaFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

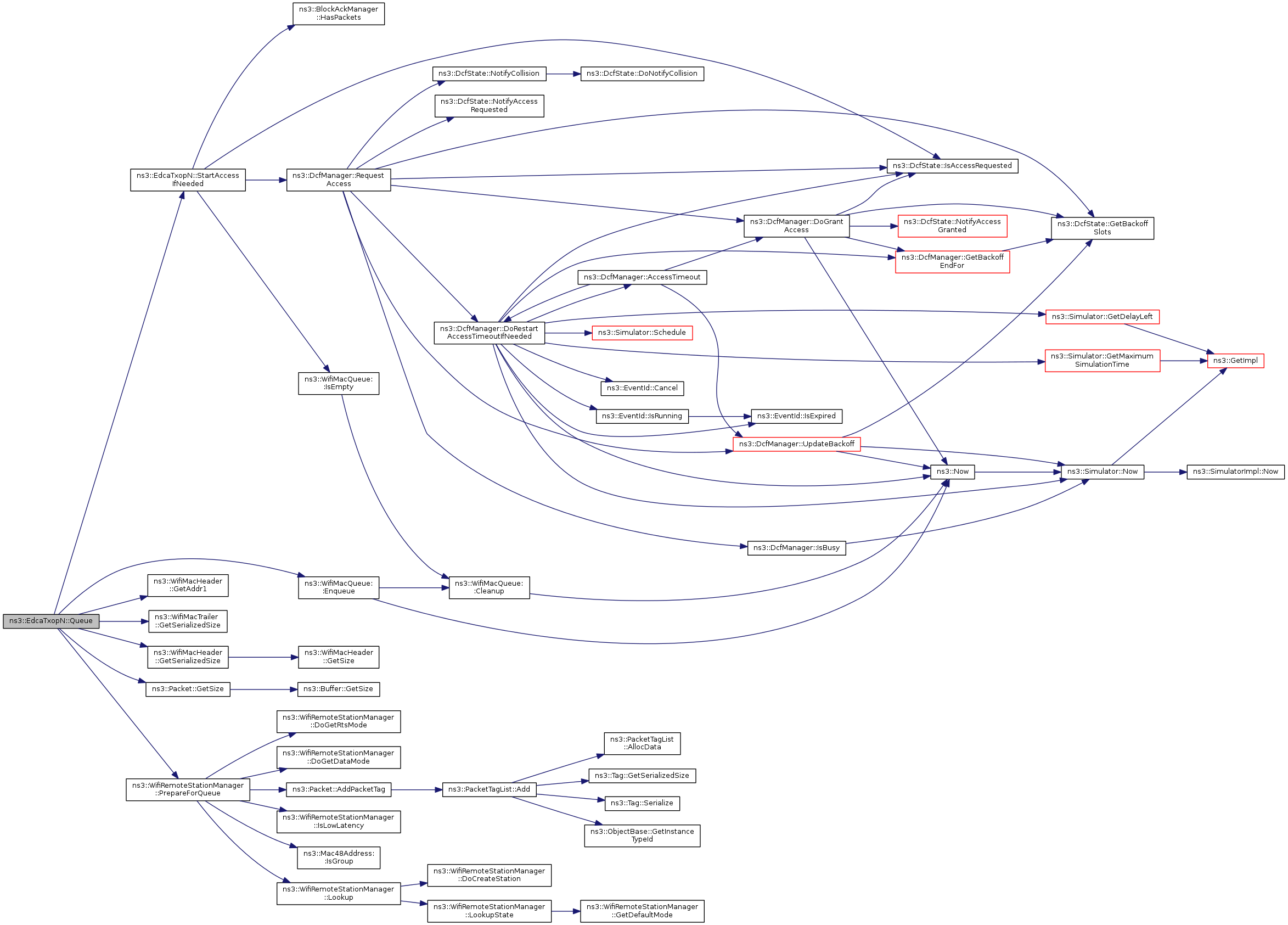

void ns3::EdcaTxopN::Queue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Definition at line 559 of file edca-txop-n.cc.

References ns3::WifiMacQueue::Enqueue(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::PrepareForQueue(), and StartAccessIfNeeded().

Here is the call graph for this function:

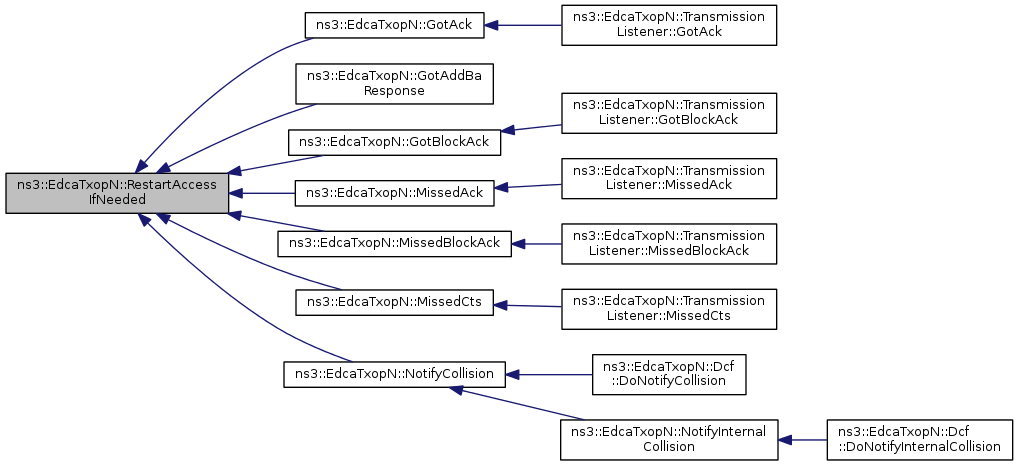

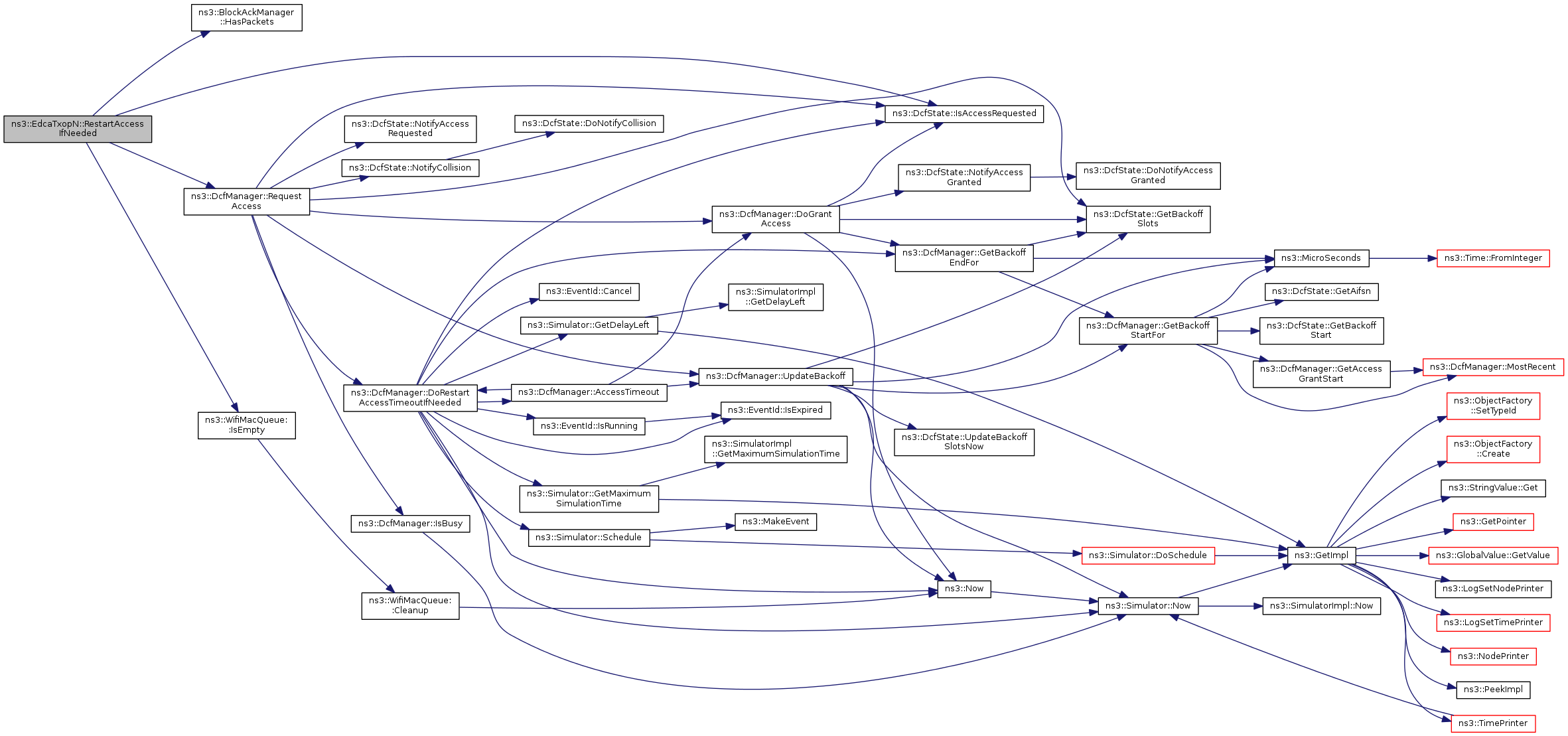

void ns3::EdcaTxopN::RestartAccessIfNeeded

(

void

)

Definition at line 664 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), ns3::WifiMacQueue::IsEmpty(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by GotAck(), GotAddBaResponse(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), and NotifyCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

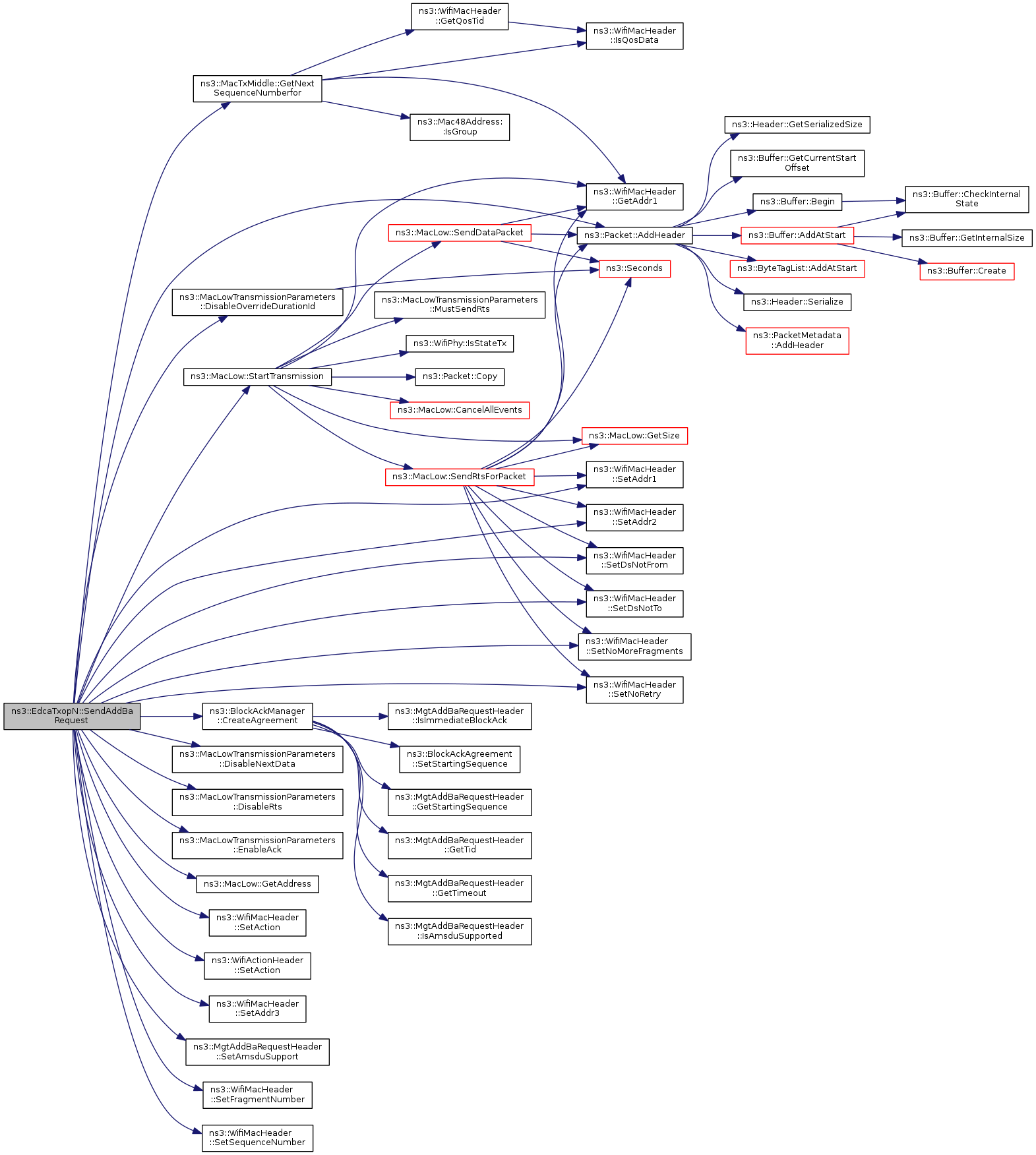

void ns3::EdcaTxopN::SendAddBaRequest ( Mac48Address  recipient, uint8_t  tid, uint16_t  startSeq, uint16_t  timeout, bool  immediateBAck  )

private

Definition at line 1050 of file edca-txop-n.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::ActionValue::blockAck, ns3::BlockAckManager::CreateAgreement(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLow::GetAddress(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), m_baManager, m_currentHdr, m_currentPacket, m_low, m_transmissionListener, m_txMiddle, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtAddBaRequestHeader::SetAmsduSupport(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetSequenceNumber(), and ns3::MacLow::StartTransmission().

Referenced by SetupBlockAckIfNeeded().

Here is the call graph for this function:

Here is the caller graph for this function:

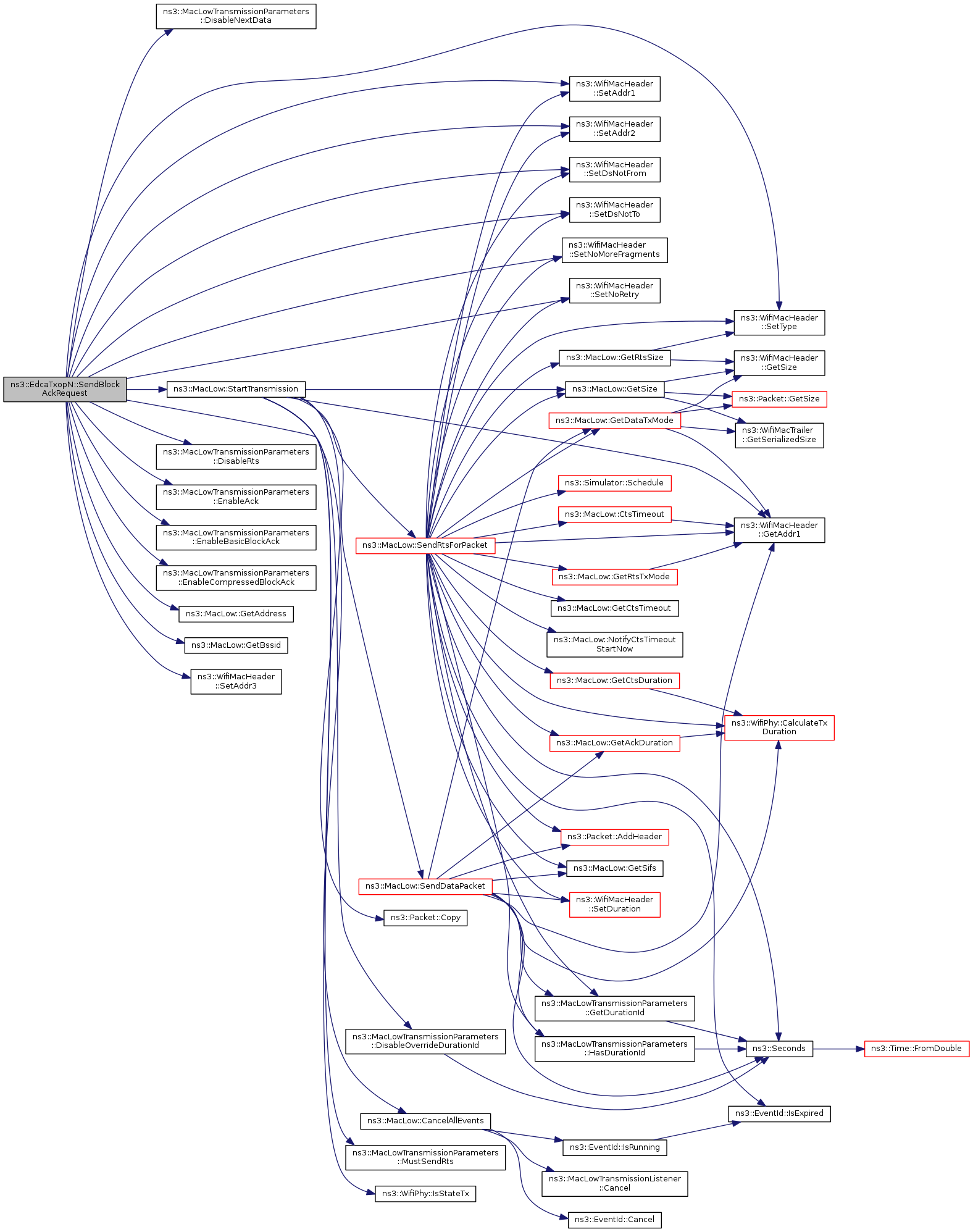

void ns3::EdcaTxopN::SendBlockAckRequest ( const struct Bar &  bar )

private

Definition at line 975 of file edca-txop-n.cc.

References ns3::Bar::bar, ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableBasicBlockAck(), ns3::MacLowTransmissionParameters::EnableCompressedBlockAck(), ns3::MacLow::GetAddress(), ns3::MacLow::GetBssid(), ns3::Bar::immediate, m_blockAckType, m_currentHdr, m_currentPacket, m_low, m_transmissionListener, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Bar::recipient, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), ns3::MacLow::StartTransmission(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

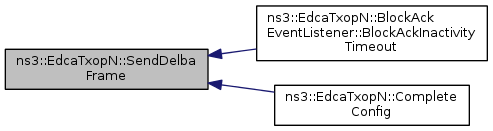

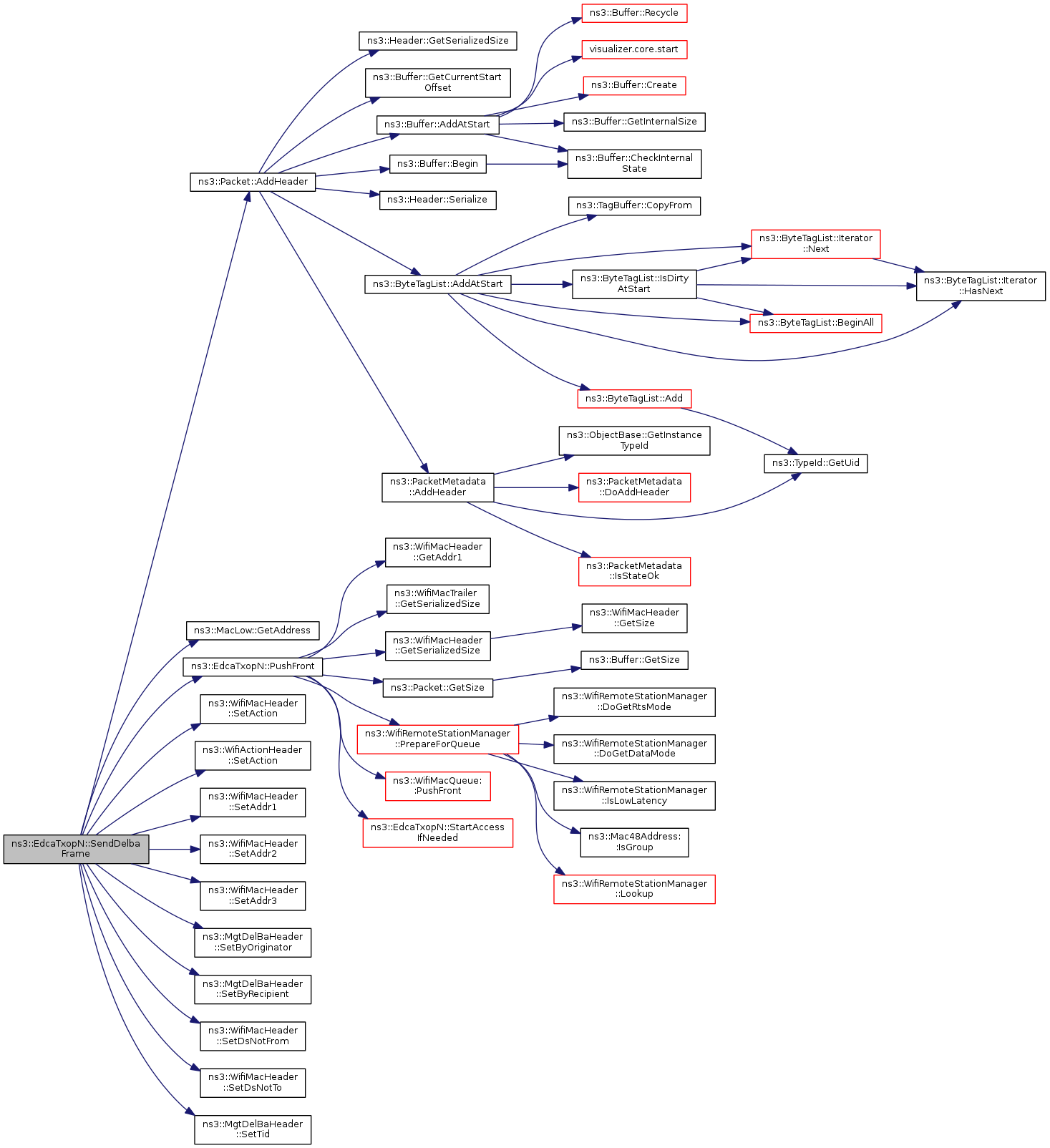

void ns3::EdcaTxopN::SendDelbaFrame	(	Mac48Address	addr,
		uint8_t	tid,
		bool	byOriginator
	)

Definition at line 1113 of file edca-txop-n.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::MacLow::GetAddress(), m_low, NS_LOG_FUNCTION, PushFront(), ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtDelBaHeader::SetByOriginator(), ns3::MgtDelBaHeader::SetByRecipient(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::MgtDelBaHeader::SetTid().

Referenced by ns3::EdcaTxopN::BlockAckEventListener::BlockAckInactivityTimeout(), and CompleteConfig().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetAccessCategory

(

enum AcIndex

ac

)

Definition at line 823 of file edca-txop-n.cc.

References m_ac, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetAifsn ( uint32_t  aifsn )

virtual

Implements ns3::Dcf.

Definition at line 283 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetAifsn().

Here is the call graph for this function:

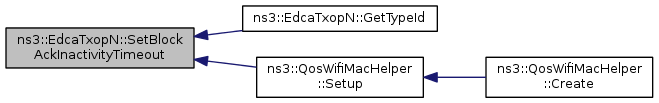

void ns3::EdcaTxopN::SetBlockAckInactivityTimeout

(

uint16_t

timeout

)

Definition at line 1036 of file edca-txop-n.cc.

References m_blockAckInactivityTimeout, NS_LOG_FUNCTION, and timeout.

Referenced by GetTypeId(), and ns3::QosWifiMacHelper::Setup().

Here is the caller graph for this function:

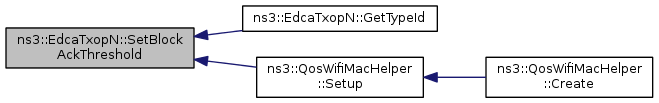

void ns3::EdcaTxopN::SetBlockAckThreshold

(

uint8_t

threshold

)

Definition at line 1028 of file edca-txop-n.cc.

References m_baManager, m_blockAckThreshold, NS_LOG_FUNCTION, and ns3::BlockAckManager::SetBlockAckThreshold().

Referenced by GetTypeId(), and ns3::QosWifiMacHelper::Setup().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetLow

(

Ptr< MacLow >

low

)

Definition at line 325 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::RegularWifiMac::SetupEdcaQueue().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetManager

(

DcfManager *

manager

)

Definition at line 220 of file edca-txop-n.cc.

References ns3::DcfManager::Add(), m_dcf, m_manager, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::EdcaTxopN::SetMaxCw ( uint32_t  maxCw )

virtual

Implements ns3::Dcf.

Definition at line 276 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMax().

Here is the call graph for this function:

void ns3::EdcaTxopN::SetMinCw ( uint32_t  minCw )

virtual

Implements ns3::Dcf.

Definition at line 269 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMin().

Here is the call graph for this function:

void ns3::EdcaTxopN::SetMsduAggregator

(

Ptr< MsduAggregator >

aggr

)

Definition at line 862 of file edca-txop-n.cc.

References m_aggregator, and NS_LOG_FUNCTION.

Referenced by ns3::QosWifiMacHelper::Setup().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetTxFailedCallback

(

TxFailed

callback

)

Definition at line 235 of file edca-txop-n.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTxMiddle

(

MacTxMiddle *

txMiddle

)

Definition at line 311 of file edca-txop-n.cc.

References m_txMiddle, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTxOkCallback

(

TxOk

callback

)

Definition at line 228 of file edca-txop-n.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTypeOfStation

(

enum TypeOfStation

type

)

Definition at line 248 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

bool ns3::EdcaTxopN::SetupBlockAckIfNeeded ( )

private

Definition at line 956 of file edca-txop-n.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacQueue::GetNPacketsByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), m_blockAckInactivityTimeout, m_blockAckThreshold, m_currentHdr, m_queue, m_txMiddle, NS_LOG_FUNCTION, and SendAddBaRequest().

Referenced by NotifyAccessGranted().

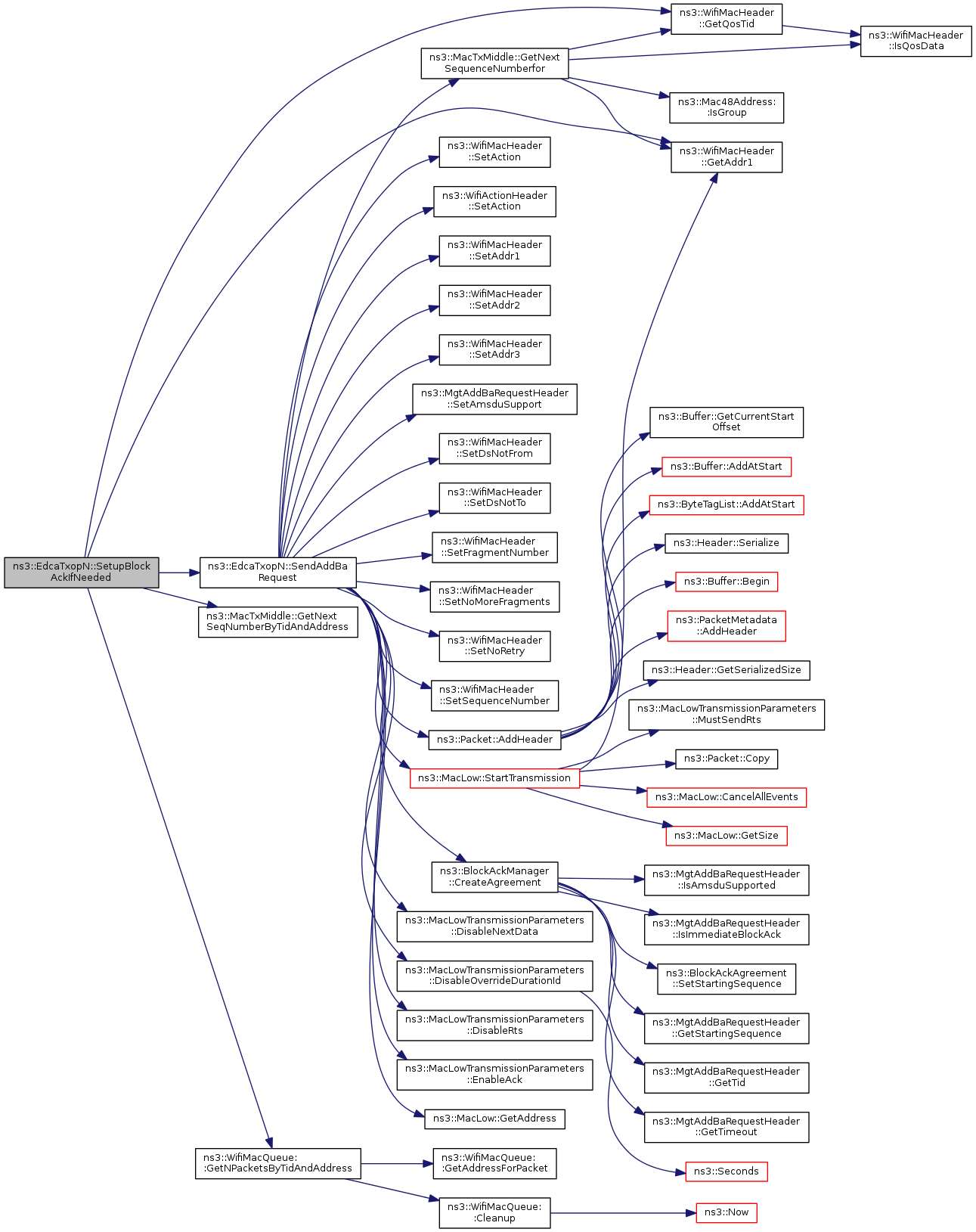

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetWifiRemoteStationManager

(

Ptr< WifiRemoteStationManager >

remoteManager

)

Definition at line 242 of file edca-txop-n.cc.

References m_stationManager, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::StartAccessIfNeeded

(

void

)

Definition at line 676 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), ns3::WifiMacQueue::IsEmpty(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by EndTxNoAck(), PushFront(), and Queue().

Here is the call graph for this function:

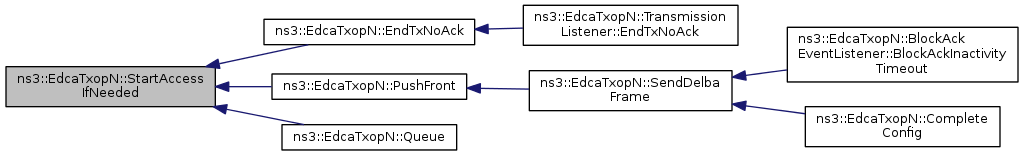

Here is the caller graph for this function:

void ns3::EdcaTxopN::StartNext

(

void

)

Definition at line 719 of file edca-txop-n.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetNextFragmentSize(), IsLastFragment(), Low(), m_transmissionListener, NextFragment(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::MacLow::StartTransmission().

Referenced by ns3::EdcaTxopN::TransmissionListener::StartNext().

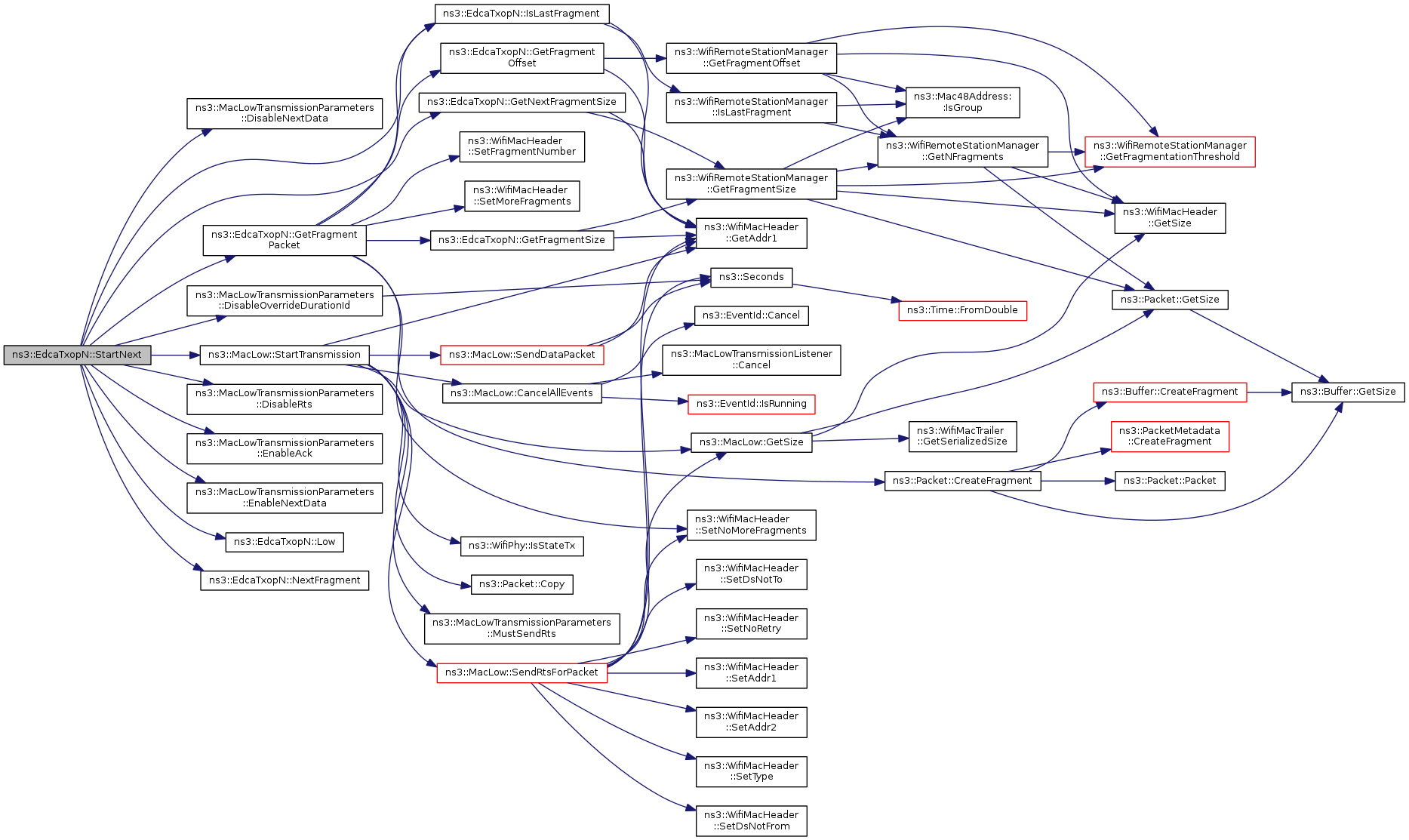

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::VerifyBlockAck ( void  )

private

Definition at line 923 of file edca-txop-n.cc.

References ns3::WifiMacHeader::BLOCK_ACK, ns3::OriginatorBlockAckAgreement::ESTABLISHED, ns3::BlockAckManager::ExistsAgreementInState(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::OriginatorBlockAckAgreement::INACTIVE, m_baManager, m_currentHdr, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetQosAckPolicy(), and ns3::BlockAckManager::SwitchToBlockAckIfNeeded().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Dcf

friend

Definition at line 205 of file edca-txop-n.h.

Referenced by EdcaTxopN().

friend class TransmissionListener

friend

Definition at line 207 of file edca-txop-n.h.

Referenced by EdcaTxopN().

Member Data Documentation

AcIndex ns3::EdcaTxopN::m_ac

private

Definition at line 202 of file edca-txop-n.h.

Referenced by CompleteConfig(), and SetAccessCategory().

Ptr<MsduAggregator> ns3::EdcaTxopN::m_aggregator

private

Definition at line 227 of file edca-txop-n.h.

Referenced by DoDispose(), GetMsduAggregator(), NotifyAccessGranted(), and SetMsduAggregator().

BlockAckManager* ns3::EdcaTxopN::m_baManager

private

Definition at line 230 of file edca-txop-n.h.

Referenced by CompleteConfig(), CompleteTx(), DoDispose(), EdcaTxopN(), GotAck(), GotAddBaResponse(), GotBlockAck(), GotDelBaFrame(), NeedsAccess(), NotifyAccessGranted(), RestartAccessIfNeeded(), SendAddBaRequest(), SetBlockAckThreshold(), StartAccessIfNeeded(), and VerifyBlockAck().

uint16_t ns3::EdcaTxopN::m_blockAckInactivityTimeout

private

Definition at line 237 of file edca-txop-n.h.

Referenced by SetBlockAckInactivityTimeout(), and SetupBlockAckIfNeeded().

BlockAckEventListener* ns3::EdcaTxopN::m_blockAckListener

private

Definition at line 216 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), and EdcaTxopN().

uint8_t ns3::EdcaTxopN::m_blockAckThreshold

private

Definition at line 234 of file edca-txop-n.h.

Referenced by GetBlockAckThreshold(), NotifyAccessGranted(), SetBlockAckThreshold(), and SetupBlockAckIfNeeded().

enum BlockAckType ns3::EdcaTxopN::m_blockAckType

private

Definition at line 235 of file edca-txop-n.h.

Referenced by EdcaTxopN(), NotifyAccessGranted(), and SendBlockAckRequest().

struct Bar ns3::EdcaTxopN::m_currentBar

private

Definition at line 238 of file edca-txop-n.h.

Referenced by NotifyAccessGranted().

WifiMacHeader ns3::EdcaTxopN::m_currentHdr

private

Definition at line 226 of file edca-txop-n.h.

Referenced by CompleteTx(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedBlockAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), SetupBlockAckIfNeeded(), and VerifyBlockAck().

Ptr<const Packet> ns3::EdcaTxopN::m_currentPacket

private

Definition at line 224 of file edca-txop-n.h.

Referenced by CompleteTx(), EndTxNoAck(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), GotBlockAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), RestartAccessIfNeeded(), SendAddBaRequest(), SendBlockAckRequest(), and StartAccessIfNeeded().

Time ns3::EdcaTxopN::m_currentPacketTimestamp

private

Definition at line 236 of file edca-txop-n.h.

Referenced by CompleteTx(), and NotifyAccessGranted().

Dcf* ns3::EdcaTxopN::m_dcf

private

Definition at line 208 of file edca-txop-n.h.

Referenced by DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GetAifsn(), GetMaxCw(), GetMinCw(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), NotifyCollision(), RestartAccessIfNeeded(), SetAifsn(), SetManager(), SetMaxCw(), SetMinCw(), and StartAccessIfNeeded().

uint8_t ns3::EdcaTxopN::m_fragmentNumber

private

Definition at line 219 of file edca-txop-n.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), NextFragment(), and NotifyAccessGranted().

Ptr<MacLow> ns3::EdcaTxopN::m_low

private

Definition at line 213 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), GotAck(), Low(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), SendDelbaFrame(), and SetLow().

DcfManager* ns3::EdcaTxopN::m_manager

private

Definition at line 209 of file edca-txop-n.h.

Referenced by RestartAccessIfNeeded(), SetManager(), and StartAccessIfNeeded().

QosBlockedDestinations* ns3::EdcaTxopN::m_qosBlockedDestinations

private

Definition at line 229 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), and NotifyAccessGranted().

Ptr<WifiMacQueue> ns3::EdcaTxopN::m_queue

private

Definition at line 210 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), GetQueue(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), PushFront(), Queue(), RestartAccessIfNeeded(), SetupBlockAckIfNeeded(), and StartAccessIfNeeded().

RandomStream* ns3::EdcaTxopN::m_rng

private

Definition at line 217 of file edca-txop-n.h.

Referenced by AssignStreams(), DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), and NotifyCollision().

Ptr<WifiRemoteStationManager> ns3::EdcaTxopN::m_stationManager

private

Definition at line 218 of file edca-txop-n.h.

Referenced by DoDispose(), GetFragmentOffset(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), PushFront(), Queue(), and SetWifiRemoteStationManager().

TransmissionListener* ns3::EdcaTxopN::m_transmissionListener

private

Definition at line 215 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), and StartNext().

TxFailed ns3::EdcaTxopN::m_txFailedCallback

private

Definition at line 212 of file edca-txop-n.h.

Referenced by MissedAck(), MissedCts(), and SetTxFailedCallback().

MacTxMiddle* ns3::EdcaTxopN::m_txMiddle

private

Definition at line 214 of file edca-txop-n.h.

Referenced by CompleteConfig(), CompleteTx(), DoDispose(), NotifyAccessGranted(), SendAddBaRequest(), SetTxMiddle(), and SetupBlockAckIfNeeded().

TxOk ns3::EdcaTxopN::m_txOkCallback

private

Definition at line 211 of file edca-txop-n.h.

Referenced by GotAck(), and SetTxOkCallback().

TypeOfStation ns3::EdcaTxopN::m_typeOfStation

private

Definition at line 228 of file edca-txop-n.h.

Referenced by GetTypeOfStation(), MapDestAddressForAggregation(), MapSrcAddressForAggregation(), and SetTypeOfStation().

---

The documentation for this class was generated from the following files:

• src/wifi/model/edca-txop-n.h
• src/wifi/model/edca-txop-n.cc
