Holds a vector of ns3::EnergySource pointers. More...

#include <energy-source-container.h>

Inheritance diagram for ns3::EnergySourceContainer:

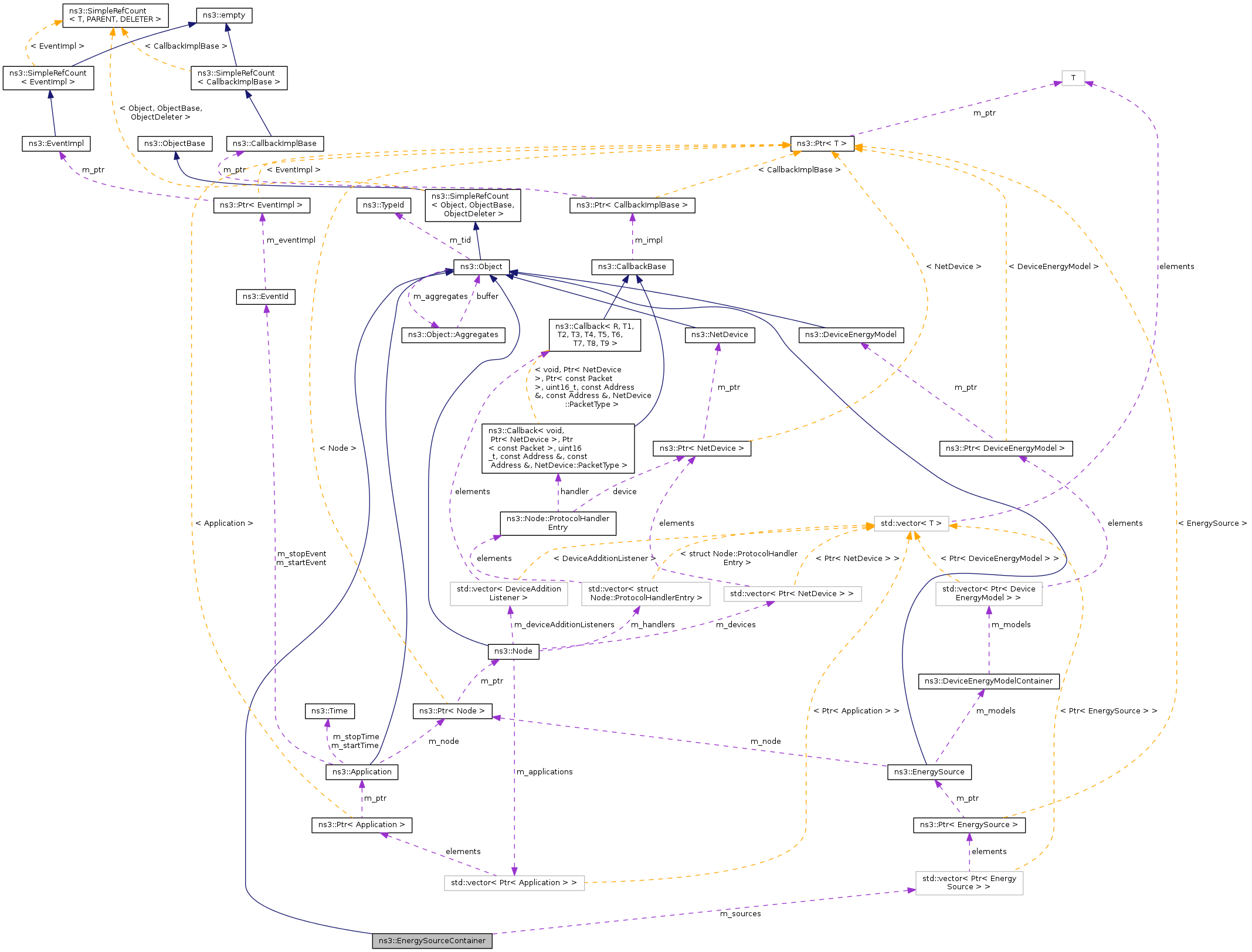

Collaboration diagram for ns3::EnergySourceContainer:

Public Types
typedef std::vector< Ptr < EnergySource > >::const_iterator	Iterator

Public Member Functions
	EnergySourceContainer ()
	EnergySourceContainer (Ptr< EnergySource > source)
	EnergySourceContainer (std::string sourceName)
	EnergySourceContainer (const EnergySourceContainer &a, const EnergySourceContainer &b)
	~EnergySourceContainer ()
void	Add (EnergySourceContainer container)
void	Add (Ptr< EnergySource > source)
	Append a single Ptr<EnergySource> to the end of this container.
void	Add (std::string sourceName)
	Append a single Ptr<EnergySource> referred to by its object name to the end of this container.
Iterator	Begin (void) const
	Get an iterator which refers to the first EnergySource pointer in the container.
Iterator	End (void) const
	Get an iterator which refers to the last EnergySource pointer in the container.
Ptr< EnergySource >	Get (uint32_t i) const
	Get the i-th Ptr<EnergySource> stored in this container.
uint32_t	GetN (void) const
	Get the number of Ptr<EnergySource> stored in this container.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
	Calls Object::Start () for all EnergySource objects.

Private Attributes
std::vector< Ptr< EnergySource > >	m_sources

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Holds a vector of ns3::EnergySource pointers.

EnergySourceHelper returns a list of EnergySource pointers installed onto a node. Users can use this list to access EnergySource objects to obtain total energy consumption on a node easily.

See Also: NetDeviceContainer

Definition at line 44 of file energy-source-container.h.

Member Typedef Documentation

typedef std::vector< Ptr<EnergySource> >::const_iterator ns3::EnergySourceContainer::Iterator

Definition at line 47 of file energy-source-container.h.

Constructor & Destructor Documentation

ns3::EnergySourceContainer::EnergySourceContainer ( )

Creates an empty EnergySourceContainer.

Definition at line 38 of file energy-source-container.cc.

ns3::EnergySourceContainer::~EnergySourceContainer ( )

Definition at line 42 of file energy-source-container.cc.

ns3::EnergySourceContainer::EnergySourceContainer ( Ptr< EnergySource > source )

Parameters

source Pointer to an EnergySource.

Creates an EnergySourceContianer with exactly one EnergySource previously instantiated.

Definition at line 46 of file energy-source-container.cc.

References m_sources, and NS_ASSERT.

ns3::EnergySourceContainer::EnergySourceContainer ( std::string sourceName )

Parameters

sourceName Name of EnergySource.

Creates an EnergySourceContainer with exactly one EnergySource previously instantiated and assigned a name using the Object name service. This EnergySource is specified by its assigned name.

Definition at line 52 of file energy-source-container.cc.

References m_sources, and NS_ASSERT.

ns3::EnergySourceContainer::EnergySourceContainer	(	const EnergySourceContainer &	a,
		const EnergySourceContainer &	b
	)

Parameters

a	A EnergySourceContainer.
b	Another EnergySourceContainer.

Creates an EnergySourceContainer by concatenating EnergySourceContainer b to EnergySourceContainer a.

Note: Can be used to concatenate 2 Ptr<EnergySource> directly. C++ will be calling EnergySourceContainer constructor with Ptr<EnergySource> first.

Definition at line 59 of file energy-source-container.cc.

References Add().

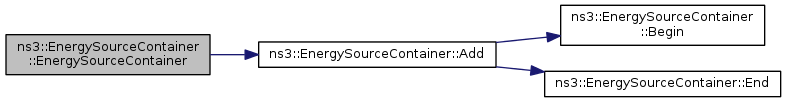

Here is the call graph for this function:

Member Function Documentation

void ns3::EnergySourceContainer::Add ( EnergySourceContainer container )

Parameters

container Another EnergySourceContainer to append.

Appends the contents of another EnergySourceContainer to the end of this EnergySourceContainer.

Definition at line 91 of file energy-source-container.cc.

References Begin(), End(), and m_sources.

Referenced by EnergySourceContainer(), and ns3::EnergySourceHelper::Install().

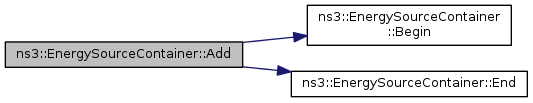

Here is the call graph for this function:

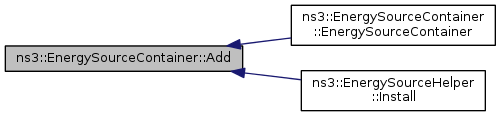

Here is the caller graph for this function:

void ns3::EnergySourceContainer::Add ( Ptr< EnergySource > source )

Append a single Ptr<EnergySource> to the end of this container.

Parameters

source Pointer to an EnergySource.

Definition at line 100 of file energy-source-container.cc.

References m_sources, and NS_ASSERT.

void ns3::EnergySourceContainer::Add ( std::string sourceName )

Append a single Ptr<EnergySource> referred to by its object name to the end of this container.

Parameters

sourceName Name of EnergySource object.

Definition at line 107 of file energy-source-container.cc.

References m_sources, and NS_ASSERT.

EnergySourceContainer::Iterator ns3::EnergySourceContainer::Begin ( void ) const

Get an iterator which refers to the first EnergySource pointer in the container.

Returns: An iterator which refers to the first EnergySource in container.

EnergySources can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the EnergySources.

EnergySourceContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    (*i)->method ();  // some EnergySource method
  }

Definition at line 67 of file energy-source-container.cc.

References m_sources.

Referenced by Add(), and ns3::DeviceEnergyModelHelper::Install().

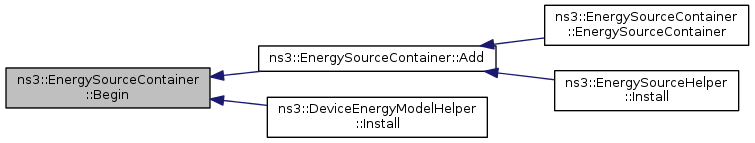

Here is the caller graph for this function:

void ns3::EnergySourceContainer::DoDispose ( void )

privatevirtual

Definition at line 119 of file energy-source-container.cc.

References m_sources.

void ns3::EnergySourceContainer::DoInitialize ( void )

privatevirtual

Calls Object::Start () for all EnergySource objects.

Definition at line 132 of file energy-source-container.cc.

References m_sources.

EnergySourceContainer::Iterator ns3::EnergySourceContainer::End ( void ) const

Get an iterator which refers to the last EnergySource pointer in the container.

Returns: An iterator which refers to the last EnergySource in container.

EnergySources can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the EnergySources.

EnergySourceContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    (*i)->method ();  // some EnergySource method
  }

Definition at line 73 of file energy-source-container.cc.

References m_sources.

Referenced by Add().

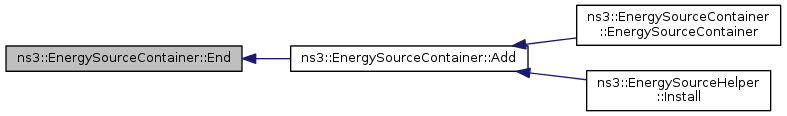

Here is the caller graph for this function:

Ptr< EnergySource > ns3::EnergySourceContainer::Get ( uint32_t i ) const

Get the i-th Ptr<EnergySource> stored in this container.

Parameters

i	Index of the requested Ptr<EnergySource>.

Returns: The requested Ptr<EnergySource>.

Definition at line 85 of file energy-source-container.cc.

References m_sources.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), and BatteryLifetimeTest::VariableLoadTest().

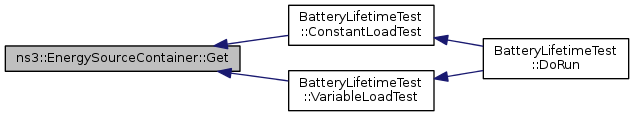

Here is the caller graph for this function:

uint32_t ns3::EnergySourceContainer::GetN ( void ) const

Get the number of Ptr<EnergySource> stored in this container.

Returns: The number of Ptr<EnergySource> stored in this container.

Definition at line 79 of file energy-source-container.cc.

References m_sources.

Referenced by ns3::DeviceEnergyModelHelper::Install().

Here is the caller graph for this function:

TypeId ns3::EnergySourceContainer::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 29 of file energy-source-container.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

std::vector< Ptr<EnergySource> > ns3::EnergySourceContainer::m_sources

private

Definition at line 176 of file energy-source-container.h.

Referenced by Add(), Begin(), DoDispose(), DoInitialize(), End(), EnergySourceContainer(), Get(), and GetN().

The documentation for this class was generated from the following files:

src/energy/helper/energy-source-container.h
src/energy/helper/energy-source-container.cc
