#include <epc-enb-application.h>

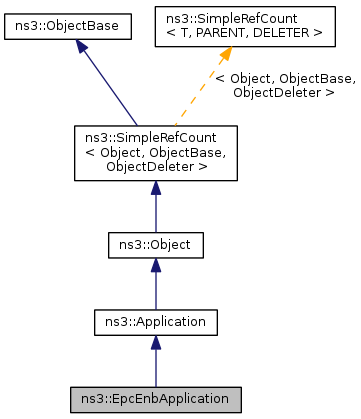

Inheritance diagram for ns3::EpcEnbApplication:

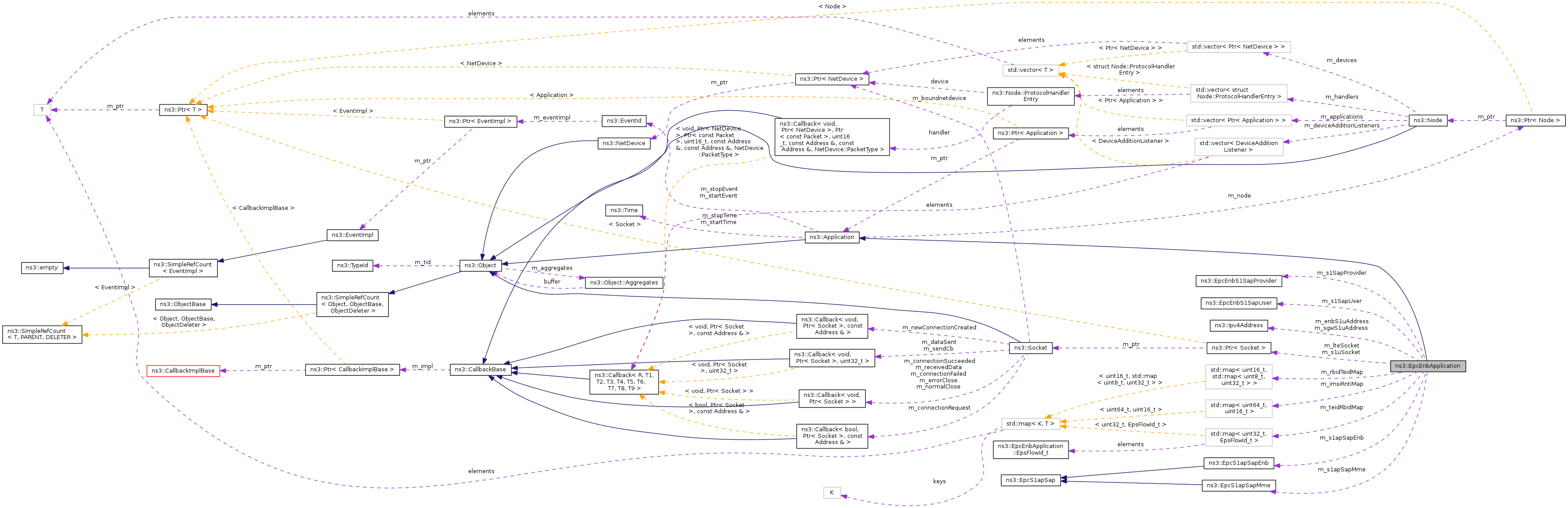

Collaboration diagram for ns3::EpcEnbApplication:

Classes
struct	EpsFlowId_t

Public Member Functions
	EpcEnbApplication (Ptr< Socket > lteSocket, Ptr< Socket > s1uSocket, Ipv4Address enbS1uAddress, Ipv4Address sgwS1uAddress, uint16_t cellId)
virtual	~EpcEnbApplication (void)
EpcS1apSapEnb *	GetS1apSapEnb ()
EpcEnbS1SapProvider *	GetS1SapProvider ()
void	RecvFromLteSocket (Ptr< Socket > socket)
void	RecvFromS1uSocket (Ptr< Socket > socket)
void	SetS1apSapMme (EpcS1apSapMme *s)
void	SetS1SapUser (EpcEnbS1SapUser *s)
Public Member Functions inherited from ns3::Application
	Application ()
virtual	~Application ()
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time.
void	SetStopTime (Time stop)
	Specify application stop time.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Member Functions
void	DoDispose (void)
Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)

Private Member Functions
void	DoInitialContextSetupRequest (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< EpcS1apSapEnb::ErabToBeSetupItem > erabToBeSetupList)
void	DoInitialUeMessage (uint64_t imsi, uint16_t rnti)
void	DoPathSwitchRequest (EpcEnbS1SapProvider::PathSwitchRequestParameters params)
void	DoPathSwitchRequestAcknowledge (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t cgi, std::list< EpcS1apSapEnb::ErabSwitchedInUplinkItem > erabToBeSwitchedInUplinkList)
void	DoUeContextRelease (uint16_t rnti)
void	SendToLteSocket (Ptr< Packet > packet, uint16_t rnti, uint8_t bid)
void	SendToS1uSocket (Ptr< Packet > packet, uint32_t teid)
void	SetupS1Bearer (uint32_t teid, uint16_t rnti, uint8_t bid)

Private Attributes
uint16_t	m_cellId
Ipv4Address	m_enbS1uAddress
uint16_t	m_gtpuUdpPort
std::map< uint64_t, uint16_t >	m_imsiRntiMap
Ptr< Socket >	m_lteSocket
std::map< uint16_t, std::map < uint8_t, uint32_t > >	m_rbidTeidMap
EpcS1apSapEnb *	m_s1apSapEnb
EpcS1apSapMme *	m_s1apSapMme
EpcEnbS1SapProvider *	m_s1SapProvider
EpcEnbS1SapUser *	m_s1SapUser
Ptr< Socket >	m_s1uSocket
Ipv4Address	m_sgwS1uAddress
std::map< uint32_t, EpsFlowId_t >	m_teidRbidMap

Friends
class	MemberEpcEnbS1SapProvider< EpcEnbApplication >
class	MemberEpcS1apSapEnb< EpcEnbApplication >

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
EventId	m_startEvent
Time	m_startTime
EventId	m_stopEvent
Time	m_stopTime

Detailed Description

This application is installed inside eNBs and provides the bridge functionality for user data plane packets between the radio interface and the S1-U interface.

Definition at line 49 of file epc-enb-application.h.

Constructor & Destructor Documentation

ns3::EpcEnbApplication::EpcEnbApplication	(	Ptr< Socket >	lteSocket,
		Ptr< Socket >	s1uSocket,
		Ipv4Address	enbS1uAddress,
		Ipv4Address	sgwS1uAddress,
		uint16_t	cellId
	)

Constructor

Parameters

lteSocket	the socket to be used to send/receive packets to/from the LTE radio interface
s1uSocket	the socket to be used to send/receive packets to/from the S1-U interface connected with the SGW
enbS1uAddress	the IPv4 address of the S1-U interface of this eNB
sgwS1uAddress	the IPv4 address at which this eNB will be able to reach its SGW for S1-U communications
cellId	the identifier of the enb

Definition at line 81 of file epc-enb-application.cc.

References m_lteSocket, m_s1apSapEnb, m_s1SapProvider, m_s1uSocket, ns3::MakeCallback(), NS_LOG_FUNCTION, RecvFromLteSocket(), RecvFromS1uSocket(), and ns3::Socket::SetRecvCallback().

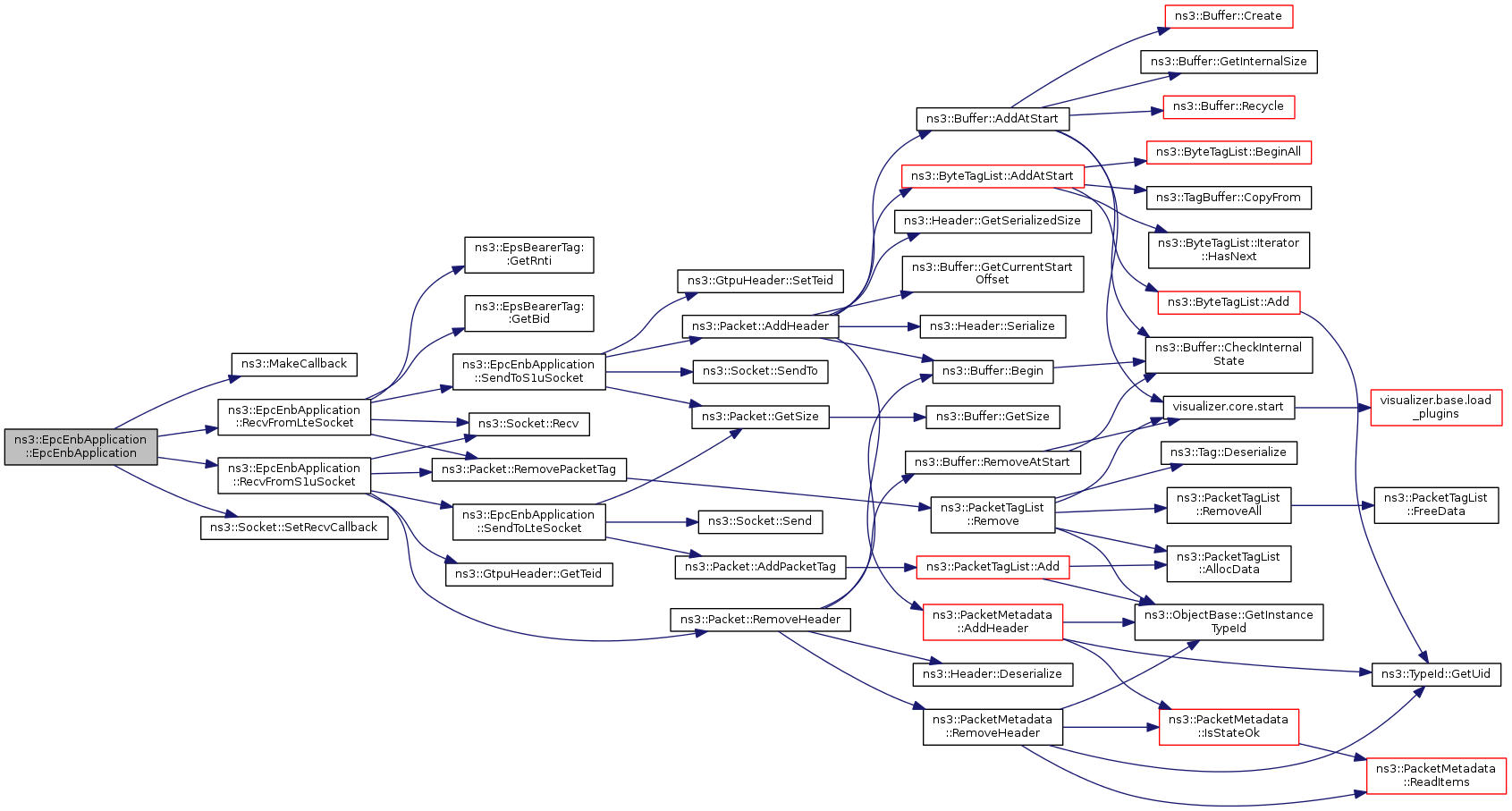

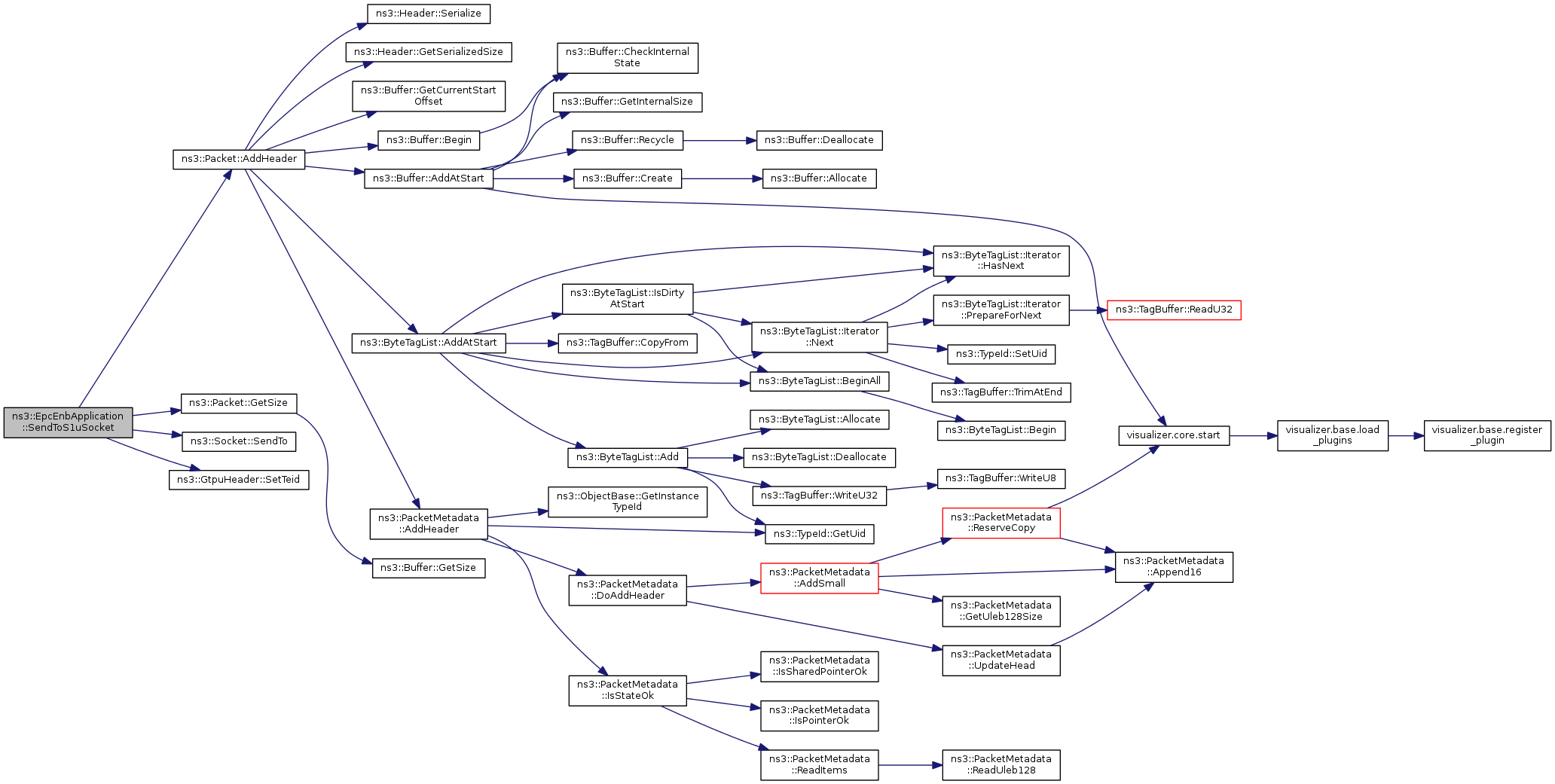

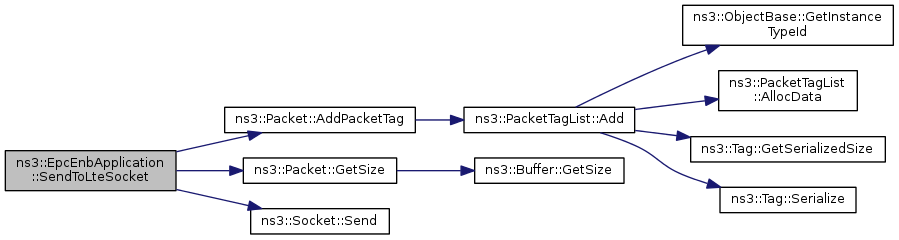

Here is the call graph for this function:

ns3::EpcEnbApplication::~EpcEnbApplication ( void )

virtual

Destructor

Definition at line 99 of file epc-enb-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcEnbApplication::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 71 of file epc-enb-application.cc.

References m_lteSocket, m_s1apSapEnb, m_s1SapProvider, m_s1uSocket, and NS_LOG_FUNCTION.

void ns3::EpcEnbApplication::DoInitialContextSetupRequest	(	uint64_t	mmeUeS1Id,
		uint16_t	enbUeS1Id,
		std::list< EpcS1apSapEnb::ErabToBeSetupItem >	erabToBeSetupList
	)

private

Definition at line 195 of file epc-enb-application.cc.

References ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearer, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearerId, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequest(), ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::gtpTeid, m_imsiRntiMap, m_rbidTeidMap, m_s1SapUser, m_teidRbidMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::rnti.

Here is the call graph for this function:

void ns3::EpcEnbApplication::DoInitialUeMessage	(	uint64_t	imsi,
		uint16_t	rnti
	)

private

Definition at line 132 of file epc-enb-application.cc.

References ns3::EpcS1apSapMme::InitialUeMessage(), m_cellId, m_imsiRntiMap, m_s1apSapMme, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::EpcEnbApplication::DoPathSwitchRequest ( EpcEnbS1SapProvider::PathSwitchRequestParameters params )

private

Definition at line 141 of file epc-enb-application.cc.

References ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::bearersToBeSwitched, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::cellId, ns3::EpcS1apSapMme::ErabSwitchedInDownlinkItem::enbTeid, ns3::EpcS1apSapMme::ErabSwitchedInDownlinkItem::enbTransportLayerAddress, ns3::EpcS1apSapMme::ErabSwitchedInDownlinkItem::erabId, ns3::EpcEnbApplication::EpsFlowId_t::m_bid, m_enbS1uAddress, m_imsiRntiMap, m_rbidTeidMap, ns3::EpcEnbApplication::EpsFlowId_t::m_rnti, m_s1apSapMme, m_teidRbidMap, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::mmeUeS1Id, NS_LOG_FUNCTION, ns3::EpcS1apSapMme::PathSwitchRequest(), and ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::rnti.

Here is the call graph for this function:

void ns3::EpcEnbApplication::DoPathSwitchRequestAcknowledge	(	uint64_t	enbUeS1Id,
		uint64_t	mmeUeS1Id,
		uint16_t	cgi,
		std::list< EpcS1apSapEnb::ErabSwitchedInUplinkItem >	erabToBeSwitchedInUplinkList
	)

private

Definition at line 226 of file epc-enb-application.cc.

References m_imsiRntiMap, m_s1SapUser, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::EpcEnbS1SapUser::PathSwitchRequestAcknowledge(), and ns3::EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters::rnti.

Here is the call graph for this function:

void ns3::EpcEnbApplication::DoUeContextRelease ( uint16_t rnti )

private

Definition at line 177 of file epc-enb-application.cc.

References m_rbidTeidMap, m_teidRbidMap, and NS_LOG_FUNCTION.

EpcS1apSapEnb * ns3::EpcEnbApplication::GetS1apSapEnb ( )

Returns: the ENB side of the S1-AP SAP

Definition at line 126 of file epc-enb-application.cc.

References m_s1apSapEnb.

EpcEnbS1SapProvider * ns3::EpcEnbApplication::GetS1SapProvider ( )

Returns: the S1 SAP Provider

Definition at line 113 of file epc-enb-application.cc.

References m_s1SapProvider.

TypeId ns3::EpcEnbApplication::GetTypeId ( void )

static

Reimplemented from ns3::Application.

Definition at line 63 of file epc-enb-application.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::EpcEnbApplication::RecvFromLteSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the LTE socket. It is called when the eNB receives a data packet from the radio interface that is to be forwarded to the SGW.

Parameters

socket pointer to the LTE socket

Definition at line 240 of file epc-enb-application.cc.

References ns3::EpsBearerTag::GetBid(), ns3::EpsBearerTag::GetRnti(), m_lteSocket, m_rbidTeidMap, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Socket::Recv(), ns3::Packet::RemovePacketTag(), and SendToS1uSocket().

Referenced by EpcEnbApplication().

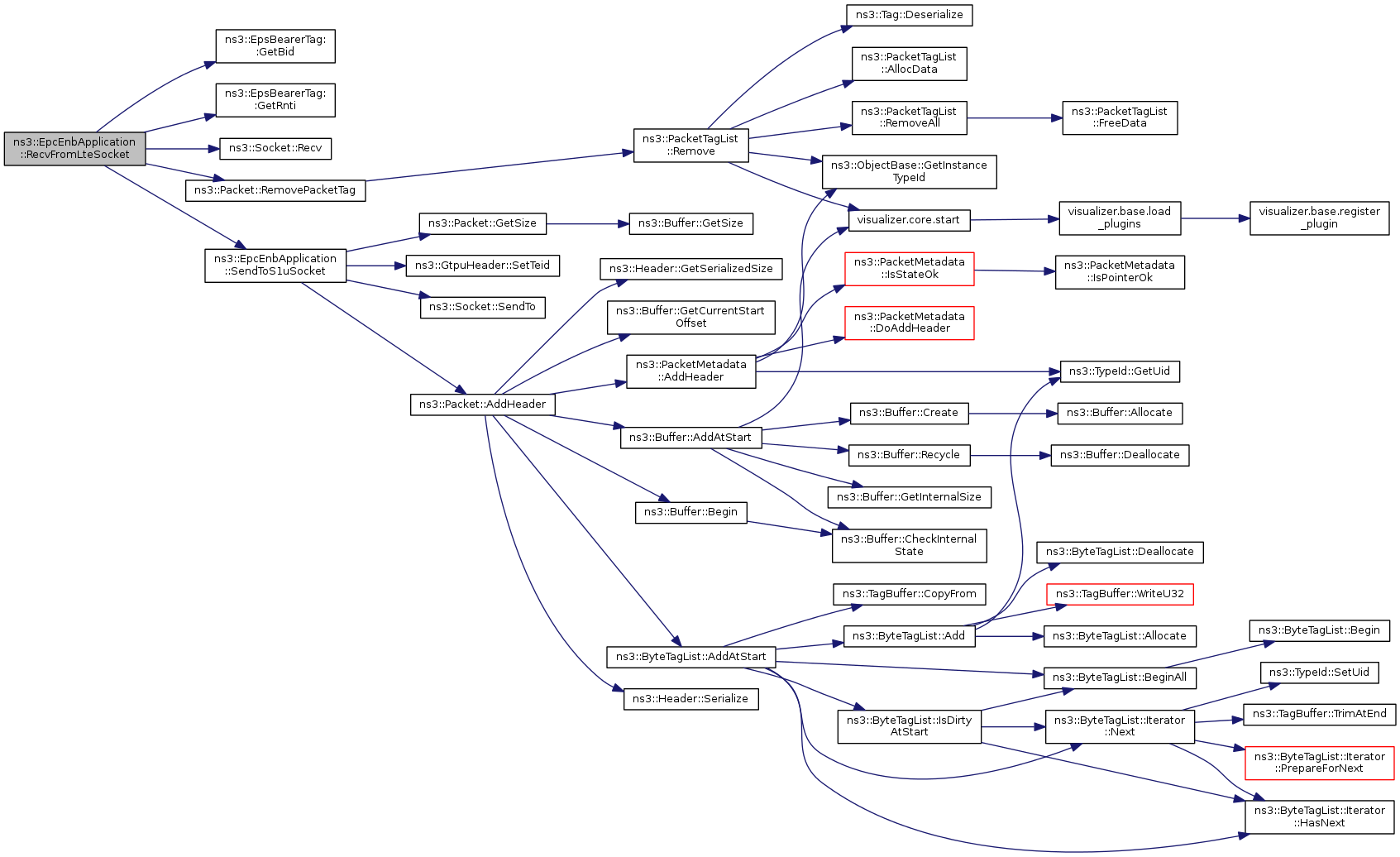

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EpcEnbApplication::RecvFromS1uSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the S1-U socket. It is called when the eNB receives a data packet from the SGW that is to be forwarded to the UE.

Parameters

socket pointer to the S1-U socket

Definition at line 271 of file epc-enb-application.cc.

References ns3::GtpuHeader::GetTeid(), m_s1uSocket, m_teidRbidMap, NS_ASSERT, NS_LOG_FUNCTION, ns3::Socket::Recv(), ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), and SendToLteSocket().

Referenced by EpcEnbApplication().

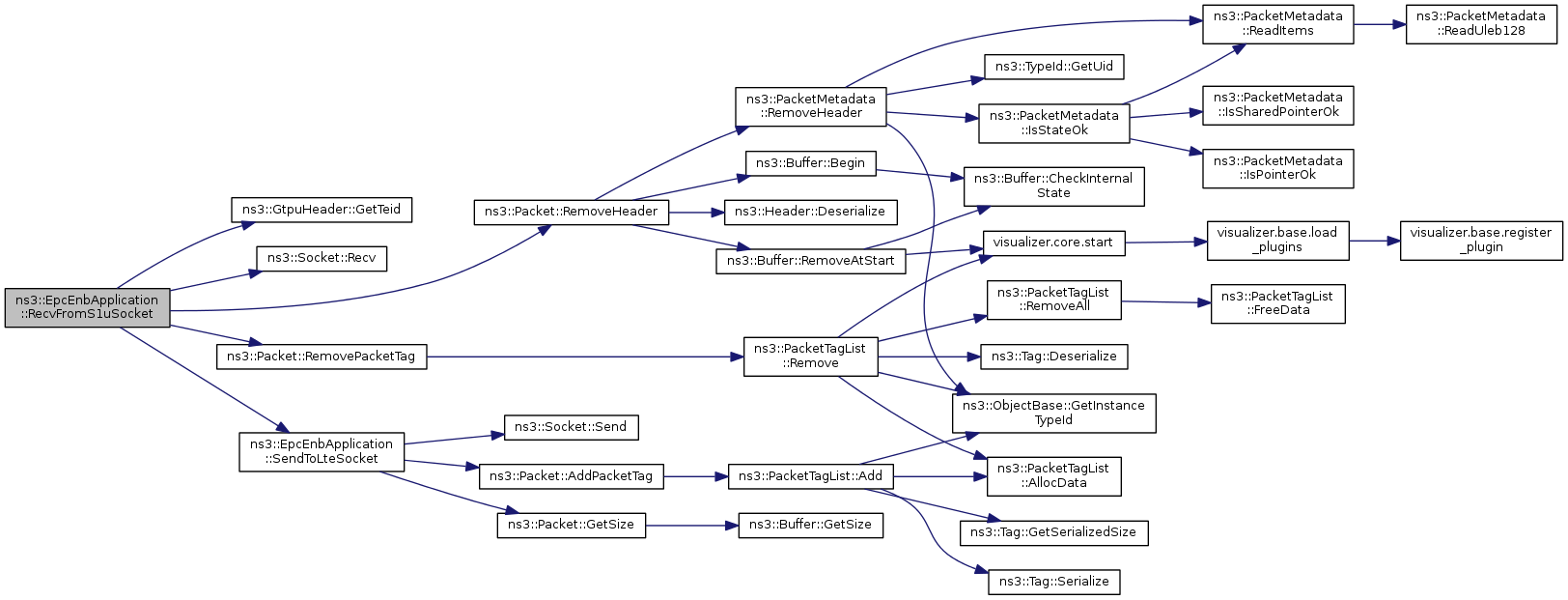

Here is the call graph for this function:
