This object implements the MME functionality. More...

#include <epc-mme.h>

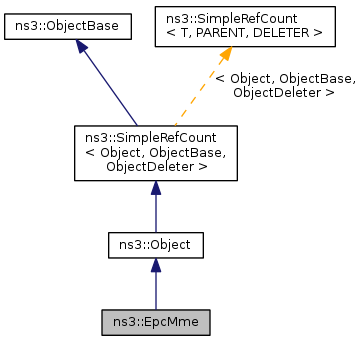

Inheritance diagram for ns3::EpcMme:

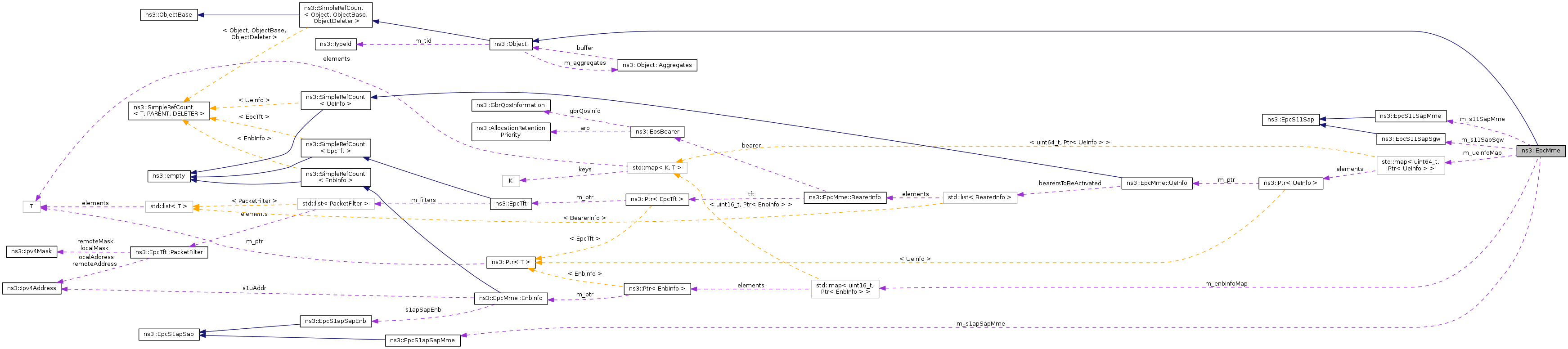

Collaboration diagram for ns3::EpcMme:

Classes
struct	BearerInfo
struct	EnbInfo
struct	UeInfo

Public Member Functions
	EpcMme ()
virtual	~EpcMme ()
void	AddBearer (uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer)
void	AddEnb (uint16_t egci, Ipv4Address enbS1UAddr, EpcS1apSapEnb *enbS1apSap)
void	AddUe (uint64_t imsi)
EpcS11SapMme *	GetS11SapMme ()
EpcS1apSapMme *	GetS1apSapMme ()
void	SetS11SapSgw (EpcS11SapSgw *s)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose ()
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Private Member Functions
void	DoCreateSessionResponse (EpcS11SapMme::CreateSessionResponseMessage msg)
void	DoInitialContextSetupResponse (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< EpcS1apSapMme::ErabSetupItem > erabSetupList)
void	DoInitialUeMessage (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, uint64_t imsi, uint16_t ecgi)
void	DoModifyBearerResponse (EpcS11SapMme::ModifyBearerResponseMessage msg)
void	DoPathSwitchRequest (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t cgi, std::list< EpcS1apSapMme::ErabSwitchedInDownlinkItem > erabToBeSwitchedInDownlinkList)

Private Attributes
std::map< uint16_t, Ptr < EnbInfo > >	m_enbInfoMap
EpcS11SapMme *	m_s11SapMme
EpcS11SapSgw *	m_s11SapSgw
EpcS1apSapMme *	m_s1apSapMme
std::map< uint64_t, Ptr< UeInfo > >	m_ueInfoMap

Friends
class	MemberEpcS11SapMme< EpcMme >
class	MemberEpcS1apSapMme< EpcMme >

Detailed Description

This object implements the MME functionality.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 40 of file epc-mme.h.

Constructor & Destructor Documentation

ns3::EpcMme::EpcMme ( )

Constructor

Definition at line 38 of file epc-mme.cc.

References m_s11SapMme, m_s1apSapMme, and NS_LOG_FUNCTION.

ns3::EpcMme::~EpcMme ( )

virtual

Destructor

Definition at line 47 of file epc-mme.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcMme::AddBearer	(	uint64_t	imsi,
		Ptr< EpcTft >	tft,
		EpsBearer	bearer
	)

Add an EPS bearer to the list of bearers to be activated for this UE. The bearer will be activated when the UE enters the ECM connected state.

Parameters

imsi	UE identifier
tft	traffic flow template of the bearer
bearer	QoS characteristics of the bearer

Definition at line 111 of file epc-mme.cc.

References ns3::EpcMme::BearerInfo::bearer, ns3::EpcMme::BearerInfo::bearerId, m_ueInfoMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::EpcMme::BearerInfo::tft.

Referenced by ns3::EpcHelper::ActivateEpsBearer().

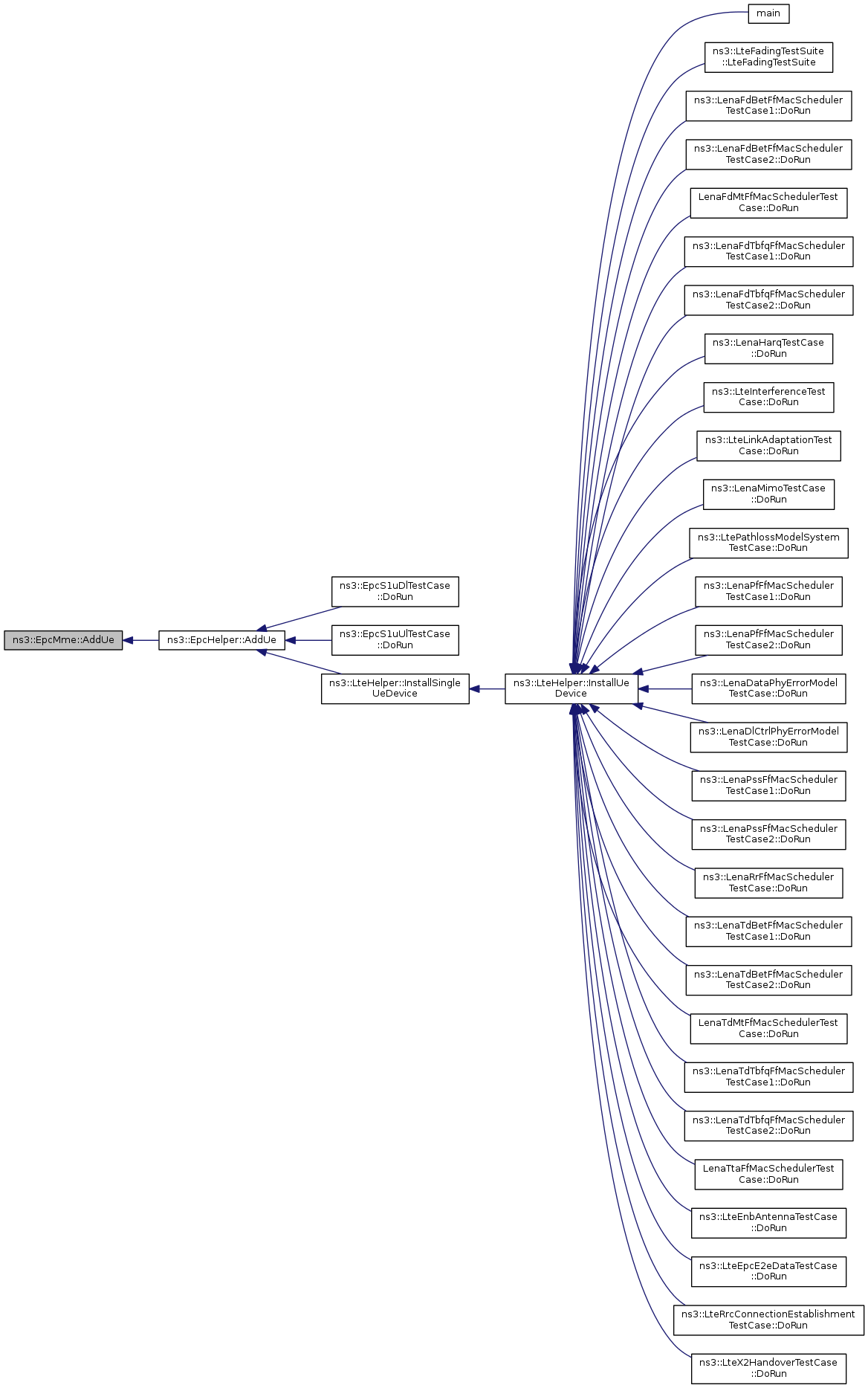

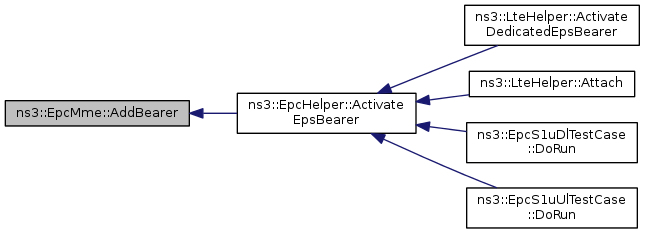

Here is the caller graph for this function:

void ns3::EpcMme::AddEnb	(	uint16_t	egci,
		Ipv4Address	enbS1UAddr,
		EpcS1apSapEnb *	enbS1apSap
	)

Add a new ENB to the MME.

Parameters

imsi	the unique identifier of the UE
enbS1apSap	the ENB side of the S1-AP SAP

Definition at line 89 of file epc-mme.cc.

References ns3::EpcMme::EnbInfo::gci, m_enbInfoMap, NS_LOG_FUNCTION, ns3::EpcMme::EnbInfo::s1apSapEnb, and ns3::EpcMme::EnbInfo::s1uAddr.

Referenced by ns3::EpcHelper::AddEnb().

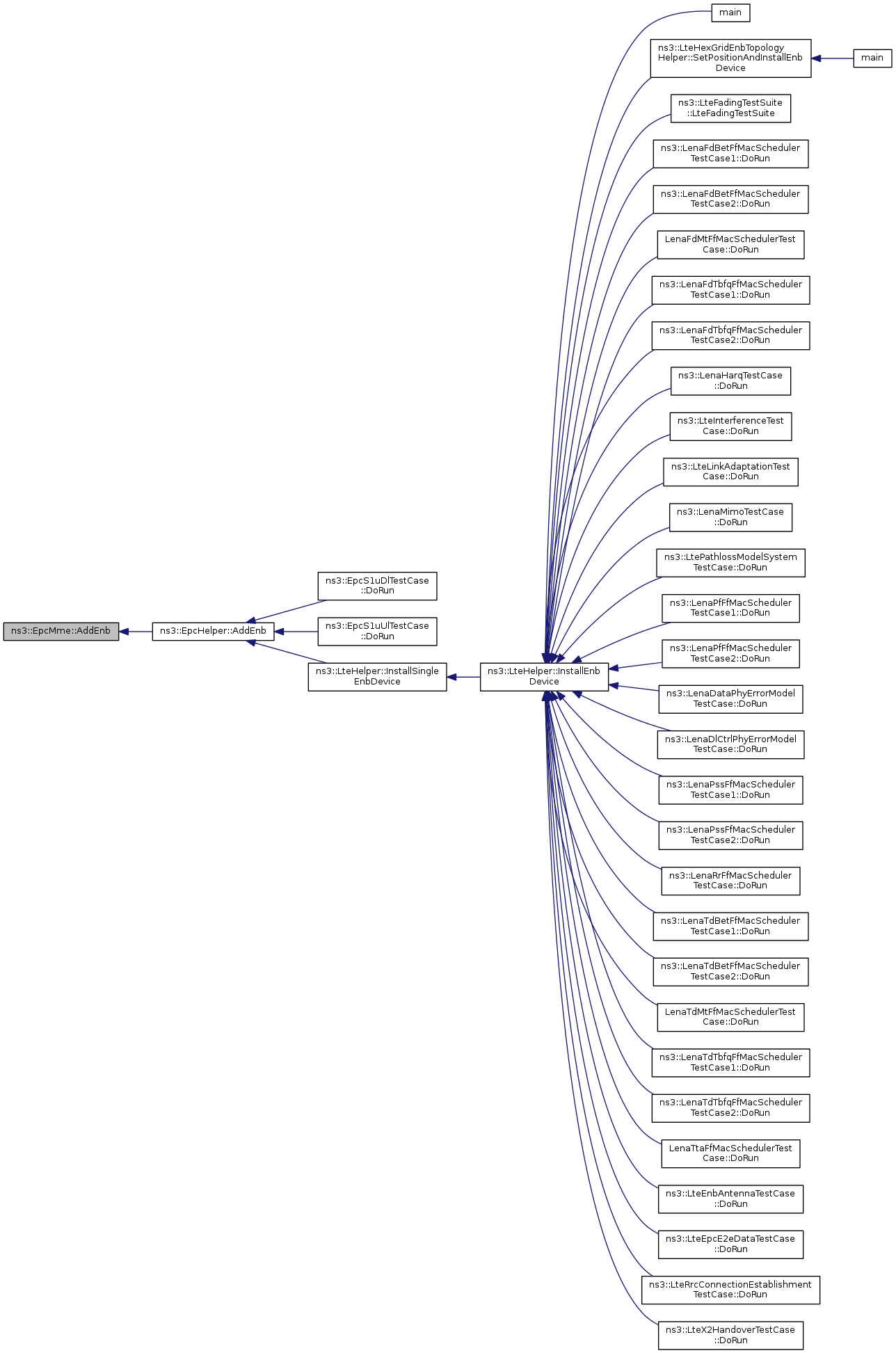

Here is the caller graph for this function:

void ns3::EpcMme::AddUe ( uint64_t imsi )

Add a new UE to the MME. This is the equivalent of storing the UE credentials before the UE is ever turned on.

Parameters

imsi	the unique identifier of the UE

Definition at line 100 of file epc-mme.cc.

References ns3::EpcMme::UeInfo::bearerCounter, ns3::EpcMme::UeInfo::imsi, m_ueInfoMap, ns3::EpcMme::UeInfo::mmeUeS1Id, and NS_LOG_FUNCTION.

Referenced by ns3::EpcHelper::AddUe().

Here is the caller graph for this function:

void ns3::EpcMme::DoCreateSessionResponse ( EpcS11SapMme::CreateSessionResponseMessage msg )

private

Definition at line 180 of file epc-mme.cc.

References ns3::EpcS11SapMme::CreateSessionResponseMessage::bearerContextsCreated, ns3::EpcS1apSapEnb::ErabToBeSetupItem::erabId, ns3::EpcS1apSapEnb::ErabToBeSetupItem::erabLevelQosParameters, m_enbInfoMap, m_ueInfoMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::EpcS1apSapEnb::ErabToBeSetupItem::sgwTeid, and ns3::EpcS1apSapEnb::ErabToBeSetupItem::transportLayerAddress.

void ns3::EpcMme::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 53 of file epc-mme.cc.

References m_s11SapMme, m_s1apSapMme, and NS_LOG_FUNCTION.

void ns3::EpcMme::DoInitialContextSetupResponse	(	uint64_t	mmeUeS1Id,
		uint16_t	enbUeS1Id,
		std::list< EpcS1apSapMme::ErabSetupItem >	erabSetupList
	)

private

Definition at line 151 of file epc-mme.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

void ns3::EpcMme::DoInitialUeMessage	(	uint64_t	mmeUeS1Id,
		uint16_t	enbUeS1Id,
		uint64_t	imsi,
		uint16_t	ecgi
	)

private

Definition at line 128 of file epc-mme.cc.

References ns3::EpcS11SapSgw::CreateSessionRequestMessage::bearerContextsToBeCreated, ns3::EpcS11SapSgw::BearerContextToBeCreated::bearerLevelQos, ns3::EpcS11SapSgw::CreateSessionRequest(), ns3::EpcS11SapSgw::BearerContextToBeCreated::epsBearerId, ns3::EpcS11SapSgw::CreateSessionRequestMessage::imsi, m_s11SapSgw, m_ueInfoMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::EpcS11SapSgw::BearerContextToBeCreated::tft.

Here is the call graph for this function:

void ns3::EpcMme::DoModifyBearerResponse ( EpcS11SapMme::ModifyBearerResponseMessage msg )

private

Definition at line 208 of file epc-mme.cc.

References ns3::EpcS11SapMme::ModifyBearerResponseMessage::cause, m_enbInfoMap, m_ueInfoMap, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::EpcS11SapMme::ModifyBearerResponseMessage::REQUEST_ACCEPTED.

void ns3::EpcMme::DoPathSwitchRequest	(	uint64_t	enbUeS1Id,
		uint64_t	mmeUeS1Id,
		uint16_t	cgi,
		std::list< EpcS1apSapMme::ErabSwitchedInDownlinkItem >	erabToBeSwitchedInDownlinkList
	)
