#include <epc-ue-nas.h>

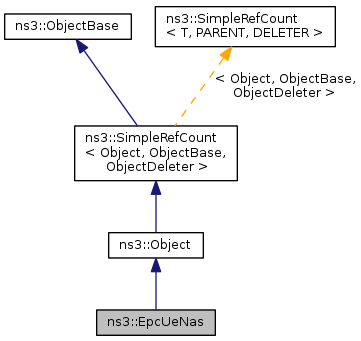

Inheritance diagram for ns3::EpcUeNas:

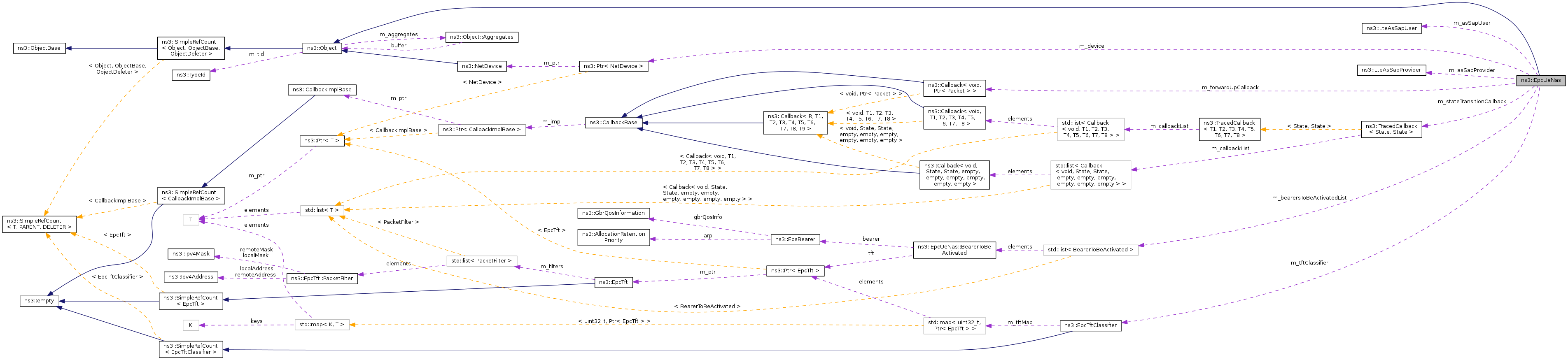

Collaboration diagram for ns3::EpcUeNas:

Classes
struct	BearerToBeActivated

Public Types
enum	State { OFF = 0, ATTACHING, IDLE_REGISTERED, CONNECTING_TO_EPC, ACTIVE, NUM_STATES }

Public Member Functions
	EpcUeNas ()
virtual	~EpcUeNas ()
void	ActivateEpsBearer (EpsBearer bearer, Ptr< EpcTft > tft)
void	Connect (uint16_t cellId, uint16_t earfcn)
void	Disconnect ()
virtual void	DoDispose (void)
LteAsSapUser *	GetAsSapUser ()
bool	Send (Ptr< Packet > p)
void	SetAsSapProvider (LteAsSapProvider *s)
void	SetDevice (Ptr< NetDevice > dev)
void	SetForwardUpCallback (Callback< void, Ptr< Packet > > cb)
void	SetImsi (uint64_t imsi)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
void	DoActivateEpsBearer (EpsBearer bearer, Ptr< EpcTft > tft)
void	DoNotifyConnectionFailed ()
void	DoNotifyConnectionReleased ()
void	DoNotifyConnectionSuccessful ()
void	DoRecvData (Ptr< Packet > packet)
void	SwitchToState (State s)

Private Attributes
LteAsSapProvider *	m_asSapProvider
LteAsSapUser *	m_asSapUser
std::list< BearerToBeActivated >	m_bearersToBeActivatedList
uint8_t	m_bidCounter
Ptr< NetDevice >	m_device
Callback< void, Ptr< Packet > >	m_forwardUpCallback
uint64_t	m_imsi
State	m_state
TracedCallback< State, State >	m_stateTransitionCallback
EpcTftClassifier	m_tftClassifier

Friends
class	MemberLteAsSapUser< EpcUeNas >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.

TraceSources

StateTransition: fired upon every UE NAS state transition

Definition at line 34 of file epc-ue-nas.h.

Member Enumeration Documentation

enum ns3::EpcUeNas::State

Definition of NAS states as per "LTE - From theory to practice", Section 3.2.3.2 "Connection Establishment and Release"

Enumerator:

OFF
ATTACHING
IDLE_REGISTERED
CONNECTING_TO_EPC
ACTIVE
NUM_STATES

Definition at line 128 of file epc-ue-nas.h.

Constructor & Destructor Documentation

ns3::EpcUeNas::EpcUeNas ( )

Constructor

Definition at line 57 of file epc-ue-nas.cc.

References m_asSapUser, and NS_LOG_FUNCTION.

ns3::EpcUeNas::~EpcUeNas ( )

virtual

Destructor

Definition at line 67 of file epc-ue-nas.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcUeNas::ActivateEpsBearer	(	EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

Activate an EPS bearer

Parameters

bearer	the characteristics of the bearer to be created
tft	the TFT identifying the traffic that will go on this bearer

Definition at line 146 of file epc-ue-nas.cc.

References ACTIVE, ns3::EpcUeNas::BearerToBeActivated::bearer, m_bearersToBeActivatedList, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::EpcUeNas::BearerToBeActivated::tft.

void ns3::EpcUeNas::Connect	(	uint16_t	cellId,
		uint16_t	earfcn
	)

instruct the NAS to go to ACTIVE state, i.e., EMM Registered + ECM Connected Since RRC Idle Mode cell selection is not supported yet, we force the UE RRC to be camped on a specific eNB.

Parameters

cellId	the id of the eNB to camp on
earfcn	the DL frequency of the eNB

Definition at line 123 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Connect(), ns3::LteAsSapProvider::ForceCampedOnEnb(), m_asSapProvider, and NS_LOG_FUNCTION.

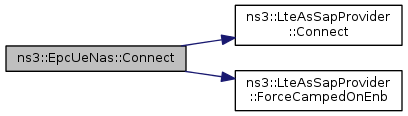

Here is the call graph for this function:

void ns3::EpcUeNas::Disconnect ( )

instruct the NAS to disconnect

Definition at line 137 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Disconnect(), m_asSapProvider, NS_LOG_FUNCTION, OFF, and SwitchToState().

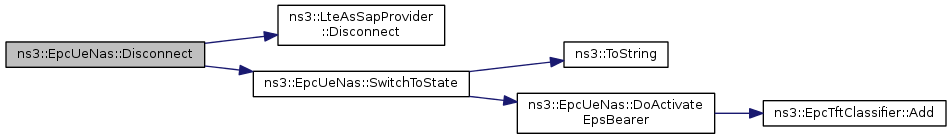

Here is the call graph for this function:

void ns3::EpcUeNas::DoActivateEpsBearer	(	EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

private

Definition at line 224 of file epc-ue-nas.cc.

References ns3::EpcTftClassifier::Add(), m_bidCounter, m_tftClassifier, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by SwitchToState().

Here is the call graph for this function:

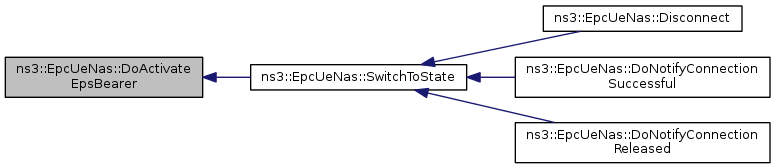

Here is the caller graph for this function:

void ns3::EpcUeNas::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 73 of file epc-ue-nas.cc.

References m_asSapUser, and NS_LOG_FUNCTION.

void ns3::EpcUeNas::DoNotifyConnectionFailed ( )

private

Definition at line 204 of file epc-ue-nas.cc.

References NS_FATAL_ERROR.

void ns3::EpcUeNas::DoNotifyConnectionReleased ( )

private

Definition at line 217 of file epc-ue-nas.cc.

References NS_LOG_FUNCTION, OFF, and SwitchToState().
