ns3::FfMacCschedSapUser Class Reference

#include <ff-mac-csched-sap.h>

Inheritance diagram for ns3::FfMacCschedSapUser:

Classes
struct	CschedCellConfigCnfParameters
struct	CschedCellConfigUpdateIndParameters
struct	CschedLcConfigCnfParameters
struct	CschedLcReleaseCnfParameters
struct	CschedUeConfigCnfParameters
struct	CschedUeConfigUpdateIndParameters
struct	CschedUeReleaseCnfParameters

Public Member Functions
virtual	~FfMacCschedSapUser ()
virtual void	CschedCellConfigCnf (const struct CschedCellConfigCnfParameters &params)=0
virtual void	CschedCellConfigUpdateInd (const struct CschedCellConfigUpdateIndParameters &params)=0
virtual void	CschedLcConfigCnf (const struct CschedLcConfigCnfParameters &params)=0
virtual void	CschedLcReleaseCnf (const struct CschedLcReleaseCnfParameters &params)=0
virtual void	CschedUeConfigCnf (const struct CschedUeConfigCnfParameters &params)=0
virtual void	CschedUeConfigUpdateInd (const struct CschedUeConfigUpdateIndParameters &params)=0
virtual void	CschedUeReleaseCnf (const struct CschedUeReleaseCnfParameters &params)=0

Detailed Description

Definition at line 253 of file ff-mac-csched-sap.h.

Constructor & Destructor Documentation

ns3::FfMacCschedSapUser::~FfMacCschedSapUser ( )

virtual

Definition at line 29 of file ff-mac-csched-sap.cc.

Member Function Documentation

virtual void ns3::FfMacCschedSapUser::CschedCellConfigCnf ( const struct CschedCellConfigCnfParameters &  params )

pure virtual

Implemented in ns3::EnbMacMemberFfMacCschedSapUser.

virtual void ns3::FfMacCschedSapUser::CschedCellConfigUpdateInd ( const struct CschedCellConfigUpdateIndParameters &  params )

pure virtual

Implemented in ns3::EnbMacMemberFfMacCschedSapUser.

virtual void ns3::FfMacCschedSapUser::CschedLcConfigCnf ( const struct CschedLcConfigCnfParameters &  params )

pure virtual

Implemented in ns3::EnbMacMemberFfMacCschedSapUser.

virtual void ns3::FfMacCschedSapUser::CschedLcReleaseCnf ( const struct CschedLcReleaseCnfParameters &  params )

pure virtual

Implemented in ns3::EnbMacMemberFfMacCschedSapUser.

virtual void ns3::FfMacCschedSapUser::CschedUeConfigCnf ( const struct CschedUeConfigCnfParameters &  params )

pure virtual

Implemented in ns3::EnbMacMemberFfMacCschedSapUser.

Referenced by ns3::RrFfMacScheduler::DoCschedCellConfigReq(), ns3::TdMtFfMacScheduler::DoCschedCellConfigReq(), ns3::TtaFfMacScheduler::DoCschedCellConfigReq(), ns3::FdMtFfMacScheduler::DoCschedCellConfigReq(), ns3::PfFfMacScheduler::DoCschedCellConfigReq(), ns3::FdBetFfMacScheduler::DoCschedCellConfigReq(), ns3::TdBetFfMacScheduler::DoCschedCellConfigReq(), ns3::TdTbfqFfMacScheduler::DoCschedCellConfigReq(), ns3::FdTbfqFfMacScheduler::DoCschedCellConfigReq(), and ns3::PssFfMacScheduler::DoCschedCellConfigReq().

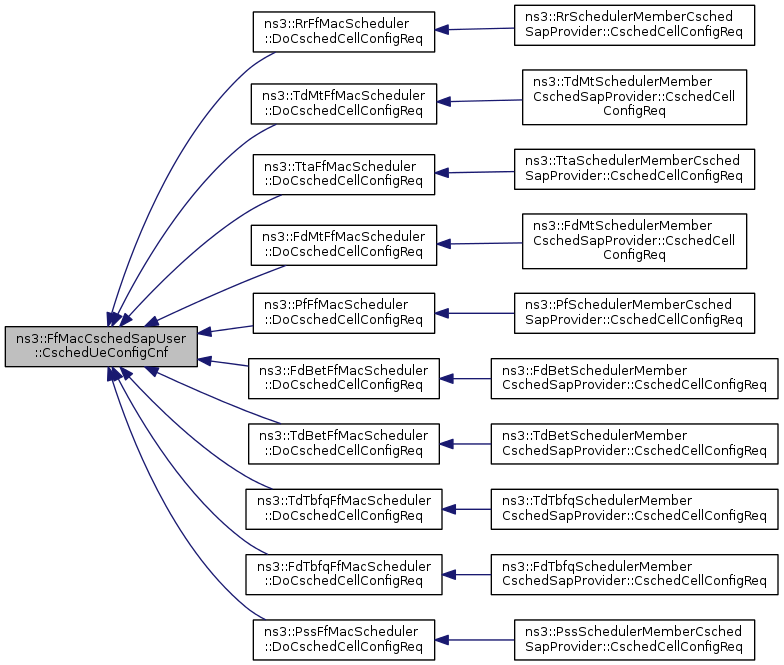

Here is the caller graph for this function:

virtual void ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd ( const struct CschedUeConfigUpdateIndParameters &  params )

pure virtual

Implemented in ns3::EnbMacMemberFfMacCschedSapUser.

Referenced by ns3::RrFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::TdMtFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::TtaFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::FdMtFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::PfFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::FdBetFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::TdBetFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::TdTbfqFfMacScheduler::TransmissionModeConfigurationUpdate(), ns3::FdTbfqFfMacScheduler::TransmissionModeConfigurationUpdate(), and ns3::PssFfMacScheduler::TransmissionModeConfigurationUpdate().

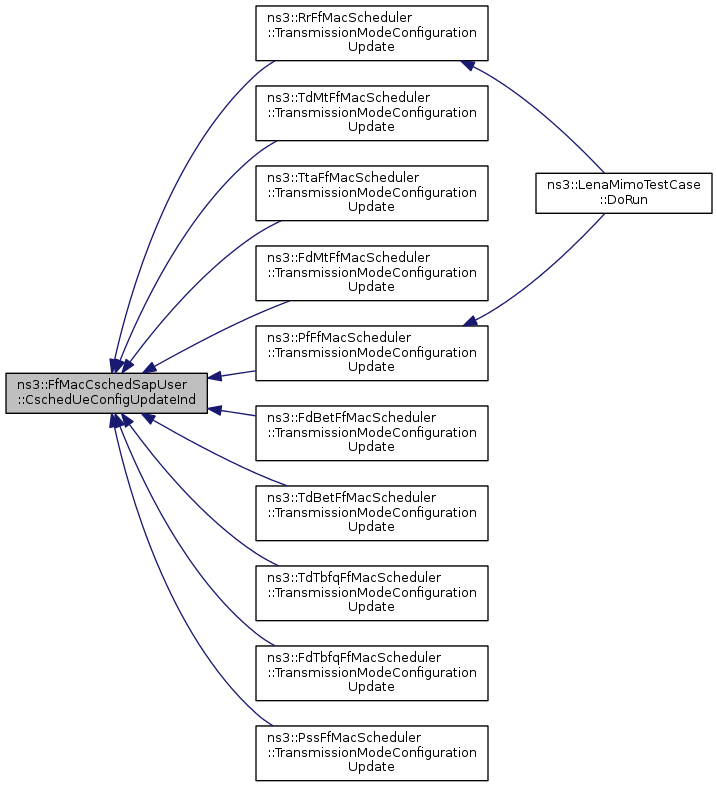

Here is the caller graph for this function:

virtual void ns3::FfMacCschedSapUser::CschedUeReleaseCnf ( const struct CschedUeReleaseCnfParameters &  params )

pure virtual

Implemented in ns3::EnbMacMemberFfMacCschedSapUser.

---

The documentation for this class was generated from the following files:

• src/lte/model/ff-mac-csched-sap.h
• src/lte/model/ff-mac-csched-sap.cc
