ns3::FlowProbe Class Reference

#include <flow-probe.h>

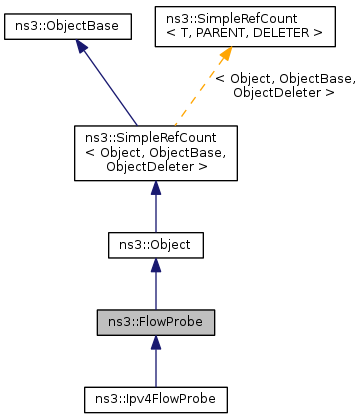

Inheritance diagram for ns3::FlowProbe:

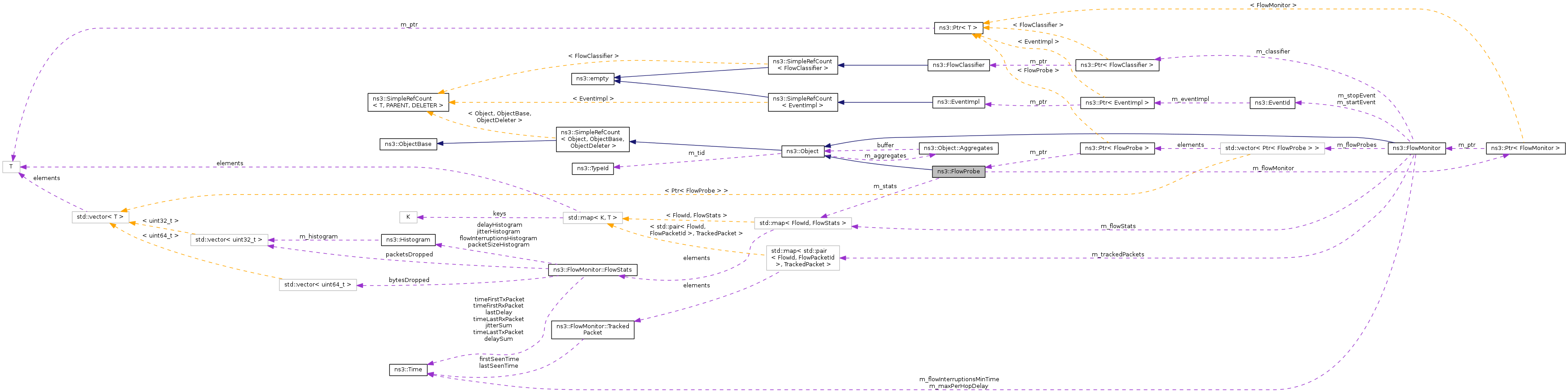

Collaboration diagram for ns3::FlowProbe:

Classes
struct	FlowStats

Public Types
typedef std::map< FlowId, FlowStats >	Stats

Public Member Functions
virtual	~FlowProbe ()
void	AddPacketDropStats (FlowId flowId, uint32_t packetSize, uint32_t reasonCode)
void	AddPacketStats (FlowId flowId, uint32_t packetSize, Time delayFromFirstProbe)
Stats	GetStats () const
void	SerializeToXmlStream (std::ostream &os, int indent, uint32_t index) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Member Functions
	FlowProbe (Ptr< FlowMonitor > flowMonitor)
virtual void	DoDispose (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Protected Attributes
Ptr< FlowMonitor >	m_flowMonitor
Stats	m_stats

Private Member Functions
	FlowProbe (FlowProbe const &)
FlowProbe &	operator= (FlowProbe const &)

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Detailed Description

The FlowProbe class is responsible for listening for packet events in a specific point of the simulated space, report those events to the global FlowMonitor, and collect its own flow statistics regarding only the packets that pass through that probe.

Definition at line 39 of file flow-probe.h.

Member Typedef Documentation

typedef std::map<FlowId, FlowStats> ns3::FlowProbe::Stats

Definition at line 70 of file flow-probe.h.

Constructor & Destructor Documentation

ns3::FlowProbe::FlowProbe ( FlowProbe const &  )

private

ns3::FlowProbe::FlowProbe ( Ptr< FlowMonitor >  flowMonitor )

protected

Definition at line 32 of file flow-probe.cc.

References ns3::FlowMonitor::AddProbe(), and m_flowMonitor.

Here is the call graph for this function:

ns3::FlowProbe::~FlowProbe ( )

virtual

Definition at line 27 of file flow-probe.cc.

Member Function Documentation

void ns3::FlowProbe::AddPacketDropStats	(	FlowId	flowId,
		uint32_t	packetSize,
		uint32_t	reasonCode
	)

Definition at line 55 of file flow-probe.cc.

References ns3::FlowProbe::FlowStats::bytesDropped, m_stats, and ns3::FlowProbe::FlowStats::packetsDropped.

Referenced by ns3::FlowMonitor::ReportDrop().

Here is the caller graph for this function:

void ns3::FlowProbe::AddPacketStats	(	FlowId	flowId,
		uint32_t	packetSize,
		Time	delayFromFirstProbe
	)

Definition at line 46 of file flow-probe.cc.

References ns3::FlowProbe::FlowStats::bytes, ns3::FlowProbe::FlowStats::delayFromFirstProbeSum, m_stats, and ns3::FlowProbe::FlowStats::packets.

Referenced by ns3::FlowMonitor::ReportFirstTx(), ns3::FlowMonitor::ReportForwarding(), and ns3::FlowMonitor::ReportLastRx().

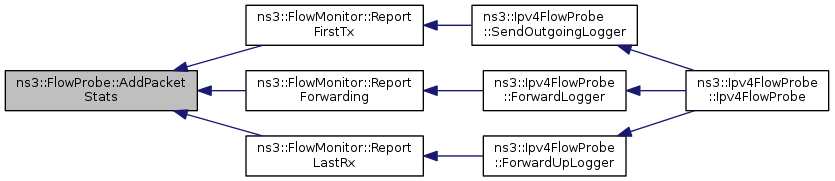

Here is the caller graph for this function:

void ns3::FlowProbe::DoDispose ( void  )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::Ipv4FlowProbe.

Definition at line 39 of file flow-probe.cc.

References m_flowMonitor.

FlowProbe::Stats ns3::FlowProbe::GetStats

(

)

const

Get the partial flow statistics stored in this probe. With this information you can, for example, find out what is the delay from the first probe to this one.

Definition at line 69 of file flow-probe.cc.

References m_stats.

FlowProbe& ns3::FlowProbe::operator= ( FlowProbe const &  )

private

void ns3::FlowProbe::SerializeToXmlStream	(	std::ostream &	os,
		int	indent,
		uint32_t	index
	)		const

Definition at line 75 of file flow-probe.cc.

References INDENT, and m_stats.

Member Data Documentation

Ptr<FlowMonitor> ns3::FlowProbe::m_flowMonitor

protected

Definition at line 83 of file flow-probe.h.

Referenced by DoDispose(), ns3::Ipv4FlowProbe::DropLogger(), FlowProbe(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv4FlowProbe::QueueDropLogger(), and ns3::Ipv4FlowProbe::SendOutgoingLogger().

Stats ns3::FlowProbe::m_stats

protected

Definition at line 84 of file flow-probe.h.

Referenced by AddPacketDropStats(), AddPacketStats(), GetStats(), and SerializeToXmlStream().

---

The documentation for this class was generated from the following files:

• src/flow-monitor/model/flow-probe.h
• src/flow-monitor/model/flow-probe.cc
