ns3::GridBuildingAllocator Class Reference

Allocate buildings on a rectangular 2d grid. More...

#include <building-allocator.h>

+ Inheritance diagram for ns3::GridBuildingAllocator:
+ Collaboration diagram for ns3::GridBuildingAllocator:

Public Member Functions

 GridBuildingAllocator ()
virtual ~GridBuildingAllocator ()
BuildingContainer Create (uint32_t n) const
void SetBuildingAttribute (std::string n, const AttributeValue &v)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

void PushAttributes () const

Private Attributes

ObjectFactory m_buildingFactory
uint32_t m_current
double m_deltaX
double m_deltaY
double m_height
enum
GridPositionAllocator::LayoutType 		m_layoutType
double m_lengthX
double m_lengthY
Ptr< GridPositionAllocator > m_lowerLeftPositionAllocator
uint32_t m_n
Ptr< GridPositionAllocator > m_upperRightPositionAllocator
double m_xMin
double m_yMin

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoInitialize (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Allocate buildings on a rectangular 2d grid.

This class allows to create a set of buildings positioned on a rectangular 2D grid. Under the hood, this class uses two instances of GridPositionAllocator.

Doxygen introspection did not find any typical Config paths.

Attributes

  • GridWidth: The number of objects layed out on a line.
  • MinX: The x coordinate where the grid starts.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • MinY: The y coordinate where the grid starts.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: construct write read
  • LengthX: the length of the wall of each building along the X axis.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • LengthY: the length of the wall of each building along the X axis.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • DeltaX: The x space between buildings.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • DeltaY: The y space between buildings.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • Height: The height of the building (roof level)
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 10
    • Flags: construct write read
  • LayoutType: The type of layout.
    • Set with class: ns3::EnumValue
    • Underlying type: RowFirst|ColumnFirst
    • Initial value: RowFirst
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 44 of file building-allocator.h.

Constructor & Destructor Documentation

ns3::GridBuildingAllocator::GridBuildingAllocator ( )

Definition at line 36 of file building-allocator.cc.

References m_buildingFactory, m_lowerLeftPositionAllocator, m_upperRightPositionAllocator, and ns3::ObjectFactory::SetTypeId().

+ Here is the call graph for this function:

ns3::GridBuildingAllocator::~GridBuildingAllocator ( )
virtual

Definition at line 44 of file building-allocator.cc.

Member Function Documentation

BuildingContainer ns3::GridBuildingAllocator::Create ( uint32_t  n) const

Create a set of buildings allocated on a grid

Parameters
nthe number of buildings to create
Returns
the BuildingContainer that contains the newly created buildings

Definition at line 103 of file building-allocator.cc.

References ns3::BuildingContainer::Add(), ns3::ObjectFactory::Create(), ns3::GridPositionAllocator::GetNext(), m_buildingFactory, m_current, m_height, m_lowerLeftPositionAllocator, m_upperRightPositionAllocator, NS_LOG_FUNCTION, NS_LOG_LOGIC, PushAttributes(), ns3::ObjectFactory::Set(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by FemtocellBlockAllocator::Create().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::GridBuildingAllocator::GetTypeId ( void  )
static

Reimplemented from ns3::Object.

Definition at line 49 of file building-allocator.cc.

References ns3::GridPositionAllocator::COLUMN_FIRST, m_deltaX, m_deltaY, m_height, m_layoutType, m_lengthX, m_lengthY, m_n, m_xMin, m_yMin, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::GridPositionAllocator::ROW_FIRST, and ns3::TypeId::SetParent().

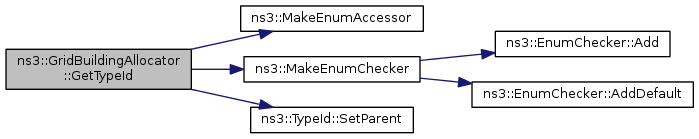

+ Here is the call graph for this function:

void ns3::GridBuildingAllocator::PushAttributes ( ) const
private

Definition at line 124 of file building-allocator.cc.

References m_deltaX, m_deltaY, m_layoutType, m_lengthX, m_lengthY, m_lowerLeftPositionAllocator, m_n, m_upperRightPositionAllocator, m_xMin, m_yMin, NS_LOG_FUNCTION, ns3::GridPositionAllocator::SetDeltaX(), ns3::GridPositionAllocator::SetDeltaY(), ns3::GridPositionAllocator::SetLayoutType(), ns3::GridPositionAllocator::SetMinX(), ns3::GridPositionAllocator::SetMinY(), and ns3::GridPositionAllocator::SetN().

Referenced by Create().

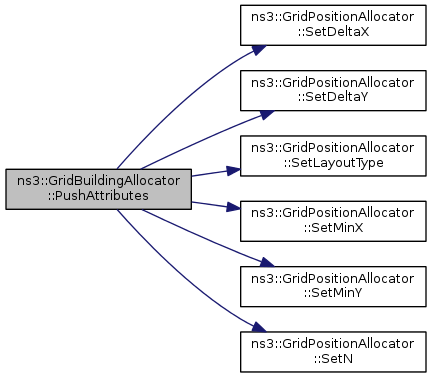

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GridBuildingAllocator::SetBuildingAttribute ( std::string  n,
const AttributeValue &  v
)

Set an attribute to be used for each new building to be created

Parameters
nattribute name
vattribute value

Definition at line 96 of file building-allocator.cc.

References m_buildingFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by FemtocellBlockAllocator::Create().

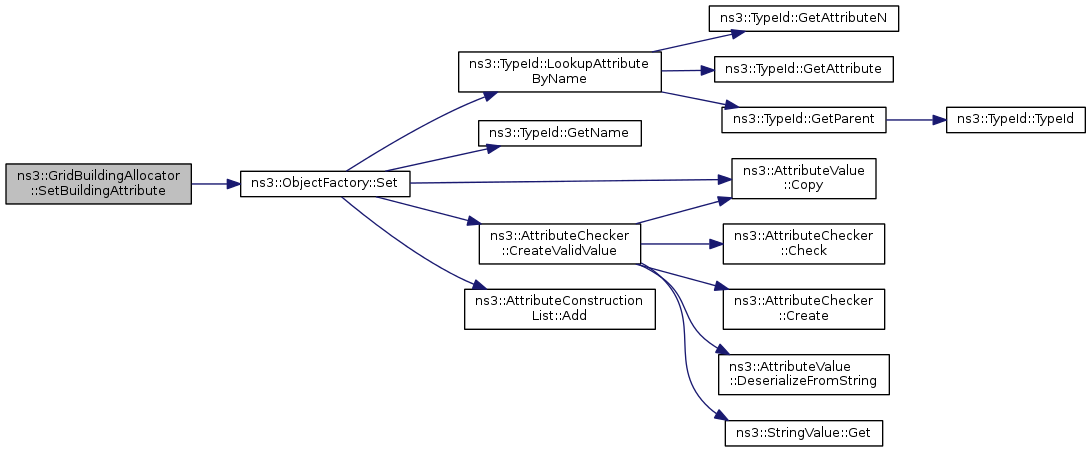

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::GridBuildingAllocator::m_buildingFactory
mutableprivate

Definition at line 84 of file building-allocator.h.

Referenced by Create(), GridBuildingAllocator(), and SetBuildingAttribute().

uint32_t ns3::GridBuildingAllocator::m_current
mutableprivate

Definition at line 73 of file building-allocator.h.

Referenced by Create().

double ns3::GridBuildingAllocator::m_deltaX
private

Definition at line 80 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

double ns3::GridBuildingAllocator::m_deltaY
private

Definition at line 81 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

double ns3::GridBuildingAllocator::m_height
private

Definition at line 82 of file building-allocator.h.

Referenced by Create(), and GetTypeId().

enum GridPositionAllocator::LayoutType ns3::GridBuildingAllocator::m_layoutType
private

Definition at line 74 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

double ns3::GridBuildingAllocator::m_lengthX
private

Definition at line 78 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

double ns3::GridBuildingAllocator::m_lengthY
private

Definition at line 79 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

Ptr<GridPositionAllocator> ns3::GridBuildingAllocator::m_lowerLeftPositionAllocator
private

Definition at line 85 of file building-allocator.h.

Referenced by Create(), GridBuildingAllocator(), and PushAttributes().

uint32_t ns3::GridBuildingAllocator::m_n
private

Definition at line 77 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

Ptr<GridPositionAllocator> ns3::GridBuildingAllocator::m_upperRightPositionAllocator
private

Definition at line 86 of file building-allocator.h.

Referenced by Create(), GridBuildingAllocator(), and PushAttributes().

double ns3::GridBuildingAllocator::m_xMin
private

Definition at line 75 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

double ns3::GridBuildingAllocator::m_yMin
private

Definition at line 76 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

The documentation for this class was generated from the following files:
