ns3::Histogram Class Reference

#include <histogram.h>

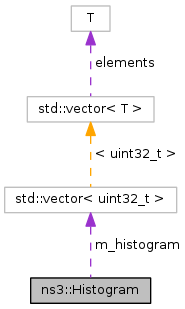

Collaboration diagram for ns3::Histogram:

Public Member Functions
	Histogram (double binWidth)
	Histogram ()
void	AddValue (double value)
uint32_t	GetBinCount (uint32_t index)
double	GetBinEnd (uint32_t index)
double	GetBinStart (uint32_t index)
double	GetBinWidth (uint32_t index) const
uint32_t	GetNBins () const
void	SerializeToXmlStream (std::ostream &os, int indent, std::string elementName) const
void	SetDefaultBinWidth (double binWidth)

Private Attributes
double	m_binWidth
std::vector< uint32_t >	m_histogram

Detailed Description

Definition at line 30 of file histogram.h.

Constructor & Destructor Documentation

ns3::Histogram::Histogram

(

double

binWidth

)

Definition at line 94 of file histogram.cc.

References m_binWidth.

ns3::Histogram::Histogram

(

)

Definition at line 99 of file histogram.cc.

References DEFAULT_BIN_WIDTH, and m_binWidth.

Member Function Documentation

void ns3::Histogram::AddValue

(

double

value

)

Definition at line 80 of file histogram.cc.

References m_binWidth, m_histogram, and NS_LOG_DEBUG.

Referenced by ns3::HistogramTestCase::DoRun(), and ns3::FlowMonitor::ReportLastRx().

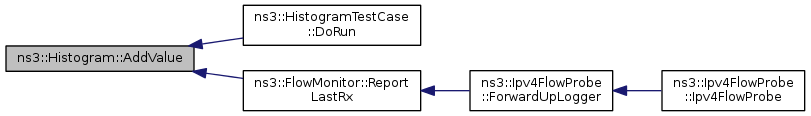

Here is the caller graph for this function:

uint32_t ns3::Histogram::GetBinCount

(

uint32_t

index

)

Definition at line 73 of file histogram.cc.

References m_histogram, and NS_ASSERT.

Referenced by ns3::HistogramTestCase::DoRun().

Here is the caller graph for this function:

double ns3::Histogram::GetBinEnd

(

uint32_t

index

)

Definition at line 54 of file histogram.cc.

References m_binWidth.

double ns3::Histogram::GetBinStart

(

uint32_t

index

)

Definition at line 48 of file histogram.cc.

References m_binWidth.

Referenced by ns3::HistogramTestCase::DoRun().

Here is the caller graph for this function:

double ns3::Histogram::GetBinWidth

(

uint32_t

index

)

const

Definition at line 60 of file histogram.cc.

References m_binWidth.

Referenced by ns3::HistogramTestCase::DoRun().

Here is the caller graph for this function:

uint32_t ns3::Histogram::GetNBins

(

)

const

Definition at line 42 of file histogram.cc.

References m_histogram.

Referenced by ns3::HistogramTestCase::DoRun().

Here is the caller graph for this function:

void ns3::Histogram::SerializeToXmlStream	(	std::ostream &	os,
		int	indent,
		std::string	elementName
	)		const

Definition at line 106 of file histogram.cc.

References INDENT, m_binWidth, and m_histogram.

void ns3::Histogram::SetDefaultBinWidth

(

double

binWidth

)

Definition at line 66 of file histogram.cc.

References m_binWidth, m_histogram, and NS_ASSERT.

Referenced by ns3::FlowMonitor::GetStatsForFlow().

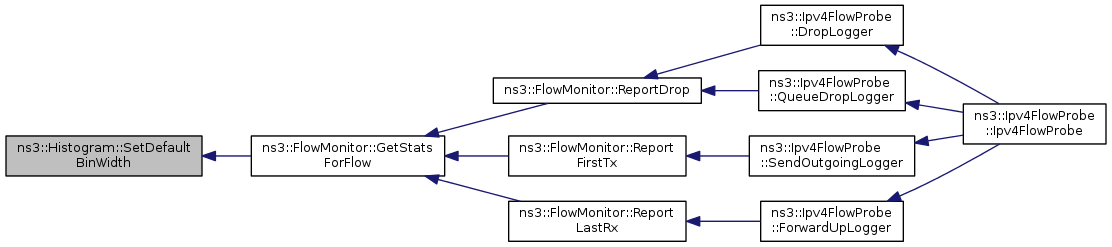

Here is the caller graph for this function:

Member Data Documentation

double ns3::Histogram::m_binWidth

private

Definition at line 57 of file histogram.h.

Referenced by AddValue(), GetBinEnd(), GetBinStart(), GetBinWidth(), Histogram(), SerializeToXmlStream(), and SetDefaultBinWidth().

std::vector<uint32_t> ns3::Histogram::m_histogram

private

Definition at line 56 of file histogram.h.

Referenced by AddValue(), GetBinCount(), GetNBins(), SerializeToXmlStream(), and SetDefaultBinWidth().

---

The documentation for this class was generated from the following files:

• src/flow-monitor/model/histogram.h
• src/flow-monitor/model/histogram.cc
