ns3::Ipv6ExtensionESPHeader Class Reference

Header of IPv6 Extension ESP. More...

#include <ipv6-extension-header.h>

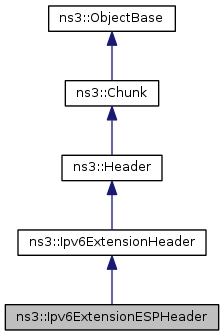

Inheritance diagram for ns3::Ipv6ExtensionESPHeader:

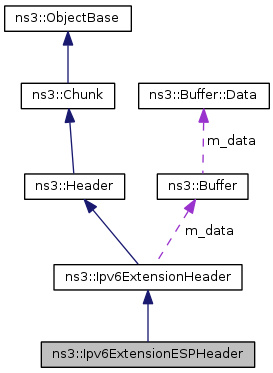

Collaboration diagram for ns3::Ipv6ExtensionESPHeader:

Public Member Functions
	Ipv6ExtensionESPHeader ()
	Constructor.
virtual	~Ipv6ExtensionESPHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor.
virtual	~Ipv6ExtensionHeader ()
	Destructor.
uint16_t	GetLength () const
	Get the length of the extension.
uint8_t	GetNextHeader () const
	Get the next header.
void	SetLength (uint16_t length)
void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Extension ESP.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 622 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionESPHeader::Ipv6ExtensionESPHeader

(

)

Constructor.

Definition at line 606 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionESPHeader::~Ipv6ExtensionESPHeader ( )

virtual

Destructor.

Definition at line 610 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionESPHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 630 of file ipv6-extension-header.cc.

TypeId ns3::Ipv6ExtensionESPHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 601 of file ipv6-extension-header.cc.

References GetTypeId().

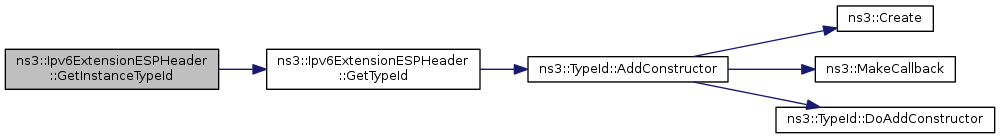

Here is the call graph for this function:

uint32_t ns3::Ipv6ExtensionESPHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 619 of file ipv6-extension-header.cc.

TypeId ns3::Ipv6ExtensionESPHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 592 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

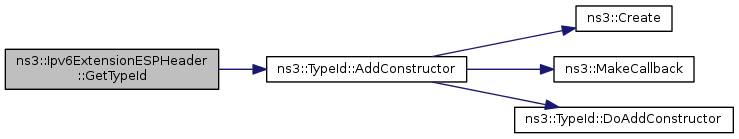

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6ExtensionESPHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 614 of file ipv6-extension-header.cc.

void ns3::Ipv6ExtensionESPHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 625 of file ipv6-extension-header.cc.

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-extension-header.h
• src/internet/model/ipv6-extension-header.cc
